Name: Replacement Outriggers ((V) FROM7A000001)
Rating: 5.0 (1 reviews)

View All

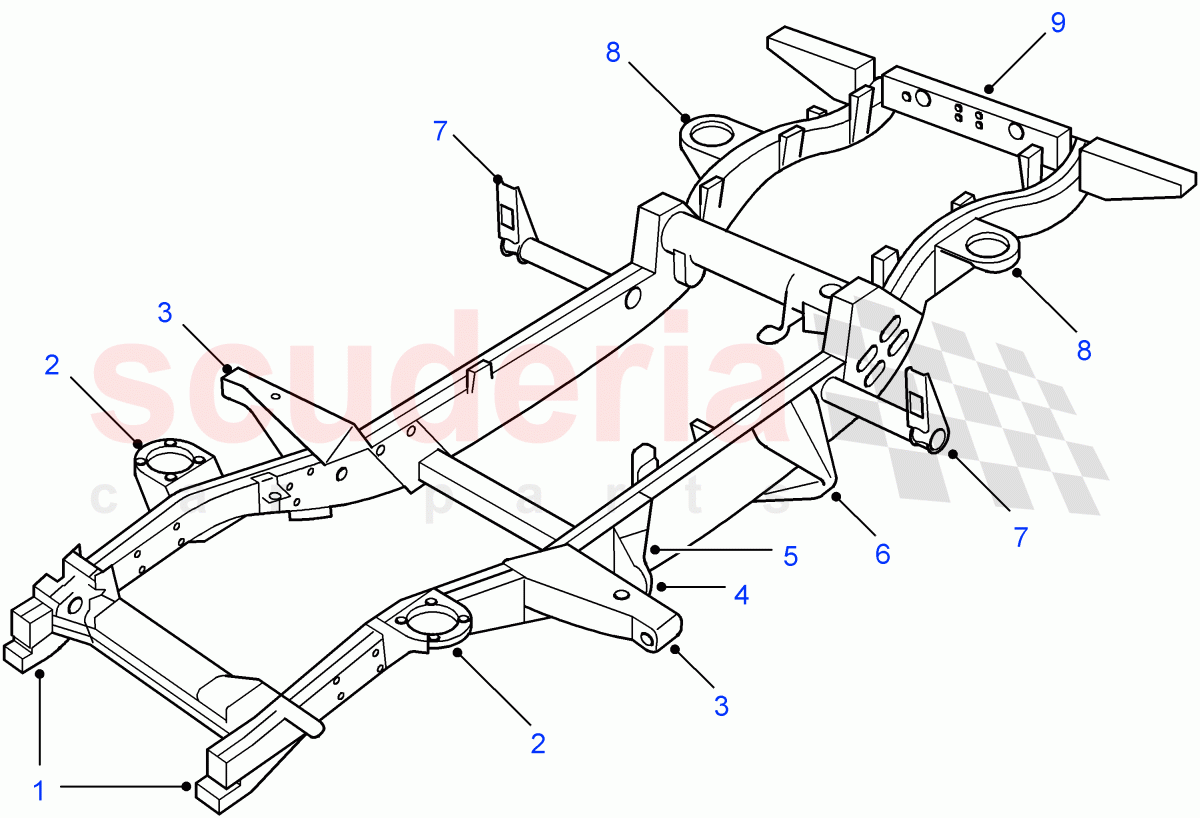

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	KVB000290	BRACKET	$281.08	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	STC8652	KIT - REPAIR	STC8652 KIT - REPAIR RH	$387.29	1
1	STC8653	KIT - REPAIR	STC8653 KIT - REPAIR LH	$387.29	1
2	STC8693	SEAT - SPRING	STC8693 SEAT - SPRING RH	$141.29	1
2	STC8608	SEAT - SPRING	STC8608 SEAT - SPRING LH	$141.29	1
3	STC8354	CROSSMEMBER	STC8354 CROSSMEMBER RH, Front, No1	$536.34	1
3	STC8355	CROSSMEMBER	STC8355 CROSSMEMBER LH, Front, No1	$267.51	1
4	STC8694	BRACKET - TIE BAR	STC8694 BRACKET - TIE BAR LH	$260.90	1
4	STC8695	BRACKET - TIE BAR	STC8695 BRACKET - TIE BAR RH	$148.67	1
5	STC8604	BRACKET - FRONT	STC8604 BRACKET - FRONT RH	$243.63	1
5	STC8605	BRACKET - FRONT	STC8605 BRACKET - FRONT LH	$116.54	1
6	STC8606	BRACKET	STC8606 BRACKET RH	$558.78	1
6	STC8607	BRACKET	STC8607 BRACKET LH	$558.78	1
7	STC8648	CROSSMEMBER	STC8648 CROSSMEMBER 90" Wheelbase / RH	$210.54	1
7	STC8649	CROSSMEMBER	STC8649 CROSSMEMBER 90" Wheelbase / LH	$340.41	1
7	STC8356	CROSSMEMBER	STC8356 CROSSMEMBER 110" Wheelbase / Non handed, Rear	$136.72	2
8	STC8610	SEAT - SPRING	STC8610 SEAT - SPRING 90" Wheelbase / Non handed	$141.95	2
8	STC8609	SEAT - SPRING	STC8609 SEAT - SPRING 110" Wheelbase / Non handed	$361.53	2
9	KVB000290	BRACKET	KVB000290 BRACKET	$281.08	1

Replacement Outriggers ((V) From7A000001)

Land Rover Defender (2007-2016)
