Rear Body Upper (Station Wagon - 5 Door, 110" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear Body Upper (Station Wagon - 5 Door, 110" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ARR710260 PANEL - BODY SIDE - REAR $1,570.93 To Order
ARR710270 PANEL - BODY SIDE - REAR $1,345.96 To Order
ARR710440 PANEL - QUARTER - OUTER $1,433.15 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MXC3676 SEAL - BODY SIDE PANEL $92.95 To Order
MXC3677 SEAL - BODY SIDE PANEL $92.91 To Order
LR053838 SEAL - BODY SIDE PANEL $103.51 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AML710100 SEAL - RUBBER $41.34 To Order
AML710110 SEAL - RUBBER $41.50 To Order
Photo Part No Description Price (each) Stock
LR020354 SEAL $34.47 To Order
LR020355 SEAL $37.63 To Order
LR079818 SEAL $23.39 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR020352 SEAL $10.34 To Order
LR077766 SEAL $12.39 To Order
LR020353 SEAL $9.61 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MXC3684 SEAL $9.35 To Order
MXC3685 SEAL $20.38 To Order
Photo Part No Description Price (each) Stock
LR028971 PAD - RUBBER $0.57 To Order
Photo Part No Description Price (each) Stock
LR028972 PAD - RUBBER $0.71 IN STOCK
View All

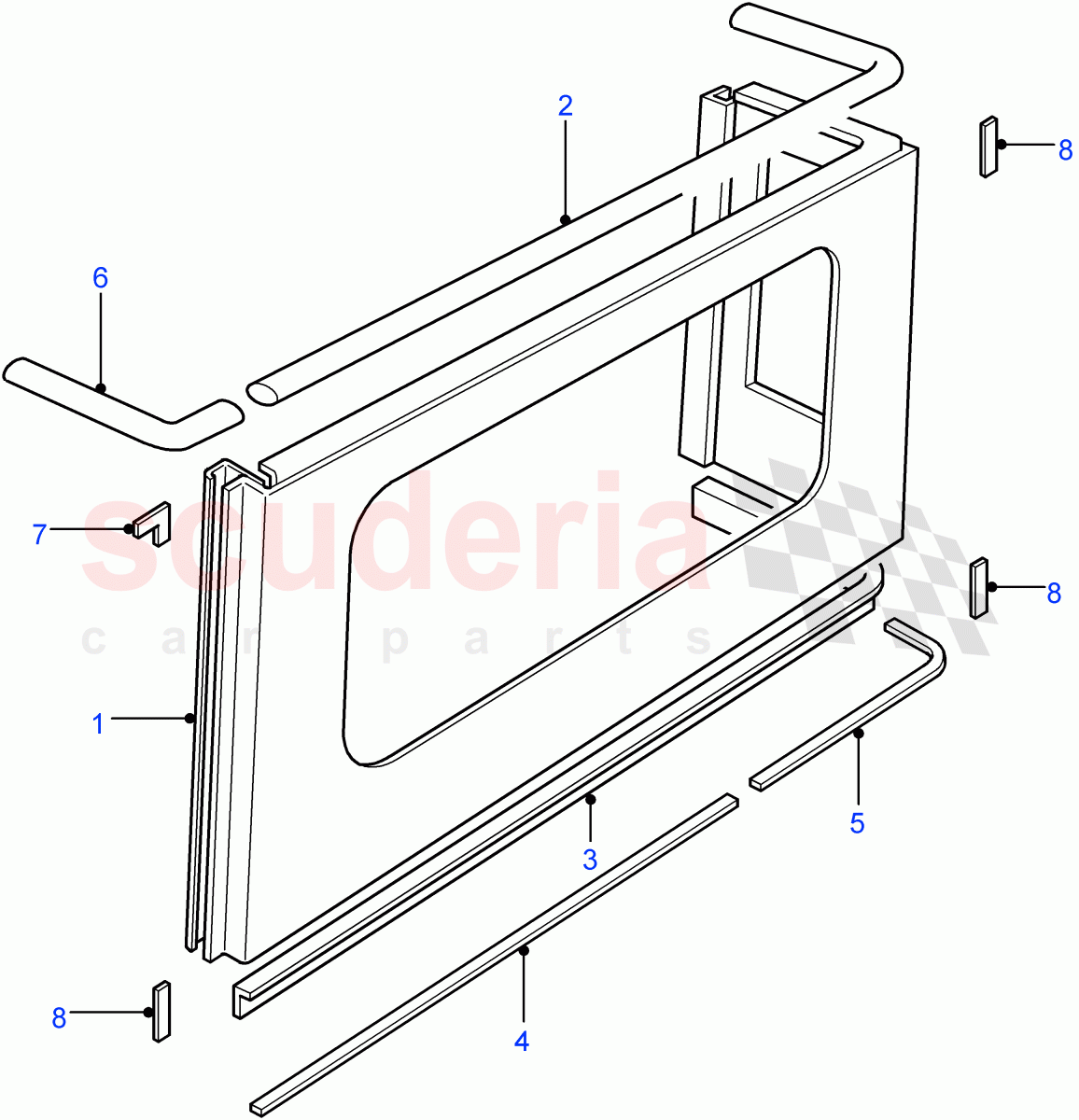

Rear Body Upper (Station Wagon - 5 Door, 110" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ARR710260
PANEL - BODY SIDE - REAR
With Fixed Rear Vent Quarter Window, With Sliding Rear Side Window / RH, Upper 		$1,570.93 1
1 ARR710270
PANEL - BODY SIDE - REAR
With Fixed Rear Vent Quarter Window, With Sliding Rear Side Window / LH, Upper 		$1,345.96 1
1 ARR710440
PANEL - QUARTER - OUTER
Less Rear Side Window / RH, Upper 		$1,433.15 1
1 ARR710450
PANEL - BODY SIDE - REAR
Less Rear Side Window / LH, Upper 		$1,374.30 1
2 MXC3676
SEAL - BODY SIDE PANEL
RH, 1431MM, Cut To Required Length, Upper / To: DA438753 		$92.95 1
2 MXC3677
SEAL - BODY SIDE PANEL
LH, 1431MM, Cut To Required Length, Upper / To: DA438753 		$92.91 1
2 LR053838
SEAL - BODY SIDE PANEL
RH, 1431MM, Cut To Required Length, Upper / From: DA438754 		$103.51 1
2 LR053839
SEAL - BODY SIDE PANEL
LH, 1431MM, Cut To Required Length, Upper / From: DA438754 		$103.51 1
3 AML710100
SEAL - RUBBER
RH, Lower / To: AA792185 		$41.34 1
3 AML710110
SEAL - RUBBER
LH, Lower / To: AA792185 		$41.50 1
4 LR020354
SEAL
RH, Front, Lower / From: AA792186 / To: GA479833 		$34.47 1
4 LR020355
SEAL
LH, Front, Lower / From: AA792186 / To: GA479833 		$37.63 1
4 LR079818
SEAL
RH, Front, Lower / From: GA479834 		$23.39 1
4 LR079822
SEAL
LH, Front, Lower / From: GA479834 		$38.78 1
5 LR020352
SEAL
RH, Lower, REAR CORNER / From: AA792186 / To: FA459407 		$10.34 1
5 LR077766
SEAL
RH, Lower, REAR CORNER / From: FA459408 		$12.39 1
5 LR020353
SEAL
LH, Lower, REAR CORNER / From: AA792186 / To: FA459407 		$9.61 1
5 LR077767
SEAL
LH, Lower, REAR CORNER / From: FA459408 		$12.39 1
6 MXC3684
SEAL
RH, Front, Upper 		$9.35 1
6 MXC3685
SEAL
LH, Front, Upper 		$20.38 1
7 LR028971
PAD - RUBBER
Butyl Seal Pad Preventing Water Leaks 		$0.57 -
8 LR028972
PAD - RUBBER
Butyl Seal Pad Preventing Water Leaks
IN STOCK 		$0.71 -
