Front Door Latch Mechanism ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Front Door Latch Mechanism ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CXB500200PMA HANDLE - DOOR - OUTER $135.51 To Order
CXB500210PMA HANDLE - DOOR - OUTER $132.78 To Order
CXB500220PMA HANDLE - DOOR PULL $138.42 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
STC617 KIT - GASKET $10.33 To Order
Photo Part No Description Price (each) Stock
LR024165 BOLT $2.91 To Order
Photo Part No Description Price (each) Stock
WC105002 WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
FQP000080 LINK $5.38 To Order
FQP000090 LINK $3.87 To Order
Photo Part No Description Price (each) Stock
FQA000010 ADJUSTER $3.35 To Order
Photo Part No Description Price (each) Stock
NH104041L NUT - HEX. $0.59 To Order
Photo Part No Description Price (each) Stock
MRC5525 WASHER $2.01 To Order
Photo Part No Description Price (each) Stock
PS103101L PIN - SPLIT $0.52 To Order
Photo Part No Description Price (each) Stock
BYC500050 CLIP $3.92 To Order
Photo Part No Description Price (each) Stock
FQJ500240 LOCK - FRONT DOOR $192.88 To Order
FQJ500250 LOCK - FRONT DOOR $192.88 To Order
Photo Part No Description Price (each) Stock
BYP500360 SCREW $1.03 To Order
Photo Part No Description Price (each) Stock
MWC1480 LINK - DOOR HANDLE TO DOOR LOCK $8.42 To Order
MWC1481 LINK - DOOR HANDLE TO DOOR LOCK $10.00 To Order
Photo Part No Description Price (each) Stock
BYC500050 CLIP $3.92 To Order
Photo Part No Description Price (each) Stock
DBP5840PMA HANDLE - DOOR PULL $52.27 To Order
DBP5841PMA HANDLE - DOOR PULL $52.27 To Order
Photo Part No Description Price (each) Stock
MUC3394 SCREW $2.29 To Order
Photo Part No Description Price (each) Stock
MWC1950 NUT - LOCKING $1.79 To Order
Photo Part No Description Price (each) Stock
FQP101200 LINK - DOOR HANDLE TO DOOR LOCK $13.01 To Order
FQP101210 LINK - DOOR HANDLE TO DOOR LOCK $13.01 To Order
Photo Part No Description Price (each) Stock
AFU3081 CLIP $0.77 To Order
Photo Part No Description Price (each) Stock
BFP1265L CLIP - LINK $3.20 To Order
Photo Part No Description Price (each) Stock
JRC1775PMA BUTTON $8.73 To Order
Photo Part No Description Price (each) Stock
EJS000011PMA HOUSING $8.54 To Order
Photo Part No Description Price (each) Stock
AB606041L SCREW - SELF TAPPING $1.91 To Order
AB606042 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
WA104002 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
MWC1950 NUT - LOCKING $1.79 To Order
Photo Part No Description Price (each) Stock
FQK101450 LINK - DOOR OUTSIDE HANDLE $1.72 To Order
LR066950 LINK - DOOR OUTSIDE HANDLE $12.12 To Order
Photo Part No Description Price (each) Stock
BFP1265L CLIP - LINK $3.20 To Order
Photo Part No Description Price (each) Stock
MXC8222 GASKET $19.78 To Order
MXC8223 GASKET $3.23 To Order
LR056947 GASKET $14.94 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MXC8224 SEAL $3.23 To Order
MXC8225 SEAL $3.23 To Order
LR056945 SEAL - DOOR LOCK $8.86 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FUD500030 ACTUATOR $67.51 To Order
FUD500020 SWITCH - ALARM $66.87 To Order
Photo Part No Description Price (each) Stock
CWH000010 CLIP - LINK $3.01 To Order
Photo Part No Description Price (each) Stock
FQK500030 LINK $14.45 To Order
FQK500040 LINK $4.11 To Order
Photo Part No Description Price (each) Stock
IPN000020 CLIP - LINK $1.39 To Order
IPN500250 CLIP - LINK $3.27 To Order
Photo Part No Description Price (each) Stock
RYP500770 SCREW $0.63 To Order
View All

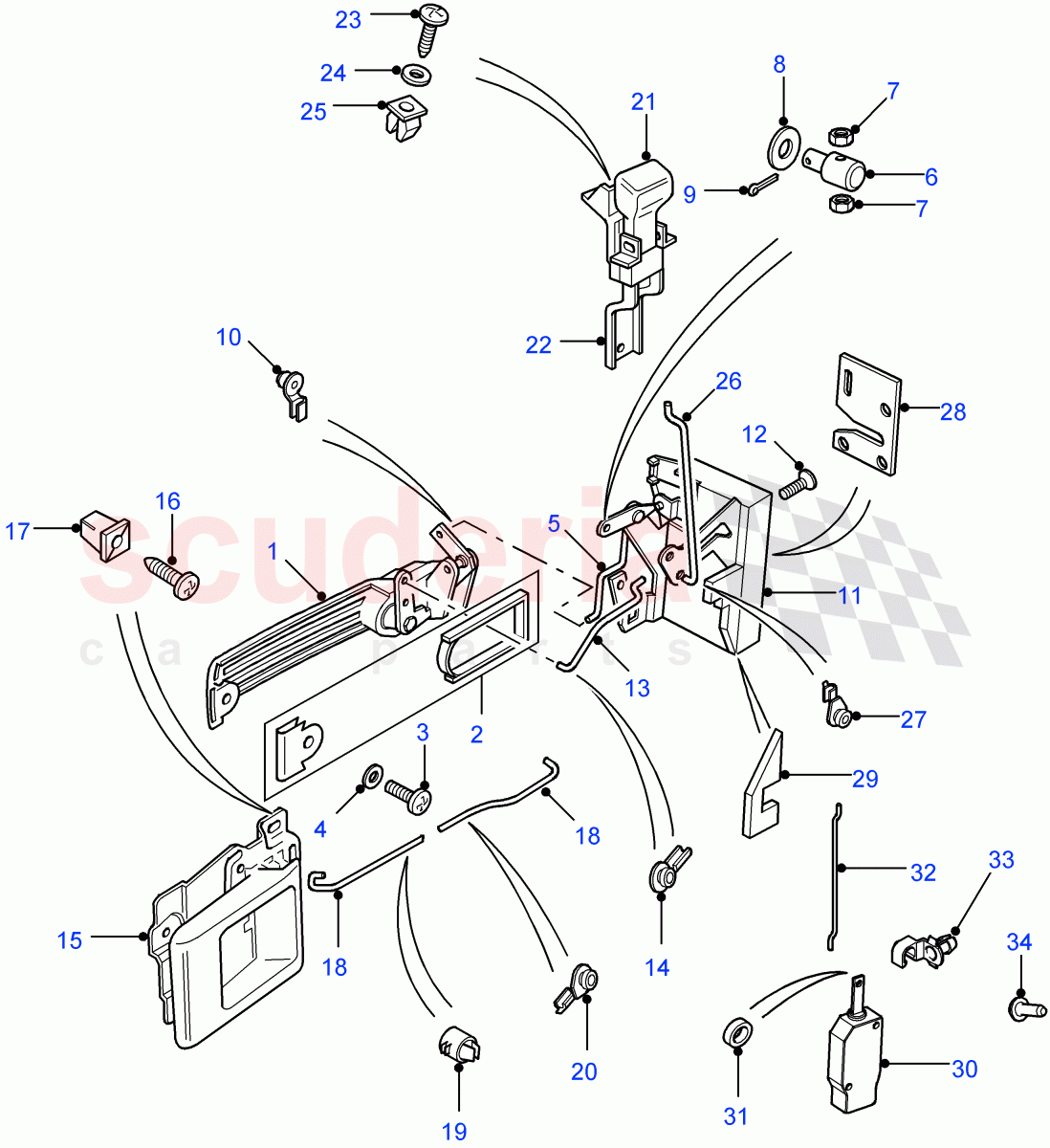

Front Door Latch Mechanism ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CXB500200PMA
HANDLE - DOOR - OUTER
RHD, With Door Entry Remote Control Unit / RH / To: FA458355 		$135.51 1
1 CXB500210PMA
HANDLE - DOOR - OUTER
LHD, With Door Entry Remote Control Unit / LH / To: FA458355 		$132.78 1
1 CXB500220PMA
HANDLE - DOOR PULL
LHD, With Door Entry Remote Control Unit / RH / To: FA458355 		$138.42 1
1 CXB500230PMA
HANDLE - DOOR PULL
RHD, With Door Entry Remote Control Unit / LH / To: FA458355 		$133.21 1
1 LR066528
HANDLE - DOOR - OUTER
RHD, With Door Entry Remote Control Unit / RH / From: FA458356 		$179.67 1
1 LR066530
HANDLE - DOOR - OUTER
LHD, With Door Entry Remote Control Unit / LH / From: FA458356 		$179.67 1
1 LR066529
HANDLE - DOOR - OUTER
LHD, With Door Entry Remote Control Unit / RH / From: FA458356 		$179.67 1
1 LR066531
HANDLE - DOOR - OUTER
RHD, With Door Entry Remote Control Unit / LH / From: FA458356 		$179.67 1
2 STC617
KIT - GASKET 		$10.33 2
3 LR024165
BOLT
gasket kit to handle door outer, M5 		$2.91 4
4 WC105002
WASHER
M5, Plain 		$0.61 4
5 FQP000080
LINK
RH 		$5.38 1
5 FQP000090
LINK
LH 		$3.87 1
6 FQA000010
ADJUSTER 		$3.35 2
7 NH104041L
NUT - HEX.
M4 		$0.59 4
8 MRC5525
WASHER
Standard 		$2.01 2
9 PS103101L
PIN - SPLIT 		$0.52 2
10 BYC500050
CLIP 		$3.92 4
11 FQJ500240
LOCK - FRONT DOOR
RH 		$192.88 1
11 FQJ500250
LOCK - FRONT DOOR
LH 		$192.88 1
12 BYP500360
SCREW
Flanged Head 		$1.03 6
13 MWC1480
LINK - DOOR HANDLE TO DOOR LOCK
RH, external lock 		$8.42 1
13 MWC1481
LINK - DOOR HANDLE TO DOOR LOCK
LH, external lock 		$10.00 1
14 BYC500050
CLIP 		$3.92 2
15 DBP5840PMA
HANDLE - DOOR PULL
RH, Black 		$52.27 1
15 DBP5841PMA
HANDLE - DOOR PULL
LH, Black 		$52.27 1
16 MUC3394
SCREW
No.8 X 19 		$2.29 4
17 MWC1950
NUT - LOCKING 		$1.79 4
18 FQP101200
LINK - DOOR HANDLE TO DOOR LOCK
RH 		$13.01 1
18 FQP101210
LINK - DOOR HANDLE TO DOOR LOCK
LH, Inner Handle 		$13.01 1
19 AFU3081
CLIP 		$0.77 2
20 BFP1265L
CLIP - LINK 		$3.20 2
21 JRC1775PMA
BUTTON
Black 		$8.73 2
22 EJS000011PMA
HOUSING
Black 		$8.54 2
23 AB606041L
SCREW - SELF TAPPING
No 6 x 1/2, Self Tapping, to button sill / To: 7A735841 		$1.91 4
23 AB606042
SCREW
No 6 x 1/2, Self Tapping, to button sill / From: 7A735842 		$0.71 4
24 WA104002
WASHER
M4
IN STOCK 		$0.87 4
25 MWC1950
NUT - LOCKING 		$1.79 4
26 FQK101450
LINK - DOOR OUTSIDE HANDLE
To: EA451816 		$1.72 2
26 LR066950
LINK - DOOR OUTSIDE HANDLE
From: EA451817 		$12.12 2
27 BFP1265L
CLIP - LINK 		$3.20 2
28 MXC8222
GASKET
RH 		$19.78 1
28 MXC8223
GASKET
LH 		$3.23 1
28 LR056947
GASKET
RH 		$14.94 1
28 LR056948
GASKET
LH 		$14.94 1
29 MXC8224
SEAL
RH 		$3.23 1
29 MXC8225
SEAL
LH 		$3.23 1
29 LR056945
SEAL - DOOR LOCK
RH 		$8.86 1
29 LR056946
SEAL - DOOR LOCK
LH 		$8.86 1
30 FUD500030
ACTUATOR
passenger's door 		$67.51 1
30 FUD500020
SWITCH - ALARM
driver's door 		$66.87 1
31 CWH000010
CLIP - LINK 		$3.01 1
32 FQK500030
LINK
Latch to actuator / To: 8A755158 		$14.45 1
32 FQK500040
LINK
Latch to actuator / From: 8A755159 		$4.11 1
33 IPN000020
CLIP - LINK
Latch to actuator / To: 7A748106 		$1.39 1
33 IPN500250
CLIP - LINK
Latch to actuator / From: 7A748107 		$3.27 1
34 RYP500770
SCREW 		$0.63 1
