| Photo | Part No | Description | Price (each) | Stock |
 |
FQB500130 | STRIKER - DOOR LOCKING MECHANISM | $27.23 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
MUC7809 | SPACER | $4.82 | To Order |
|
LR050856 | SPACER | $18.81 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
MWC3148 | SPACER | $22.83 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
BYP500200 | SCREW | $2.13 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
AHR710380 | REINFORCEMENT | $8.14 | To Order |
|
AHR710390 | REINFORCEMENT | $8.14 | To Order |
|
LR016665 | REINFORCEMENT | $11.74 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
MWC1622 | NUT - HEX. | $11.20 | To Order |
|
LR016667 | NUT - HEX. | $13.47 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
MWC1736 | BRACKET - SUPPORT | $29.91 | To Order |
|
MWC1737 | BRACKET - SUPPORT | $38.30 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
 |
SE106161L | SCREW | $1.47 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
MRC9431 | PLATE | $16.95 | To Order |
|
AHR710260 | PLATE | $5.84 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
MUC1049 | STUD | $16.11 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
 |
WA106042 | RESTRICTOR | $2.12 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
 |
FN106046 | NUT - HEX. | $1.47 | IN STOCK |

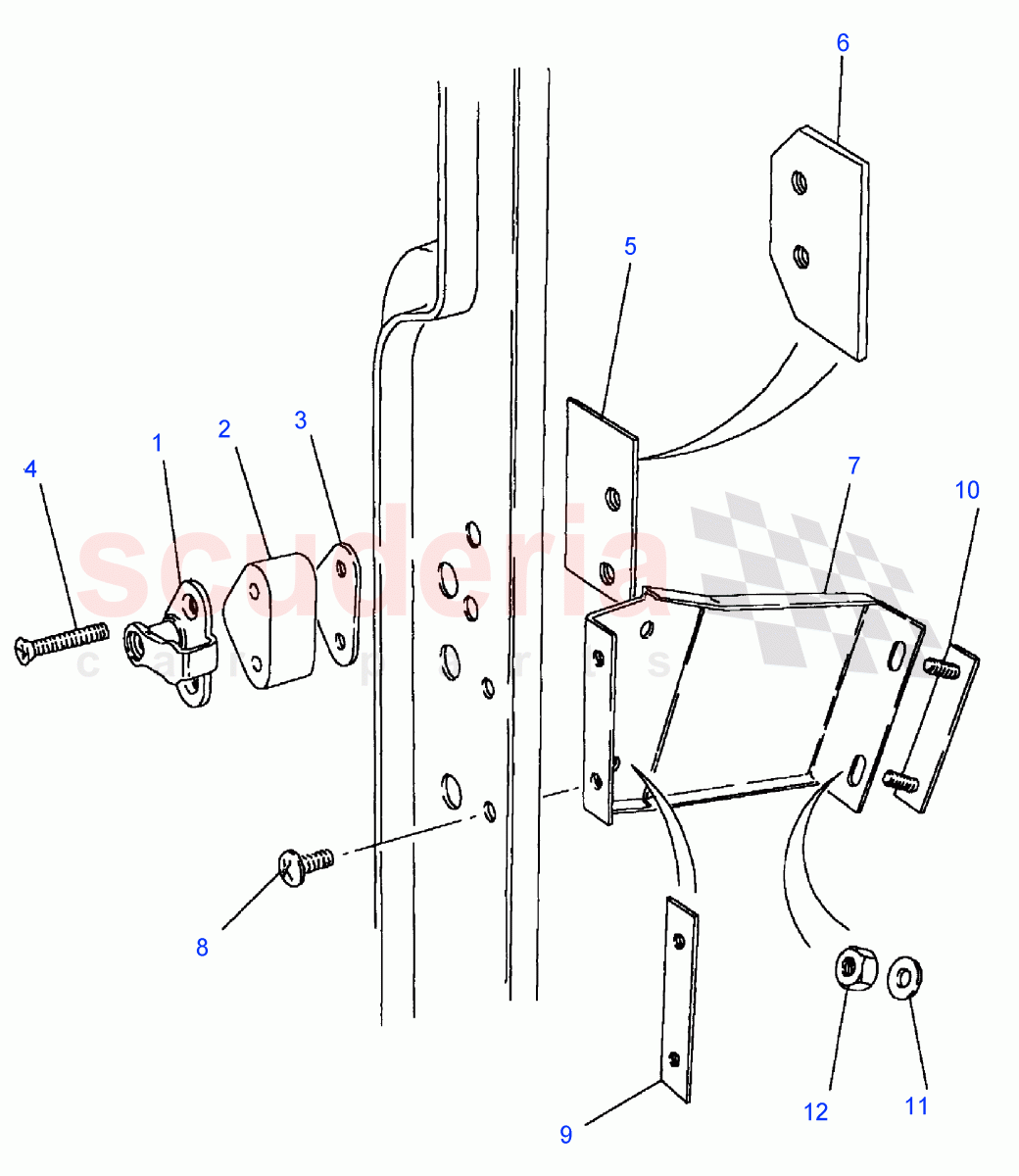

| # | Part Details | Price (each) |
Qty on Diagram |
Add to Cart |
|---|---|---|---|---|
| 1 |
FQB500130 STRIKER - DOOR LOCKING MECHANISM |
$27.23 | 2 | |
| 2 |
MUC7809 SPACER To: DA435243 |
$4.82 | 2 | |
| 2 |
LR050856 SPACER From: DA435244 |
$18.81 | 2 | |
| 3 |
MWC3148 SPACER |
$22.83 | - | |
| 4 |
BYP500200 SCREW counter sunk, dacromat, Torx |
$2.13 | 4 | |
| 5 |
AHR710380 REINFORCEMENT RH / To: 9A888887 |
$8.14 | 1 | |
| 5 |
AHR710390 REINFORCEMENT LH / To: 9A888887 |
$8.14 | 1 | |
| 5 |
LR016665 REINFORCEMENT RH / From: 9A888888 |
$11.74 | 1 | |
| 5 |
LR016666 REINFORCEMENT LH / From: 9A888888 |
$18.69 | 1 | |
| 6 |
MWC1622 NUT - HEX. To: 9A888887 |
$11.20 | 2 | |
| 6 |
LR016667 NUT - HEX. From: 9A888888 |
$13.47 | 2 | |
| 7 |
MWC1736 BRACKET - SUPPORT RH |
$29.91 | 1 | |
| 7 |
MWC1737 BRACKET - SUPPORT LH |
$38.30 | 1 | |
| 8 |
SE106161L SCREW M6 X 16MM, to bracket support |
$1.47 | 4 | |
| 9 |
MRC9431 PLATE To: 7A735841 |
$16.95 | 2 | |
| 9 |
AHR710260 PLATE From: 7A735842 |
$5.84 | 2 | |
| 10 |
MUC1049 STUD |
$16.11 | 2 | |
| 11 |
WA106042 RESTRICTOR 6MM, Plain IN STOCK |
$2.12 | 4 | |
| 12 |
FN106046 NUT - HEX. M6 IN STOCK |
$1.47 | 4 |
