Sill Panels (Chassis Cab, 110" Wheelbase, 90" Wheelbase, High Capacity Pick Up, Hard Top, Pick Up,...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Sill Panels (Chassis Cab, 110" Wheelbase, 90" Wheelbase, High Capacity Pick Up, Hard Top, Pick Up,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RTC6205 MEMBER - SIDE $172.30 To Order
RTC6206 MEMBER - SIDE $172.30 To Order
Photo Part No Description Price (each) Stock
MTC8292 MEMBER - SIDE $70.21 To Order
MTC8293 MEMBER - SIDE $70.21 To Order
337812 MEMBER - SIDE $20.33 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.23 IN STOCK
Photo Part No Description Price (each) Stock
MRC5525 WASHER $2.01 To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.67 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.23 IN STOCK
Photo Part No Description Price (each) Stock
RTC609 WASHER $2.85 To Order
Photo Part No Description Price (each) Stock
WM106001L WASHER - SPRING $0.83 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.23 IN STOCK
Photo Part No Description Price (each) Stock
RTC609 WASHER $2.85 To Order
Photo Part No Description Price (each) Stock
WM106001L WASHER - SPRING $0.83 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.23 IN STOCK
Photo Part No Description Price (each) Stock
RTC609 WASHER $2.85 To Order
Photo Part No Description Price (each) Stock
WM106001L WASHER - SPRING $0.83 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
MRC9438 BRACKET $18.02 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
AFU1069 WASHER $0.84 To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.67 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
AJL710020 BODY $105.92 To Order
AJL710030 BODY $104.82 To Order
LR016691 BODY $95.24 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AYR500130 STUD PLATE $22.91 To Order
Photo Part No Description Price (each) Stock
RTC610 WASHER $1.05 To Order
Photo Part No Description Price (each) Stock
WM600051L WASHER - SPRING $1.01 To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
ASU710130 STAY $11.53 To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.23 IN STOCK
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR $2.12 IN STOCK
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.67 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
ASU710140 STAY $38.44 To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.23 IN STOCK
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR $2.12 IN STOCK
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.67 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
347436 BRACKET $29.91 To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW $2.07 IN STOCK
Photo Part No Description Price (each) Stock
RTC610 WASHER $1.05 To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.67 IN STOCK
Photo Part No Description Price (each) Stock
BYF500030 WASHER $0.47 To Order
VYF500100 WASHER $0.73 To Order
Photo Part No Description Price (each) Stock
NK106082 NUT - FLANGED $1.59 To Order
Photo Part No Description Price (each) Stock
ALR6368 SEAL $11.98 To Order
View All

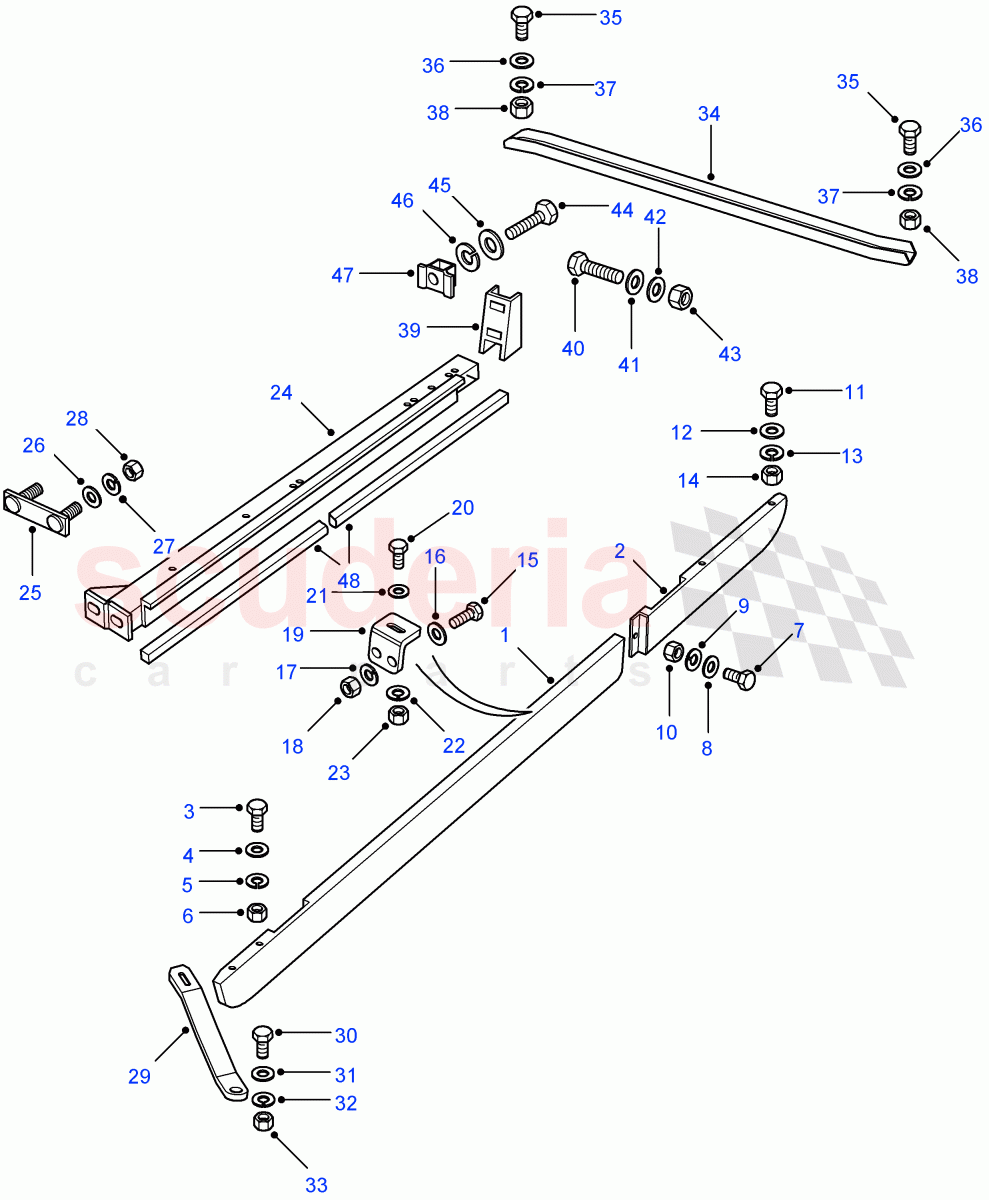

Sill Panels (Chassis Cab, 110" Wheelbase, 90" Wheelbase, High Capacity Pick Up, Hard Top, Pick Up, Soft Top) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 RTC6205
MEMBER - SIDE
RH, Front 		$172.30 1
1 RTC6206
MEMBER - SIDE
LH, Front 		$172.30 1
2 MTC8292
MEMBER - SIDE
90" Wheelbase / RH, Rear 		$70.21 1
2 MTC8293
MEMBER - SIDE
90" Wheelbase / LH, Rear 		$70.21 1
2 337812
MEMBER - SIDE
110" Wheelbase, High Capacity Pick Up / RH, Rear 		$20.33 1
2 337813
MEMBER - SIDE
110" Wheelbase, High Capacity Pick Up / LH, Rear 		$22.00 1
2 MRC5049
MEMBER - SIDE
110" Wheelbase, Hard Top / RH, Rear 		$22.82 1
2 MRC5050
MEMBER - SIDE
110" Wheelbase, Hard Top / LH, Rear 		$30.67 1
3 FS106167L
SCREW
Flanged Head, M6 X 16MM, sill panel to outer wing
IN STOCK 		$2.23 4
4 MRC5525
WASHER
sill panel to outer wing, Standard 		$2.01 8
5 WL106002
RESTRICTOR
M6, sill panel to outer wing, sprung
IN STOCK 		$1.67 4
6 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc, sill panel to outer wing
IN STOCK 		$0.68 4
7 FS106167L
SCREW
Flanged Head, front to rear sill panel, M6 X 16MM
IN STOCK 		$2.23 2
8 RTC609
WASHER
front to rear sill panel, Standard 		$2.85 4
9 WM106001L
WASHER - SPRING
front to rear sill panel, M6, Square
IN STOCK 		$0.83 2
10 FY106046
NUT - HEX.
front to rear sill panel, Hexagonal Head, M6, nyloc
IN STOCK 		$0.68 2
11 FS106167L
SCREW
Flanged Head, M6 X 16MM, to sill panel rear
IN STOCK 		$2.23 14
12 RTC609
WASHER
Standard, to sill panel rear 		$2.85 12
13 WM106001L
WASHER - SPRING
M6, Square, to sill panel rear
IN STOCK 		$0.83 6
14 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc, to sill panel rear
IN STOCK 		$0.68 14
15 FS106167L
SCREW
Flanged Head, M6 X 16MM, sill panel to channel bracket
IN STOCK 		$2.23 4
16 RTC609
WASHER
sill panel to channel bracket, Standard 		$2.85 8
17 WM106001L
WASHER - SPRING
M6, sill panel to channel bracket, Square
IN STOCK 		$0.83 4
18 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc, sill panel to channel bracket
IN STOCK 		$0.68 4
19 MRC9438
BRACKET 		$18.02 4
20 FS106206
SCREW
bracket to sill channel, Flanged Head, M6 X 20MM
IN STOCK 		$0.96 4
21 AFU1069
WASHER
bracket to sill channel 		$0.84 8
22 WL106002
RESTRICTOR
bracket to sill channel, M6, sprung
IN STOCK 		$1.67 4
23 FY106046
NUT - HEX.
bracket to sill channel, Hexagonal Head, M6, nyloc
IN STOCK 		$0.68 4
24 AJL710020
BODY
RH / To: 9A888887 		$105.92 1
24 AJL710030
BODY
LH / To: 9A888887 		$104.82 1
24 LR016691
BODY
RH / From: 9A888888 / To: AA792700 		$95.24 1
24 LR016763
BODY
LH / From: 9A888888 / To: AA792700 		$103.80 1
24 LR023157
BODY
RH / From: AA792701 		$69.93 1
24 LR023164
BODY
LH / From: AA792701 		$80.19 1
25 AYR500130
STUD PLATE 		$22.91 2
26 RTC610
WASHER 		$1.05 4
27 WM600051L
WASHER - SPRING
5/16" 		$1.01 4
28 FN108046
NUT - HEX.
flange, M8 		$1.97 4
29 ASU710130
STAY
Front 		$11.53 2
30 FS106167L
SCREW
Flanged Head, M6 X 16MM, to front stay
IN STOCK 		$2.23 4
31 WA106042
RESTRICTOR
6MM, Plain
IN STOCK 		$2.12 4
32 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.67 4
33 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc
IN STOCK 		$0.68 4
34 ASU710140
STAY
110" Wheelbase, Hard Top / Centre 		$38.44 2
35 FS106167L
SCREW
110" Wheelbase, Hard Top / Flanged Head, M6 X 16MM, to centre stay
IN STOCK 		$2.23 4
36 WA106042
RESTRICTOR
110" Wheelbase, Hard Top / 6MM, Plain, to centre stay
IN STOCK 		$2.12 4
37 WL106002
RESTRICTOR
110" Wheelbase, Hard Top / M6, sprung, to centre stay
IN STOCK 		$1.67 4
38 FY106046
NUT - HEX.
110" Wheelbase, Hard Top / Hexagonal Head, M6, nyloc, to centre stay
IN STOCK 		$0.68 4
39 347436
BRACKET 		$29.91 2
40 FS108207L
SCREW
Flanged Head, M8 X 20MM, to bracket mounting
IN STOCK 		$2.07 4
41 RTC610
WASHER 		$1.05 8
42 WA108056
WASHER
M8, sprung
IN STOCK 		$0.87 4
43 FN108046
NUT - HEX.
flange, M8 		$1.97 4
44 FS106206
SCREW
Flanged Head, M6 X 20MM, to bracket mounting
IN STOCK 		$0.96 4
45 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.67 4
46 BYF500030
WASHER
Plain / To: 7A751598 		$0.47 4
46 VYF500100
WASHER
Plain / From: 7A751599 		$0.73 4
47 NK106082
NUT - FLANGED 		$1.59 4
48 ALR6368
SEAL
90" Wheelbase, Hard Top / sill/floor 		$11.98 2
