Wheelarch And Eyebrow ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Wheelarch And Eyebrow ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AWJ710430 WHEELARCH $428.00 To Order
AWJ710460 WHEELARCH $429.21 To Order
AWJ710420 WHEELARCH $243.68 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AB614061L SCREW $2.46 To Order
Photo Part No Description Price (each) Stock
AFU1069 WASHER $0.84 To Order
Photo Part No Description Price (each) Stock
CZA4705L NUT - LOCKING $2.43 IN STOCK
Photo Part No Description Price (each) Stock
ASU710110 BRACKET - FENDER MOUNTING $9.19 To Order
ASU710100 BRACKET - FENDER MOUNTING $11.32 To Order
LR018582 BRACKET - FENDER MOUNTING $114.82 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
WA106047L WASHER $0.59 To Order
Photo Part No Description Price (each) Stock
WL106007L WASHER $0.59 To Order
Photo Part No Description Price (each) Stock
AFU1280 NUT - HEX. $1.61 To Order
Photo Part No Description Price (each) Stock
RNE500030 COVER - DUST $8.78 To Order
LR031509 COVER - DUST $5.57 To Order
Photo Part No Description Price (each) Stock
AR608021L SCREW - SELF-TAPPING $0.60 To Order
AR608031L SCREW - SELF-TAPPING $0.60 To Order
Photo Part No Description Price (each) Stock
SH108501L SCREW $3.59 To Order
Photo Part No Description Price (each) Stock
BRC9037 WASHER - RETAINING $0.65 To Order
LR010196 WASHER - RETAINING $0.80 To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER $0.70 To Order
Photo Part No Description Price (each) Stock
ANR4477 NUT - FLANGED $3.01 To Order
Photo Part No Description Price (each) Stock
MWC9918PMA RIVET - PLASTIC $1.97 To Order
Photo Part No Description Price (each) Stock
MRC9378 WHEELARCH $146.39 To Order
MRC9377 WHEELARCH $154.45 To Order
MTC6874P WHEELARCH $283.55 To Order
...and 1 more part variants. See table on right for more details.
View All

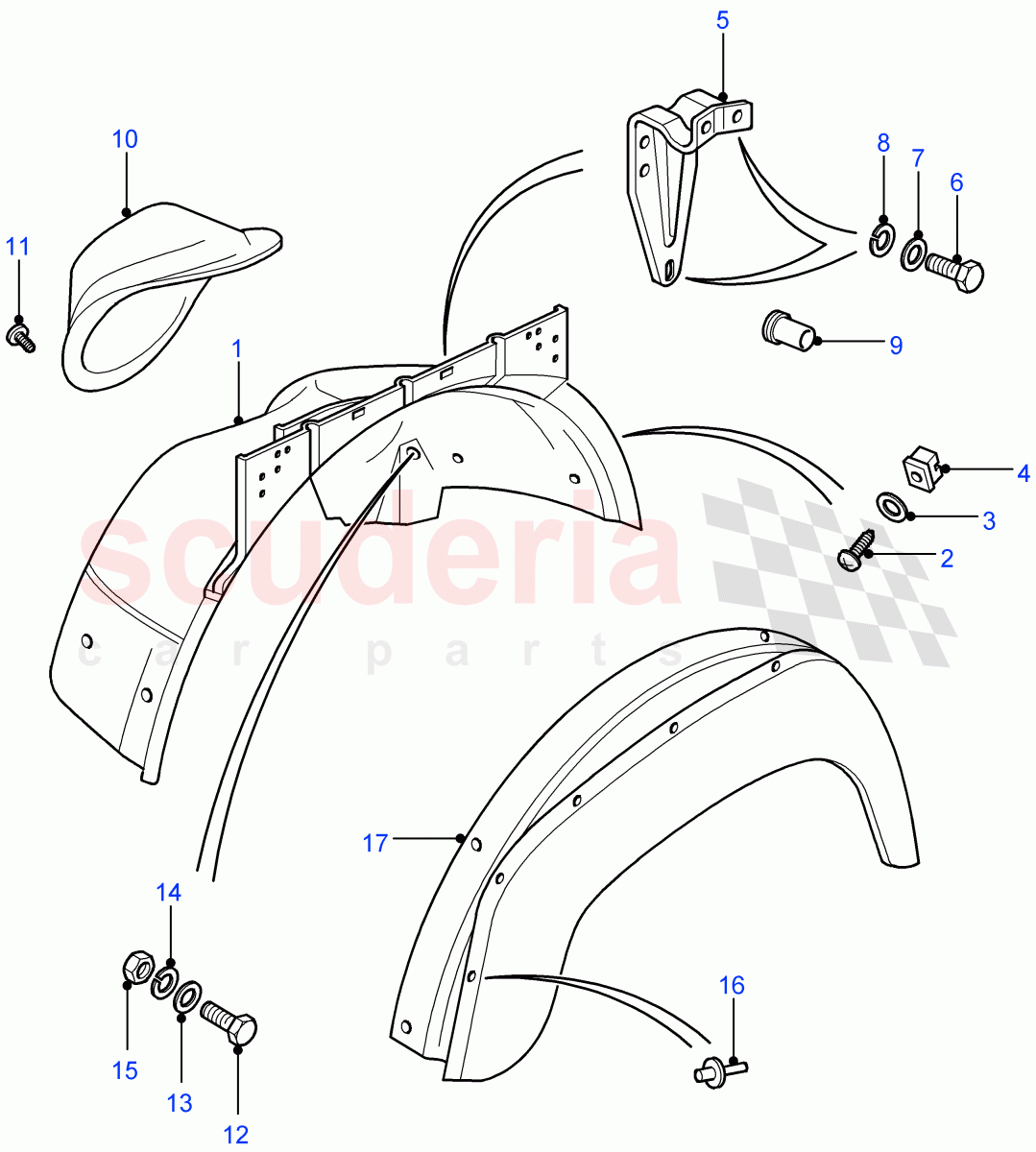

Wheelarch And Eyebrow ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AWJ710430
WHEELARCH
RH, Less Sound Insulation Pad, Plastic / To: DA440372 		$428.00 1
1 AWJ710460
WHEELARCH
LH, Less Sound Insulation Pad, Plastic / To: DA440372 		$429.21 1
1 AWJ710420
WHEELARCH
RH, Plastic, With Sound Insulation Pad 		$243.68 1
1 AWJ710470
WHEELARCH
LH, Plastic, With Sound Insulation Pad 		$103.91 1
1 LR053803
WHEELARCH
RH, Less Sound Insulation Pad, Plastic / From: DA440373
IN STOCK 		$209.54 1
1 LR053804
WHEELARCH
LH, Less Sound Insulation Pad, Plastic / From: DA440373
IN STOCK 		$209.54 1
2 AB614061L
SCREW
No 14 x 3/4, nut lokut to wheelarch, Self Tapping 		$2.46 8
3 AFU1069
WASHER 		$0.84 8
4 CZA4705L
NUT - LOCKING
IN STOCK 		$2.43 8
5 ASU710110
BRACKET - FENDER MOUNTING
RHD / To: AA784889 		$9.19 1
5 ASU710100
BRACKET - FENDER MOUNTING
LHD / To: BA999999 		$11.32 1
5 LR018582
BRACKET - FENDER MOUNTING
RHD / From: AA784890 / To: BA400861 		$114.82 1
5 LR031497
BRACKET - FENDER MOUNTING
RHD / From: BA400862 		$87.09 1
5 LR030342
BRACKET - FENDER MOUNTING
LHD / From: CA000001 		$45.78 1
6 FS106206
SCREW
Flanged Head, M6 X 20MM
IN STOCK 		$0.96 4
7 WA106047L
WASHER
M6, Standard 		$0.59 4
8 WL106007L
WASHER
M6, rectangular 		$0.59 4
9 AFU1280
NUT - HEX.
M8 		$1.61 2
10 RNE500030
COVER - DUST
To: AA999999 		$8.78 2
10 LR031509
COVER - DUST
From: BA000001 		$5.57 2
11 AR608021L
SCREW - SELF-TAPPING
8 x 1/4, to wheelarch 		$0.60 11
11 AR608031L
SCREW - SELF-TAPPING
Long, No 8 x 3/8, to wheelarch 		$0.60 1
12 SH108501L
SCREW
M8 X 50, to wheelarch 		$3.59 4
13 BRC9037
WASHER - RETAINING
M8 / To: 9A767000 		$0.65 6
13 LR010196
WASHER - RETAINING
M8 / From: 9A767001 		$0.80 6
14 WC108051L
WASHER
M8 		$0.70 12
15 ANR4477
NUT - FLANGED
M8 		$3.01 3
16 MWC9918PMA
RIVET - PLASTIC 		$1.97 16
17 MRC9378
WHEELARCH
RH, Black, Plastic, Plastic Version No Longer Available; Primed Alternatives Still Available, Unpainted 		$146.39 1
17 MRC9377
WHEELARCH
LH, Black, Plastic, Plastic Version No Longer Available; Primed Alternatives Still Available, Unpainted 		$154.45 1
17 MTC6874P
WHEELARCH
RH, Primer 		$283.55 1
17 MTC6875P
WHEELARCH
LH, Primer 		$283.55 1
