Land Rover Defender (2007-2016) - Rear Body Lower - Mountings (Crew Cab Pick Up, 110" Wheelbase, Station Wagon Utility - 5 Door,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AFC710010 CROSSMEMBER $43.34 To Order
Photo Part No Description Price (each) Stock
ESQ000030 PAD - ANTI-RATTLE $8.38 To Order
Photo Part No Description Price (each) Stock
RU612373L RIVET $3.11 To Order
Photo Part No Description Price (each) Stock
AYT500010 PIN - FASTENING $1.59 To Order
Photo Part No Description Price (each) Stock
AYH500280 COLLAR $0.80 To Order
Photo Part No Description Price (each) Stock
RU612253 Rivet $0.39 To Order
Photo Part No Description Price (each) Stock
MRC8736 PLATE $9.28 To Order
Photo Part No Description Price (each) Stock
RB610082 RIVET $0.71 To Order
Photo Part No Description Price (each) Stock
AYG100240 SCREW $5.34 To Order
Photo Part No Description Price (each) Stock
WC108057 WASHER $1.16 To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
SH108401L SCREW $2.80 To Order
Photo Part No Description Price (each) Stock
305232 SHIM $7.66 To Order
Photo Part No Description Price (each) Stock
WF600051L WASHER $0.65 To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
MRC6436 PANEL $58.95 To Order
MRC6437 PANEL $58.26 To Order
Photo Part No Description Price (each) Stock
RU612253 Rivet $0.39 To Order
Photo Part No Description Price (each) Stock
333263 SEAL $8.17 To Order
Photo Part No Description Price (each) Stock
RTC6270 PAN - FLOOR - CENTRE $536.45 To Order
Photo Part No Description Price (each) Stock
MRC8626 SEAL $16.67 To Order
LR055349 SEAL $12.77 To Order
Photo Part No Description Price (each) Stock
MRC8626 SEAL $16.67 To Order
LR055349 SEAL $12.77 To Order
Photo Part No Description Price (each) Stock
MRC8626 SEAL $16.67 To Order
LR055349 SEAL $12.77 To Order
Photo Part No Description Price (each) Stock
DA614061L SCREW - SELF-TAPPING $1.84 To Order
Photo Part No Description Price (each) Stock
MRC5527 WASHER $0.60 To Order
Photo Part No Description Price (each) Stock
302532 NUT - LOCKING $1.92 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
MRC5527 WASHER $0.60 To Order
Photo Part No Description Price (each) Stock
WM106001L WASHER - SPRING $0.83 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
333745 SEAL $0.44 To Order
Photo Part No Description Price (each) Stock
AFR710230 STAY $35.99 To Order
AFR710220 STAY $30.51 To Order
Photo Part No Description Price (each) Stock
LR083229 SCREW $4.25 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
RYP501010 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR $2.12 IN STOCK
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.67 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
AFT710090 REINFORCEMENT $231.44 To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW $2.07 IN STOCK
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
AYT500020 PIN - FASTENING $0.59 To Order
Photo Part No Description Price (each) Stock
AYF000010 WASHER $0.59 To Order
View All

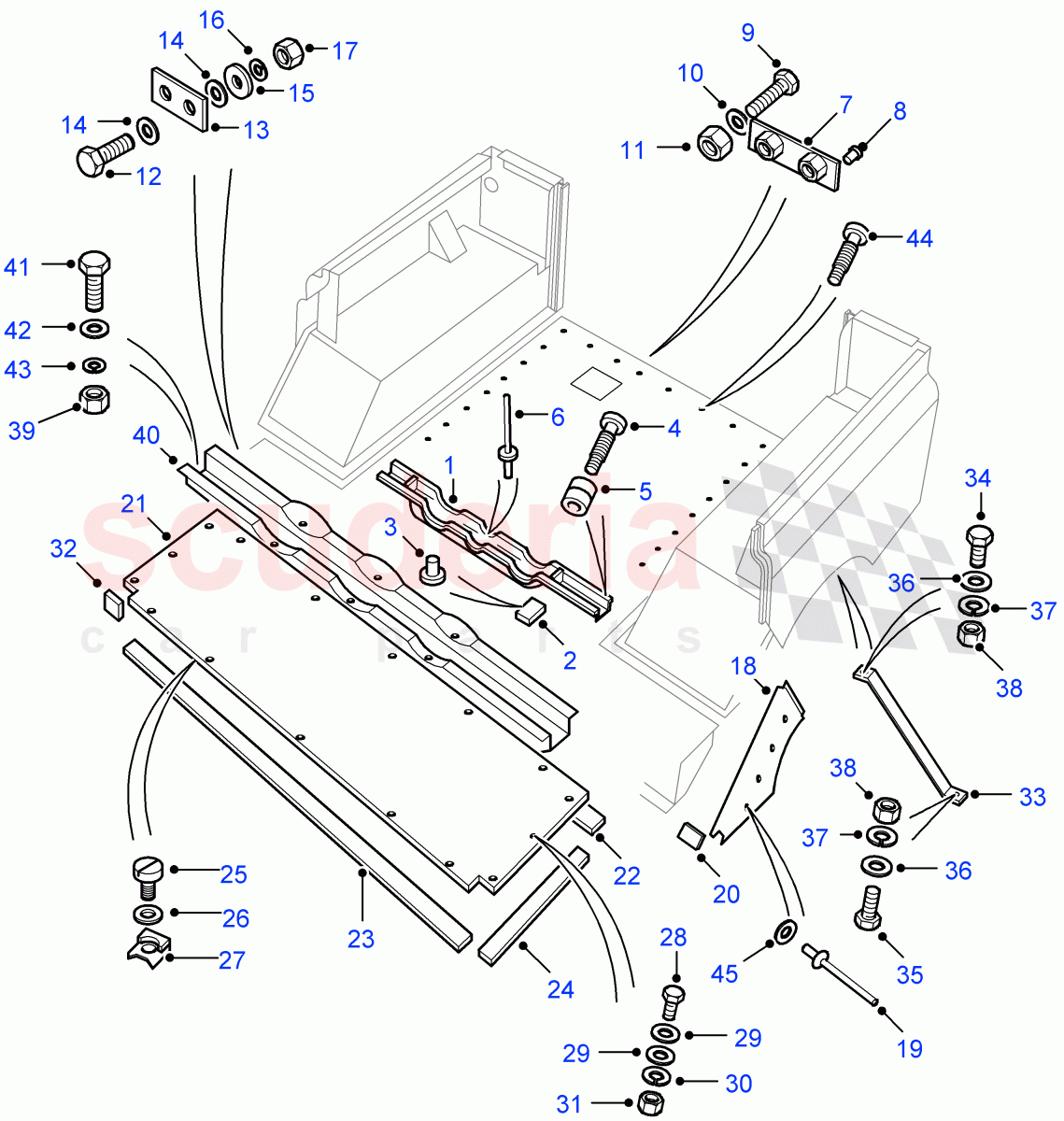

Rear Body Lower - Mountings (Crew Cab Pick Up, 110" Wheelbase, Station Wagon Utility - 5 Door, Station Wagon - 5 Door) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AFC710010
CROSSMEMBER 		$43.34 4
2 ESQ000030
PAD - ANTI-RATTLE 		$8.38 8
3 RU612373L
RIVET
3/16" x 0.575"lng 		$3.11 16
4 AYT500010
PIN - FASTENING
35MM 		$1.59 -
5 AYH500280
COLLAR 		$0.80 -
6 RU612253
Rivet
3/16" x 0.45"lng, pop 		$0.39 24
7 MRC8736
PLATE 		$9.28 3
8 RB610082
RIVET 		$0.71 6
9 AYG100240
SCREW
M8 x 25, Torx Drive 		$5.34 10
10 WC108057
WASHER
M8 		$1.16 10
11 FN108046
NUT - HEX.
Flanged Head, M8 		$1.97 4
12 SH108401L
SCREW
heelboard to chassis, Hexagonal Head, M8 x 40 		$2.80 4
13 305232
SHIM 		$7.66 10
14 WF600051L
WASHER
retaining 		$0.65 8
15 WA108056
WASHER
8MM
IN STOCK 		$0.87 4
16 WA108056
WASHER
M8, sprung
IN STOCK 		$0.87 4
17 FN108046
NUT - HEX.
Flanged Head, M8 		$1.97 4
18 MRC6436
PANEL
RH 		$58.95 1
18 MRC6437
PANEL
LH 		$58.26 1
19 RU612253
Rivet
3/16" x 0.45"lng, pop 		$0.39 22
20 333263
SEAL 		$8.17 2
21 RTC6270
PAN - FLOOR - CENTRE 		$536.45 1
22 MRC8626
SEAL
1.6M, Long / To: DA445715 		$16.67 1
22 LR055349
SEAL
1.6M, Long / From: DA445716 		$12.77 1
23 MRC8626
SEAL
1.6M, Long / To: DA445715 		$16.67 1
23 LR055349
SEAL
1.6M, Long / From: DA445716 		$12.77 1
24 MRC8626
SEAL
1.6M, Long / To: DA445715 		$16.67 2
24 LR055349
SEAL
1.6M, Long / From: DA445716 		$12.77 2
25 DA614061L
SCREW - SELF-TAPPING 		$1.84 2
26 MRC5527
WASHER
M6, Plain 		$0.60 6
27 302532
NUT - LOCKING 		$1.92 6
28 FS106206
SCREW
Flanged Head, M6 X 20MM
IN STOCK 		$0.96 6
29 MRC5527
WASHER
M6, Plain 		$0.60 12
30 WM106001L
WASHER - SPRING
M6, Square
IN STOCK 		$0.83 6
31 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc
IN STOCK 		$0.68 6
32 333745
SEAL 		$0.44 2
33 AFR710230
STAY
LH 		$35.99 1
33 AFR710220
STAY
RH 		$30.51 1
34 LR083229
SCREW
M6 X 20MM, Pan Head, stay to floor
IN STOCK 		$4.25 2
35 FS106206
SCREW
Flanged Head, M6 X 20MM / To: 8A758864
IN STOCK 		$0.96 2
35 RYP501010
SCREW
Flanged Head, M6 X 20MM / From: 8A758865 		$0.65 2
36 WA106042
RESTRICTOR
6MM, Plain
IN STOCK 		$2.12 4
37 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.67 4
38 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc
IN STOCK 		$0.68 4
39 FN108046
NUT - HEX.
Flanged Head, M8 		$1.97 8
40 AFT710090
REINFORCEMENT
Lower 		$231.44 1
41 FS108207L
SCREW
Flanged Head, M8 X 20MM
IN STOCK 		$2.07 8
42 WA108056
WASHER
8MM
IN STOCK 		$0.87 8
43 WA108056
WASHER
M8, sprung
IN STOCK 		$0.87 8
44 AYT500020
PIN - FASTENING
38MM 		$0.59 -
45 AYF000010
WASHER
M8 x 18MM 		$0.59 4
