Chassis Frame Assembly (130" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Chassis Frame Assembly (130" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KVD501260 CHASSIS FRAME $10,414.93 To Order
KVD501350 CHASSIS FRAME $10,414.93 To Order
LR010509 CHASSIS FRAME $10,520.18 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
KVB000290 BRACKET $281.14 To Order
Photo Part No Description Price (each) Stock
NRC5724 BRACKET $12.71 To Order
Photo Part No Description Price (each) Stock
KVV100000 PLUG $8.60 To Order
Photo Part No Description Price (each) Stock
KVB500060 CROSSMEMBER $232.43 To Order
Photo Part No Description Price (each) Stock
NTC7667 BRACKET $22.72 To Order
Photo Part No Description Price (each) Stock
AHR710370 PLATE $16.34 To Order
Photo Part No Description Price (each) Stock
LR016704 MOUNTING $54.51 To Order
LR016704 MOUNTING $54.51 To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW $2.07 IN STOCK
Photo Part No Description Price (each) Stock
WC108051L WASHER $0.71 To Order
Photo Part No Description Price (each) Stock
AQU710040 BRACKET - SUPPORT $24.91 To Order
AQU710050 BRACKET - SUPPORT $17.77 To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT $3.57 IN STOCK
FS110256 BOLT - FLANGED HEX. $1.79 To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
SRU500220 PLATE $11.46 To Order
SRU500230 PLATE $11.46 To Order
LR033004 SUPPORT - FRAME $90.78 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
BH108201L BOLT $1.79 To Order
XYG500140 BOLT - HEX.HEAD $1.95 To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER $0.71 To Order
Photo Part No Description Price (each) Stock
WP185L WASHER $3.88 To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
RYP501140 BOLT - HEX.HEAD $3.99 To Order
Photo Part No Description Price (each) Stock
NRC5485 WASHER - NYLON $9.48 To Order
Photo Part No Description Price (each) Stock
WC110066 WASHER $1.05 To Order
Photo Part No Description Price (each) Stock
KYF500070 WASHER $0.85 To Order
Photo Part No Description Price (each) Stock
FN110046 NUT - HEX. $0.69 To Order
Photo Part No Description Price (each) Stock
RYG101360 BOLT $3.79 To Order
Photo Part No Description Price (each) Stock
WD110061L WASHER $1.55 To Order
Photo Part No Description Price (each) Stock
FN110046 NUT - HEX. $0.69 To Order
Photo Part No Description Price (each) Stock
NRC9695 BRACKET - SUPPORT $54.26 To Order
NRC9696 BRACKET - SUPPORT $43.45 To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW $2.07 IN STOCK
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
AFP710440 PLATE $9.46 To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
FS108207L SCREW $2.07 IN STOCK
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
KVU000060 BRACKET $71.86 To Order
Photo Part No Description Price (each) Stock
KYP500350 SCREW AND WASHER $4.11 To Order
Photo Part No Description Price (each) Stock
KVW100590 REINFORCEMENT - MEMBER $161.88 To Order
KVW100580 REINFORCEMENT - MEMBER $161.88 To Order
Photo Part No Description Price (each) Stock
ANR6563 NUT - SPECIAL $4.33 IN STOCK
Photo Part No Description Price (each) Stock
BTR8040L NUT - SPECIAL $3.07 To Order
Photo Part No Description Price (each) Stock
AHR780110 PLATE AND WELDNUT $111.58 To Order
Photo Part No Description Price (each) Stock
FA106106 SCREW $0.65 To Order
View All

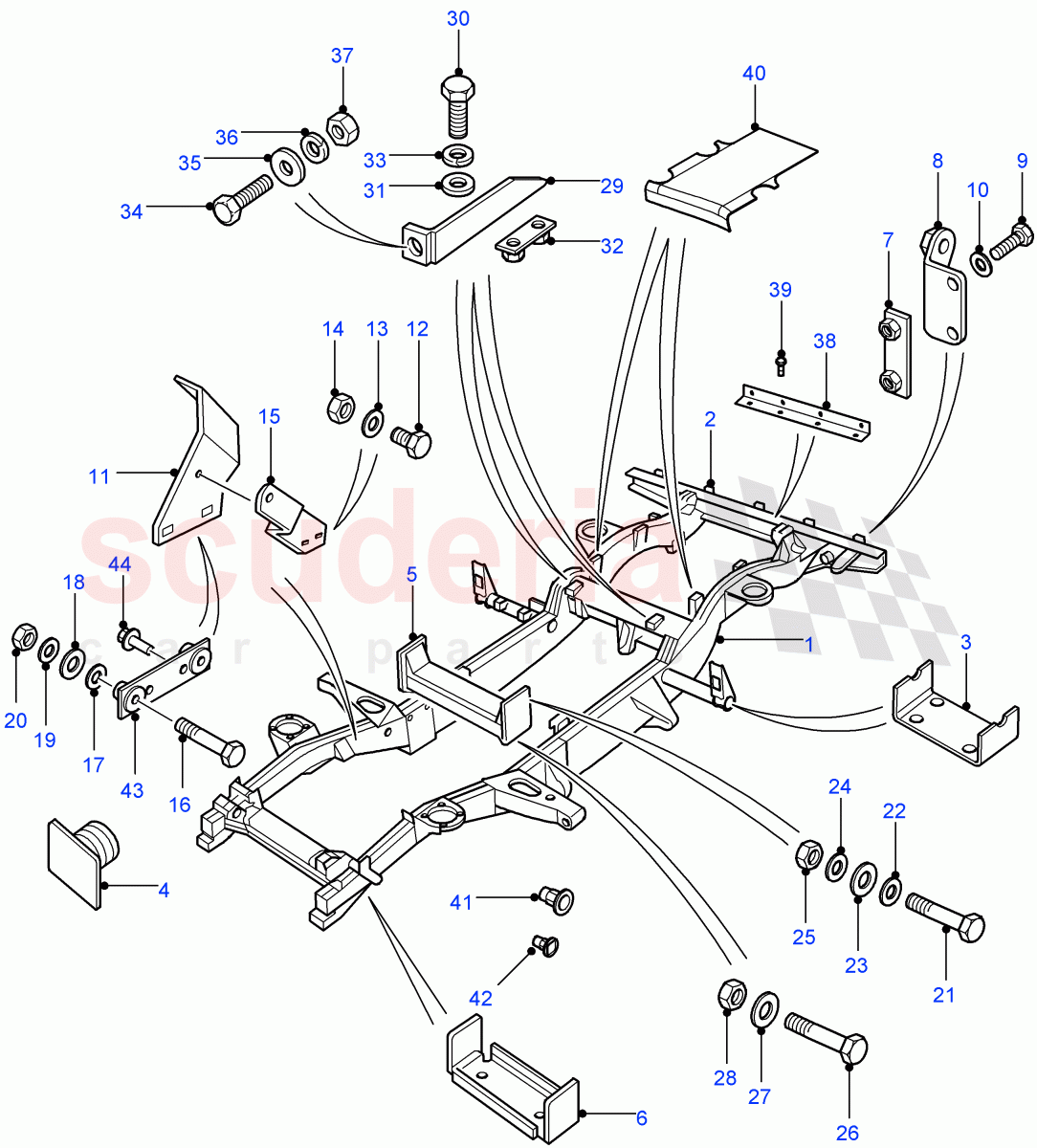

Chassis Frame Assembly (130" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 KVD501260
CHASSIS FRAME
To: 7A750127 		$10,414.93 1
1 KVD501350
CHASSIS FRAME
'A' Frame Mounting Bracket Needs To Be Discarded / From: 7A750128 / To: 9A767225 		$10,414.93 1
1 LR010509
CHASSIS FRAME
'A' Frame Mounting Bracket Needs To Be Discarded / From: 9A767226 / To: 9A775240 		$10,520.18 1
1 LR015412
CHASSIS FRAME
'A' Frame Mounting Bracket Needs To Be Discarded / From: 9A775241 / To: BA403797 		$10,414.93 1
1 LR029636
CHASSIS FRAME
'A' Frame Mounting Bracket Needs To Be Discarded / From: BA403798 / To: BA999999 		$10,414.93 1
1 LR032843
CHASSIS FRAME
'A' Frame Mounting Bracket Needs To Be Discarded / From: CA000001 / To: EA453158 		$6,198.57 1
1 LR057162
CHASSIS FRAME
'A' Frame Mounting Bracket Needs To Be Discarded / From: EA453159 		$11,606.34 1
2 KVB000290
BRACKET 		$281.14 1
3 NRC5724
BRACKET
Rear 		$12.71 2
4 KVV100000
PLUG 		$8.60 2
5 KVB500060
CROSSMEMBER 		$232.43 1
6 NTC7667
BRACKET
Front 		$22.72 2
7 AHR710370
PLATE
to support bracket tailboard 		$16.34 2
8 LR016704
MOUNTING
To: 9A888887 		$54.51 2
8 LR016704
MOUNTING
From: 9A888888 		$54.51 2
9 FS108207L
SCREW
Flanged Head, M8 X 20MM
IN STOCK 		$2.07 4
10 WC108051L
WASHER
M8 		$0.71 4
11 AQU710040
BRACKET - SUPPORT
RH 		$24.91 1
11 AQU710050
BRACKET - SUPPORT
LH 		$17.77 1
12 FS108256
BOLT
Flanged Head, M8 x 25
IN STOCK 		$3.57 4
12 FS110256
BOLT - FLANGED HEX.
Hexagonal Head, M10 x 25, to crossmember 		$1.79 4
13 WA108056
WASHER
8MM
IN STOCK 		$0.87 16
14 FN108046
NUT - HEX.
Flanged Head, M8 		$1.97 1
15 SRU500220
PLATE
RH / To: BA410473 		$11.46 1
15 SRU500230
PLATE
LH / To: BA410473 		$11.46 1
15 LR033004
SUPPORT - FRAME
RH / From: BA410474 		$90.78 1
15 LR033005
SUPPORT - FRAME
LH / From: BA410474 		$37.21 1
16 BH108201L
BOLT
Hexagonal Head, M8 x 100 / To: 7A999999 		$1.79 4
16 XYG500140
BOLT - HEX.HEAD
Hexagonal Head, M8 x 100 / From: 8A000001 		$1.95 4
17 WC108051L
WASHER
M8 		$0.71 4
18 WP185L
WASHER
Plain, Standard 		$3.88 4
19 WA108056
WASHER
M8, sprung
IN STOCK 		$0.87 4
20 FN108046
NUT - HEX.
Flanged Head, M8 		$1.97 1
21 RYP501140
BOLT - HEX.HEAD
Hexagonal Head, M10, to crossmember 		$3.99 4
22 NRC5485
WASHER - NYLON 		$9.48 4
23 WC110066
WASHER
M10, oversize, Plain 		$1.05 4
24 KYF500070
WASHER
No 10, Plain 		$0.85 4
25 FN110046
NUT - HEX.
M10 		$0.69 4
26 RYG101360
BOLT
10 x 25MM, duo taptite 		$3.79 4
27 WD110061L
WASHER 		$1.55 12
28 FN110046
NUT - HEX.
M10 		$0.69 4
29 NRC9695
BRACKET - SUPPORT
RH 		$54.26 1
29 NRC9696
BRACKET - SUPPORT
LH 		$43.45 1
30 FS108207L
SCREW
bracket support to chassis frame, Flanged Head, M8 X 20MM
IN STOCK 		$2.07 4
31 WA108056
WASHER
8MM
IN STOCK 		$0.87 4
32 AFP710440
PLATE 		$9.46 2
33 WA108056
WASHER
M8, sprung
IN STOCK 		$0.87 1
34 FS108207L
SCREW
Flanged Head, M8 X 20MM
IN STOCK 		$2.07 2
35 WA108056
WASHER
M8, sprung
IN STOCK 		$0.87 1
36 WA108056
WASHER
8MM
IN STOCK 		$0.87 1
37 FN108046
NUT - HEX.
Flanged Head, M8 		$1.97 1
38 KVU000060
BRACKET 		$71.86 1
39 KYP500350
SCREW AND WASHER 		$4.11 4
40 KVW100590
REINFORCEMENT - MEMBER
RH 		$161.88 1
40 KVW100580
REINFORCEMENT - MEMBER
LH 		$161.88 1
41 ANR6563
NUT - SPECIAL
Hexagonal, M8
IN STOCK 		$4.33 -
42 BTR8040L
NUT - SPECIAL
M6, Square 		$3.07 -
43 AHR780110
PLATE AND WELDNUT 		$111.58 2
44 FA106106
SCREW 		$0.65 4
