Roof Assembly (Hard Top, 90" Wheelbase, Station Wagon - 3 Door) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Roof Assembly (Hard Top, 90" Wheelbase, Station Wagon - 3 Door) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AKB710200NCL PANEL - ROOF $4,877.22 To Order
AKA710760NCL PANEL - ROOF $4,877.22 To Order
AKA710750NCL PANEL - ROOF $4,781.63 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MTC4994 SEAL $43.85 To Order
MTC6568 SEAL - WINDSCREEN $13.03 To Order
LR053811 Seal Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MWC4714 GLASS - BODY SIDE PANEL - FIXED $268.08 To Order
LR057156 GLASS - ROOF $269.16 To Order
Photo Part No Description Price (each) Stock
MWC4771 WEATHERSTRIP $54.08 To Order
Photo Part No Description Price (each) Stock
302178 STRIP - FILLER - QTR WINDOW W/STRIP $17.32 To Order
DBF500010 SEAL - ROOF SIDE MOULDING $18.64 To Order
DBF500040 SEAL - ROOF SIDE MOULDING $27.47 To Order
Photo Part No Description Price (each) Stock
MUC6400 SEAL $0.53 To Order
LR055343 SEAL $1.74 To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.22 IN STOCK
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR $2.12 IN STOCK
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.66 IN STOCK
Photo Part No Description Price (each) Stock
AHR710280 PLATE $17.02 To Order
Photo Part No Description Price (each) Stock
AB614082 SCREW $0.59 To Order
RYP500600 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR $2.12 IN STOCK
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.66 IN STOCK
Photo Part No Description Price (each) Stock
DYP101310 SCREW $16.52 To Order
Photo Part No Description Price (each) Stock
AFU1259 WASHER $1.53 To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.66 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
302532 NUT - LOCKING $1.92 To Order
Photo Part No Description Price (each) Stock
RU608313L RIVET $0.60 To Order
Photo Part No Description Price (each) Stock
AWR6715 NUT - SPECIAL $4.43 IN STOCK
Photo Part No Description Price (each) Stock
ALR710580 REINFORCEMENT - ROOF RAIL $151.30 To Order
ALR710590 REINFORCEMENT - ROOF RAIL $151.30 To Order
Photo Part No Description Price (each) Stock
LR000804 PLUG $2.01 To Order
View All

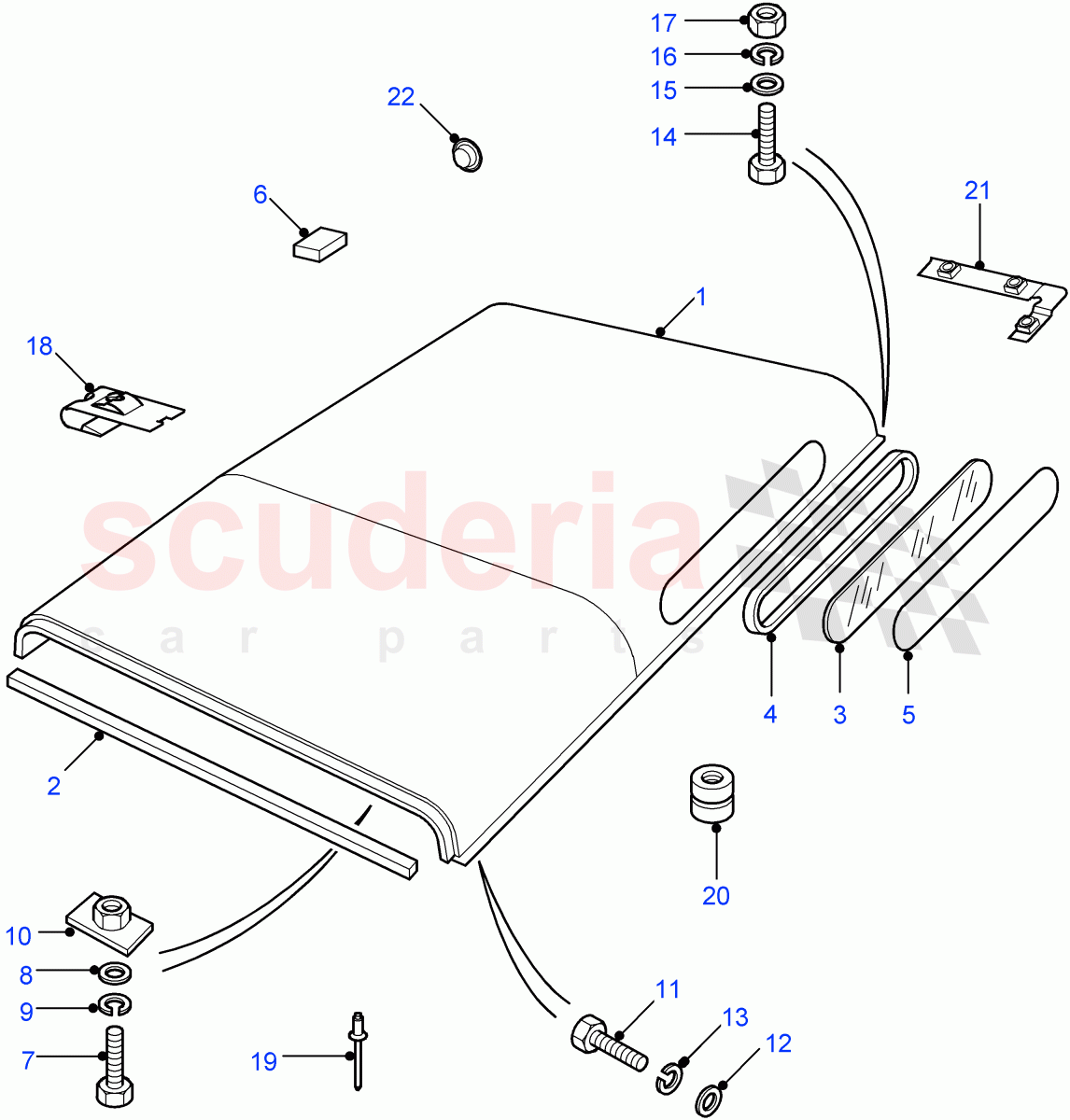

Roof Assembly (Hard Top, 90" Wheelbase, Station Wagon - 3 Door) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AKB710200NCL
PANEL - ROOF
90" Wheelbase, Alpine Hard Top Plain, With Tilt & Slide Sunroof / Alaska White, with alpine lights / To: BA666665 		$4,877.22 1
1 AKA710760NCL
PANEL - ROOF
90" Wheelbase, Hard Top / Alaska White, without Alpine lights / To: BA666665 		$4,877.22 1
1 AKA710750NCL
PANEL - ROOF
90" Wheelbase, Alpine Hard Top Plain / Alaska White, with alpine lights / To: BA666665 		$4,781.63 1
1 AKA710760LYQ
PANEL - ROOF
90" Wheelbase, Hard Top / Please Refer To Land Rover Parts Communication Bulletin LR2016 - 027, Primed, without Alpine lights / From: BA666666 		$12,788.12 1
1 AKA710750LYQ
PANEL - ROOF
90" Wheelbase, Alpine Hard Top Plain / Please Refer To Land Rover Parts Communication Bulletin LR2016 - 027, Primed, with alpine lights / From: BA666666 		$9,709.48 1
1 AKB710200LYQ
PANEL - ROOF
90" Wheelbase, Alpine Hard Top Plain, With Tilt & Slide Sunroof / Please Refer To Land Rover Parts Communication Bulletin LR2016 - 027, Primed, with alpine lights / From: BA666666 		$12,822.48 1
2 MTC4994
SEAL
Inner, roof to windscreen 		$43.85 1
2 MTC6568
SEAL - WINDSCREEN
Outer, roof to windscreen / To: DA438753 		$13.03 1
2 LR053811
Seal
Outer, roof to windscreen / From: DA438754 / To: DA446177 		- 1 Enquire
2 LR055344
SEAL - WINDSCREEN
Outer, roof to windscreen / From: DA446178 		$35.03 1
3 MWC4714
GLASS - BODY SIDE PANEL - FIXED
4mm glass 		$268.08 2
3 LR057156
GLASS - ROOF
With Privacy Glass / 4mm glass / From: FA000001 		$269.16 2
4 MWC4771
WEATHERSTRIP
4mm glass 		$54.08 2
5 302178
STRIP - FILLER - QTR WINDOW W/STRIP
To: 7A750705 		$17.32 2
5 DBF500010
SEAL - ROOF SIDE MOULDING
From: 7A750706 / To: 8A999999 		$18.64 2
5 DBF500040
SEAL - ROOF SIDE MOULDING
From: 9A000001 		$27.47 2
6 MUC6400
SEAL
corner, packer-seal to windscreen / To: FA456499 		$0.53 2
6 LR055343
SEAL
corner, packer-seal to windscreen / From: FA456500 		$1.74 2
7 FS106167L
SCREW
fixing roof, Flanged Head, M6 X 16MM
IN STOCK 		$2.22 6
8 WA106042
RESTRICTOR
6MM, Plain
IN STOCK 		$2.12 6
9 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.66 6
10 AHR710280
PLATE 		$17.02 6
11 AB614082
SCREW
fixing roof, Self Tapping / To: 7A737621 		$0.59 2
11 RYP500600
SCREW
fixing roof, Self Tapping / From: 7A737622 		$0.47 2
12 WA106042
RESTRICTOR
6MM, Plain
IN STOCK 		$2.12 2
13 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.66 2
14 DYP101310
SCREW
fixing roof, Flanged Head, M6 x 30MM 		$16.52 22
15 AFU1259
WASHER
Plain 		$1.53 18
16 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.66 14
17 FN106046
NUT - HEX.
M6
IN STOCK 		$1.46 14
18 302532
NUT - LOCKING 		$1.92 2
19 RU608313L
RIVET
1/8" x 0.482"lng, Aluminium 		$0.60 2
20 AWR6715
NUT - SPECIAL
M6
IN STOCK 		$4.43 -
21 ALR710580
REINFORCEMENT - ROOF RAIL
RH 		$151.30 1
21 ALR710590
REINFORCEMENT - ROOF RAIL
LH 		$151.30 1
22 LR000804
PLUG
10 X 0.75 X 1.0 / From: FA460345 		$2.01 1
