Rear Body Lower - Mountings (High Capacity Pick Up, 110" Wheelbase, Chassis Crew Cab, 130"...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear Body Lower - Mountings (High Capacity Pick Up, 110" Wheelbase, Chassis Crew Cab, 130"...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
MTC3481 BRACKET $100.83 To Order
MTC3482 BRACKET $90.91 To Order
KVU101440 BRACKET - SUPPORT $211.78 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FS110256 BOLT - FLANGED HEX. $1.79 To Order
Photo Part No Description Price (each) Stock
WA110066 RESTRICTOR $0.68 IN STOCK
Photo Part No Description Price (each) Stock
NY110047L NUT - HEX. $2.57 To Order
Photo Part No Description Price (each) Stock
KVU101420 BRACKET - SUPPORT $45.13 To Order
Photo Part No Description Price (each) Stock
FS110306 BOLT - HEX.HEAD $2.24 To Order
Photo Part No Description Price (each) Stock
WL110001L WASHER $0.69 To Order
Photo Part No Description Price (each) Stock
FS110256 BOLT - FLANGED HEX. $1.79 To Order
Photo Part No Description Price (each) Stock
WA110066 RESTRICTOR $0.68 IN STOCK
Photo Part No Description Price (each) Stock
WL110001L WASHER $0.69 To Order
Photo Part No Description Price (each) Stock
FS110256 BOLT - FLANGED HEX. $1.79 To Order
Photo Part No Description Price (each) Stock
WL110001L WASHER $0.69 To Order
Photo Part No Description Price (each) Stock
WA110066 RESTRICTOR $0.68 IN STOCK
Photo Part No Description Price (each) Stock
NY110047L NUT - HEX. $2.57 To Order
Photo Part No Description Price (each) Stock
MTC4992 BRACKET $21.43 To Order
MTC4993 BRACKET $20.43 To Order
LR016482 BRACKET $54.34 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MTC5086 FILLER $9.52 To Order
LR016692 FILLER $8.72 To Order
Photo Part No Description Price (each) Stock
MTC6154 PLATE $43.12 To Order
Photo Part No Description Price (each) Stock
FB108141 Bolt $0.77 To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
MTC4002 BRACKET - REAR FLOOR PAN $30.93 To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW $2.07 IN STOCK
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
MTC4003 BRACKET - REAR FLOOR PAN $18.71 To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW $2.07 IN STOCK
Photo Part No Description Price (each) Stock
WL108007 WASHER - SPRING $0.59 To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.87 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
FS110306 BOLT - HEX.HEAD $2.24 To Order
Photo Part No Description Price (each) Stock
WL110001L WASHER $0.69 To Order
Photo Part No Description Price (each) Stock
WA110066 RESTRICTOR $0.68 IN STOCK
Photo Part No Description Price (each) Stock
RRC6168 MOUNTING $138.49 To Order
Photo Part No Description Price (each) Stock
RRC6154 MOUNTING $101.08 To Order
RRC6155 MOUNTING $101.08 To Order
Photo Part No Description Price (each) Stock
RRC2440 BRACKET - SUPPORT $167.41 To Order
View All

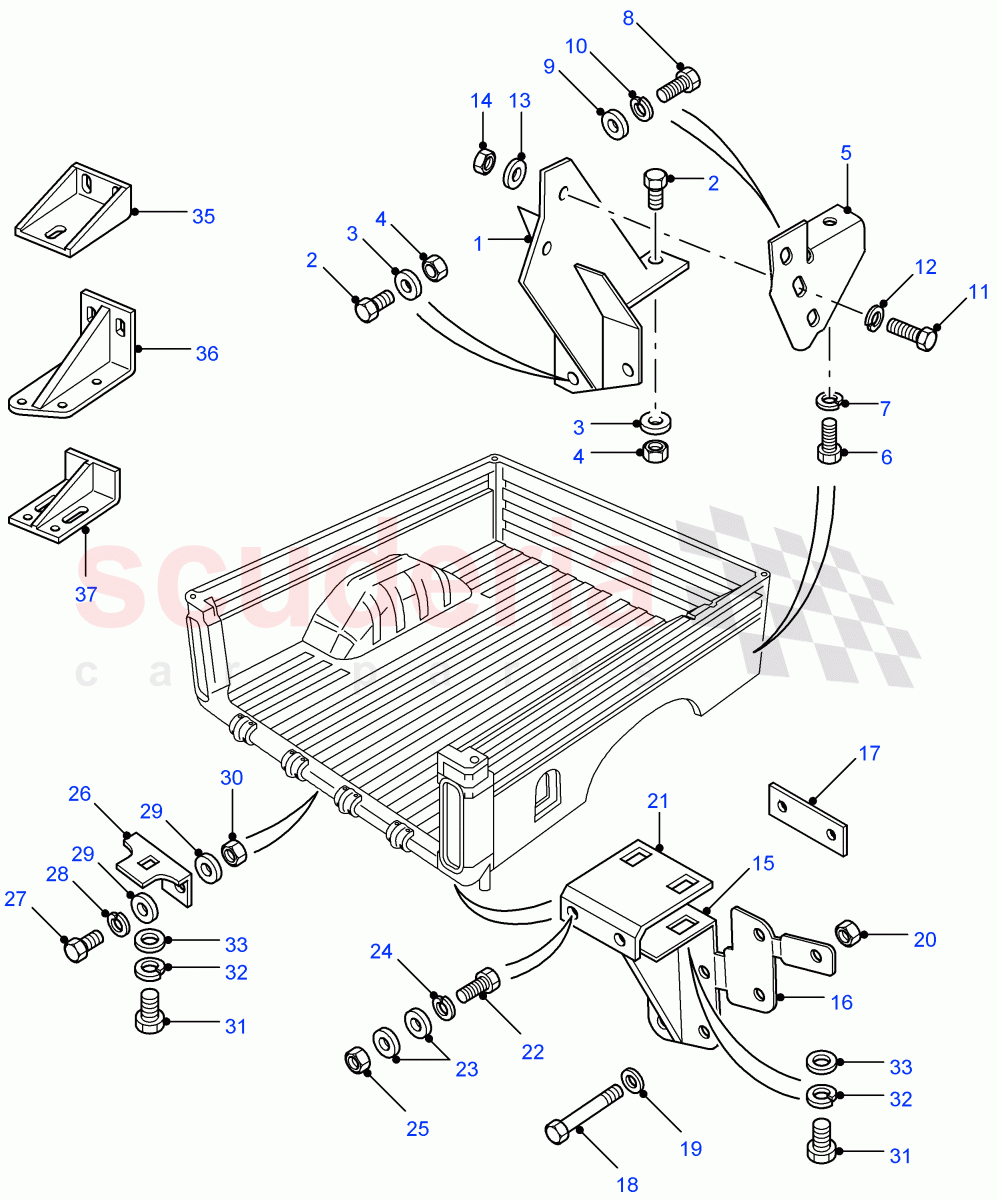

Rear Body Lower - Mountings (High Capacity Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase, Crew Cab HCPU) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 MTC3481
BRACKET
110" Wheelbase, High Capacity Pick Up / RH, Front 		$100.83 1
1 MTC3482
BRACKET
110" Wheelbase, High Capacity Pick Up / LH, Front 		$90.91 1
1 KVU101440
BRACKET - SUPPORT
130" Wheelbase, Crew Cab HCPU / To: DA445150 		$211.78 2
1 LR058445
BRACKET - SUPPORT
130" Wheelbase, Crew Cab HCPU / From: DA445151 		$64.13 2
2 FS110256
BOLT - FLANGED HEX.
110" Wheelbase, High Capacity Pick Up / bracket to chassis, Hexagonal Head, M10 x 25 		$1.79 6
3 WA110066
RESTRICTOR
110" Wheelbase, High Capacity Pick Up / M10
IN STOCK 		$0.68 6
4 NY110047L
NUT - HEX.
110" Wheelbase, High Capacity Pick Up / flange, M10, nyloc 		$2.57 6
5 KVU101420
BRACKET - SUPPORT 		$45.13 2
6 FS110306
BOLT - HEX.HEAD
BRACKET TO BODY, Flanged Head, M10 x 30, top 		$2.24 2
7 WL110001L
WASHER
M10 		$0.69 2
8 FS110256
BOLT - FLANGED HEX.
Hexagonal Head, M10 x 25 		$1.79 2
9 WA110066
RESTRICTOR
M10
IN STOCK 		$0.68 2
10 WL110001L
WASHER
M10 		$0.69 2
11 FS110256
BOLT - FLANGED HEX.
110" Wheelbase, High Capacity Pick Up / bracket to mounting, Hexagonal Head, M10 x 25 		$1.79 4
12 WL110001L
WASHER
110" Wheelbase, High Capacity Pick Up / M10 		$0.69 4
13 WA110066
RESTRICTOR
110" Wheelbase, High Capacity Pick Up / M10
IN STOCK 		$0.68 4
14 NY110047L
NUT - HEX.
110" Wheelbase, High Capacity Pick Up / flange, M10, nyloc 		$2.57 4
15 MTC4992
BRACKET
110" Wheelbase, High Capacity Pick Up / RH, Rear / From: 9A888887 		$21.43 1
15 MTC4993
BRACKET
110" Wheelbase, High Capacity Pick Up / LH, Rear / To: 9A888887 		$20.43 1
15 LR016482
BRACKET
110" Wheelbase, High Capacity Pick Up / RH, Rear / From: 9A888888 		$54.34 1
15 LR016674
BRACKET
110" Wheelbase, High Capacity Pick Up / LH, Rear / From: 9A888888 		$23.19 1
16 MTC5086
FILLER
To: 9A888887 		$9.52 2
16 LR016692
FILLER
From: 9A888888 		$8.72 2
17 MTC6154
PLATE 		$43.12 4
18 FB108141
Bolt
110" Wheelbase, High Capacity Pick Up / Flanged Head, M8 x 70 		$0.77 8
19 WA108056
WASHER
110" Wheelbase, High Capacity Pick Up / 8MM
IN STOCK 		$0.87 8
20 FN108046
NUT - HEX.
110" Wheelbase, High Capacity Pick Up / Flanged Head, M8 		$1.97 8
21 MTC4002
BRACKET - REAR FLOOR PAN
Outer 		$30.93 2
22 FS108207L
SCREW
Flanged Head, M8 X 20MM
IN STOCK 		$2.07 4
23 WA108056
WASHER
8MM
IN STOCK 		$0.87 8
24 WA108056
WASHER
M8, sprung
IN STOCK 		$0.87 4
25 FN108046
NUT - HEX.
Flanged Head, M8 		$1.97 4
26 MTC4003
BRACKET - REAR FLOOR PAN
110" Wheelbase, High Capacity Pick Up / Inner 		$18.71 3
27 FS108207L
SCREW
110" Wheelbase, High Capacity Pick Up / Flanged Head, M8 X 20MM
IN STOCK 		$2.07 6
28 WL108007
WASHER - SPRING
110" Wheelbase, High Capacity Pick Up / M8, sprung 		$0.59 6
29 WA108056
WASHER
110" Wheelbase, High Capacity Pick Up / 8MM
IN STOCK 		$0.87 6
30 FN108046
NUT - HEX.
110" Wheelbase, High Capacity Pick Up / Flanged Head, M8 		$1.97 6
31 FS110306
BOLT - HEX.HEAD
110" Wheelbase, High Capacity Pick Up / Flanged Head, M10 x 30, top 		$2.24 7
32 WL110001L
WASHER
110" Wheelbase, High Capacity Pick Up / M10 		$0.69 7
33 WA110066
RESTRICTOR
110" Wheelbase, High Capacity Pick Up / M10
IN STOCK 		$0.68 7
35 RRC6168
MOUNTING
130" Wheelbase, Chassis Crew Cab / Rear 		$138.49 3
36 RRC6154
MOUNTING
130" Wheelbase, Crew Cab HCPU / RH 		$101.08 1
36 RRC6155
MOUNTING
130" Wheelbase, Crew Cab HCPU / LH 		$101.08 1
37 RRC2440
BRACKET - SUPPORT
130" Wheelbase / Body 		$167.41 4
