Rear Body Upper (Hard Top, 110" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear Body Upper (Hard Top, 110" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
MWC9418 PANEL - BODY SIDE $2,065.89 To Order
MWC9419 PANEL - BODY SIDE $2,004.26 To Order
ARR710400 PANEL - BODY SIDE $1,668.29 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MXC3680 SEAL - BODY SIDE PANEL $165.66 To Order
MXC3681 SEAL - BODY SIDE PANEL $100.84 To Order
LR053841 SEAL - BODY SIDE PANEL $112.86 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AML710040 SEAL - RUBBER $55.59 To Order
AML710050 SEAL - RUBBER $55.59 To Order
Photo Part No Description Price (each) Stock
MWC4717 GLASS - BODY SIDE PANEL - FIXED $92.92 To Order
Photo Part No Description Price (each) Stock
MWC4771 WEATHERSTRIP $54.05 To Order
DBF500020 SEAL - ROOF SIDE MOULDING $54.69 To Order
DBF500030 SEAL - ROOF SIDE MOULDING $84.03 To Order
Photo Part No Description Price (each) Stock
302178 STRIP - FILLER - QTR WINDOW W/STRIP $17.31 To Order
DBF500010 SEAL - ROOF SIDE MOULDING $18.63 To Order
DBF500040 SEAL - ROOF SIDE MOULDING $27.46 To Order
Photo Part No Description Price (each) Stock
MWC4715 GLASS - QUARTER WINDOW $30.85 To Order
Photo Part No Description Price (each) Stock
MWC4772 STRIP - GLAZING AND SEALING $42.02 To Order
CGE500450 STRIP - GLAZING AND SEALING $39.25 To Order
CGE500660 STRIP - GLAZING AND SEALING $34.65 To Order
Photo Part No Description Price (each) Stock
306289 STRIP - FILLER - QTR WINDOW W/STRIP $10.74 To Order
CHB500010 WEATHERSTRIP - SLIDING GLASS $12.14 To Order
CHB500050 WEATHERSTRIP - SLIDING GLASS $36.62 To Order
Photo Part No Description Price (each) Stock
LR020358 SEAL $35.14 To Order
LR020359 SEAL $37.60 To Order
LR079821 SEAL $18.97 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR020360 SEAL $35.14 To Order
LR020361 SEAL $36.86 To Order
Photo Part No Description Price (each) Stock
LR020352 SEAL $10.33 To Order
LR020353 SEAL $9.60 To Order
LR077766 SEAL $12.38 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028971 PAD - RUBBER $0.57 To Order
Photo Part No Description Price (each) Stock
LR028972 PAD - RUBBER $0.70 IN STOCK
View All

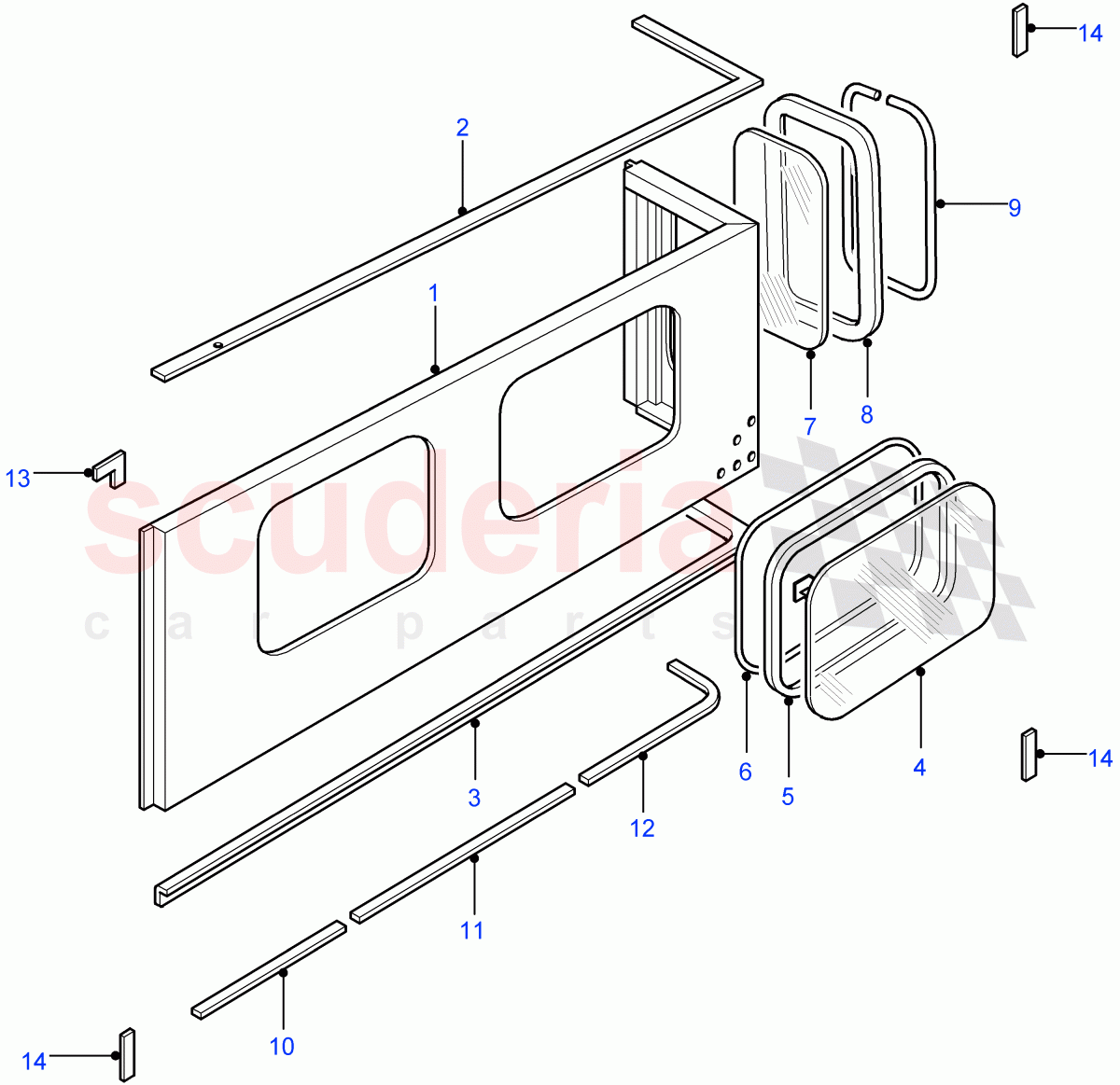

Rear Body Upper (Hard Top, 110" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 MWC9418
PANEL - BODY SIDE
With Fixed Rear Side Window, With Fixed Rear Vent Quarter Window / RH, Upper 		$2,065.89 1
1 MWC9419
PANEL - BODY SIDE
With Fixed Rear Side Window, With Fixed Rear Vent Quarter Window / LH, Upper 		$2,004.26 1
1 ARR710400
PANEL - BODY SIDE
Less Rear Quarter Window, Less Rear Side Window / RH, Upper 		$1,668.29 1
1 ARR710410
PANEL - BODY SIDE
Less Rear Quarter Window, Less Rear Side Window / LH, Upper 		$1,494.54 1
1 ALR2302
PANEL - BODY SIDE
With Fixed Rear Vent Quarter Window, With Sliding Rear Side Window / RH, Upper 		$2,894.42 1
1 ALR2303
PANEL - BODY SIDE
With Fixed Rear Vent Quarter Window, With Sliding Rear Side Window / LH, Upper 		$2,894.42 1
1 MWC9420
PANEL - BODY SIDE
Less Rear Side Window, With Fixed Rear Vent Quarter Window / RH, Upper 		$1,831.99 1
1 MWC9421
PANEL - BODY SIDE
Less Rear Side Window, With Fixed Rear Vent Quarter Window / LH, Upper 		$1,712.48 1
2 MXC3680
SEAL - BODY SIDE PANEL
RH, Upper / To: DA438753 		$165.66 1
2 MXC3681
SEAL - BODY SIDE PANEL
LH, Upper / To: DA438753 		$100.84 1
2 LR053841
SEAL - BODY SIDE PANEL
RH, Upper / From: DA438754 		$112.86 1
2 LR053842
SEAL - BODY SIDE PANEL
LH, Upper / From: DA438754 		$112.86 1
3 AML710040
SEAL - RUBBER
RH, Lower / To: AA792185 		$55.59 1
3 AML710050
SEAL - RUBBER
LH, Lower / To: AA792185 		$55.59 1
4 MWC4717
GLASS - BODY SIDE PANEL - FIXED
With Fixed Rear Side Window / 4mm glass 		$92.92 4
5 MWC4771
WEATHERSTRIP
With Fixed Rear Side Window / 4mm glass / To: 7A999999 		$54.05 4
5 DBF500020
SEAL - ROOF SIDE MOULDING
With Fixed Rear Side Window / 4mm glass / From: 8A000001 / To: 8A999999 		$54.69 4
5 DBF500030
SEAL - ROOF SIDE MOULDING
With Fixed Rear Side Window / 4mm glass / From: 9A000001 		$84.03 4
6 302178
STRIP - FILLER - QTR WINDOW W/STRIP
With Fixed Rear Side Window / To: 7A750705 		$17.31 4
6 DBF500010
SEAL - ROOF SIDE MOULDING
With Fixed Rear Side Window / From: 7A750706 / To: 8A999999 		$18.63 4
6 DBF500040
SEAL - ROOF SIDE MOULDING
With Fixed Rear Side Window / From: 9A000001 		$27.46 4
7 MWC4715
GLASS - QUARTER WINDOW
4mm glass, back 		$30.85 2
8 MWC4772
STRIP - GLAZING AND SEALING
4mm glass / To: 7A752000 		$42.02 2
8 CGE500450
STRIP - GLAZING AND SEALING
4mm glass / From: 7A752001 / To: 8A761299 		$39.25 2
8 CGE500660
STRIP - GLAZING AND SEALING
4mm glass / From: 8A761300 		$34.65 2
9 306289
STRIP - FILLER - QTR WINDOW W/STRIP
To: 7A752000 		$10.74 2
9 CHB500010
WEATHERSTRIP - SLIDING GLASS
From: 7A752001 / To: 8A761299 		$12.14 2
9 CHB500050
WEATHERSTRIP - SLIDING GLASS
From: 8A761300 		$36.62 2
10 LR020358
SEAL
RH, Front, Lower / From: AA792186 / To: GA479883 		$35.14 1
10 LR020359
SEAL
LH, Front, Lower / From: AA792186 / To: GA479883 		$37.60 1
10 LR079821
SEAL
RH, Front, Lower / From: GA479884 		$18.97 1
10 LR079824
SEAL
LH, Front, Lower / From: GA479884 		$18.97 1
11 LR020360
SEAL
RH, Lower, Middle / From: AA792186 		$35.14 1
11 LR020361
SEAL
LH, Lower, Middle / From: AA792186 		$36.86 1
12 LR020352
SEAL
RH, Lower, REAR CORNER / From: AA792186 / To: FA459407 		$10.33 1
12 LR020353
SEAL
LH, Lower, REAR CORNER / From: AA792186 / To: FA459407 		$9.60 1
12 LR077766
SEAL
RH, Lower, REAR CORNER / From: FA459408 		$12.38 1
12 LR077767
SEAL
LH, Lower, REAR CORNER / From: FA459408 		$12.38 1
13 LR028971
PAD - RUBBER
Butyl Seal Pad Preventing Water Leaks 		$0.57 -
14 LR028972
PAD - RUBBER
Butyl Seal Pad Preventing Water Leaks
IN STOCK 		$0.70 -
