Rear Side Door Latch Mechanism (130" Wheelbase, 110" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear Side Door Latch Mechanism (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CXB500220PMA HANDLE - DOOR PULL $138.08 To Order
CXB500230PMA HANDLE - DOOR PULL $132.89 To Order
Photo Part No Description Price (each) Stock
STC617 KIT - GASKET $10.30 To Order
Photo Part No Description Price (each) Stock
LR024165 BOLT $2.90 To Order
Photo Part No Description Price (each) Stock
WC105002 WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
MWC5002 LINK $17.74 To Order
MWC5001 LINK $13.36 To Order
Photo Part No Description Price (each) Stock
FQA000010 ADJUSTER $3.34 To Order
Photo Part No Description Price (each) Stock
NH104041L NUT - HEX. $0.59 To Order
Photo Part No Description Price (each) Stock
MRC5525 WASHER $2.01 To Order
Photo Part No Description Price (each) Stock
PS103101L PIN - SPLIT $0.52 To Order
Photo Part No Description Price (each) Stock
BYC500050 CLIP $3.91 To Order
Photo Part No Description Price (each) Stock
BFP1265L CLIP - LINK $3.19 To Order
Photo Part No Description Price (each) Stock
FQM100761 LOCK - REAR DOOR $192.41 To Order
FQM100771 LOCK - REAR DOOR $192.41 To Order
Photo Part No Description Price (each) Stock
BYP500360 SCREW $1.02 To Order
Photo Part No Description Price (each) Stock
DBP5840PMA HANDLE - DOOR PULL $52.15 To Order
DBP5841PMA HANDLE - DOOR PULL $52.15 To Order
Photo Part No Description Price (each) Stock
MUC3394 SCREW $2.29 To Order
Photo Part No Description Price (each) Stock
MWC1950 NUT - LOCKING $1.78 To Order
Photo Part No Description Price (each) Stock
FQP500020 LINK $6.49 To Order
FQP500030 LINK $7.54 To Order
Photo Part No Description Price (each) Stock
CRC1250L CLIP $2.15 To Order
Photo Part No Description Price (each) Stock
JRC1775PMA BUTTON $8.71 To Order
Photo Part No Description Price (each) Stock
EJS000011PMA HOUSING $8.52 To Order
Photo Part No Description Price (each) Stock
AB606042 SCREW $0.70 To Order
AB606041L SCREW - SELF TAPPING $1.90 To Order
Photo Part No Description Price (each) Stock
WA104002 WASHER $0.86 IN STOCK
Photo Part No Description Price (each) Stock
MWC1950 NUT - LOCKING $1.78 To Order
Photo Part No Description Price (each) Stock
FQK000050 LINK - DOOR OUTSIDE HANDLE $12.99 To Order
Photo Part No Description Price (each) Stock
BYC500050 CLIP $3.91 To Order
Photo Part No Description Price (each) Stock
DZA1435L ROD - BELLCRANK AND LATCH CONTROL $4.40 To Order
Photo Part No Description Price (each) Stock
FQK000040 LINK $6.49 To Order
Photo Part No Description Price (each) Stock
MWC1485 LINK - FRONT DOOR $4.63 To Order
FQP500040 LINK - DOOR LOCK CONTROL $41.70 To Order
Photo Part No Description Price (each) Stock
FQF000040 LEVER - BELL CRANK $7.84 To Order
Photo Part No Description Price (each) Stock
FQP000010 ROD $19.93 To Order
Photo Part No Description Price (each) Stock
FUD500030 ACTUATOR $67.35 To Order
Photo Part No Description Price (each) Stock
CWH000010 CLIP - LINK $3.01 To Order
Photo Part No Description Price (each) Stock
IPN000020 CLIP - LINK $1.38 To Order
IPN500250 CLIP - LINK $3.26 To Order
Photo Part No Description Price (each) Stock
AB612051 SCREW $2.75 To Order
Photo Part No Description Price (each) Stock
MXC8222 GASKET $19.73 To Order
MXC8223 GASKET $3.22 To Order
LR056947 GASKET $14.91 To Order
...and 1 more part variants. See table on right for more details.
View All

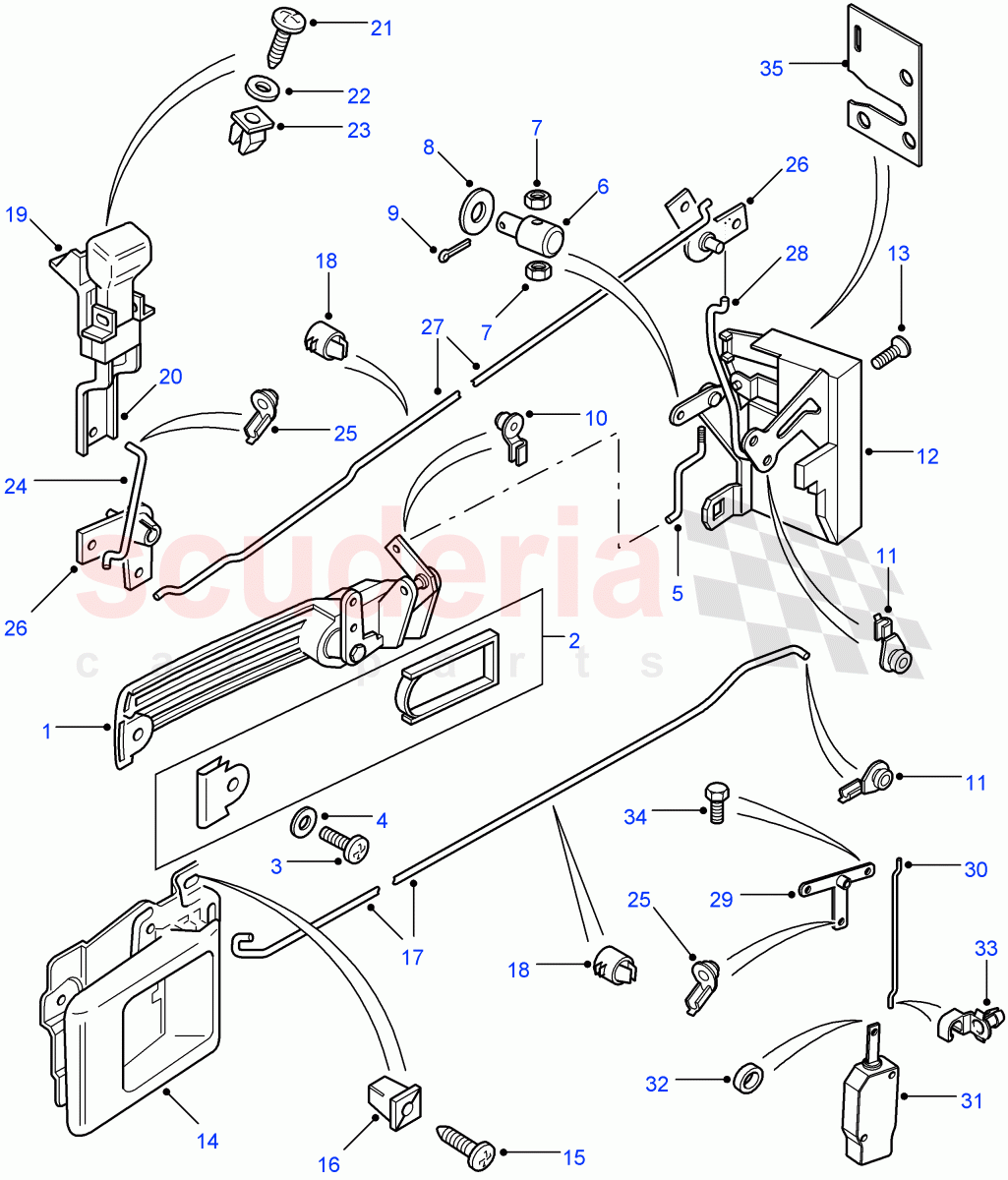

Rear Side Door Latch Mechanism (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CXB500220PMA
HANDLE - DOOR PULL
RH 		$138.08 1
1 CXB500230PMA
HANDLE - DOOR PULL
LH 		$132.89 1
2 STC617
KIT - GASKET 		$10.30 2
3 LR024165
BOLT
M5, to handle assy 		$2.90 4
4 WC105002
WASHER
M5, Plain 		$0.61 4
5 MWC5002
LINK
RH 		$17.74 1
5 MWC5001
LINK
LH 		$13.36 1
6 FQA000010
ADJUSTER 		$3.34 2
7 NH104041L
NUT - HEX.
M4 		$0.59 4
8 MRC5525
WASHER 		$2.01 2
9 PS103101L
PIN - SPLIT 		$0.52 2
10 BYC500050
CLIP 		$3.91 4
11 BFP1265L
CLIP - LINK 		$3.19 4
12 FQM100761
LOCK - REAR DOOR
RH 		$192.41 1
12 FQM100771
LOCK - REAR DOOR
LH 		$192.41 1
13 BYP500360
SCREW
Flanged Head 		$1.02 6
14 DBP5840PMA
HANDLE - DOOR PULL
RH, Black 		$52.15 1
14 DBP5841PMA
HANDLE - DOOR PULL
LH, Black 		$52.15 1
15 MUC3394
SCREW
No.8 X 19, to handle assy 		$2.29 4
16 MWC1950
NUT - LOCKING 		$1.78 4
17 FQP500020
LINK
RH, Inner Handle 		$6.49 1
17 FQP500030
LINK
LH, Inner Handle 		$7.54 1
18 CRC1250L
CLIP 		$2.15 4
19 JRC1775PMA
BUTTON
Black 		$8.71 2
20 EJS000011PMA
HOUSING
Black 		$8.52 2
21 AB606042
SCREW
No 6 x 1/2, Self Tapping, to button sill / From: 7A735842 		$0.70 4
21 AB606041L
SCREW - SELF TAPPING
No 6 x 1/2, Self Tapping, to button sill / To: 7A735841 		$1.90 4
22 WA104002
WASHER
M4
IN STOCK 		$0.86 4
23 MWC1950
NUT - LOCKING 		$1.78 4
24 FQK000050
LINK - DOOR OUTSIDE HANDLE 		$12.99 2
25 BYC500050
CLIP 		$3.91 2
26 DZA1435L
ROD - BELLCRANK AND LATCH CONTROL 		$4.40 4
27 FQK000040
LINK 		$6.49 2
28 MWC1485
LINK - FRONT DOOR
Less Door Entry Remote Control Unit 		$4.63 2
28 FQP500040
LINK - DOOR LOCK CONTROL
With Door Entry Remote Control Unit 		$41.70 2
29 FQF000040
LEVER - BELL CRANK
(3 way) 		$7.84 2
30 FQP000010
ROD
Bellcrank to actuator 		$19.93 2
31 FUD500030
ACTUATOR
passenger's door 		$67.35 2
32 CWH000010
CLIP - LINK 		$3.01 2
33 IPN000020
CLIP - LINK
Latch to actuator / To: 7A748106 		$1.38 1
33 IPN500250
CLIP - LINK
Latch to actuator / From: 7A748107 		$3.26 1
34 AB612051
SCREW 		$2.75 1
35 MXC8222
GASKET
RH 		$19.73 1
35 MXC8223
GASKET
LH 		$3.22 1
35 LR056947
GASKET
RH 		$14.91 1
35 LR056948
GASKET
LH 		$14.91 1
