Dash Assembly ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Dash Assembly ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AHA710550 BULKHEAD - FRONT $1,866.38 To Order
AHA710560 BULKHEAD - FRONT $1,033.83 To Order
LR031930 BULKHEAD - FRONT $8,237.19 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AYG500080 BOLT $5.61 To Order
Photo Part No Description Price (each) Stock
WA112081L WASHER $2.08 To Order
Photo Part No Description Price (each) Stock
NH112041L NUT - HEX. $2.46 To Order
Photo Part No Description Price (each) Stock
AFU1499 SCREW $1.58 To Order
Photo Part No Description Price (each) Stock
MWC2567 SEAL $61.56 To Order
LR053843 SEAL $50.61 To Order
Photo Part No Description Price (each) Stock
MWC2309 PLUG - BLANKING $8.48 To Order
DYB000030 PLUG $7.54 To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER $0.71 To Order
Photo Part No Description Price (each) Stock
WL108007 WASHER - SPRING $0.59 To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
AYH500290 NUT - HEX. $1.22 To Order
LR014149 NUT - HEX. $1.82 To Order
LR023485 NUT - HEX. $2.89 To Order
Photo Part No Description Price (each) Stock
DKK500010 SEAL - SPECIAL $0.98 To Order
Photo Part No Description Price (each) Stock
345140 GROMMET $5.51 To Order
Photo Part No Description Price (each) Stock
14A7081 PLUG - BLANKING $0.73 To Order
Photo Part No Description Price (each) Stock
AYB000030 PLUG - BODY SEALING $1.13 To Order
Photo Part No Description Price (each) Stock
LR057318 BRACKET - FLOOR TUNNEL $19.07 To Order
View All

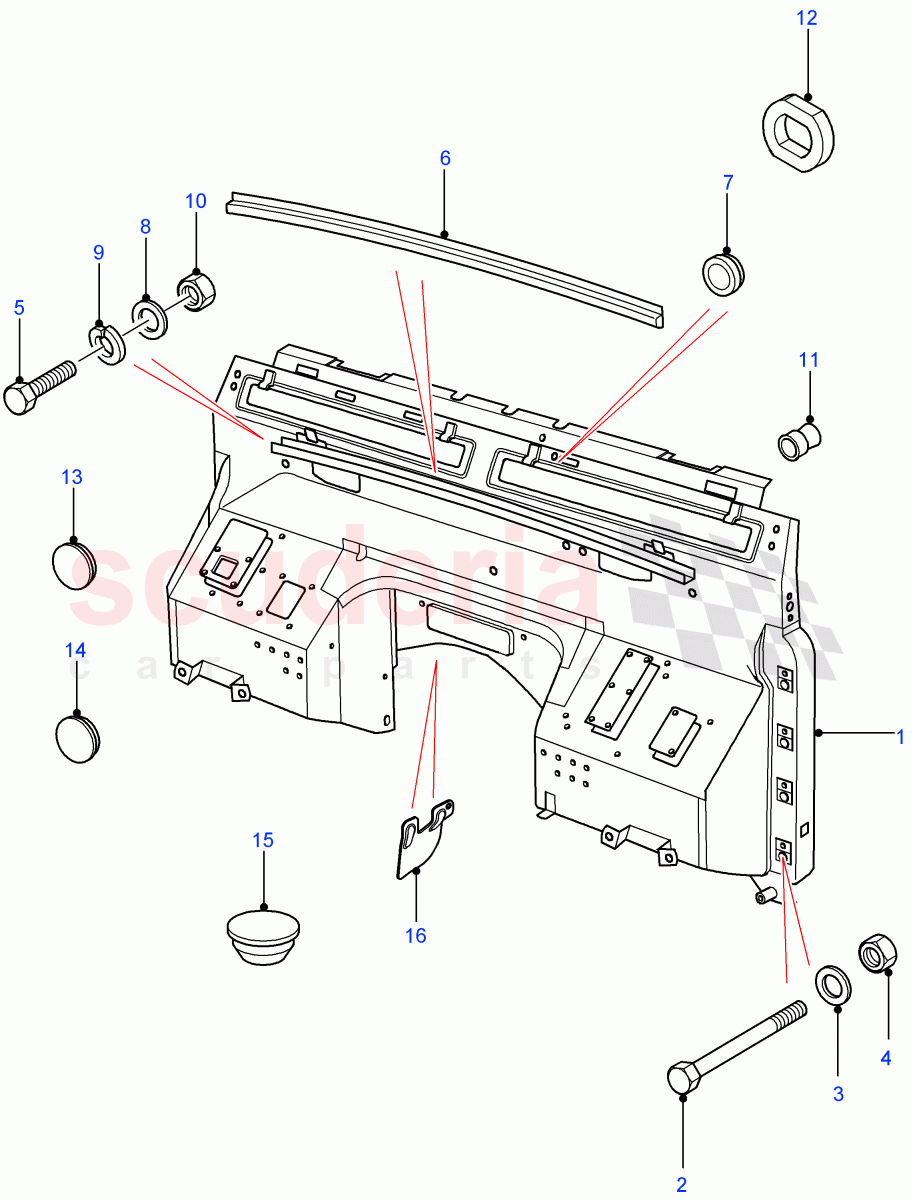

Dash Assembly ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AHA710550
BULKHEAD - FRONT
LHD / To: BA666665 		$1,866.38 1
1 AHA710560
BULKHEAD - FRONT
RHD / To: BA666665 		$1,033.83 1
1 LR031930
BULKHEAD - FRONT
LHD / From: BA666666 / To: BA999999 		$8,237.19 1
1 LR031931
BULKHEAD - FRONT
RHD / From: BA666666 / To: BA999999 		$7,807.78 1
1 LR029559
BULKHEAD - FRONT
RHD / From: CA000001 / To: CA555554 		$1,560.18 1
1 LR029560
BULKHEAD - FRONT
LHD / From: CA000001 / To: CA555554 		$1,620.20 1
1 LR040901
BULKHEAD - FRONT
RHD / From: CA555555 / To: EA999999 		$8,821.26 1
1 LR040902
BULKHEAD - FRONT
LHD / From: CA555555 / To: EA000001 		$8,444.26 1
1 LR055937
BULKHEAD - FRONT
RHD / From: FA000001 		$8,131.28 1
1 LR055938
BULKHEAD - FRONT
LHD / From: FA000001 		$11,108.66 1
2 AYG500080
BOLT
M12 x 180, to dash assembly 		$5.61 2
3 WA112081L
WASHER
M12, Plain, Standard 		$2.08 5
4 NH112041L
NUT - HEX.
Hexagonal, M12 		$2.46 2
5 AFU1499
SCREW
M8 x 25, to dash assembly 		$1.58 4
6 MWC2567
SEAL
Drain channel / To: DA438753 		$61.56 1
6 LR053843
SEAL
Drain channel / From: DA438754 		$50.61 1
7 MWC2309
PLUG - BLANKING
wiper spindle 		$8.48 2
7 DYB000030
PLUG
12 X 18MM 		$7.54 2
8 WC108051L
WASHER
M8 		$0.71 4
9 WL108007
WASHER - SPRING
M8, sprung 		$0.59 4
10 FN108046
NUT - HEX.
Flanged Head, M8 		$1.97 4
11 AYH500290
NUT - HEX.
blind, M8 / To: 9A777776 		$1.22 2
11 LR014149
NUT - HEX.
blind, M8 / From: 9A777777 / To: AA777776 		$1.82 2
11 LR023485
NUT - HEX.
blind, M8 / From: AA777777 		$2.89 2
12 DKK500010
SEAL - SPECIAL
wiper spindle 		$0.98 -
13 345140
GROMMET
Heater 		$5.51 1
14 14A7081
PLUG - BLANKING
25mm diameter 		$0.73 1
15 AYB000030
PLUG - BODY SEALING 		$1.13 1
16 LR057318
BRACKET - FLOOR TUNNEL 		$19.07 1
