Name: Engine Mounting ((V) FROM7A000001)
Rating: 4.0 (1 reviews)

View All

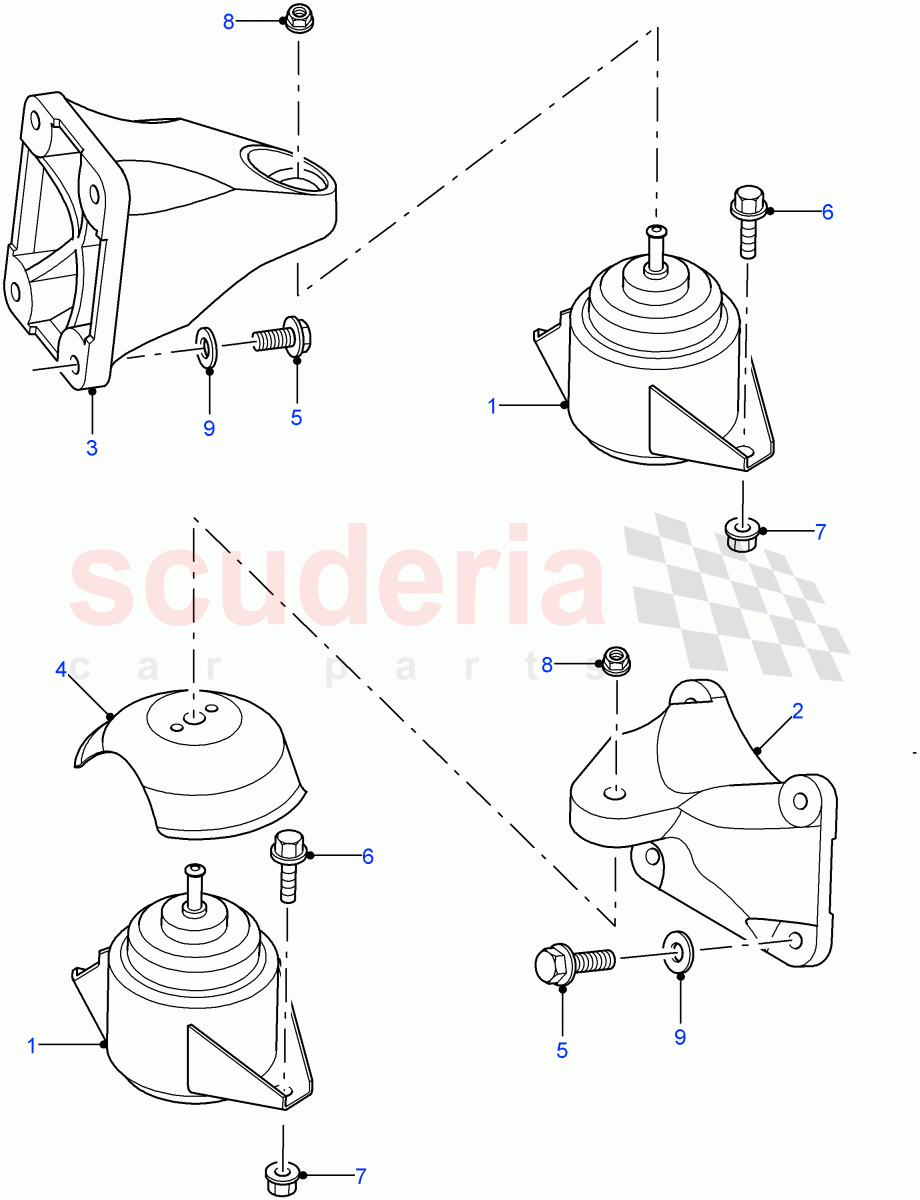

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	KKB500750	BRACKET - ENGINE MOUNTING	$183.34	To Order

Photo	Part No	Description	Price (each)	Stock
	KKU500860	BRACKET - ENGINE FRONT SUPPORT	$156.24	To Order

Photo	Part No	Description	Price (each)	Stock
	KKU500830	BRACKET - ENGINE FRONT SUPPORT	$83.33	To Order

Photo	Part No	Description	Price (each)	Stock
	KKJ500260	SHIELD - WATER SPLASH	$28.30	To Order

Photo	Part No	Description	Price (each)	Stock
	FC110096	SCREW	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	FX112041L	NUT - FLANGED	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	FX112046	NUT - HEX.	$3.27	To Order

Photo	Part No	Description	Price (each)	Stock
	WC110066	WASHER	$1.05	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	KKB500750	BRACKET - ENGINE MOUNTING	KKB500750 BRACKET - ENGINE MOUNTING	$183.34	2
2	KKU500860	BRACKET - ENGINE FRONT SUPPORT	KKU500860 BRACKET - ENGINE FRONT SUPPORT LH	$156.24	1
3	KKU500830	BRACKET - ENGINE FRONT SUPPORT	KKU500830 BRACKET - ENGINE FRONT SUPPORT RH	$83.33	1
4	KKJ500260	SHIELD - WATER SPLASH	KKJ500260 SHIELD - WATER SPLASH	$28.30	1
5	FC110096	SCREW	FC110096 SCREW M10 X 45	$0.79	8
6	ANR2638	BOLT	ANR2638 BOLT M12 X 1.75MM / To: BA822678	$6.69	4
6	RYP501120	SCREW	RYP501120 SCREW M12 x 40 / From: BA822679	$6.21	4
7	FX112041L	NUT - FLANGED	FX112041L NUT - FLANGED M12	$3.53	4
8	FX112046	NUT - HEX.	FX112046 NUT - HEX. M12	$3.27	2
9	WC110066	WASHER	WC110066 WASHER M10	$1.05	8

Engine Mounting ((V) From7A000001)

Land Rover Defender (2007-2016)
