Seat Base Assembly ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Seat Base Assembly ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ADH710210 SEAT BASE - COVER PAD AND BASE $3,989.38 To Order
LR029568 SEAT BASE - COVER PAD AND BASE $607.86 To Order
LR039637 SEAT BASE - COVER PAD AND BASE $3,646.50 To Order
Photo Part No Description Price (each) Stock
ACC710490 TRAY - BATTERY $90.82 To Order
LR012214 TRAY - BATTERY $142.14 To Order
LR066517 TRAY - BATTERY $967.24 To Order
Photo Part No Description Price (each) Stock
RU612253 Rivet $0.40 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.98 IN STOCK
SH106202 SCREW $0.80 To Order
Photo Part No Description Price (each) Stock
MRC5525 WASHER $2.03 To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.65 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
MRC8626 SEAL $16.07 To Order
LR055349 SEAL $13.82 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.98 IN STOCK
SH106202 SCREW $0.80 To Order
Photo Part No Description Price (each) Stock
BYF500030 WASHER $0.46 To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.65 IN STOCK
Photo Part No Description Price (each) Stock
NK106082 NUT - FLANGED $1.61 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.98 IN STOCK
Photo Part No Description Price (each) Stock
MRC5525 WASHER $2.03 To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.65 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
ACC710620 BASE - SEAT $1,182.94 To Order
Photo Part No Description Price (each) Stock
HXX500160 BRACKET - SUPPORT $18.82 To Order
Photo Part No Description Price (each) Stock
AFP710230 SUPPORT $32.97 To Order
Photo Part No Description Price (each) Stock
KRN500240 REINFORCEMENT - FLOOR PAN $97.42 To Order
KRN500280 REINFORCEMENT - FLOOR PAN $97.42 To Order
KRN500300 REINFORCEMENT - FLOOR PAN $97.42 To Order
Photo Part No Description Price (each) Stock
KRN500250 REINFORCEMENT - FLOOR PAN $104.94 To Order
KRN500290 REINFORCEMENT - FLOOR PAN $104.94 To Order
KRN500310 REINFORCEMENT - FLOOR PAN $104.94 To Order
Photo Part No Description Price (each) Stock
DYH500010 NUT $3.64 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.22 IN STOCK
Photo Part No Description Price (each) Stock
14A7081L PLUG - BLANKING $6.08 To Order
View All

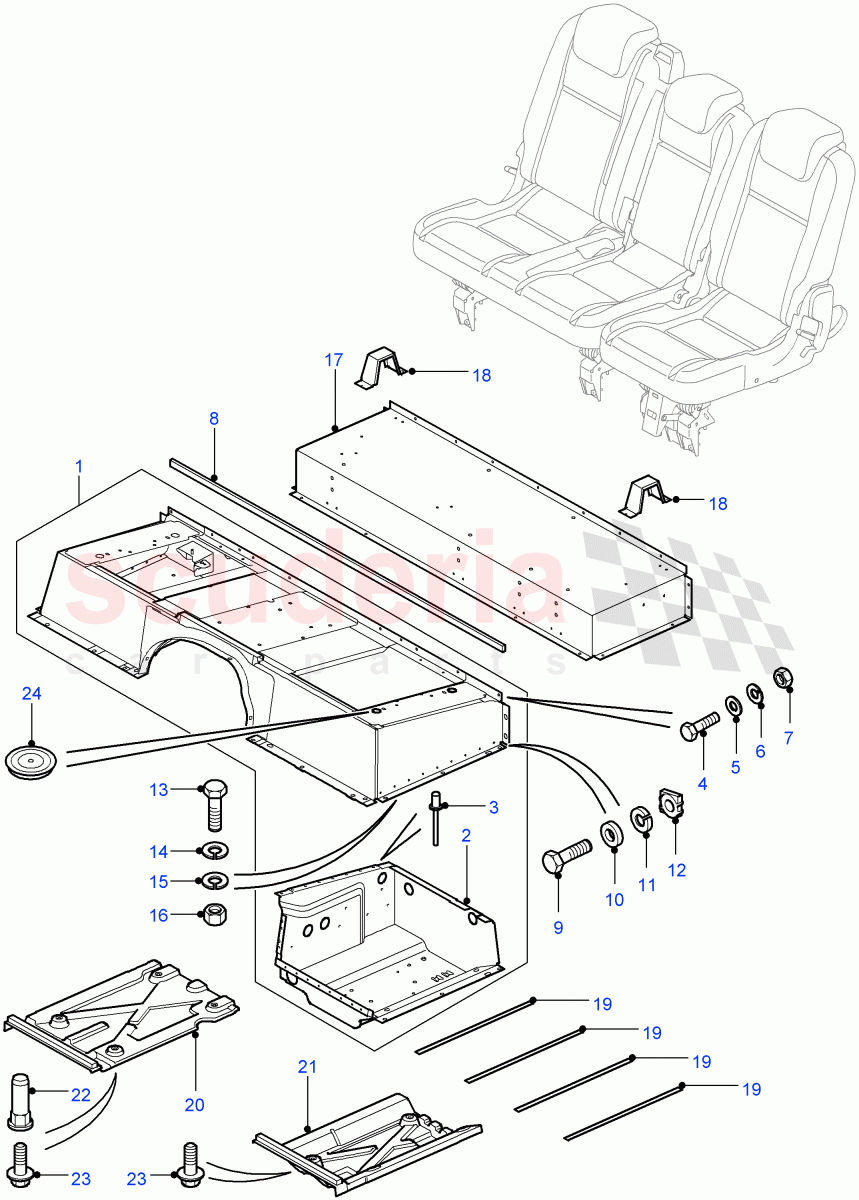

Seat Base Assembly ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ADH710210
SEAT BASE - COVER PAD AND BASE
To: BA999999 		$3,989.38 1
1 LR029568
SEAT BASE - COVER PAD AND BASE
From: CA000001 / To: CA555554 		$607.86 1
1 LR039637
SEAT BASE - COVER PAD AND BASE
From: CA555555 		$3,646.50 1
2 ACC710490
TRAY - BATTERY
To: 9A777776 		$90.82 1
2 LR012214
TRAY - BATTERY
From: 9A777777 / To: EA453345 		$142.14 1
2 LR066517
TRAY - BATTERY
From: EA453346 		$967.24 1
3 RU612253
Rivet
3/16" x 0.45"lng 		$0.40 -
4 FS106206
SCREW
Flanged Head, M6 X 20MM / To: 9A766283
IN STOCK 		$0.98 9
4 SH106202
SCREW
Flanged Head, M6 X 20MM / From: 9A766284 		$0.80 9
5 MRC5525
WASHER
Standard 		$2.03 18
6 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.65 9
7 FN106046
NUT - HEX.
M6
IN STOCK 		$1.48 9
8 MRC8626
SEAL
1.6M / To: DA445715 		$16.07 1
8 LR055349
SEAL
1.6M / From: DA445716 		$13.82 1
9 FS106206
SCREW
Flanged Head, M6 X 20MM / To: 9A766283
IN STOCK 		$0.98 2
9 SH106202
SCREW
Flanged Head, M6 X 20MM / From: 9A766284 		$0.80 2
10 BYF500030
WASHER
Plain 		$0.46 4
11 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.65 4
12 NK106082
NUT - FLANGED 		$1.61 4
13 FS106206
SCREW
Flanged Head, M6 X 20MM
IN STOCK 		$0.98 6
14 MRC5525
WASHER 		$2.03 12
15 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.65 6
16 FN106046
NUT - HEX.
M6
IN STOCK 		$1.48 6
17 ACC710620
BASE - SEAT
130" Wheelbase, Chassis Crew Cab 		$1,182.94 1
18 HXX500160
BRACKET - SUPPORT
130" Wheelbase, Chassis Crew Cab 		$18.82 2
19 AFP710230
SUPPORT
Seats 		$32.97 4
20 KRN500240
REINFORCEMENT - FLOOR PAN
RH, Underbody / To: 8A752910 		$97.42 1
20 KRN500280
REINFORCEMENT - FLOOR PAN
Less Side Runners / RH, Underbody / From: 8A752911 		$97.42 1
20 KRN500300
REINFORCEMENT - FLOOR PAN
With Side Runners / RH, Underbody / From: 8A752911 		$97.42 1
21 KRN500250
REINFORCEMENT - FLOOR PAN
LH, Underbody / To: 8A752910 		$104.94 1
21 KRN500290
REINFORCEMENT - FLOOR PAN
Less Side Runners / LH, Underbody / From: 8A752911 		$104.94 1
21 KRN500310
REINFORCEMENT - FLOOR PAN
With Side Runners / LH, Underbody / From: 8A752911 		$104.94 1
22 DYH500010
NUT
M6 		$3.64 4
23 FS106166
SCREW
M6 X 16MM
IN STOCK 		$1.22 8
24 14A7081L
PLUG - BLANKING
Less Heated Seats 		$6.08 2
