Rear Body Lower - Floor & Bulkhead (High Capacity Pick Up, 110" Wheelbase, Crew Cab HCPU, 130" Wheelbase, Chassis Cab) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Rear Body Lower - Floor & Bulkhead (High Capacity Pick Up, 110" Wheelbase, Crew Cab HCPU, 130"...

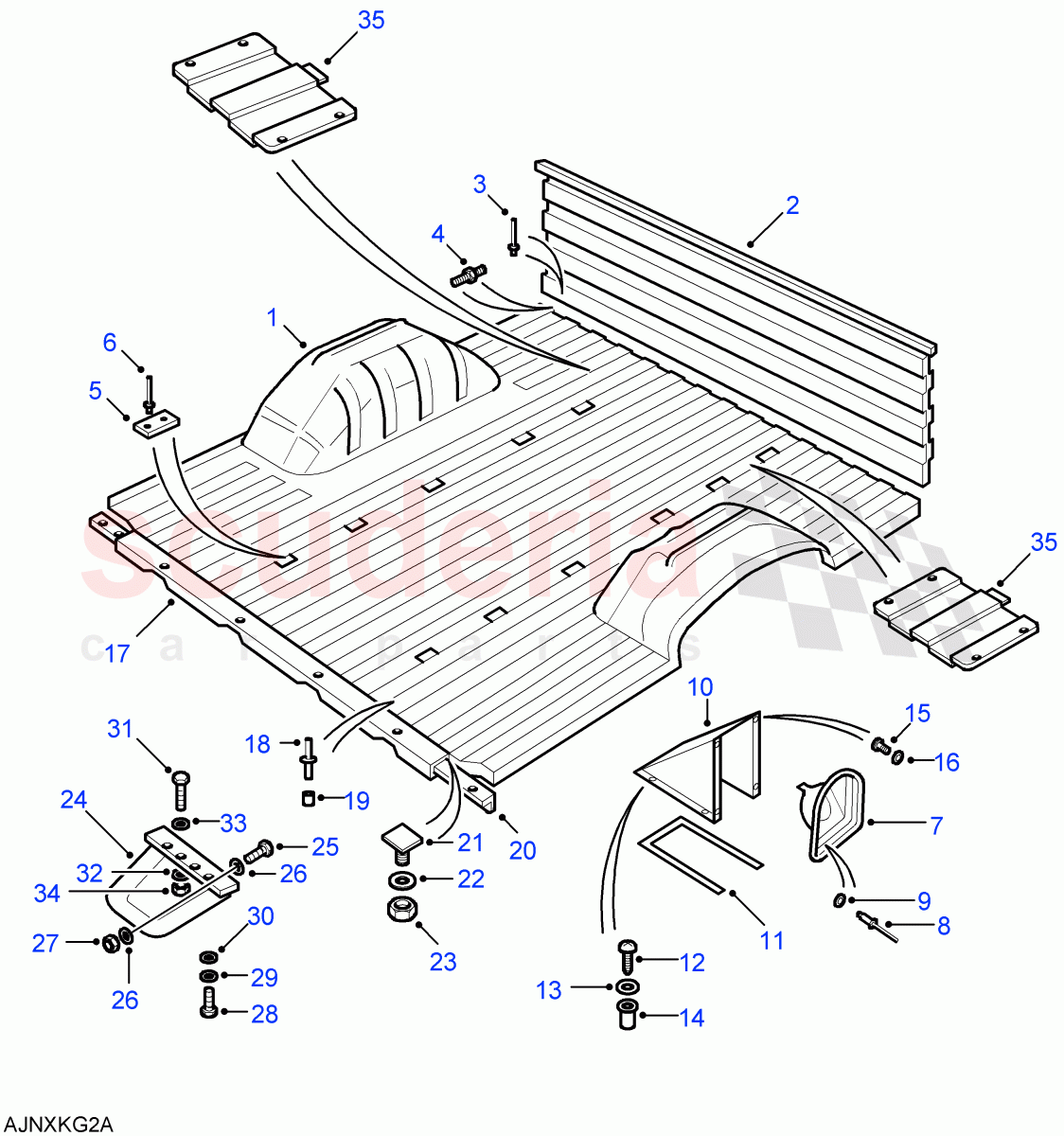

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	AFB710020	PANEL - FLOOR	AFB710020 PANEL - FLOOR 110" Wheelbase, High Capacity Pick Up	$2,178.30	1
1	AFB710010	PANEL - FLOOR	AFB710010 PANEL - FLOOR 130" Wheelbase, Crew Cab HCPU	$2,178.30	1
2	MTC1409	BULKHEAD - FRONT	MTC1409 BULKHEAD - FRONT	$1,615.29	1
3	RU612183	RIVET	RU612183 RIVET	$1.80	15
4	ACU3777	BOLT	ACU3777 BOLT	$1.96	16
5	MTC1595	PAD	MTC1595 PAD	$5.61	12
6	RJ612433	RIVET	RJ612433 RIVET	$0.65	24
7	AMP710010	HOUSING - FUEL TANK FILLER PIPE	AMP710010 HOUSING - FUEL TANK FILLER PIPE To: BA999999	$178.98	1
7	LR032978	HOUSING - FUEL TANK FILLER PIPE	LR032978 HOUSING - FUEL TANK FILLER PIPE From: CA000001	$199.20	1
8	RU612373L	RIVET	RU612373L RIVET 3/16" x 0.575"lng	$3.11	4
9	WA105001L	WASHER	WA105001L WASHER M5, Plain, Standard	$1.76	4
10	MTC1461	COVER	MTC1461 COVER	$129.02	1
11	MTC1462	SEAL - FILLER PIPE	MTC1462 SEAL - FILLER PIPE	$34.81	1
12	SE106161L	SCREW	SE106161L SCREW M6 X 16MM	$1.47	4
13	WA106042	RESTRICTOR IN STOCK	WA106042 RESTRICTOR 6MM, Plain IN STOCK	$2.12	4
14	MR106300	RIVET	MR106300 RIVET M6 x 15	$4.03	4
15	AR606031L	SCREW	AR606031L SCREW Cover, No 6 x 3/8, Self Tapping	$0.67	5
16	WA104002	WASHER IN STOCK	WA104002 WASHER M4 IN STOCK	$0.87	5
17	ALR8279	BRACE	ALR8279 BRACE	$223.88	1
18	AAU6919	Bolt	AAU6919 Bolt	$0.07	12
19	AAU6774	COLLAR IN STOCK	AAU6774 COLLAR IN STOCK	$1.31	12
20	MTC4156	MOUNTING	MTC4156 MOUNTING	$164.60	1
21	MTC3558	BOLT	MTC3558 BOLT	$1.79	4
22	WA108056	WASHER IN STOCK	WA108056 WASHER 8MM IN STOCK	$0.87	4
23	FN108046	NUT - HEX.	FN108046 NUT - HEX. Flanged Head, M8	$1.97	4
24	DQN500040	BUMP STOP - REAR	DQN500040 BUMP STOP - REAR RH, Black	$61.70	1
24	DQN500050	BUMP STOP - REAR	DQN500050 BUMP STOP - REAR LH, Black	$61.70	1
25	FS108256	BOLT IN STOCK	FS108256 BOLT Flanged Head, M8 x 25 IN STOCK	$3.57	4
26	WA108056	WASHER IN STOCK	WA108056 WASHER 8MM IN STOCK	$0.87	8
27	FN108046	NUT - HEX.	FN108046 NUT - HEX. Flanged Head, M8	$1.97	4
28	FS108256	BOLT IN STOCK	FS108256 BOLT bump stop to pillar, Flanged Head, M8 x 25 IN STOCK	$3.57	2
29	WL108002	WASHER	WL108002 WASHER M8, sprung	$0.67	2
30	WA108056	WASHER IN STOCK	WA108056 WASHER 8MM IN STOCK	$0.87	2
31	FB108156	BOLT IN STOCK	FB108156 BOLT bump stop to body, Flanged Head, M8 x 60 IN STOCK	$1.21	2
32	WA108056	WASHER IN STOCK	WA108056 WASHER 8MM IN STOCK	$0.87	2
33	WA108056	WASHER IN STOCK	WA108056 WASHER M8, sprung IN STOCK	$0.87	2
33	WA108056	WASHER IN STOCK	WA108056 WASHER 8MM IN STOCK	$0.87	2
34	FN108046	NUT - HEX.	FN108046 NUT - HEX. Flanged Head, M8	$1.97	2
35	MTC1557	PLUG - INSPECTION OPENING	MTC1557 PLUG - INSPECTION OPENING 110" Wheelbase, High Capacity Pick Up	$63.36	2
