Rear Body Upper (Hard Top, 90" Wheelbase, Station Wagon - 3 Door) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear Body Upper (Hard Top, 90" Wheelbase, Station Wagon - 3 Door) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ARR710240 PANEL - BODY SIDE - REAR $1,345.90 To Order
MWC9452 PANEL - BODY SIDE $1,539.22 To Order
ARR710340 PANEL - QUARTER - OUTER $1,370.32 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MXC3676 SEAL - BODY SIDE PANEL $93.12 To Order
MXC3677 SEAL - BODY SIDE PANEL $93.08 To Order
LR053838 SEAL - BODY SIDE PANEL $103.70 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AML710060 SEAL - RUBBER $62.01 To Order
AML710070 SEAL - RUBBER $62.38 To Order
Photo Part No Description Price (each) Stock
AML710020 SEAL $59.97 To Order
AML710020 SEAL $59.97 To Order
AML710030 SEAL $59.97 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MXC3684 SEAL $9.37 To Order
MXC3685 SEAL $20.42 To Order
Photo Part No Description Price (each) Stock
LR020356 SEAL $16.04 To Order
LR020357 SEAL $17.41 To Order
LR079820 SEAL $19.51 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR020352 SEAL $10.36 To Order
LR077766 SEAL $12.41 To Order
LR020353 SEAL $9.62 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028971 PAD - RUBBER $0.57 To Order
Photo Part No Description Price (each) Stock
LR028972 PAD - RUBBER $0.71 IN STOCK
Photo Part No Description Price (each) Stock
LR048330 PAD - FOAM $4.04 To Order
View All

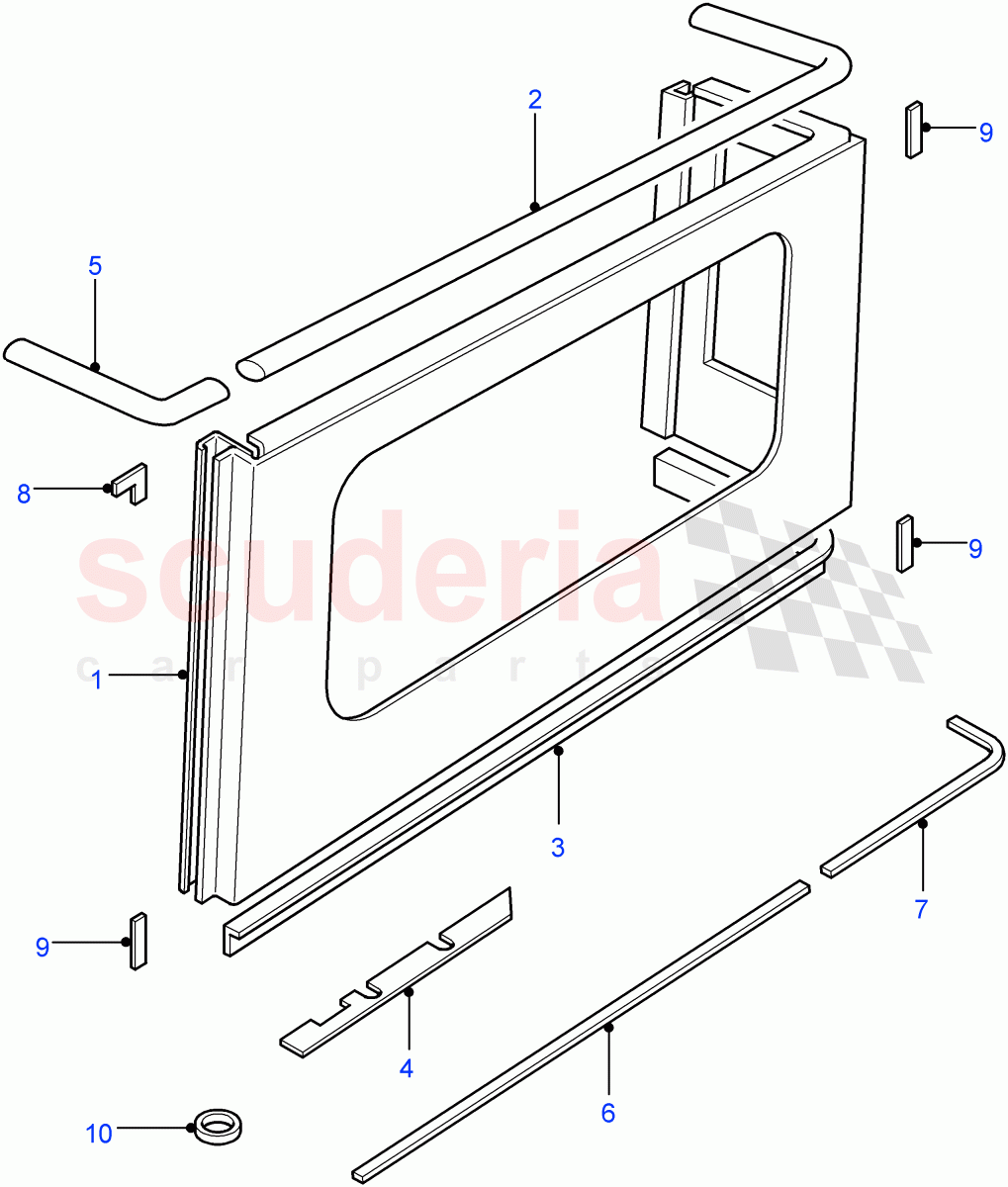

Rear Body Upper (Hard Top, 90" Wheelbase, Station Wagon - 3 Door) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ARR710240
PANEL - BODY SIDE - REAR
With Fixed Rear Vent Quarter Window, With Sliding Rear Side Window / RH, Upper 		$1,345.90 1
1 MWC9452
PANEL - BODY SIDE
Less Rear Side Window, With Fixed Rear Vent Quarter Window / RH, Upper 		$1,539.22 1
1 ARR710340
PANEL - QUARTER - OUTER
Hard Top, Less Rear Quarter Window, Less Rear Side Window / RH, Upper 		$1,370.32 1
1 ARR710350
PANEL - QUARTER - OUTER
Hard Top, Less Rear Quarter Window, Less Rear Side Window / LH, Upper 		$1,445.69 1
1 MWC9453
PANEL - BODY SIDE
Less Rear Side Window, With Fixed Rear Vent Quarter Window / LH, Upper 		$1,539.22 1
1 ARR710250
PANEL - BODY SIDE - REAR
With Fixed Rear Vent Quarter Window, With Sliding Rear Side Window / LH, Upper 		$1,264.46 1
2 MXC3676
SEAL - BODY SIDE PANEL
RH, 1431MM, Cut To Required Length, Upper / To: DA438753 		$93.12 1
2 MXC3677
SEAL - BODY SIDE PANEL
LH, 1431MM, Cut To Required Length, Upper / To: DA438753 		$93.08 1
2 LR053838
SEAL - BODY SIDE PANEL
RH, 1431MM, Cut To Required Length, Upper / From: DA438754 		$103.70 1
2 LR053839
SEAL - BODY SIDE PANEL
LH, 1431MM, Cut To Required Length, Upper / From: DA438754 		$103.70 1
3 AML710060
SEAL - RUBBER
RH, Lower / To: AA792185 		$62.01 1
3 AML710070
SEAL - RUBBER
LH, Lower / To: AA792185 		$62.38 1
4 AML710020
SEAL
Hard Top, Less Bulkhead / RH, Lower / From: CA000001 / To: DA431950 		$59.97 1
4 AML710020
SEAL
Hard Top, Less Bulkhead / RH, Lower / From: CA000001 / To: DA431950 		$59.97 1
4 AML710030
SEAL
Hard Top, Less Bulkhead / LH, Lower / From: CA000001 / To: DA431950 		$59.97 1
4 AML710030
SEAL
Hard Top, Less Bulkhead / LH, Lower / From: CA000001 / To: DA431950 		$59.97 1
5 MXC3684
SEAL
RH, Front, Upper 		$9.37 1
5 MXC3685
SEAL
LH, Front, Upper 		$20.42 1
6 LR020356
SEAL
RH, Lower / From: AA792186 / To: GA479883 		$16.04 1
6 LR020357
SEAL
LH, Lower / From: AA792186 / To: GA479883 		$17.41 1
6 LR079820
SEAL
RH, Lower / From: GA479884 		$19.51 1
6 LR079823
SEAL
LH, Lower / From: GA479884 		$20.45 1
7 LR020352
SEAL
RH, Lower, REAR CORNER / From: AA792186 / To: FA459407 		$10.36 1
7 LR077766
SEAL
RH, Lower, REAR CORNER / From: FA459408 		$12.41 1
7 LR020353
SEAL
LH, Lower, REAR CORNER / From: AA792186 / To: FA459407 		$9.62 1
7 LR077767
SEAL
LH, Lower, REAR CORNER / From: FA459408 		$12.41 1
8 LR028971
PAD - RUBBER
Butyl Seal Pad Preventing Water Leaks 		$0.57 -
9 LR028972
PAD - RUBBER
Butyl Seal Pad Preventing Water Leaks
IN STOCK 		$0.71 -
10 LR048330
PAD - FOAM
Hard Top, Less Bulkhead / RH, Lower / From: DA431951 		$4.04 2
