Exterior Rear View Mirror

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Exterior Rear View Mirror

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500910 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
LR011865 SCREW $1.29 IN STOCK
Photo Part No Description Price (each) Stock
LR038616 SCREW - PAN HEAD $1.10 To Order
Photo Part No Description Price (each) Stock
LR034044 SCREW - PAN - TORX $1.42 IN STOCK
Photo Part No Description Price (each) Stock
LR152957 LAMP - SIDE FLASHER $69.86 To Order
LR152956 LAMP - SIDE FLASHER $69.86 To Order
Photo Part No Description Price (each) Stock
LR152958 MIRROR - REAR VIEW - OUTER $885.84 To Order
LR152959 MIRROR - REAR VIEW - OUTER $796.66 To Order
LR152960 MIRROR - REAR VIEW - OUTER $841.25 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR152951 GROMMET $2.48 To Order
Photo Part No Description Price (each) Stock
LR186583 INNER MIRROR FINISHER $70.16 To Order
LR154640 FINISHER - MIRROR CHEATER $65.09 To Order
LR174266 FINISHER - MIRROR CHEATER $61.34 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR152949 INSULATOR - SOUND - DOOR $26.90 To Order
LR152950 INSULATOR - SOUND - DOOR $26.90 To Order
LR173845 Insulator - Sound $52.90 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR161764 ADAPTOR - SIDE MIRRORS $17.60 To Order
Photo Part No Description Price (each) Stock
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR $130.76 To Order
LR015051 MOTOR - EXTERIOR REAR VIEW MIRROR $135.52 To Order
Photo Part No Description Price (each) Stock
LR152952 COVER - MIRROR HOUSING $76.38 To Order
LR152953 COVER - MIRROR HOUSING $76.38 To Order
Photo Part No Description Price (each) Stock
LR152971 GLASS - REAR VIEW OUTER MIRROR $249.00 To Order
LR152973 GLASS - REAR VIEW OUTER MIRROR $249.00 To Order
LR152974 GLASS - REAR VIEW OUTER MIRROR $240.11 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR173181 Pad - Foam $17.33 To Order
LR173182 Pad - Foam $17.33 To Order
Photo Part No Description Price (each) Stock
LR153894 LAMP - EXTERIOR MIRROR $87.12 To Order
LR166638 LAMP - EXTERIOR MIRROR $85.84 To Order
LR171656 Lamp - Exterior Mirror $87.12 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR152954 LAMP - EXTERIOR MIRROR $105.04 To Order
LR152955 LAMP - EXTERIOR MIRROR $105.04 To Order
View All

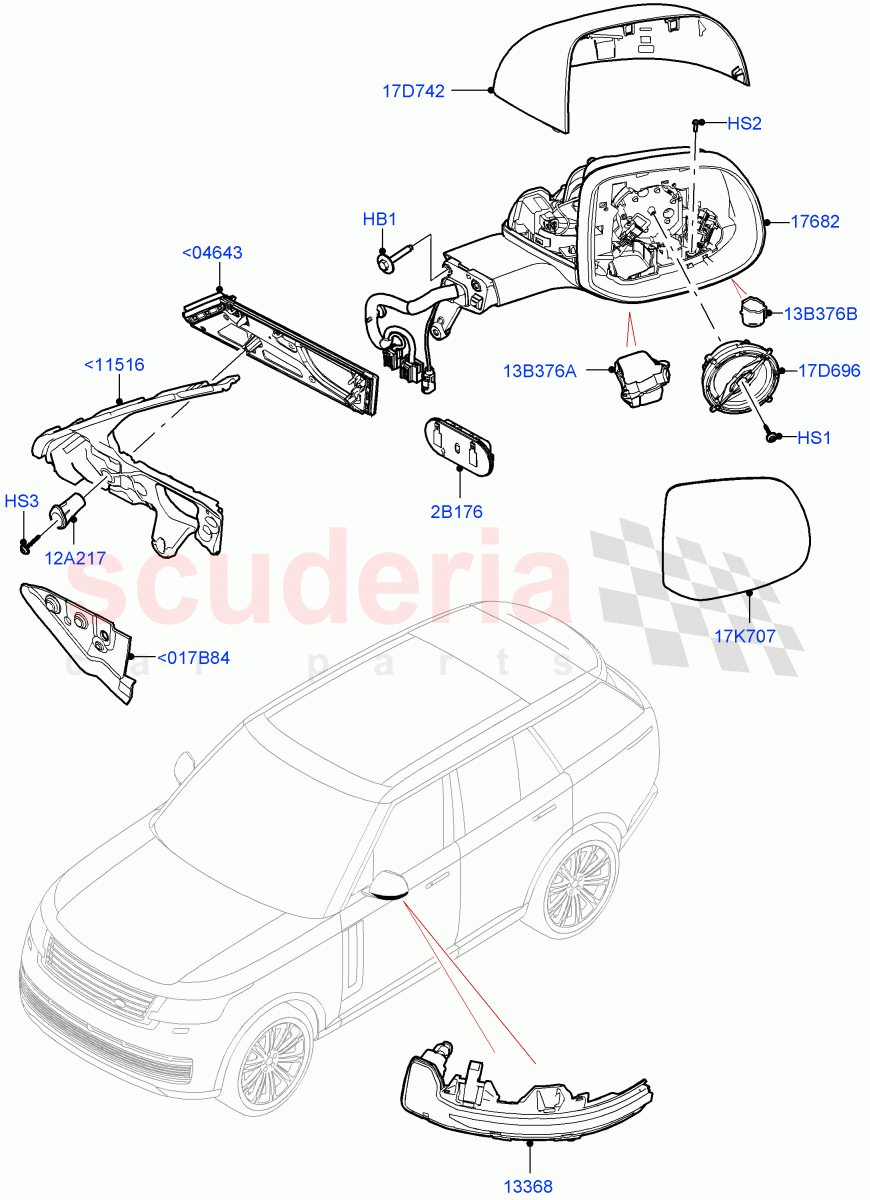

Exterior Rear View Mirror of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR173181
Pad - Foam
RH 		$17.33 1
<017B84 LR173182
Pad - Foam
LH 		$17.33 1
<04643 LR186583
INNER MIRROR FINISHER
RH / To: NA000675 		$70.16 1
<04643 LR154640
FINISHER - MIRROR CHEATER
LH / To: NA000675 		$65.09 1
<04643 LR174266
FINISHER - MIRROR CHEATER
LH / From: NA000676 		$61.34 1
<04643 LR186583
INNER MIRROR FINISHER
RH / From: NA000676 		$70.16 1
<11516 LR152949
INSULATOR - SOUND - DOOR
RH / To: NA000675 		$26.90 1
<11516 LR152950
INSULATOR - SOUND - DOOR
LH / To: NA000675 		$26.90 1
<11516 LR173845
Insulator - Sound
RH / From: NA000676 		$52.90 1
<11516 LR173846
Insulator - Sound
LH / From: NA000676
IN STOCK 		$25.35 1
HB1 RYG500910
BOLT
Bolt And Washer, Hexagonal Head, M6 x 35MM 		$0.52 6
HS1 LR011865
SCREW
M3 X 25MM
IN STOCK 		$1.29 2
HS2 LR038616
SCREW - PAN HEAD
3 x 10 		$1.10 2
HS3 LR034044
SCREW - PAN - TORX
M4 X 23
IN STOCK 		$1.42 4
2B176 LR152951
GROMMET 		$2.48 2
12A217 LR161764
ADAPTOR - SIDE MIRRORS
RH And LH 		$17.60 2
13B376A LR153894
LAMP - EXTERIOR MIRROR
Less SV Model Spec, Surround Camera Sys+Water Wade Aid / RH 		$87.12 1
13B376A LR166638
LAMP - EXTERIOR MIRROR
Less SV Model Spec, Surround Camera Sys+Water Wade Aid / LH 		$85.84 1
13B376A LR171656
Lamp - Exterior Mirror
SV1 Model Spec, Surround Camera Sys+Water Wade Aid / LH / From: PA000001 		$87.12 1
13B376A LR171657
Lamp - Exterior Mirror
SV1 Model Spec, Surround Camera Sys+Water Wade Aid / RH / From: PA000001 		$87.12 1
13B376B LR152954
LAMP - EXTERIOR MIRROR
Rear View Camera-Fixed / RH 		$105.04 1
13B376B LR152955
LAMP - EXTERIOR MIRROR
Rear View Camera-Fixed / LH 		$105.04 1
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
RH, 8 Pin Connector, With Memory 		$130.76 1
17D696 LR015051
MOTOR - EXTERIOR REAR VIEW MIRROR
LH, 8 Pin Connector, With Memory 		$135.52 1
17D742 LR152952
COVER - MIRROR HOUSING
RH, Primed 		$76.38 1
17D742 LR152953
COVER - MIRROR HOUSING
LH, Primed 		$76.38 1
17K707 LR152971
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Less Blind Spot Information System / RH, Convex 		$249.00 1
17K707 LR152973
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Less Blind Spot Information System / LH, Convex 		$249.00 1
17K707 LR152974
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Less Blind Spot Information System / RH, Convex Glass + Script 		$240.11 1
17K707 LR152976
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Less Blind Spot Information System / LH, Flat Glass 		$249.00 1
17K707 LR152977
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Less Blind Spot Information System / RH, Arabic Script 		$240.11 1
17K707 LR152978
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Less Blind Spot Information System / LH, Arabic Script 		$249.00 1
17K707 LR152979
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Blind Spot Assist / RH, Convex 		$266.82 1
17K707 LR152980
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Blind Spot Assist / LH, Convex 		$266.82 1
17K707 LR152982
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Blind Spot Assist / RH, Convex Glass + Script 		$266.82 1
17K707 LR152983
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Blind Spot Assist / LH, Flat Glass 		$266.82 1
17K707 LR152984
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Blind Spot Assist / RH, Arabic Script 		$266.82 1
17K707 LR152985
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Blind Spot Assist / LH, Arabic Script 		$266.82 1
13368 LR152957
LAMP - SIDE FLASHER
LH 		$69.86 1
13368 LR152956
LAMP - SIDE FLASHER
RH 		$69.86 1
17682 LR152958
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, RHD, Rear View Camera-Fixed / RH 		$885.84 1
17682 LR152959
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Surround Camera Sys+Water Wade Aid / RH 		$796.66 1
17682 LR152960
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, RHD, Rear View Camera-Fixed / RH 		$841.25 1
17682 LR152961
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, LHD, Rear View Camera-Fixed / RH 		$752.10 1
17682 LR152962
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, RHD, Surround Camera Sys+Water Wade Aid / LH 		$885.84 1
17682 LR152963
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Surround Camera Sys+Water Wade Aid / LH 		$796.66 1
17682 LR152964
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, RHD, Rear View Camera-Fixed / LH 		$841.25 1
17682 LR152965
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, LHD, Rear View Camera-Fixed / LH 		$752.10 1
