Body Mouldings of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Body Mouldings

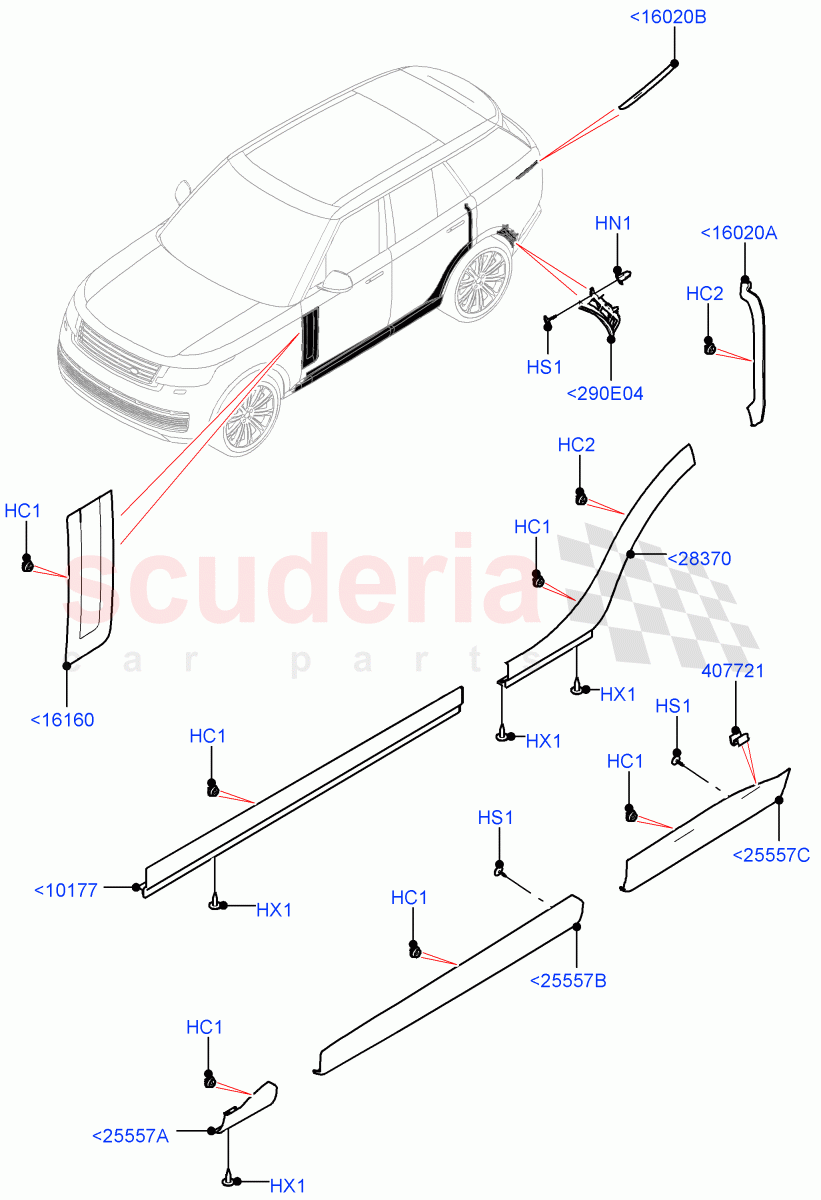

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	T2R31859	CLIP	Enquire	IN STOCK
	T2R31859	CLIP	Enquire	IN STOCK
	T2R31859	CLIP	Enquire	IN STOCK

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR032984	CLIP	$1.63	IN STOCK
	LR032984	CLIP	$1.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR114151	NUT	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR079186	SCREW	$1.06	To Order
	LR079186	SCREW	$1.06	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.50	IN STOCK
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.50	IN STOCK
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.50	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR153251	MOULDING - DOOR SILL	$256.16	To Order
	LR153253	MOULDING - DOOR SILL	$269.98	To Order
	LR153254	MOULDING - DOOR SILL	$256.16	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR159777	MOULDING - FRONT DOOR	$128.25	To Order
	LR159778	MOULDING - FRONT DOOR	$128.25	To Order
	LR159779	MOULDING - FRONT DOOR	$128.25	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR153898	MOULDING - REAR WHEEL ARCH	$126.09	To Order
	LR153899	MOULDING - REAR WHEEL ARCH	$126.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157027	CAP - MOULDING	$8.35	To Order
	LR157028	CAP - MOULDING	$8.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154755	CAP - MOULDING	$91.14	To Order
	LR154756	CAP - MOULDING	$91.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154761	FINISHER - BODY SIDE	$38.39	IN STOCK
	LR154762	FINISHER - BODY SIDE	$38.39	To Order
	LR154763	FINISHER - BODY SIDE	$38.39	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR154115	MOULDING - FENDER	$58.49	To Order
	LR154116	MOULDING - FENDER	$58.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154737	MOULDING - DOOR OUTSIDE	$179.48	To Order
	LR154734	MOULDING - DOOR OUTSIDE	$179.48	To Order
	LR154733	MOULDING - DOOR OUTSIDE	$361.69	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR154178	MOULDING - DOOR OUTSIDE	$151.18	To Order
	LR154179	MOULDING - DOOR OUTSIDE	$178.71	To Order
	LR154180	MOULDING - DOOR OUTSIDE	$304.67	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR153256	MOULDING - REAR WHEEL ARCH	$50.07	To Order
	LR153257	MOULDING - REAR WHEEL ARCH	$50.07	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<290E04	LR153256	MOULDING - REAR WHEEL ARCH	LR153256 MOULDING - REAR WHEEL ARCH RH	$50.07	1
<290E04	LR153257	MOULDING - REAR WHEEL ARCH	LR153257 MOULDING - REAR WHEEL ARCH LH	$50.07	1
<10177	LR153251	MOULDING - DOOR SILL	LR153251 MOULDING - DOOR SILL Standard Wheelbase / RH	$256.16	1
<10177	LR153253	MOULDING - DOOR SILL	LR153253 MOULDING - DOOR SILL Long Wheelbase / RH	$269.98	1
<10177	LR153254	MOULDING - DOOR SILL	LR153254 MOULDING - DOOR SILL Standard Wheelbase / LH	$256.16	1
<10177	LR153255	MOULDING - DOOR SILL	LR153255 MOULDING - DOOR SILL Long Wheelbase / LH	$269.98	1
<16020A	LR154755	CAP - MOULDING	LR154755 CAP - MOULDING RH	$91.14	1
<16020A	LR154756	CAP - MOULDING	LR154756 CAP - MOULDING LH	$91.14	1
<16020B	LR154761	FINISHER - BODY SIDE IN STOCK	LR154761 FINISHER - BODY SIDE BootTailgate Finshr-Nckl Atls, Less SV Model Spec / RH IN STOCK	$38.39	1
<16020B	LR154762	FINISHER - BODY SIDE	LR154762 FINISHER - BODY SIDE Less SV Model Spec, Trunk Lid Finisher - Atlas / RH	$38.39	1
<16020B	LR154763	FINISHER - BODY SIDE	LR154763 FINISHER - BODY SIDE Less SV Model Spec, Trunk Lid Finisher - Graphite Atlas / RH	$38.39	1
<16020B	LR154764	FINISHER - BODY SIDE IN STOCK	LR154764 FINISHER - BODY SIDE BootTailgate Finshr-Nckl Atls, Less SV Model Spec / LH IN STOCK	$38.39	1
<16020B	LR154765	FINISHER - BODY SIDE	LR154765 FINISHER - BODY SIDE Less SV Model Spec, Trunk Lid Finisher - Atlas / LH	$38.39	1
<16020B	LR154766	FINISHER - BODY SIDE	LR154766 FINISHER - BODY SIDE Less SV Model Spec, Trunk Lid Finisher - Graphite Atlas / LH	$38.39	1
<16020B	LR168703	FINISHER - FENDER	LR168703 FINISHER - FENDER Grille - Anthracite, SV1 Model Spec / LH / From: PA000001	$122.79	1
<16020B	LR168704	FINISHER - FENDER	LR168704 FINISHER - FENDER Grille - Corinthian Bronze, SV1 Model Spec / LH / From: PA000001	$122.79	1
<16020B	LR168700	FINISHER - FENDER	LR168700 FINISHER - FENDER Grille - Anthracite, SV1 Model Spec / RH / From: PA000001	$122.79	1
<16020B	LR168701	FINISHER - FENDER	LR168701 FINISHER - FENDER Grille - Corinthian Bronze, SV1 Model Spec / RH / From: PA000001	$122.79	1
<16020B	LR168699	FINISHER - FENDER	LR168699 FINISHER - FENDER Grille - Dark Silver, SV1 Model Spec / RH / From: PA000001	$53.71	1
<16020B	LR168702	FINISHER - FENDER	LR168702 FINISHER - FENDER Grille - Dark Silver, SV1 Model Spec / LH / From: PA000001	$53.71	1
<16160	LR159777	MOULDING - FRONT DOOR	LR159777 MOULDING - FRONT DOOR Less SV Model Spec, Side Vents - Nickel Atlas / RH, Primed	$128.25	1
<16160	LR159778	MOULDING - FRONT DOOR	LR159778 MOULDING - FRONT DOOR Front Fender Gill-Atlas, Less SV Model Spec / RH, Primed	$128.25	1
<16160	LR159779	MOULDING - FRONT DOOR	LR159779 MOULDING - FRONT DOOR Less SV Model Spec, Side Vents - Graphite Atlas / RH, Primed	$128.25	1
<16160	LR159780	MOULDING - FRONT DOOR	LR159780 MOULDING - FRONT DOOR Less SV Model Spec, Side Vents - Nickel Atlas / LH, Primed	$128.25	1
<16160	LR159781	MOULDING - FRONT DOOR	LR159781 MOULDING - FRONT DOOR Front Fender Gill-Atlas, Less SV Model Spec / LH, Primed	$128.25	1
<16160	LR159782	MOULDING - FRONT DOOR	LR159782 MOULDING - FRONT DOOR Less SV Model Spec, Side Vents - Graphite Atlas / LH, Primed	$128.25	1
<16160	529123888	MOULDING - FRONT DOOR	529123888 MOULDING - FRONT DOOR Grille - Anthracite, SV1 Model Spec / RH / From: PA000001	$639.84	1
<16160	LR167171	Moulding - Fender	LR167171 Moulding - Fender Grille - Corinthian Bronze, SV1 Model Spec / RH / From: PA000001	$522.01	1
<16160	529123890	MOULDING - FRONT DOOR	529123890 MOULDING - FRONT DOOR Grille - Anthracite, SV1 Model Spec / LH / From: PA000001	$639.84	1
<16160	LR167174	Moulding - Fender	LR167174 Moulding - Fender Grille - Corinthian Bronze, SV1 Model Spec / LH / From: PA000001	$522.01	1
<16160	LR167169	Moulding - Fender	LR167169 Moulding - Fender Grille - Silver, SV1 Model Spec / RH / From: PA000001	$476.49	1
<16160	LR167172	Moulding - Fender	LR167172 Moulding - Fender Grille - Silver, SV1 Model Spec / LH / From: PA000001	$476.49	1
<25557A	LR154115	MOULDING - FENDER	LR154115 MOULDING - FENDER RH	$58.49	1
<25557A	LR154116	MOULDING - FENDER	LR154116 MOULDING - FENDER LH	$58.49	1
<25557B	LR154737	MOULDING - DOOR OUTSIDE	LR154737 MOULDING - DOOR OUTSIDE Less Side Door Power / RH / To: NA000675	$179.48	1
<25557B	LR154734	MOULDING - DOOR OUTSIDE	LR154734 MOULDING - DOOR OUTSIDE Less Side Door Power / LH / To: NA000675	$179.48	1
<25557B	LR154733	MOULDING - DOOR OUTSIDE	LR154733 MOULDING - DOOR OUTSIDE Soft Dr Close w/Pwr Rr Opn/Cls / RH / To: NA000675	$361.69	1
<25557B	LR154736	MOULDING - DOOR OUTSIDE	LR154736 MOULDING - DOOR OUTSIDE Soft Dr Close w/Pwr Rr Opn/Cls / LH / To: NA000675	$361.69	1
<25557B	LR173220	Moulding - Door Outside	LR173220 Moulding - Door Outside Less Side Door Power / RH / From: NA000676	$169.15	1
<25557B	LR173221	Moulding - Door Outside	LR173221 Moulding - Door Outside Soft Dr Close w/Pwr Rr Opn/Cls / RH / From: NA000676	$340.89	1
<25557B	LR173222	Moulding - Door Outside	LR173222 Moulding - Door Outside Less Side Door Power / LH / From: NA000676	$169.15	1
<25557B	LR173223	Moulding - Door Outside	LR173223 Moulding - Door Outside Soft Dr Close w/Pwr Rr Opn/Cls / LH / From: NA000676	$340.89	1
<25557C	LR154178	MOULDING - DOOR OUTSIDE	LR154178 MOULDING - DOOR OUTSIDE Less Side Door Power, Standard Wheelbase / RH / To: NA000675	$151.18	1
<25557C	LR154179	MOULDING - DOOR OUTSIDE	LR154179 MOULDING - DOOR OUTSIDE Less Side Door Power, Long Wheelbase / RH / To: NA000675	$178.71	1
<25557C	LR154180	MOULDING - DOOR OUTSIDE	LR154180 MOULDING - DOOR OUTSIDE Soft Dr Close w/Pwr Rr Opn/Cls, Standard Wheelbase / RH / To: NA000675	$304.67	1
<25557C	LR154181	MOULDING - DOOR OUTSIDE	LR154181 MOULDING - DOOR OUTSIDE Long Wheelbase, Soft Dr Close w/Pwr Rr Opn/Cls / RH / To: NA000675	$346.06	1
<25557C	LR154182	MOULDING - DOOR OUTSIDE	LR154182 MOULDING - DOOR OUTSIDE Less Side Door Power, Standard Wheelbase / LH / To: NA000675	$151.18	1
<25557C	LR154183	MOULDING - DOOR OUTSIDE	LR154183 MOULDING - DOOR OUTSIDE Less Side Door Power, Long Wheelbase / LH / To: NA000675	$178.71	1
<25557C	LR154184	MOULDING - DOOR OUTSIDE	LR154184 MOULDING - DOOR OUTSIDE Soft Dr Close w/Pwr Rr Opn/Cls, Standard Wheelbase / LH / To: NA000675	$304.67	1
<25557C	LR154185	MOULDING - DOOR OUTSIDE	LR154185 MOULDING - DOOR OUTSIDE Long Wheelbase, Soft Dr Close w/Pwr Rr Opn/Cls / LH / To: NA000675	$346.06	1
<25557C	LR173212	Moulding - Door Outside	LR173212 Moulding - Door Outside Less Side Door Power, Standard Wheelbase / RH / From: NA000676	$142.44	1
<25557C	LR173213	Moulding - Door Outside	LR173213 Moulding - Door Outside Less Side Door Power, Long Wheelbase / RH / From: NA000676	$168.45	1
<25557C	LR173214	Moulding - Door Outside	LR173214 Moulding - Door Outside Soft Dr Close w/Pwr Rr Opn/Cls, Standard Wheelbase / RH / From: NA000676	$287.11	1
<25557C	LR173215	Moulding - Door Outside	LR173215 Moulding - Door Outside Long Wheelbase, Soft Dr Close w/Pwr Rr Opn/Cls / RH / From: NA000676	$326.16	1
<25557C	LR173216	Moulding - Door Outside	LR173216 Moulding - Door Outside Less Side Door Power, Standard Wheelbase / LH / From: NA000676	$142.44	1
<25557C	LR173217	Moulding - Door Outside	LR173217 Moulding - Door Outside Less Side Door Power, Long Wheelbase / LH / From: NA000676	$168.45	1
<25557C	LR173218	Moulding - Door Outside	LR173218 Moulding - Door Outside Soft Dr Close w/Pwr Rr Opn/Cls, Standard Wheelbase / LH / From: NA000676	$287.11	1
<25557C	LR173219	Moulding - Door Outside	LR173219 Moulding - Door Outside Long Wheelbase, Soft Dr Close w/Pwr Rr Opn/Cls / LH / From: NA000676	$326.16	1
<28370	LR153898	MOULDING - REAR WHEEL ARCH	LR153898 MOULDING - REAR WHEEL ARCH RH	$126.09	1
<28370	LR153899	MOULDING - REAR WHEEL ARCH	LR153899 MOULDING - REAR WHEEL ARCH LH	$126.09	1
HC1	T2R31859	CLIP IN STOCK	T2R31859 CLIP Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Front, Moulding IN STOCK	-	8	Enquire
HC1	T2R31859	CLIP IN STOCK	T2R31859 CLIP Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Middle, Moulding IN STOCK	-	26	Enquire
HC1	T2R31859	CLIP IN STOCK	T2R31859 CLIP Standard Wheelbase / Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Moulding, Rear IN STOCK	-	16	Enquire
HC1	T2R31859	CLIP IN STOCK	T2R31859 CLIP Long Wheelbase / Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Moulding, Rear IN STOCK	-	22	Enquire
HC1	T2R31859	CLIP IN STOCK	T2R31859 CLIP Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Splash Shield IN STOCK	-	12	Enquire
HC1	T2R31859	CLIP IN STOCK	T2R31859 CLIP Long Wheelbase / Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Door Sill, Moulding IN STOCK	-	18	Enquire
HC2	LR032984	CLIP IN STOCK	LR032984 CLIP Splash Shield, Trim Clip 8 X 0.8 - 1.2 IN STOCK	$1.63	4
HC2	LR032984	CLIP IN STOCK	LR032984 CLIP Finisher, Trim Clip 8 X 0.8 - 1.2 IN STOCK	$1.63	12
HN1	LR114151	NUT IN STOCK	LR114151 NUT 5X8X8X0.7-1.3, Expanding Rivet, Moulding, Wheel Arch IN STOCK	$1.38	6
HS1	LR079186	SCREW	LR079186 SCREW M5 X 16MM, Middle, Moulding, Rear	$1.06	4
HS1	LR079186	SCREW	LR079186 SCREW M5 X 16MM, Moulding, Wheel Arch	$1.06	6
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM 6.3 X 22MM, Front, Moulding, Push Pin IN STOCK	$1.50	1
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM Standard Wheelbase / 6.3 X 22MM, Door Sill, Moulding, Push Pin IN STOCK	$1.50	6
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM Long Wheelbase / 6.3 X 22MM, Door Sill, Moulding, Push Pin IN STOCK	$1.50	8
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM 6.3 X 22MM, Push Pin, Splash Shield IN STOCK	$1.50	4
407721	LR157027	CAP - MOULDING	LR157027 CAP - MOULDING RH	$8.35	1
407721	LR157028	CAP - MOULDING	LR157028 CAP - MOULDING LH	$8.35	1

Body Mouldings

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Body Mouldings
