Side Panels - Outer (Standard Wheelbase)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Side Panels - Outer (Standard Wheelbase)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR171035 NUT - RIVET $0.79 IN STOCK
Photo Part No Description Price (each) Stock
LR150600 PANEL - REAR LAMP CLOSING $27.14 To Order
LR150601 PANEL - REAR LAMP CLOSING $27.14 To Order
Photo Part No Description Price (each) Stock
LR165038 PANEL - BODY SIDE - DOOR SILL $605.12 To Order
LR165039 PANEL - BODY SIDE - DOOR SILL $924.95 To Order
Photo Part No Description Price (each) Stock
LR164025 PANEL - BODY SIDE - CENTRE $978.30 To Order
LR164026 PANEL - BODY SIDE - CENTRE $978.30 To Order
Photo Part No Description Price (each) Stock
LR163981 PANEL - BODY SIDE - REAR RH $2,988.26 To Order
LR163983 PANEL - BODY SIDE - REAR LH $2,988.26 To Order
LR163985 PANEL - BODY SIDE - REAR LH $2,988.26 To Order
Photo Part No Description Price (each) Stock
LR153364 EXTENSION - REAR WHEELHOUSE $56.91 To Order
LR153365 EXTENSION - REAR WHEELHOUSE $56.91 To Order
Photo Part No Description Price (each) Stock
LR163990 PANEL - REAR QUARTER $140.91 To Order
LR163989 PANEL - REAR QUARTER $142.74 To Order
Photo Part No Description Price (each) Stock
LR150602 BRACKET - FENDER MOUNTING $61.72 To Order
LR150603 BRACKET - FENDER MOUNTING $61.72 To Order
Photo Part No Description Price (each) Stock
LR151516 INSULATOR $22.36 To Order
LR151177 INSULATOR $20.08 To Order
Photo Part No Description Price (each) Stock
LR150573 INSULATOR - QUARTER PANEL $13.98 To Order
LR151332 INSULATOR - QUARTER PANEL $18.53 To Order
Photo Part No Description Price (each) Stock
LR164031 PILLAR - FRONT BODY - OUTER $592.63 To Order
LR164032 PILLAR - FRONT BODY - OUTER $592.63 To Order
Photo Part No Description Price (each) Stock
LR164019 PANEL - "D" PILLAR WATER DRAIN $193.48 To Order
LR164018 PANEL - "D" PILLAR WATER DRAIN $193.48 To Order
Photo Part No Description Price (each) Stock
LR168293 REINFORCEMENT - "D" PILLAR $381.93 To Order
LR168294 REINFORCEMENT - "D" PILLAR $381.93 To Order
Photo Part No Description Price (each) Stock
LR154537 PILLAR - REAR $10.22 To Order
LR154536 PILLAR - REAR $10.22 To Order
Photo Part No Description Price (each) Stock
LR164030 PANEL - QUARTER - OUTER RH $1,711.51 To Order
LR165025 PANEL - QUARTER - OUTER LH $1,711.51 To Order
LR165026 PANEL - QUARTER - OUTER LH $1,092.89 To Order
Photo Part No Description Price (each) Stock
LR154700 PANEL - REAR QUARTER $1,036.83 To Order
LR154701 PANEL - REAR QUARTER $895.83 To Order
LR154702 PANEL - REAR QUARTER $895.83 To Order
View All

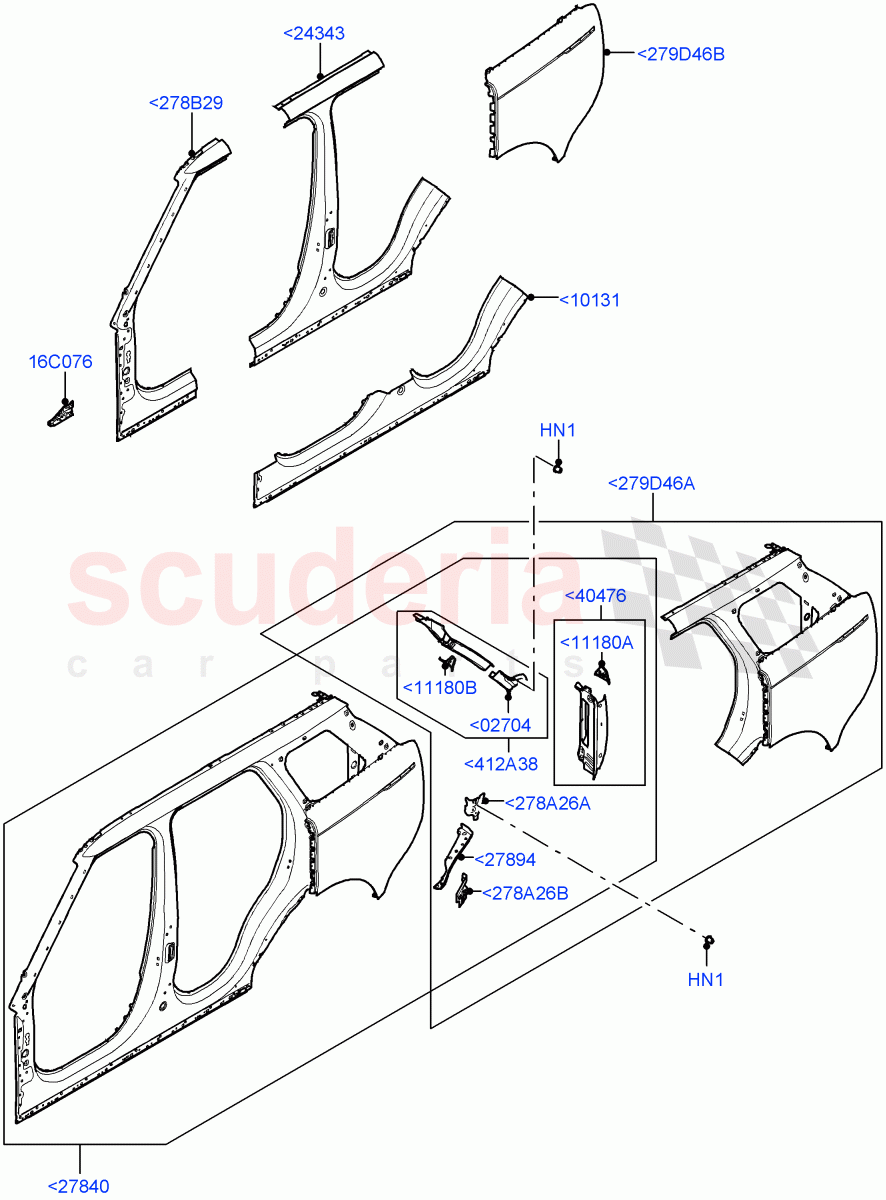

Side Panels - Outer (Standard Wheelbase) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<278A26A LR168293
REINFORCEMENT - "D" PILLAR
RH, Rear Outer 		$381.93 1
<278A26A LR168294
REINFORCEMENT - "D" PILLAR
LH, Rear Quarter 		$381.93 1
<278A26B LR154537
PILLAR - REAR
LH 		$10.22 1
<278A26B LR154536
PILLAR - REAR
RH 		$10.22 1
<278B29 LR164031
PILLAR - FRONT BODY - OUTER
Standard Wheelbase / RH, Category A 		$592.63 1
<278B29 LR164032
PILLAR - FRONT BODY - OUTER
Standard Wheelbase / LH, Category A 		$592.63 1
<279D46A LR164030
PANEL - QUARTER - OUTER RH
Standard Wheelbase / RH, Category A 		$1,711.51 1
<279D46A LR165025
PANEL - QUARTER - OUTER LH
Less Electric Engine Battery, Standard Wheelbase / LH, Category A 		$1,711.51 1
<279D46A LR165026
PANEL - QUARTER - OUTER LH
Electric Engine Battery-PHEV, Standard Wheelbase / LH, Category A 		$1,092.89 1
<279D46B LR154700
PANEL - REAR QUARTER
Electric Engine Battery-PHEV / RH, Category A 		$1,036.83 1
<279D46B LR154701
PANEL - REAR QUARTER
Electric Engine Battery-MHEV / LH, Category A 		$895.83 1
<279D46B LR154702
PANEL - REAR QUARTER
Electric Engine Battery-PHEV / LH, Category A 		$895.83 1
<412A38 LR164019
PANEL - "D" PILLAR WATER DRAIN
LH 		$193.48 1
<412A38 LR164018
PANEL - "D" PILLAR WATER DRAIN
RH 		$193.48 1
<02704 LR150600
PANEL - REAR LAMP CLOSING
RH 		$27.14 1
<02704 LR150601
PANEL - REAR LAMP CLOSING
LH 		$27.14 1
<10131 LR165038
PANEL - BODY SIDE - DOOR SILL
RH, Category A 		$605.12 1
<10131 LR165039
PANEL - BODY SIDE - DOOR SILL
LH, Category A 		$924.95 1
<11180A LR151516
INSULATOR
RH 		$22.36 1
<11180A LR151177
INSULATOR
LH 		$20.08 1
<11180B LR150573
INSULATOR - QUARTER PANEL
RH 		$13.98 1
<11180B LR151332
INSULATOR - QUARTER PANEL
LH 		$18.53 1
<24343 LR164025
PANEL - BODY SIDE - CENTRE
RH, Category A 		$978.30 1
<24343 LR164026
PANEL - BODY SIDE - CENTRE
LH, Category A 		$978.30 1
<27840 LR163981
PANEL - BODY SIDE - REAR RH
Less Electric Engine Battery / RH, Category A 		$2,988.26 1
<27840 LR163983
PANEL - BODY SIDE - REAR LH
Less Electric Engine Battery / LH, Category A 		$2,988.26 1
<27840 LR163985
PANEL - BODY SIDE - REAR LH
Electric Engine Battery-PHEV / LH, Category A 		$2,988.26 1
<27894 LR153364
EXTENSION - REAR WHEELHOUSE
RH, Category A 		$56.91 1
<27894 LR153365
EXTENSION - REAR WHEELHOUSE
LH, Category A 		$56.91 1
<40476 LR163990
PANEL - REAR QUARTER
LH, Category A 		$140.91 1
<40476 LR163989
PANEL - REAR QUARTER
RH, Category A 		$142.74 1
HN1 LR171035
NUT - RIVET
M6 x 15, Rivet Nut
IN STOCK 		$0.79 4
16C076 LR150602
BRACKET - FENDER MOUNTING
RH 		$61.72 1
16C076 LR150603
BRACKET - FENDER MOUNTING
LH 		$61.72 1
