Name: Sliding Roof Mechanism And Controls (Sunroof Frame) (With Roof Conversion-Panorama Roof)
Rating: 5.0 (1 reviews)

Sliding Roof Mechanism And Controls (Sunroof Frame) (With Roof Conversion-Panorama Roof) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Sliding Roof Mechanism And Controls (Sunroof Frame) (With Roof Conversion-Panorama Roof)

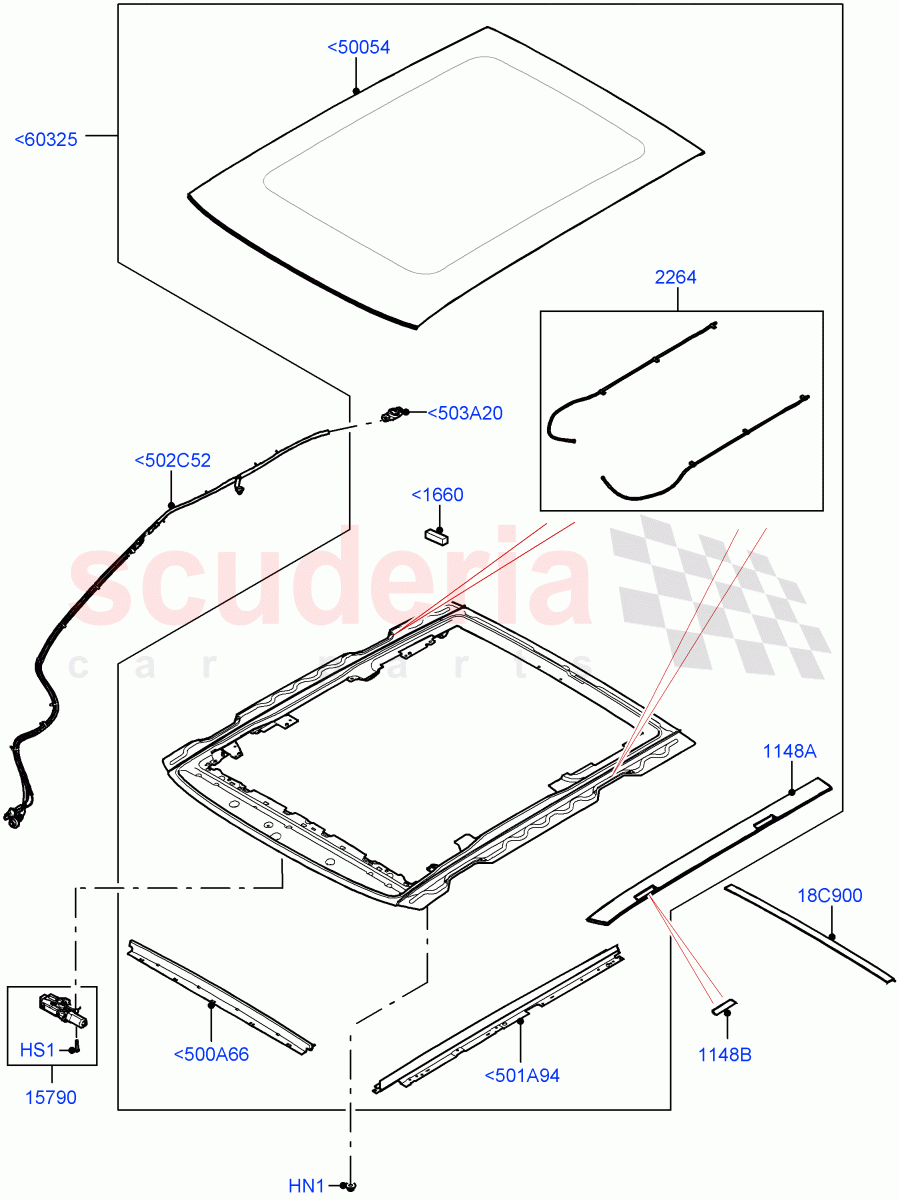

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BYH500060	NUT - FLANGED	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117456	KIT - SCREWS	$8.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163761	ROLLER BLIND - TUBE	$42.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038287	SPACER - WINDSCREEN GLASS OPENING	$106.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163669	FINISHER - ROOF	$337.07	To Order
	LR162776	FINISHER - ROOF	$337.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR185482	MOULDING	$78.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153482	MOTOR - WITHOUT DRIVE	$497.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153456	GLASS - SLIDING ROOF	$1,154.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153479	RAIL - ROOF	$3,999.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161119	TAPE - DECORATIVE	$27.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR169919	DEFLECTOR - WIND - NET HIDER	$141.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163737	Rail - Guide	$380.25	To Order
	LR163740	Rail - Guide	$582.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153486	TUBE - WATER DRAIN	$34.21	To Order
	LR153487	TUBE - WATER DRAIN	$28.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153906	TUBE - WATER DRAIN	$55.29	To Order
	LR163678	TUBE - WATER DRAIN	$55.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<500A66	LR169919	DEFLECTOR - WIND - NET HIDER	LR169919 DEFLECTOR - WIND - NET HIDER Front	$141.34	1
<501A94	LR163737	Rail - Guide	LR163737 Rail - Guide RH, LR163717 Is Required To Refit The Sunblind.	$380.25	1
<501A94	LR163740	Rail - Guide	LR163740 Rail - Guide LH, LR163717 Is Required To Refit The Sunblind.	$582.40	1
<502C52	LR153486	TUBE - WATER DRAIN	LR153486 TUBE - WATER DRAIN RH	$34.21	1
<502C52	LR153487	TUBE - WATER DRAIN	LR153487 TUBE - WATER DRAIN LH	$28.33	1
<503A20	LR153906	TUBE - WATER DRAIN	LR153906 TUBE - WATER DRAIN RH	$55.29	1
<503A20	LR163678	TUBE - WATER DRAIN	LR163678 TUBE - WATER DRAIN LH	$55.29	1
<1660	LR038287	SPACER - WINDSCREEN GLASS OPENING	LR038287 SPACER - WINDSCREEN GLASS OPENING Pack Of 12 Spacers	$106.67	1
<50054	LR153456	GLASS - SLIDING ROOF	LR153456 GLASS - SLIDING ROOF	$1,154.19	1
<60325	LR153479	RAIL - ROOF	LR153479 RAIL - ROOF LR163717 Is Required To Refit The Sunblind.	$3,999.77	1
HN1	BYH500060	NUT - FLANGED	BYH500060 NUT - FLANGED M8, Nut And Washer	$0.79	8
HS1	LR117456	KIT - SCREWS	LR117456 KIT - SCREWS	$8.77	2
18C900	LR161119	TAPE - DECORATIVE	LR161119 TAPE - DECORATIVE Standard Wheelbase	$27.02	1
1148A	LR163669	FINISHER - ROOF	LR163669 FINISHER - ROOF RH	$337.07	1
1148A	LR162776	FINISHER - ROOF	LR162776 FINISHER - ROOF LH	$337.07	1
1148B	LR185482	MOULDING	LR185482 MOULDING RH/LH	$78.54	4
2264	LR163761	ROLLER BLIND - TUBE	LR163761 ROLLER BLIND - TUBE 2 Piece Kit	$42.73	1
15790	LR153482	MOTOR - WITHOUT DRIVE	LR153482 MOTOR - WITHOUT DRIVE	$497.78	1
