Sliding Roof Mechanism And Controls (Sunroof Frame) (With Roof Conversion-Panorama Power)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Sliding Roof Mechanism And Controls (Sunroof Frame) (With Roof Conversion-Panorama Power)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BYH500060 NUT - FLANGED $0.78 To Order
Photo Part No Description Price (each) Stock
LR117456 KIT - SCREWS $8.74 To Order
Photo Part No Description Price (each) Stock
LR163761 ROLLER BLIND - TUBE $42.55 To Order
Photo Part No Description Price (each) Stock
LR038287 SPACER - WINDSCREEN GLASS OPENING $106.22 To Order
Photo Part No Description Price (each) Stock
LR163669 FINISHER - ROOF $335.66 To Order
LR162776 FINISHER - ROOF $335.66 To Order
Photo Part No Description Price (each) Stock
LR185482 MOULDING $78.21 To Order
Photo Part No Description Price (each) Stock
LR163672 FINISHER - ROOF $293.14 To Order
Photo Part No Description Price (each) Stock
LR153482 MOTOR - WITHOUT DRIVE $495.70 To Order
Photo Part No Description Price (each) Stock
LR153483 SEAL $71.41 To Order
Photo Part No Description Price (each) Stock
LR163715 FRAME - SLIDING ROOF PANEL OPENING $3,983.05 To Order
LR174434 Frame $3,463.29 To Order
LR174435 Frame $3,983.05 To Order
Photo Part No Description Price (each) Stock
LR153466 SPRING - ROOF $38.13 To Order
Photo Part No Description Price (each) Stock
LR153463 KIT - FIXING PARTS $20.51 To Order
Photo Part No Description Price (each) Stock
LR161119 TAPE - DECORATIVE $26.91 To Order
Photo Part No Description Price (each) Stock
LR163747 MOULDING - DEFLECTOR $31.80 To Order
Photo Part No Description Price (each) Stock
LR153486 TUBE - WATER DRAIN $34.07 To Order
LR153487 TUBE - WATER DRAIN $28.21 To Order
Photo Part No Description Price (each) Stock
LR153906 TUBE - WATER DRAIN $55.06 To Order
LR163678 TUBE - WATER DRAIN $55.06 To Order
Photo Part No Description Price (each) Stock
LR163661 SEAL - ROOF PANEL OPENING $82.07 To Order
Photo Part No Description Price (each) Stock
LR153457 DEFLECTOR - ROOF AIR $164.88 To Order
Photo Part No Description Price (each) Stock
LR153907 DEFLECTOR - WIND - NET HIDER $120.40 To Order
LR153908 DEFLECTOR - WIND - NET HIDER $120.40 To Order
Photo Part No Description Price (each) Stock
LR153477 COVER - ROOF BRACE $104.56 To Order
Photo Part No Description Price (each) Stock
LR153458 SHIELD - SUNROOF RAIL $153.79 To Order
LR153462 SHIELD - SUNROOF RAIL $153.79 To Order
Photo Part No Description Price (each) Stock
LR163665 SHIELD - SUNROOF RAIL $89.97 To Order
LR163665 SHIELD - SUNROOF RAIL $89.97 To Order
LR174431 Shield $131.53 To Order
Photo Part No Description Price (each) Stock
LR163738 Rail - Guide $378.66 To Order
LR163739 Rail - Guide $378.66 To Order
Photo Part No Description Price (each) Stock
LR163674 GUIDE - ROOF SIDE RAIL $1,292.95 To Order
LR163647 GUIDE - ROOF SIDE RAIL $879.82 To Order
View All

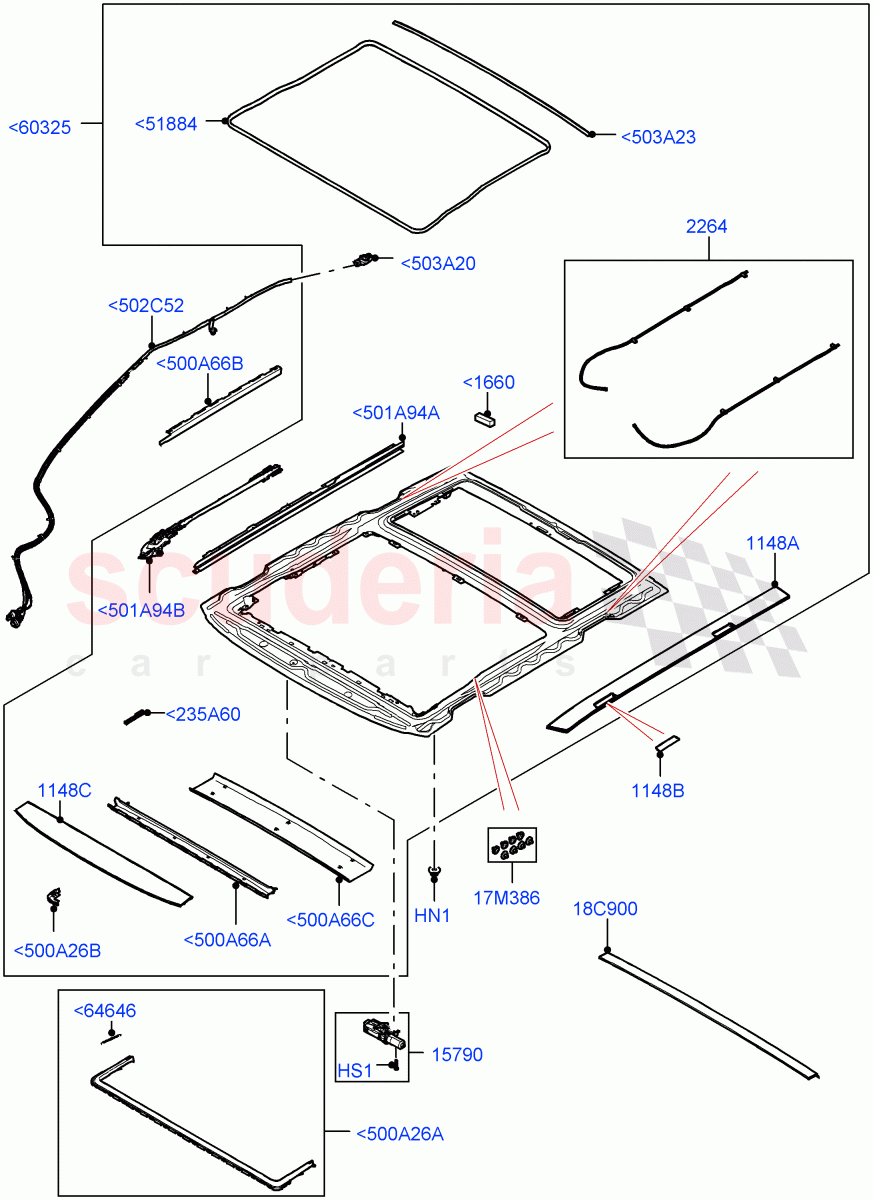

Sliding Roof Mechanism And Controls (Sunroof Frame) (With Roof Conversion-Panorama Power) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<235A60 LR163747
MOULDING - DEFLECTOR
RH/LH 		$31.80 2
<500A26A LR153457
DEFLECTOR - ROOF AIR 		$164.88 1
<500A26B LR153907
DEFLECTOR - WIND - NET HIDER
RH 		$120.40 1
<500A26B LR153908
DEFLECTOR - WIND - NET HIDER
LH 		$120.40 1
<500A66A LR153477
COVER - ROOF BRACE
Front 		$104.56 1
<500A66B LR153458
SHIELD - SUNROOF RAIL
RH 		$153.79 1
<500A66B LR153462
SHIELD - SUNROOF RAIL
LH 		$153.79 1
<500A66C LR163665
SHIELD - SUNROOF RAIL
Rear / To: NA999999 		$89.97 1
<500A66C LR163665
SHIELD - SUNROOF RAIL
Less Electric Engine Battery / Rear / From: PA000001 		$89.97 1
<500A66C LR174431
Shield
Electric Engine Battery-PHEV / Rear / From: PA000001 		$131.53 1
<501A94A LR163738
Rail - Guide
RH, For Sun Blinds, LR163717 Is Required To Refit The Sunblind. 		$378.66 1
<501A94A LR163739
Rail - Guide
LH, For Sun Blinds, LR163717 Is Required To Refit The Sunblind. 		$378.66 1
<501A94B LR163674
GUIDE - ROOF SIDE RAIL
LH, For Glass Panel Only, LR163717 Is Required To Refit The Sunblind. 		$1,292.95 1
<501A94B LR163647
GUIDE - ROOF SIDE RAIL
RH, For Glass Panel Only, LR163717 Is Required To Refit The Sunblind. 		$879.82 1
<502C52 LR153486
TUBE - WATER DRAIN
RH 		$34.07 1
<502C52 LR153487
TUBE - WATER DRAIN
LH 		$28.21 1
<503A20 LR153906
TUBE - WATER DRAIN
RH 		$55.06 1
<503A20 LR163678
TUBE - WATER DRAIN
LH 		$55.06 1
<503A23 LR163661
SEAL - ROOF PANEL OPENING 		$82.07 1
<1660 LR038287
SPACER - WINDSCREEN GLASS OPENING
Pack Of 12 Spacers 		$106.22 1
<51884 LR153483
SEAL 		$71.41 1
<60325 LR163715
FRAME - SLIDING ROOF PANEL OPENING
Includes Rear Glass, LR163717 Is Required To Refit The Sunblind. / To: NA999999 		$3,983.05 1
<60325 LR174434
Frame
Electric Engine Battery-PHEV / Includes Rear Glass, LR163717 Is Required To Refit The Sunblind. / From: PA000001 		$3,463.29 1
<60325 LR174435
Frame
Less Electric Engine Battery / Includes Rear Glass, LR163717 Is Required To Refit The Sunblind. / From: PA000001 		$3,983.05 1
<64646 LR153466
SPRING - ROOF
RH/LH 		$38.13 2
HN1 BYH500060
NUT - FLANGED
M8, Nut And Washer 		$0.78 8
HS1 LR117456
KIT - SCREWS 		$8.74 4
17M386 LR153463
KIT - FIXING PARTS
Mechanism, Pack Of 8 		$20.51 1
18C900 LR161119
TAPE - DECORATIVE
Standard Wheelbase 		$26.91 1
1148A LR163669
FINISHER - ROOF
RH 		$335.66 1
1148A LR162776
FINISHER - ROOF
LH 		$335.66 1
1148B LR185482
MOULDING
RH/LH 		$78.21 4
1148C LR163672
FINISHER - ROOF
Front 		$293.14 1
2264 LR163761
ROLLER BLIND - TUBE
2 Piece Kit 		$42.55 1
15790 LR153482
MOTOR - WITHOUT DRIVE 		$495.70 2
