Name: Front Doors, Hinges & Weatherstrips (Door And Fixings)
Rating: 5.0 (1 reviews)

Front Doors, Hinges & Weatherstrips (Door And Fixings) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Front Doors, Hinges & Weatherstrips (Door And Fixings)

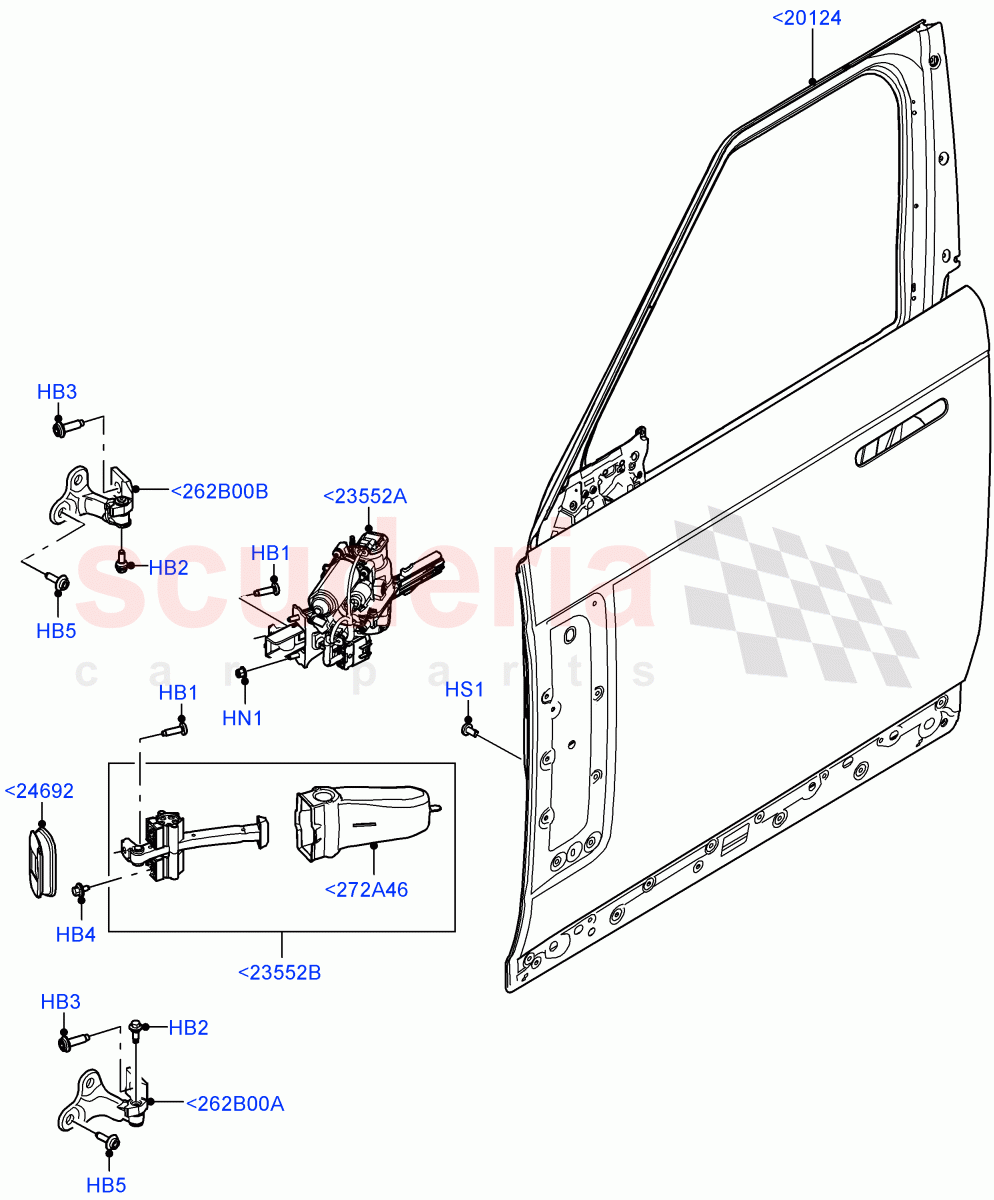

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR156862	BOLT	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156861	BOLT	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155060	BOLT	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155112	BOLT AND WASHER - HEX.HEAD	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025399	BOLT	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	QYP500110	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159299	DOOR - FRONT - LESS HINGES LH	$1,594.61	To Order
	LR159298	DOOR - FRONT - LESS HINGES RH	$1,060.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151800	SEAL - DOOR CHECK	$44.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154171	MOTOR	$652.24	To Order
	LR154172	MOTOR	$652.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151731	CHECK - DOOR	$57.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154642	COVER - DOOR CHECK PROTECTION	$67.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157460	HINGE - DOOR	$114.86	To Order
	LR157461	HINGE - DOOR	$114.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157462	HINGE - DOOR	$121.20	To Order
	LR157464	HINGE - DOOR	$121.20	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<262B00A	LR157460	HINGE - DOOR	LR157460 HINGE - DOOR RH, Lower	$114.86	1
<262B00A	LR157461	HINGE - DOOR	LR157461 HINGE - DOOR LH, Lower	$114.86	1
<262B00B	LR157462	HINGE - DOOR	LR157462 HINGE - DOOR RH, Upper	$121.20	1
<262B00B	LR157464	HINGE - DOOR	LR157464 HINGE - DOOR LH, Upper	$121.20	1
<272A46	LR154642	COVER - DOOR CHECK PROTECTION	LR154642 COVER - DOOR CHECK PROTECTION Soft Door Close / RH/LH	$67.14	2
<20124	LR159299	DOOR - FRONT - LESS HINGES LH	LR159299 DOOR - FRONT - LESS HINGES LH LH, Category B	$1,594.61	1
<20124	LR159298	DOOR - FRONT - LESS HINGES RH	LR159298 DOOR - FRONT - LESS HINGES RH RH, Category B	$1,060.67	1
<23552A	LR154171	MOTOR	LR154171 MOTOR Soft Dr Close w/Pwr Rr Opn/Cls / RH	$652.24	1
<23552A	LR154172	MOTOR	LR154172 MOTOR Soft Dr Close w/Pwr Rr Opn/Cls / LH	$652.24	1
<23552B	LR151731	CHECK - DOOR	LR151731 CHECK - DOOR Soft Door Close / RH/LH	$57.30	2
<24692	LR151800	SEAL - DOOR CHECK	LR151800 SEAL - DOOR CHECK RH/LH	$44.17	2
HB1	LR156862	BOLT	LR156862 BOLT Door Check, M8 X 25MM	$1.47	2
HB2	LR156861	BOLT	LR156861 BOLT Door Hinge, Hexagonal Head, M8 X 15MM	$0.96	4
HB3	LR155060	BOLT	LR155060 BOLT Door Hinge, M10 X 28MM	$1.76	4
HB4	LR155112	BOLT AND WASHER - HEX.HEAD	LR155112 BOLT AND WASHER - HEX.HEAD Soft Door Close / Door Check, M6 x 12MM	$1.11	4
HB5	LR025399	BOLT	LR025399 BOLT Door Hinge, M8 X 25MM	$2.01	8
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Soft Dr Close w/Pwr Rr Opn/Cls / Door Check, Hexagonal Head, M6 IN STOCK	$0.68	4
HS1	QYP500110	SCREW	QYP500110 SCREW Door, M8 X 16MM, Torx	$0.63	2

Front Doors, Hinges & Weatherstrips (Door And Fixings)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Front Doors, Hinges & Weatherstrips (Door And Fixings)

Add to Shopping Cart
