Front Door Lock Controls

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Front Door Lock Controls

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038526 BOLT $1.41 To Order
Photo Part No Description Price (each) Stock
LR115317 BOLT AND WASHER - HEX.HEAD $1.09 To Order
Photo Part No Description Price (each) Stock
LR037473 PLUG - BLANKING $1.10 To Order
Photo Part No Description Price (each) Stock
LR038527 PLUG - BODY SEALING $2.73 To Order
Photo Part No Description Price (each) Stock
LR124815 PLUG - BLANKING $1.14 To Order
Photo Part No Description Price (each) Stock
LR042467 BOLT $1.94 To Order
Photo Part No Description Price (each) Stock
LR153674 LATCH - FRONT DOOR $254.11 To Order
LR153675 LATCH - FRONT DOOR $254.11 To Order
LR153676 LATCH - FRONT DOOR $357.75 To Order
...and 21 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR153748 STRIKER - DOOR LOCKING MECHANISM $25.70 To Order
Photo Part No Description Price (each) Stock
LR153758 HANDLE - DOOR - OUTER $207.93 To Order
LR174223 Handle - Door - Outer $204.01 To Order
LR153760 HANDLE - DOOR - OUTER $185.41 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR153754 SHIELD - DOOR LOCK $28.32 To Order
LR153755 SHIELD - DOOR LOCK $14.12 To Order
Photo Part No Description Price (each) Stock
LR153875 ACTUATOR - DOOR LATCH $173.73 To Order
Photo Part No Description Price (each) Stock
LR037501 BUFFER - RUBBER MOTOR MOUNTING $9.16 To Order
Photo Part No Description Price (each) Stock
LR168006 HANDLE - COVER $29.03 To Order
LR168007 HANDLE - COVER $29.03 To Order
Photo Part No Description Price (each) Stock
LR153757 CABLE $53.88 To Order
LR153881 CABLE - DOOR LATCH $15.91 To Order
Photo Part No Description Price (each) Stock
LR153756 CABLE - DOOR LATCH $14.68 To Order
Photo Part No Description Price (each) Stock
LR153878 CABLE - DOOR LATCH $14.48 To Order
View All

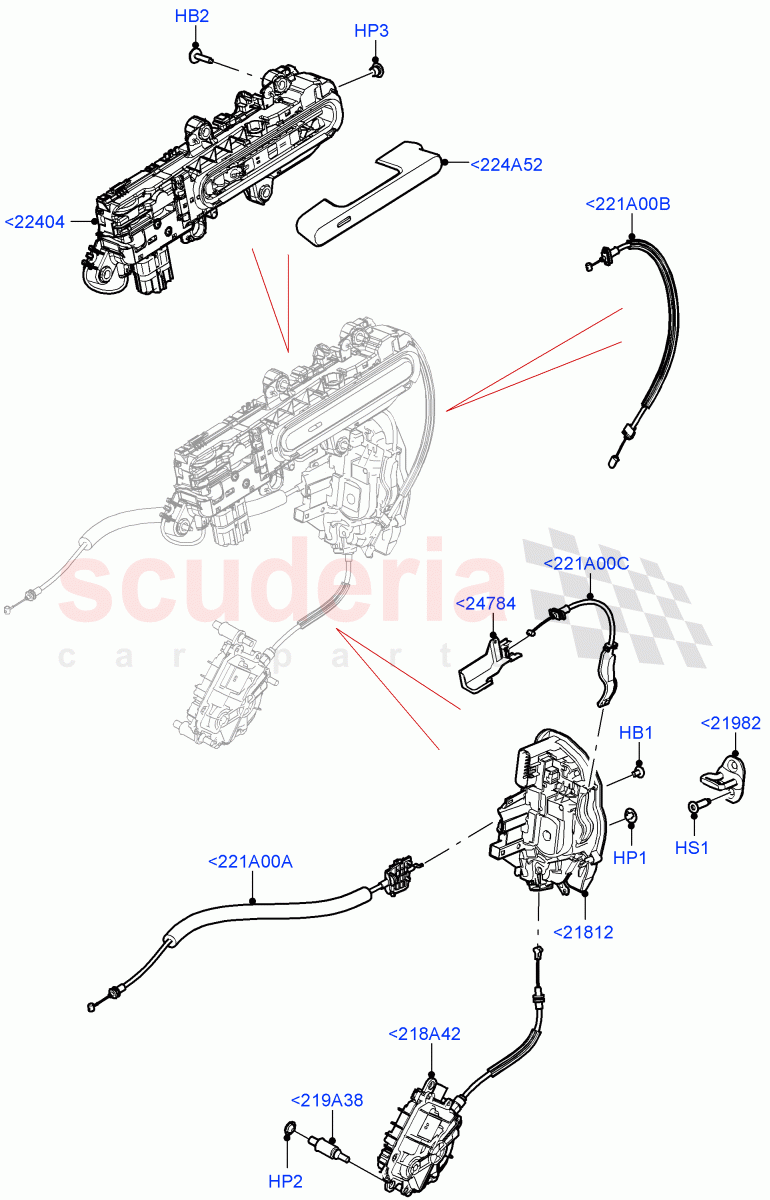

Front Door Lock Controls of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<218A42 LR153875
ACTUATOR - DOOR LATCH
Soft Dr Close w/Pwr Rr Opn/Cls / RH/LH 		$173.73 2
<219A38 LR037501
BUFFER - RUBBER MOTOR MOUNTING
Soft Dr Close w/Pwr Rr Opn/Cls / Rubber 		$9.16 6
<221A00A LR153757
CABLE
RH 		$53.88 1
<221A00A LR153881
CABLE - DOOR LATCH
LH 		$15.91 1
<221A00B LR153756
CABLE - DOOR LATCH
RH/LH 		$14.68 2
<221A00C LR153878
CABLE - DOOR LATCH
For Drivers Side, Lock Cylinder To Latch 		$14.48 1
<224A52 LR168006
HANDLE - COVER
RH, Primed 		$29.03 1
<224A52 LR168007
HANDLE - COVER
LH, Primed 		$29.03 1
<21812 LR153674
LATCH - FRONT DOOR
Double Locking Power Lock Latch, RHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH 		$254.11 1
<21812 LR153675
LATCH - FRONT DOOR
Central Locking Power Lock Latch, RHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH 		$254.11 1
<21812 LR153676
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH 		$357.75 1
<21812 LR153677
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH 		$254.11 1
<21812 LR153678
LATCH - FRONT DOOR
Double Locking Power Lock Latch, RHD, Soft Door Close / RH 		$254.11 1
<21812 LR153679
LATCH - FRONT DOOR
Central Locking Power Lock Latch, RHD, Soft Door Close / RH 		$229.45 1
<21812 LR153681
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD, Soft Door Close / RH 		$251.96 1
<21812 LR153682
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD, Soft Door Close / RH 		$233.57 1
<21812 LR153684
LATCH - FRONT DOOR
Double Locking Power Lock Latch, Less Side Door Power, RHD / RH 		$254.11 1
<21812 LR153686
LATCH - FRONT DOOR
Central Locking Power Lock Latch, Less Side Door Power, RHD / RH 		$231.24 1
<21812 LR153687
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD, Less Side Door Power / RH 		$254.11 1
<21812 LR153696
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD, Less Side Door Power / RH 		$236.37 1
<21812 LR153708
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH 		$240.86 1
<21812 LR153709
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH 		$254.11 1
<21812 LR153710
LATCH - FRONT DOOR
Double Locking Power Lock Latch, RHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH 		$357.75 1
<21812 LR153711
LATCH - FRONT DOOR
Central Locking Power Lock Latch, RHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH 		$254.11 1
<21812 LR153712
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD, Soft Door Close / LH 		$240.86 1
<21812 LR153713
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD, Soft Door Close / LH 		$254.11 1
<21812 LR153715
LATCH - FRONT DOOR
Double Locking Power Lock Latch, RHD, Soft Door Close / LH 		$247.01 1
<21812 LR153716
LATCH - FRONT DOOR
Central Locking Power Lock Latch, RHD, Soft Door Close / LH 		$249.13 1
<21812 LR153717
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD, Less Side Door Power / LH 		$254.11 1
<21812 LR153718
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD, Less Side Door Power / LH 		$216.09 1
<21812 LR153719
LATCH - FRONT DOOR
Double Locking Power Lock Latch, Less Side Door Power, RHD / LH 		$228.99 1
<21812 LR153720
LATCH - FRONT DOOR
Central Locking Power Lock Latch, Less Side Door Power, RHD / LH 		$220.40 1
<21982 LR153748
STRIKER - DOOR LOCKING MECHANISM
RH/LH 		$25.70 2
<22404 LR153758
HANDLE - DOOR - OUTER
Less Side Door Power, RHD / RH / To: NA000675 		$207.93 1
<22404 LR174223
Handle - Door - Outer
RHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH / To: NA000675 		$204.01 1
<22404 LR153760
HANDLE - DOOR - OUTER
LHD, Soft Door Close / LH / To: NA000675 		$185.41 1
<22404 535123462
HANDLE - DOOR - OUTER
LHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH / To: NA000675 		$220.79 1
<22404 LR153770
HANDLE - DOOR - OUTER
LHD, Less Side Door Power / RH / To: NA000675 		$212.77 1
<22404 535123458
HANDLE - DOOR - OUTER
LHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH / To: NA000675 		$289.46 1
<22404 LR153776
HANDLE - DOOR - OUTER
RHD, Soft Door Close / LH / To: NA000675 		$200.15 1
<22404 535123459
HANDLE - DOOR - OUTER
RHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH / To: NA000675 		$289.46 1
<22404 LR174229
Handle - Door - Outer
RHD, Soft Door Close / LH / From: NA000676 		$186.56 1
<22404 LR174230
Handle - Door - Outer
RHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH / From: NA000676 		$204.01 1
<22404 LR174227
Handle - Door - Outer
LHD, Soft Door Close / RH / From: NA000676 		$186.38 1
<22404 LR174228
Handle - Door - Outer
LHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH / From: NA000676 		$204.01 1
<22404 LR174222
Handle - Door - Outer
RHD, Soft Door Close / RH / From: NA000676 		$201.98 1
<22404 LR174223
Handle - Door - Outer
RHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH / From: NA000676 		$204.01 1
<22404 LR174225
Handle - Door - Outer
LHD, Soft Door Close / LH / From: NA000676 		$187.28 1
<22404 LR174226
Handle - Door - Outer
LHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH / From: NA000676 		$204.01 1
<24784 LR153754
SHIELD - DOOR LOCK
RHD / RH 		$28.32 1
<24784 LR153755
SHIELD - DOOR LOCK
LHD / LH 		$14.12 1
HB1 LR038526
BOLT
M6 X 11MM, On Door Latch 		$1.41 6
HB2 LR115317
BOLT AND WASHER - HEX.HEAD
M6x28 		$1.09 8
HP1 LR037473
PLUG - BLANKING
Access Hole Cover 		$1.10 2
HP2 LR038527
PLUG - BODY SEALING
Less Side Door Power / 10 X 0.8-1.5 		$2.73 6
HP3 LR124815
PLUG - BLANKING
M11 X 0.7 - 4 		$1.14 2
HS1 LR042467
BOLT
M8 X 25MM 		$1.94 4
