Splash And Heat Shields (Front, Body)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Splash And Heat Shields (Front, Body)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR158254 BOLT $1.39 To Order
LR158254 BOLT $1.39 To Order
LR158254 BOLT $1.39 To Order
Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.67 To Order
Photo Part No Description Price (each) Stock
FN106042 NUT $1.02 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR157380 SCREW $3.36 To Order
Photo Part No Description Price (each) Stock
LR165471 BRACKET - SHIELD $30.59 To Order
Photo Part No Description Price (each) Stock
LR154110 SHIELD - FLOOR $179.13 To Order
Photo Part No Description Price (each) Stock
LR173026 SHIELD - UNDERBODY - SIDE SILL $31.61 To Order
LR173027 SHIELD - UNDERBODY - SIDE SILL $31.61 To Order
Photo Part No Description Price (each) Stock
LR161439 SHIELD - ENGINE COMPARTMENT SPLASH $279.54 To Order
Photo Part No Description Price (each) Stock
LR151502 SHIELD - SPLASH $709.34 To Order
LR151504 SHIELD - SPLASH $709.34 To Order
LR169189 SHIELD - SPLASH $686.94 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR151503 SHIELD - SPLASH $709.34 To Order
LR169190 SHIELD - SPLASH $686.94 To Order
View All

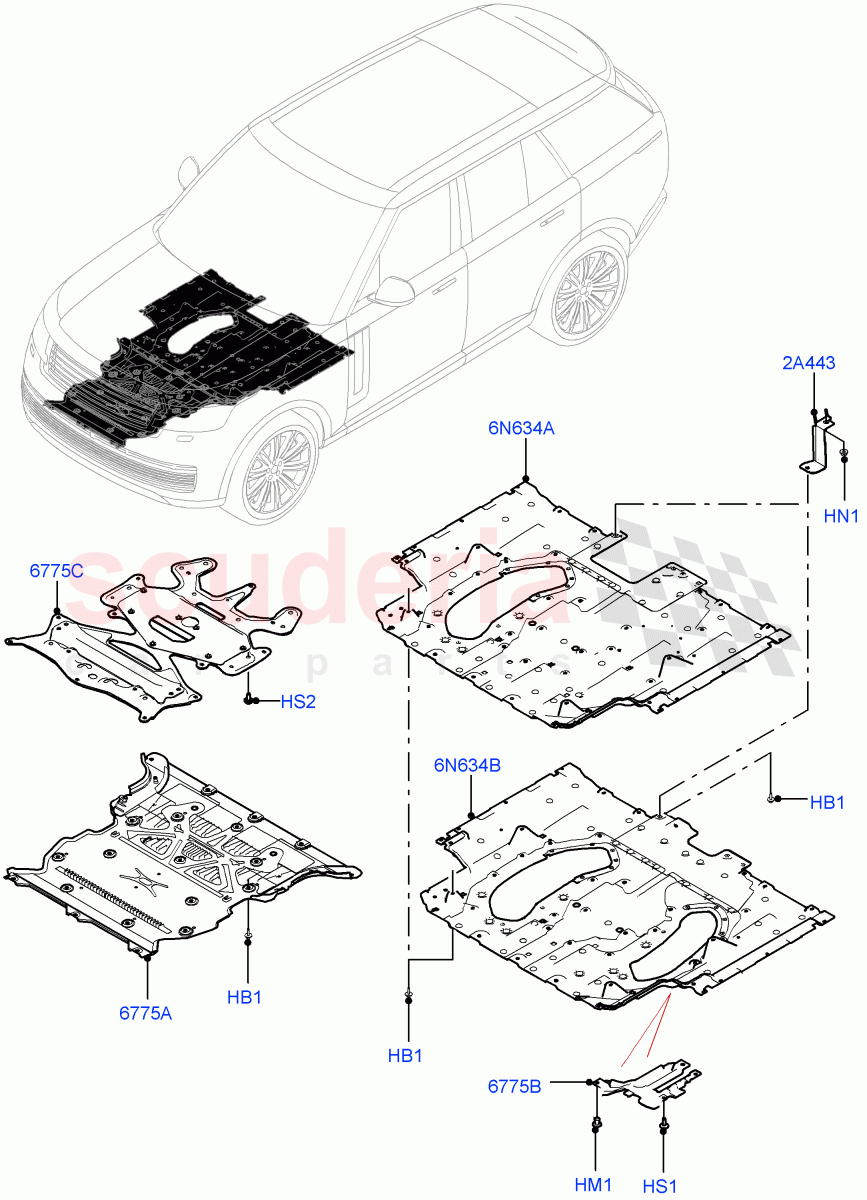

Splash And Heat Shields (Front, Body) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR158254
BOLT
M6 X 24MM, Middle, Shield 		$1.39 28
HB1 LR158254
BOLT
Front, M6 X 24MM, Shield 		$1.39 15
HB1 LR158254
BOLT
3.0L AJ20P6 Petrol High / Bracket, M6 X 24MM 		$1.39 1
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin 		$2.67 2
HN1 FN106042
NUT
4.4 V8 Turbo Petrol (NC10) / Hexagonal Head, M6
IN STOCK 		$1.02 1
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.96 8
HS2 LR157380
SCREW
M10 X 30MM 		$3.36 20
2A443 LR165471
BRACKET - SHIELD
3.0L AJ20P6 Petrol High / Support 		$30.59 1
6N634A LR151502
SHIELD - SPLASH
3.0L AJ20P6 Petrol High / To: NA001389 		$709.34 1
6N634A LR151504
SHIELD - SPLASH
3.0L AJ20D6 Diesel High / To: NA001389 		$709.34 1
6N634A LR169189
SHIELD - SPLASH
3.0L AJ20P6 Petrol High / From: NA001390 		$686.94 1
6N634A LR169191
SHIELD - SPLASH
3.0L AJ20D6 Diesel High / From: NA001390 		$686.94 1
6N634B LR151503
SHIELD - SPLASH
4.4 V8 Turbo Petrol (NC10) / To: NA001389 		$709.34 1
6N634B LR169190
SHIELD - SPLASH
4.4 V8 Turbo Petrol (NC10) / From: NA001390 		$686.94 1
6775A LR154110
SHIELD - FLOOR 		$179.13 1
6775B LR173026
SHIELD - UNDERBODY - SIDE SILL
4.4 V8 Turbo Petrol (NC10) / RH 		$31.61 1
6775B LR173027
SHIELD - UNDERBODY - SIDE SILL
3.0L AJ20P6 Petrol High / LH 		$31.61 1
6775C LR161439
SHIELD - ENGINE COMPARTMENT SPLASH
For Unleaded Fuel 		$279.54 1
