Rear Doors, Hinges & Weatherstrips (Door And Fixings)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Doors, Hinges & Weatherstrips (Door And Fixings)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR156862 BOLT $1.47 To Order
Photo Part No Description Price (each) Stock
LR156861 BOLT $0.96 To Order
Photo Part No Description Price (each) Stock
LR155060 BOLT $1.76 To Order
Photo Part No Description Price (each) Stock
LR155112 BOLT AND WASHER - HEX.HEAD $1.11 To Order
Photo Part No Description Price (each) Stock
LR025399 BOLT $2.01 To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
QYP500110 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR157459 Hinge $106.31 To Order
LR157458 HINGE $112.11 To Order
Photo Part No Description Price (each) Stock
LR157479 HINGE - DOOR $120.64 To Order
LR157513 Hinge $112.16 To Order
Photo Part No Description Price (each) Stock
LR151659 CHECK - DOOR $60.37 To Order
LR151715 CHECK - DOOR $66.63 To Order
Photo Part No Description Price (each) Stock
LR159300 DOOR - REAR RH $1,594.94 To Order
LR159303 DOOR - REAR RH $1,694.63 To Order
LR159301 DOOR - REAR - LESS HINGES LH $1,594.94 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR151807 SEAL - DOOR CHECK $45.99 To Order
LR151810 SEAL - DOOR CHECK $45.99 To Order
Photo Part No Description Price (each) Stock
LR172385 Cover $21.96 To Order
Photo Part No Description Price (each) Stock
LR154177 MOTOR $317.86 To Order
LR154176 MOTOR $317.86 To Order
View All

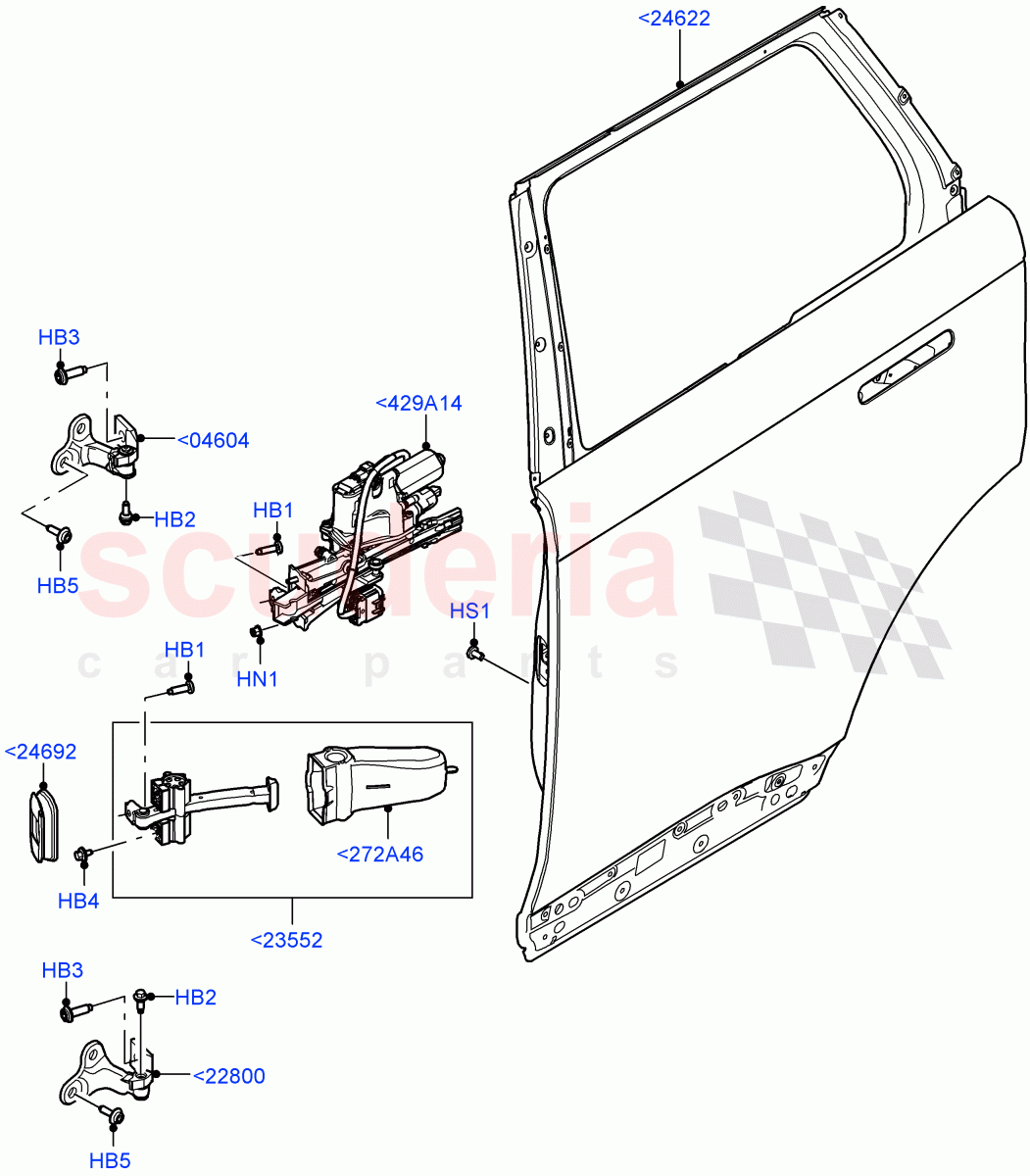

Rear Doors, Hinges & Weatherstrips (Door And Fixings) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<272A46 LR172385
Cover
Less Side Door Power / RH/LH 		$21.96 2
<429A14 LR154177
MOTOR
Soft Dr Close w/Pwr Rr Opn/Cls / LH 		$317.86 1
<429A14 LR154176
MOTOR
Soft Dr Close w/Pwr Rr Opn/Cls / RH 		$317.86 1
<04604 LR157459
Hinge
LH, Upper 		$106.31 1
<04604 LR157458
HINGE
RH, Upper 		$112.11 1
<22800 LR157479
HINGE - DOOR
RH, Lower 		$120.64 1
<22800 LR157513
Hinge
LH, Lower 		$112.16 1
<23552 LR151659
CHECK - DOOR
Less Side Door Power, Standard Wheelbase / RH/LH 		$60.37 2
<23552 LR151715
CHECK - DOOR
Less Side Door Power, Long Wheelbase / RH/LH 		$66.63 2
<24622 LR159300
DOOR - REAR RH
Standard Wheelbase / RH, Category B 		$1,594.94 1
<24622 LR159303
DOOR - REAR RH
Long Wheelbase / RH, Category B 		$1,694.63 1
<24622 LR159301
DOOR - REAR - LESS HINGES LH
Standard Wheelbase / LH, Category B 		$1,594.94 1
<24622 LR159304
DOOR - REAR - LESS HINGES LH
Long Wheelbase / LH, Category B 		$1,694.63 1
<24692 LR151807
SEAL - DOOR CHECK
RH 		$45.99 1
<24692 LR151810
SEAL - DOOR CHECK
LH 		$45.99 1
HB1 LR156862
BOLT
Door Check, M8 X 25MM 		$1.47 2
HB2 LR156861
BOLT
Door Hinge, Hexagonal Head, M8 X 15MM 		$0.96 4
HB3 LR155060
BOLT
Door Hinge, M10 X 28MM 		$1.76 4
HB4 LR155112
BOLT AND WASHER - HEX.HEAD
Soft Door Close / Door Check, M6 x 12MM 		$1.11 4
HB5 LR025399
BOLT
Door Hinge, M8 X 25MM 		$2.01 8
HN1 FY106046
NUT - HEX.
Soft Dr Close w/Pwr Rr Opn/Cls / Door Check, Hexagonal Head, M6
IN STOCK 		$0.68 4
HS1 QYP500110
SCREW
Door, M8 X 16MM, Torx 		$0.63 2
