Name: Air Deflectors
Rating: 5.0 (1 reviews)

Air Deflectors of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Air Deflectors

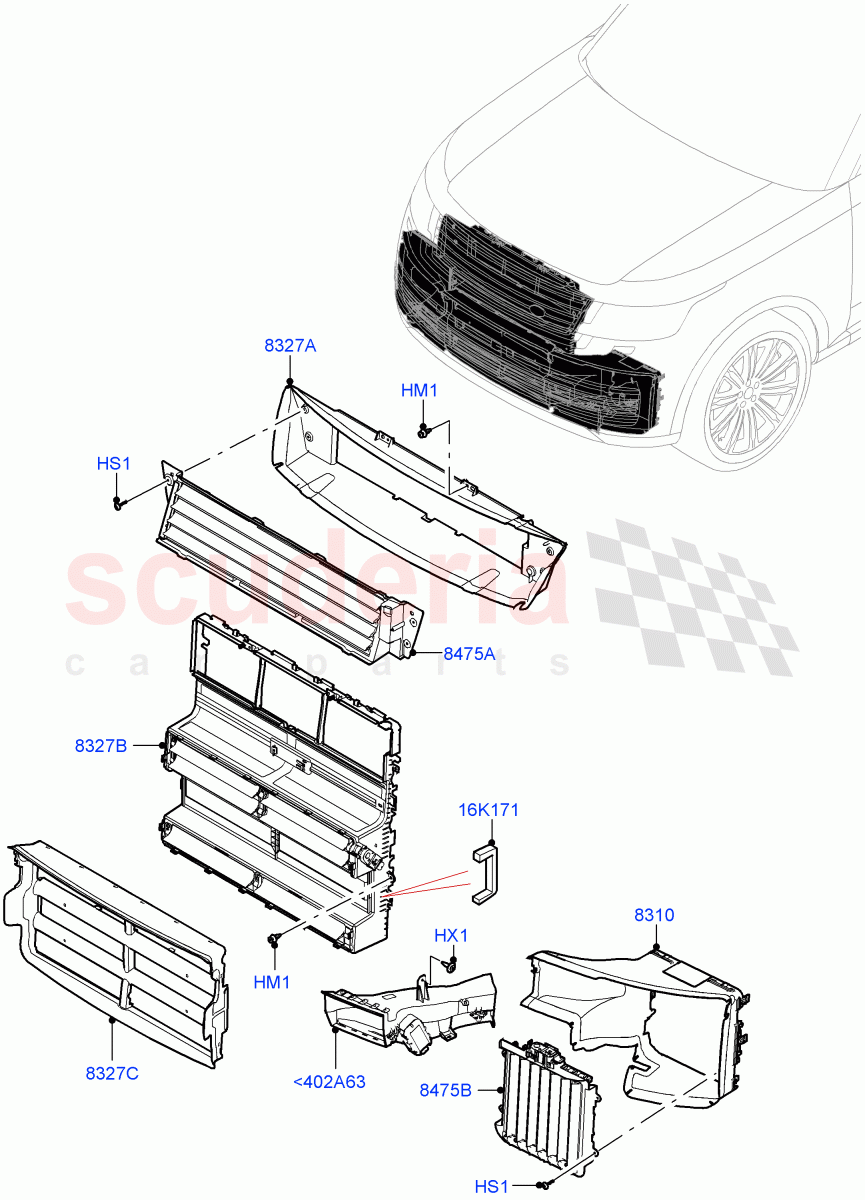

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	$0.61	IN STOCK
	RYQ500040	FASTENER	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083297	SCREW	$2.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR152629	DEFLECTOR - AIR	$50.50	To Order
	LR152628	DEFLECTOR - AIR - RADIATOR	$60.64	To Order
	LR184948	DEFLECTOR - AIR - RADIATOR	$85.74	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR152627	DEFLECTOR - AIR - RADIATOR	$145.91	To Order

Photo	Part No	Description	Price (each)	Stock
	523123503	SHUTTER - RADIATOR CONTROL	$149.36	To Order
	LR152626	SHUTTER - RADIATOR CONTROL	$169.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152623	DEFLECTOR - AIR - RADIATOR	$55.24	To Order
	LR152624	DEFLECTOR - AIR - RADIATOR	$132.49	To Order
	LR165075	DEFLECTOR - AIR - RADIATOR	$133.69	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR152622	SHUTTER - RADIATOR CONTROL	$257.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR168390	DEFLECTOR - AIR	$147.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR164952	INSULATOR - FENDER APRON	$47.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152617	DUCT - BRAKE CALIPER COOLING	$88.39	To Order
	LR152618	DUCT - BRAKE CALIPER COOLING	$73.27	To Order
	LR173211	DUCT - BRAKE CALIPER COOLING	$117.23	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<402A63	LR152617	DUCT - BRAKE CALIPER COOLING	LR152617 DUCT - BRAKE CALIPER COOLING Active Vanes - Upper/Lower / RH	$88.39	1
<402A63	LR152618	DUCT - BRAKE CALIPER COOLING	LR152618 DUCT - BRAKE CALIPER COOLING Less Active Grilleshutter, Less SV Model Spec / RH	$73.27	1
<402A63	LR173211	DUCT - BRAKE CALIPER COOLING	LR173211 DUCT - BRAKE CALIPER COOLING Active Vanes - Upper/Lower / LH	$117.23	1
<402A63	LR152620	DUCT - BRAKE CALIPER COOLING	LR152620 DUCT - BRAKE CALIPER COOLING Less Active Grilleshutter, Less SV Model Spec / LH	$73.27	1
<402A63	LR165069	Duct - Brake Caliper Cooling	LR165069 Duct - Brake Caliper Cooling Less Active Grilleshutter, SV1 Model Spec / RH / From: PA000001	$79.57	1
<402A63	LR165068	Duct - Brake Caliper Cooling	LR165068 Duct - Brake Caliper Cooling Active Vanes - Upper/Lower, SV1 Model Spec / RH / From: PA000001	$138.59	1
<402A63	LR165072	Duct - Brake Caliper Cooling	LR165072 Duct - Brake Caliper Cooling Less Active Grilleshutter, SV1 Model Spec / LH / From: PA000001	$81.79	1
<402A63	523123498	Duct - Brake Caliper Cooling	523123498 Duct - Brake Caliper Cooling Active Vanes - Upper/Lower, SV1 Model Spec / LH / From: PA000001	$158.85	1
HM1	RYQ500040	FASTENER IN STOCK	RYQ500040 FASTENER 6.25 x 1.6/6MM, Air Deflector Upper IN STOCK	$0.61	2
HM1	RYQ500040	FASTENER IN STOCK	RYQ500040 FASTENER 6.25 x 1.6/6MM, Air Deflector Support, Centre IN STOCK	$0.61	4
HS1	LR083297	SCREW IN STOCK	LR083297 SCREW Active Vanes - Upper/Lower / Centre, M5 x 22MM IN STOCK	$2.57	4
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM 6.3 X 22MM, Push Pin IN STOCK	$1.51	4
16K171	LR164952	INSULATOR - FENDER APRON	LR164952 INSULATOR - FENDER APRON Less Head Impact Crash Criteria	$47.34	2
8310	LR152629	DEFLECTOR - AIR	LR152629 DEFLECTOR - AIR With Extra Engine Cooling System / LH	$50.50	1
8310	LR152628	DEFLECTOR - AIR - RADIATOR	LR152628 DEFLECTOR - AIR - RADIATOR With Extra Engine Cooling System / RH	$60.64	1
8310	LR184948	DEFLECTOR - AIR - RADIATOR	LR184948 DEFLECTOR - AIR - RADIATOR SV1 Model Spec, With Extra Engine Cooling System / RH / From: PA000001	$85.74	1
8310	LR180734	DEFLECTOR - AIR	LR180734 DEFLECTOR - AIR SV1 Model Spec, With Extra Engine Cooling System / LH / From: PA000001	$127.32	1
8327A	LR152627	DEFLECTOR - AIR - RADIATOR	LR152627 DEFLECTOR - AIR - RADIATOR	$145.91	1
8327B	523123503	SHUTTER - RADIATOR CONTROL	523123503 SHUTTER - RADIATOR CONTROL Active Vanes - Upper/Lower	$149.36	1
8327B	LR152626	SHUTTER - RADIATOR CONTROL	LR152626 SHUTTER - RADIATOR CONTROL Less Active Grilleshutter	$169.66	1
8327C	LR152623	DEFLECTOR - AIR - RADIATOR	LR152623 DEFLECTOR - AIR - RADIATOR Less Head Impact Crash Criteria	$55.24	1
8327C	LR152624	DEFLECTOR - AIR - RADIATOR	LR152624 DEFLECTOR - AIR - RADIATOR With Head Impact Crash Criteria	$132.49	1
8327C	LR165075	DEFLECTOR - AIR - RADIATOR	LR165075 DEFLECTOR - AIR - RADIATOR Less Head Impact Crash Criteria, SV1 Model Spec / From: PA000001	$133.69	1
8327C	LR165076	DEFLECTOR - AIR - RADIATOR	LR165076 DEFLECTOR - AIR - RADIATOR SV1 Model Spec, With Head Impact Crash Criteria / From: PA000001	$133.69	1
8475A	LR152622	SHUTTER - RADIATOR CONTROL	LR152622 SHUTTER - RADIATOR CONTROL Active Vanes - Upper/Lower / Centre	$257.01	1
8475B	LR168390	DEFLECTOR - AIR IN STOCK	LR168390 DEFLECTOR - AIR Left Outboard Active Vanes / LH Side Only IN STOCK	$147.07	1

Air Deflectors

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Air Deflectors
