Air Vents, Louvres And Ducts (Instument Panel) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Air Vents, Louvres And Ducts (Instument Panel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YYH000080 NUT - HEX. - "U"-BOLT $2.11 To Order
Photo Part No Description Price (each) Stock
EYP000280 SCREW - SELF-TAPPING $1.20 To Order
Photo Part No Description Price (each) Stock
EYP000190 SCREW $1.12 To Order
Photo Part No Description Price (each) Stock
JKB500400 DUCT - HEATER OUTLET $34.22 To Order
JKB000040 DUCT - HEATER OUTLET $29.19 To Order
Photo Part No Description Price (each) Stock
JKB500390 DUCT - HEATER OUTLET $34.22 To Order
JKB000050 DUCT - HEATER OUTLET $28.82 To Order
Photo Part No Description Price (each) Stock
JBB500320 DUCT - AIR $22.97 To Order
Photo Part No Description Price (each) Stock
JBB500330 DUCT - AIR $22.97 To Order
Photo Part No Description Price (each) Stock
LR011975 DUCT - AIR $11.85 To Order
Photo Part No Description Price (each) Stock
LR011973 DUCT - AIR $11.85 To Order
Photo Part No Description Price (each) Stock
LR011977 DUCT - AIR $11.86 To Order
Photo Part No Description Price (each) Stock
LR011976 DUCT - AIR $11.86 To Order
Photo Part No Description Price (each) Stock
JBD500240PUY VENT - INSTRUMENT PANEL $402.02 To Order
LR015820 VENT - INSTRUMENT PANEL $365.55 To Order
LR032810 VENT - INSTRUMENT PANEL $394.43 To Order
Photo Part No Description Price (each) Stock
JBD500260PUY VENT - INSTRUMENT PANEL $236.24 To Order
LR016435 VENT $202.56 To Order
LR032882 VENT - INSTRUMENT PANEL $139.32 To Order
Photo Part No Description Price (each) Stock
JBD500270PUY VENT - INSTRUMENT PANEL $236.24 To Order
LR016436 VENT - INSTRUMENT PANEL $72.17 To Order
LR032883 VENT - INSTRUMENT PANEL $246.91 To Order
Photo Part No Description Price (each) Stock
LR011365 VENT - INSTRUMENT PANEL $190.54 To Order
JBD500230JMN VENT - INSTRUMENT PANEL $71.06 To Order
JBD500230PVA VENT - INSTRUMENT PANEL $149.72 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JKE000020 DUCT - AIR $32.96 To Order
Photo Part No Description Price (each) Stock
JKE000030 DUCT - AIR $34.63 To Order
View All

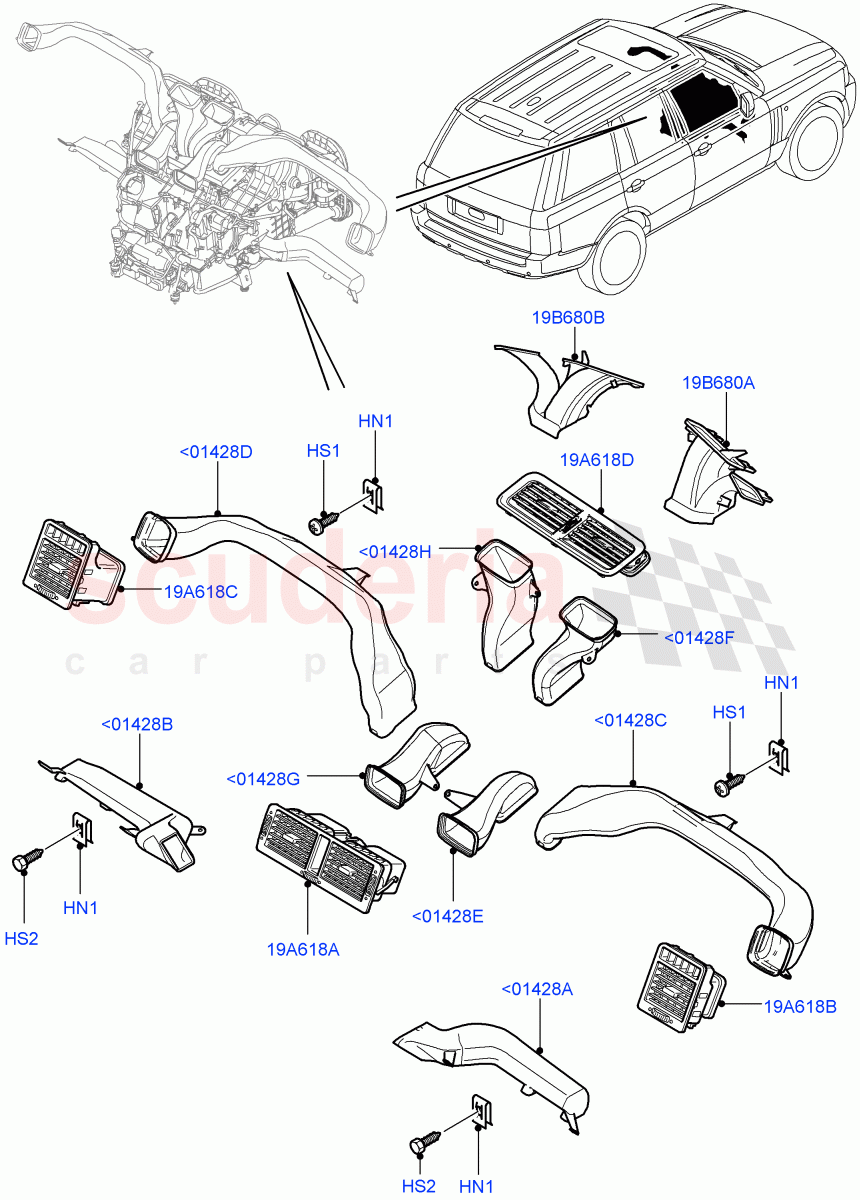

Air Vents, Louvres And Ducts (Instument Panel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01428A JKB500400
DUCT - HEATER OUTLET
RH, Footwell Duct, For Drivers Side, RHD / From: AA000001 		$34.22 1
<01428A JKB000040
DUCT - HEATER OUTLET
RH, Footwell Duct, LHD, Passenger Side / From: AA000001 		$29.19 1
<01428B JKB500390
DUCT - HEATER OUTLET
LH, Footwell Duct, For Drivers Side, LHD / From: AA000001 		$34.22 1
<01428B JKB000050
DUCT - HEATER OUTLET
LH, Footwell Duct, Passenger Side, RHD / From: AA000001 		$28.82 1
<01428C JBB500320
DUCT - AIR
RH / From: AA000001 		$22.97 1
<01428D JBB500330
DUCT - AIR
LH / From: AA000001 		$22.97 1
<01428E LR011975
DUCT - AIR
RH, Centre, Lower / From: AA000001 		$11.85 1
<01428F LR011973
DUCT - AIR
RH, Centre, Upper / From: AA000001 		$11.85 1
<01428G LR011977
DUCT - AIR
LH, Centre, Lower / From: AA000001 		$11.86 1
<01428H LR011976
DUCT - AIR
LH, Centre, Upper / From: AA000001 		$11.86 1
HN1 YYH000080
NUT - HEX. - "U"-BOLT
U - Nut / From: AA000001 		$2.11 12
HS1 EYP000280
SCREW - SELF-TAPPING
Self Tapping, Torx / From: AA000001 		$1.20 2
HS2 EYP000190
SCREW
4 x 14MM, Mid Range / From: AA000001 		$1.12 6
19A618A JBD500240PUY
VENT - INSTRUMENT PANEL
Black And Bright Chrome, Centre, Face Level Duct / From: AA000001 / To: AA316116 		$402.02 1
19A618A LR015820
VENT - INSTRUMENT PANEL
Black And Bright Chrome, Centre, Face Level Duct / From: AA316117 / To: CA363193 		$365.55 1
19A618A LR032810
VENT - INSTRUMENT PANEL
Black And Bright Chrome, Centre, Face Level Duct / From: CA363194 		$394.43 1
19A618B JBD500260PUY
VENT - INSTRUMENT PANEL
RH, Black And Bright Chrome, Face Level Duct / From: AA000001 / To: AA316116 		$236.24 1
19A618B LR016435
VENT
RH, Black And Bright Chrome, Face Level Duct / From: AA316117 / To: CA363193 		$202.56 1
19A618B LR032882
VENT - INSTRUMENT PANEL
RH, Black And Bright Chrome, Face Level Duct / From: CA363194 		$139.32 1
19A618C JBD500270PUY
VENT - INSTRUMENT PANEL
LH, Black And Bright Chrome, Face Level Duct / From: AA000001 / To: AA316116 		$236.24 1
19A618C LR016436
VENT - INSTRUMENT PANEL
LH, Black And Bright Chrome, Face Level Duct / From: AA316117 / To: CA363193 		$72.17 1
19A618C LR032883
VENT - INSTRUMENT PANEL
LH, Black And Bright Chrome, Face Level Duct / From: CA363194 		$246.91 1
19A618D LR011365
VENT - INSTRUMENT PANEL
I/P Facia Contrast - Arabica/Ivory / Arabica, Centre, Upper / From: AA000001 / To: AA323004 		$190.54 1
19A618D JBD500230JMN
VENT - INSTRUMENT PANEL
I/P Facia Contrast - Navy/Ivory / Centre, Navy, Upper / From: AA000001 / To: AA316116 		$71.06 1
19A618D JBD500230PVA
VENT - INSTRUMENT PANEL
I/P Facia Contrast - Jet/Pimento / Centre, Jet, Upper / From: AA000001 / To: AA316116 		$149.72 1
19A618D JBD500420JMN
VENT - INSTRUMENT PANEL
I/P Facia Contrast-Navy/Parchment / Centre, Navy, Upper / From: AA316117 / To: CA363193 		$153.00 1
19A618D JBD500420LUP
VENT - INSTRUMENT PANEL
I/P Facia Contrast - Aspen/Ivory / Aspen, Centre, Upper / From: AA000001 		$153.00 1
19A618D JBD500420PVA
VENT
I/P Facia Contrast - Jet/Sand / Centre, Jet, Upper / From: AA316117 / To: CA363193 		$153.00 1
19A618D LR018960
VENT - INSTRUMENT PANEL
I/P Facia Contrast - Arabica/Ivory / Arabica, Centre, Upper / From: AA323005 / To: CA363193 		$190.54 1
19A618D LR032874
VENT - INSTRUMENT PANEL
I/P Facia Contrast - Arabica/Ivory / Arabica, Centre, Upper / From: CA363194 		$165.27 1
19A618D LR032875
VENT - INSTRUMENT PANEL
I/P Facia Contrast - Navy/Ivory / Centre, Navy, Upper / From: CA363194 		$154.42 1
19A618D LR032877
HEATER - DUCT
I/P Facia Contrast - Jet/Jet / Centre, Jet, Upper / From: CA363194 		$348.21 1
19B680A JKE000020
DUCT - AIR
RH, Front / From: AA000001 		$32.96 1
19B680B JKE000030
DUCT - AIR
LH, Front / From: AA000001 		$34.63 1
