Heater Hoses (5.0L Ohc Sgdi Sc V8 Petrol - Aj133, With Front Comfort Air Con (Ihka), Park Heating...

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Heater Hoses (5.0L OHC SGDI SC V8 Petrol - AJ133, With Front Comfort Air Con (IHKA), Park Heating...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
PEU000090 CLIP $4.32 To Order
Photo Part No Description Price (each) Stock
LYE100030L CLAMP $2.67 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR011270 SCREW $1.23 To Order
Photo Part No Description Price (each) Stock
JHB501360 HOSE - VENT $48.30 To Order
Photo Part No Description Price (each) Stock
LR010793 GASKET - WATER MANIFOLD $9.55 To Order
Photo Part No Description Price (each) Stock
LR010850 BRACKET $12.90 To Order
Photo Part No Description Price (each) Stock
LR011050 HOSE $44.53 To Order
Photo Part No Description Price (each) Stock
LR011454 MANIFOLD - WATER $117.14 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $59.32 To Order
Photo Part No Description Price (each) Stock
LR016854 HOSE - HEATER WATER $164.01 To Order
Photo Part No Description Price (each) Stock
LR010833 HOSE AND CONNECTOR $93.23 To Order
Photo Part No Description Price (each) Stock
JHB501370 HOSE - VENT $19.73 To Order
Photo Part No Description Price (each) Stock
LR012819 CLIP $2.93 To Order
Photo Part No Description Price (each) Stock
LR016855 PIPE $199.71 To Order
Photo Part No Description Price (each) Stock
LR122709 MANIFOLD - HEATER $139.46 To Order
View All

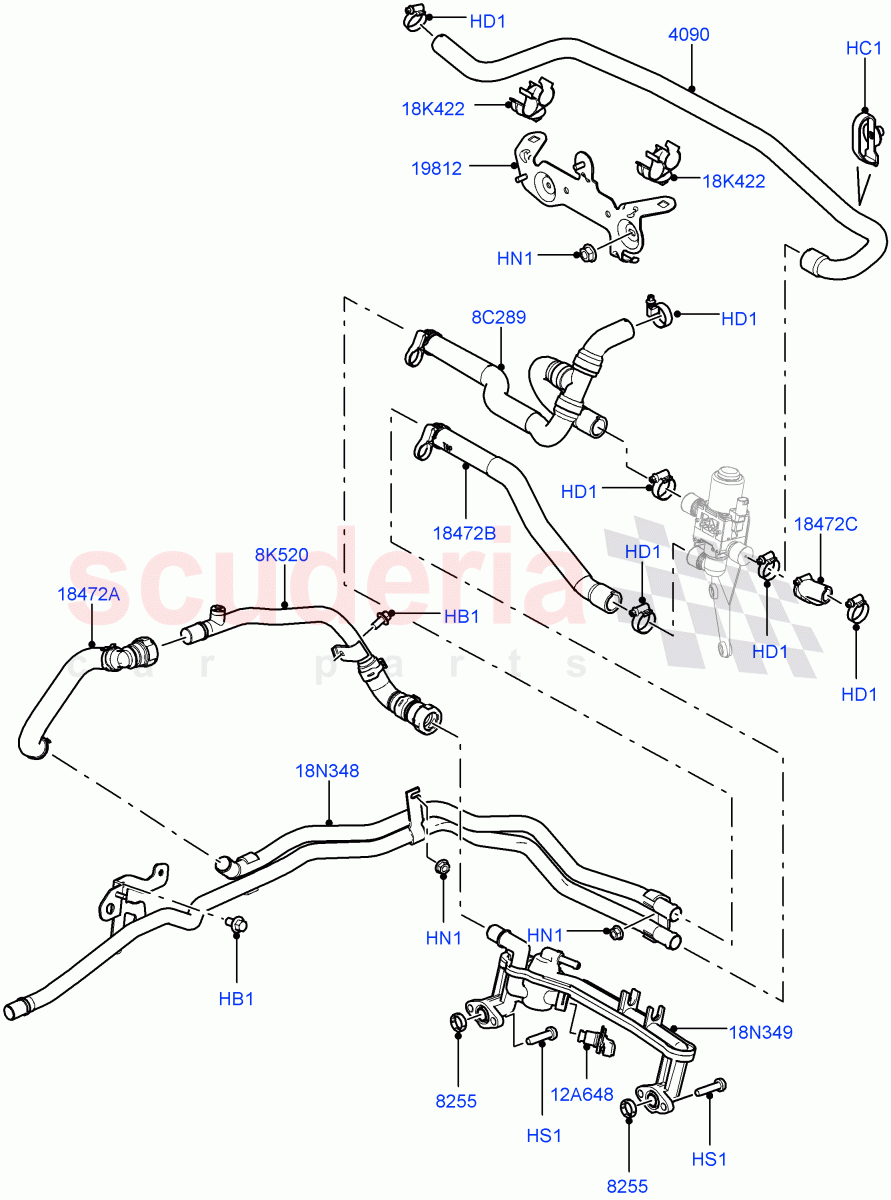

Heater Hoses (5.0L OHC SGDI SC V8 Petrol - AJ133, With Front Comfort Air Con (IHKA), Park Heating With Remote Control, 5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.52 3
HC1 PEU000090
CLIP
For Auxiliary Heater Hoses / From: AA000001 		$4.32 2
HD1 LYE100030L
CLAMP
Worm Type / From: AA000001 		$2.67 10
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: AA000001
IN STOCK 		$1.45 1
HS1 LR011270
SCREW
M6 x 25MM, Torx / From: AA000001 		$1.23 4
8C289 LR011050
HOSE
To Heater Matrix, To Switching Valve / From: AA000001 		$44.53 1
8K520 LR011454
MANIFOLD - WATER
Feed, To Engine / From: AA000001 		$117.14 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
From: AA000001 		$59.32 1
18K422 LR012819
CLIP
Double / From: AA000001 		$2.93 2
18N348 LR016855
PIPE
Feed, Metal, Return / From: AA000001 		$199.71 1
18N349 LR122709
MANIFOLD - HEATER
Heater / From: AA000001 		$139.46 1
4090 JHB501360
HOSE - VENT
LHD, Park Heating With Remote Control / To Fuel Fired Heater, To Switching Valve / From: AA000001 		$48.30 1
8255 LR010793
GASKET - WATER MANIFOLD
Tube From Engine Block To Heater Inlet Hose / From: AA000001 		$9.55 2
18472A LR016854
HOSE - HEATER WATER
Feed, To Engine / From: AA000001 		$164.01 1
18472B LR010833
HOSE AND CONNECTOR
To Switching Valve / From: AA000001 		$93.23 1
18472C JHB501370
HOSE - VENT
Park Heating With Remote Control, RHD / To Fuel Fired Heater, To Switching Valve / From: AA000001 		$19.73 1
19812 LR010850
BRACKET
Fuel Fired Heater Pipe / From: AA000001 		$12.90 1
