Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Heater/Air Cond.External Components (Page B) ((V) FROMAA000001)

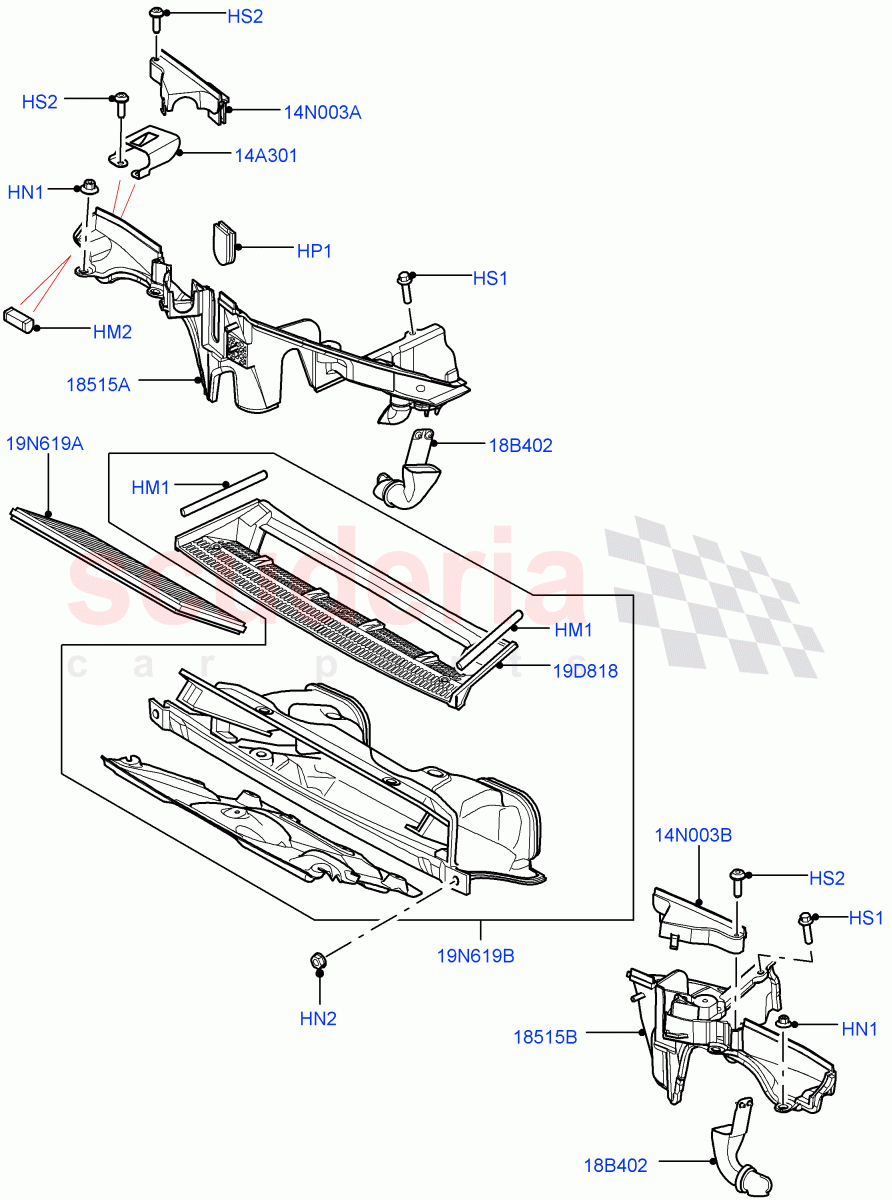

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	JZB000010	SEAL	$16.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014286	PLUG	$3.78	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH000020	NUT - PLASTIC - SPECIAL	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500340	NUT AND WASHER - HEX.	$1.06	To Order

Photo	Part No	Description	Price (each)	Stock
	YYB500010PMA	PLUG - BLANKING	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018267	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018295	BRACKET	$3.33	To Order
	LR030809	BRACKET - HEATER HOUSING	$30.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018268	HOUSING	$244.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005899	HOUSING	$244.45	To Order

Photo	Part No	Description	Price (each)	Stock
	JMP000010	TUBE - HEATER WATER	$23.04	To Order

Photo	Part No	Description	Price (each)	Stock
	JML000020	COVER	$174.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017355	COVER - WIRING	$10.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017356	COVER - WIRING	$11.04	To Order

Photo	Part No	Description	Price (each)	Stock
	JMO000010	FILTER- POLLEN	$106.75	To Order
	LR026132	FILTER - POLLEN	$106.75	To Order
	LR032199	FILTER - POLLEN	$94.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010873	FILTER - POLLEN	$590.10	To Order
	LR010872	FILTER - POLLEN	$642.30	To Order
	LR020662	FILTER - POLLEN	$1,447.02	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HM1	JZB000010	SEAL	JZB000010 SEAL Filter, Seal / From: AA000001	$16.20	2
HM2	LR014286	PLUG	LR014286 PLUG LHD / Blanking, Grommet / From: AA000001	$3.78	1
HN1	WYH000020	NUT - PLASTIC - SPECIAL	WYH000020 NUT - PLASTIC - SPECIAL Plastic / From: AA000001	$0.65	4
HN2	RYH500340	NUT AND WASHER - HEX.	RYH500340 NUT AND WASHER - HEX. Filter - Pollen, Housing Assy, M8, Nut And Washer / From: AA000001	$1.06	2
HP1	YYB500010PMA	PLUG - BLANKING	YYB500010PMA PLUG - BLANKING Blanking / From: AA000001	$2.42	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: AA000001	$4.17	6
HS2	LR018267	SCREW	LR018267 SCREW M6 X 20MM, Torx / From: AA000001	$1.19	6
14A301	LR018295	BRACKET	LR018295 BRACKET Heater Blower Cover / From: AA000001 / To: BA354369	$3.33	1
14A301	LR030809	BRACKET - HEATER HOUSING	LR030809 BRACKET - HEATER HOUSING Heater Blower Cover / From: BA354370	$30.12	1
14N003A	LR017355	COVER - WIRING	LR017355 COVER - WIRING RH, Wiring Connector / From: AA000001	$10.20	1
14N003B	LR017356	COVER - WIRING	LR017356 COVER - WIRING LH, Wiring Connector / From: AA000001	$11.04	1
18B402	JMP000010	TUBE - HEATER WATER	JMP000010 TUBE - HEATER WATER Upper / From: AA000001	$23.04	2
19D818	JML000020	COVER	JML000020 COVER Filter - Pollen, Upper / From: AA000001	$174.48	1
19N619A	JMO000010	FILTER- POLLEN	JMO000010 FILTER- POLLEN Standard / From: AA000001 / To: AA318671	$106.75	1
19N619A	LR026132	FILTER - POLLEN	LR026132 FILTER - POLLEN Standard / From: AA318672 / To: CA366364	$106.75	1
19N619A	LR032199	FILTER - POLLEN	LR032199 FILTER - POLLEN Standard / From: CA366365	$94.20	1
19N619B	LR010873	FILTER - POLLEN	LR010873 FILTER - POLLEN 5.0L OHC SGDI NA V8 Petrol - AJ133 / Housing Only / From: AA000001 / To: AA315713	$590.10	1
19N619B	LR010872	FILTER - POLLEN	LR010872 FILTER - POLLEN 3.6L V8 32V DOHC EFi Diesel Lion / Housing Only / From: AA000001	$642.30	1
19N619B	LR020662	FILTER - POLLEN	LR020662 FILTER - POLLEN 5.0L OHC SGDI NA V8 Petrol - AJ133 / Housing Only / From: AA315714	$1,447.02	1
19N619B	LR023059	FILTER - POLLEN	LR023059 FILTER - POLLEN 4.4L DOHC DITC V8 Diesel / Housing Only / From: BA000001	$1,789.35	1
18515A	LR018268	HOUSING	LR018268 HOUSING RH / From: AA000001	$244.45	1
18515B	LR005899	HOUSING	LR005899 HOUSING LH / From: AA000001	$244.45	1
