Heater Hoses (Front) (3.6L V8 32V Dohc Efi Diesel Lion, Premium Air Conditioning-Front/Rear) ((V)...

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Heater Hoses (Front) (3.6L V8 32V DOHC EFi Diesel Lion, Premium Air Conditioning-Front/Rear) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LYE100030L CLAMP $2.67 To Order
Photo Part No Description Price (each) Stock
JHB501360 HOSE - VENT $48.38 To Order
Photo Part No Description Price (each) Stock
LR014675 HOSE - VENT $163.30 To Order
Photo Part No Description Price (each) Stock
LR014596 HOSE - HEATER WATER $87.82 To Order
Photo Part No Description Price (each) Stock
LR014680 HOSE - TURBOCHARGER TO INTERCOOLER $43.65 To Order
Photo Part No Description Price (each) Stock
JHB501370 HOSE - VENT $19.76 To Order
Photo Part No Description Price (each) Stock
LR014677 HOSE - TURBOCHARGER TO INTERCOOLER $57.63 To Order
Photo Part No Description Price (each) Stock
LR014678 HOSE - TURBOCHARGER TO INTERCOOLER $53.07 To Order
Photo Part No Description Price (each) Stock
JHB501160 HOSE $39.05 To Order
Photo Part No Description Price (each) Stock
PFV500290 RAIL $557.80 To Order
Photo Part No Description Price (each) Stock
PFV500520 MANIFOLD - WATER $206.05 To Order
View All

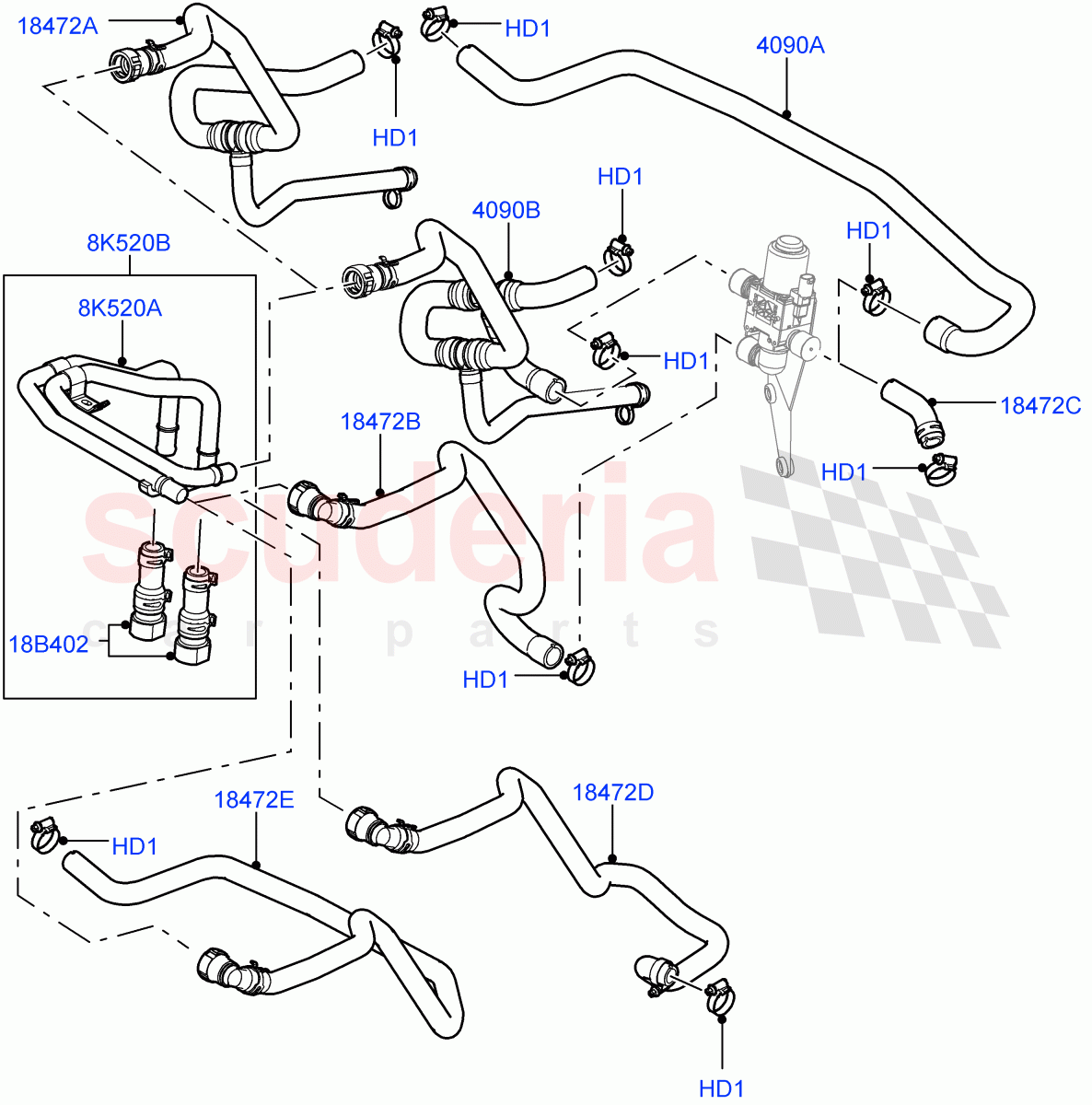

Heater Hoses (Front) (3.6L V8 32V DOHC EFi Diesel Lion, Premium Air Conditioning-Front/Rear) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HD1 LYE100030L
CLAMP
Worm Type / From: AA000001 		$2.67 10
8K520A PFV500290
RAIL
To Engine / From: AA000001 		$557.80 1
8K520B PFV500520
MANIFOLD - WATER
To Engine / From: AA000001 		$206.05 1
18B402 JHB501160
HOSE
To Engine / From: AA000001 		$39.05 1
4090A JHB501360
HOSE - VENT
LHD, Park Heating With Remote Control / To Fuel Fired Heater, To Switching Valve / From: AA000001 		$48.38 1
4090B LR014675
HOSE - VENT
Park Heating With Remote Control / To Engine, To Heater Matrix, To Switching Valve / From: AA000001 		$163.30 1
18472A LR014596
HOSE - HEATER WATER
Less Park Heating / To Engine, To Heater Matrix / From: AA000001 		$87.82 1
18472B LR014680
HOSE - TURBOCHARGER TO INTERCOOLER
Park Heating With Remote Control / To Engine, To Switching Valve / From: AA000001 		$43.65 1
18472C JHB501370
HOSE - VENT
Park Heating With Remote Control, RHD / To Fuel Fired Heater, To Switching Valve / From: AA000001 		$19.76 1
18472D LR014677
HOSE - TURBOCHARGER TO INTERCOOLER
Less Park Heating, RHD / To Engine, To Fuel Fired Heater / From: AA000001 		$57.63 1
18472E LR014678
HOSE - TURBOCHARGER TO INTERCOOLER
LHD, Less Park Heating / To Engine, To Fuel Fired Heater / From: AA000001 		$53.07 1
