Auxiliary Fuel Fired Pre-Heater (Page B) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Auxiliary Fuel Fired Pre-Heater (Page B) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SYP100200L BOLT $1.49 To Order
Photo Part No Description Price (each) Stock
WYC000090 CLIP - HOSE $2.91 To Order
Photo Part No Description Price (each) Stock
JHV000010 CLAMP $13.43 To Order
Photo Part No Description Price (each) Stock
JEV000040 RUBBER $4.69 To Order
Photo Part No Description Price (each) Stock
JEI000010 BUSH $170.93 To Order
Photo Part No Description Price (each) Stock
YYD500050 STRAP - CABLE $0.46 To Order
Photo Part No Description Price (each) Stock
JYA000040 GROMMET $23.77 To Order
Photo Part No Description Price (each) Stock
JYA000050 GROMMET $6.22 To Order
Photo Part No Description Price (each) Stock
JYH000020 NUT - HEX. $0.91 To Order
Photo Part No Description Price (each) Stock
JYH000080 NUT - HEX. $0.08 To Order
Photo Part No Description Price (each) Stock
JYH000050 NUT - HEX. $1.51 To Order
Photo Part No Description Price (each) Stock
EYH100350 NUT - FLANGED $1.28 To Order
Photo Part No Description Price (each) Stock
JYP000080 SCREW $5.50 To Order
Photo Part No Description Price (each) Stock
YYP000140 SCREW $0.46 To Order
Photo Part No Description Price (each) Stock
RYF000070 WASHER $0.82 To Order
Photo Part No Description Price (each) Stock
JEY000010 SILENCER $21.29 To Order
Photo Part No Description Price (each) Stock
PYE100030L CLAMP - HOSE $6.40 To Order
Photo Part No Description Price (each) Stock
JEZ000010 PIPE - EXHAUST $465.05 To Order
JEZ000020 PIPE - EXHAUST $512.23 To Order
LR043127 PIPE - EXHAUST $277.78 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WDE000070 PIPE - EXHAUST $234.98 To Order
Photo Part No Description Price (each) Stock
WCM000050 GASKET $26.23 To Order
Photo Part No Description Price (each) Stock
JHB000360 HOSE - FUEL $37.38 To Order
Photo Part No Description Price (each) Stock
JEC000290 HEATER $1,873.30 To Order
JEC000300 HEATER $1,873.30 To Order
Photo Part No Description Price (each) Stock
JEU000020 BRACKET - HEATER MOUNTING $95.55 To Order
JEU000040 BRACKET - HEATER MOUNTING $143.24 To Order
Photo Part No Description Price (each) Stock
JEX000050 EXCHANGE UNIT $385.74 To Order
Photo Part No Description Price (each) Stock
ETR000050 INSULATOR $64.10 To Order
Photo Part No Description Price (each) Stock
JEW000040 TUBE - AUXILIARY HEATER SUPPLY $35.84 To Order
JEW000050 TUBE - AUXILIARY HEATER SUPPLY $37.93 To Order
Photo Part No Description Price (each) Stock
JHB000270 TUBE - AUXILIARY HEATER SUPPLY $58.61 To Order
JHB000290 HOSE $38.22 To Order
Photo Part No Description Price (each) Stock
JHB000280 HOSE $61.10 To Order
JHB000300 HOSE $38.22 To Order
Photo Part No Description Price (each) Stock
JEZ500060 HOSE - AUXILIARY HEATER OUTLET $214.28 To Order
View All

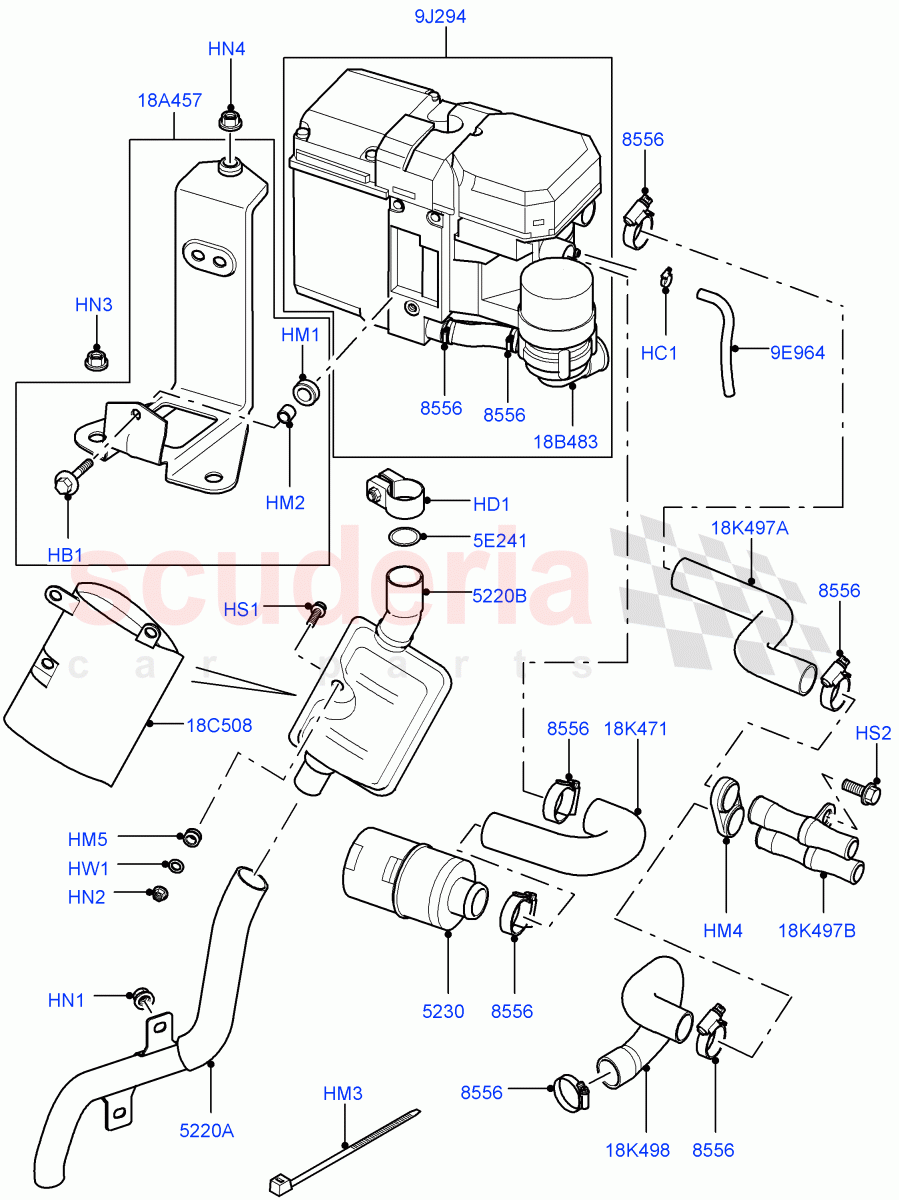

Auxiliary Fuel Fired Pre-Heater (Page B) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 SYP100200L
BOLT
M6 x 35MM / From: AA000001 		$1.49 4
HC1 WYC000090
CLIP - HOSE
Pipe Clamp / From: AA000001 		$2.91 3
HD1 JHV000010
CLAMP
Exhaust / From: AA000001 		$13.43 1
HM1 JEV000040
RUBBER
Bushing, Rubber / From: AA000001 		$4.69 1
HM2 JEI000010
BUSH
Bushing / From: AA000001 		$170.93 1
HM3 YYD500050
STRAP - CABLE
Cable Tie With Holder / From: AA000001 		$0.46 1
HM4 JYA000040
GROMMET
Grommet / From: AA000001 		$23.77 1
HM5 JYA000050
GROMMET
Grommet / From: AA000001 		$6.22 -
HN1 JYH000020
NUT - HEX.
M6 / From: AA000001 		$0.91 -
HN2 JYH000080
NUT - HEX.
M6 / From: AA000001 		$0.08 1
HN3 JYH000050
NUT - HEX.
M8, Self Locking / From: AA000001 		$1.51 2
HN4 EYH100350
NUT - FLANGED
M6 / From: AA000001 		$1.28 1
HS1 JYP000080
SCREW
M6 x 22MM / From: AA000001 		$5.50 1
HS2 YYP000140
SCREW
M6 X 20MM / From: AA000001 		$0.46 1
HW1 RYF000070
WASHER
M6 / From: AA000001 		$0.82 1
5E241 WCM000050
GASKET
Exhaust / From: AA000001 		$26.23 1
9E964 JHB000360
HOSE - FUEL
LHD / Feed / From: AA000001 		$37.38 1
9J294 JEC000290
HEATER
For Petrol Engines / From: AA000001 		$1,873.30 1
9J294 JEC000300
HEATER
For Diesel Engines / From: AA000001 		$1,873.30 1
18A457 JEU000020
BRACKET - HEATER MOUNTING
RHD / Fuel Fired Air Heater / From: AA000001 		$95.55 1
18A457 JEU000040
BRACKET - HEATER MOUNTING
LHD / Fuel Fired Air Heater / From: AA000001 		$143.24 1
18B483 JEX000050
EXCHANGE UNIT
From: AA000001 		$385.74 1
18C508 ETR000050
INSULATOR
Exhaust pipe / From: AA000001 		$64.10 1
18K471 JEW000040
TUBE - AUXILIARY HEATER SUPPLY
RHD / From: AA000001 		$35.84 1
18K471 JEW000050
TUBE - AUXILIARY HEATER SUPPLY
LHD / From: AA000001 		$37.93 1
18K497A JHB000280
HOSE
RHD / Return / From: AA000001 		$61.10 1
18K497A JHB000300
HOSE
LHD / Return / From: AA000001 		$38.22 1
18K497B JEZ500060
HOSE - AUXILIARY HEATER OUTLET
From: AA000001 		$214.28 1
18K498 JHB000270
TUBE - AUXILIARY HEATER SUPPLY
RHD / Feed / From: AA000001 		$58.61 1
18K498 JHB000290
HOSE
LHD / Feed / From: AA000001 		$38.22 1
5220A JEZ000010
PIPE - EXHAUST
LHD / From: AA000001 / To: CA370026 		$465.05 1
5220A JEZ000020
PIPE - EXHAUST
RHD / From: AA000001 / To: CA370026 		$512.23 1
5220A LR043127
PIPE - EXHAUST
LHD / From: CA370027 		$277.78 1
5220A LR043128
PIPE - EXHAUST
RHD / From: CA370027 		$277.78 1
5220B WDE000070
PIPE - EXHAUST
From: AA000001 		$234.98 1
5230 JEY000010
SILENCER
From: AA000001 		$21.29 1
8556 PYE100030L
CLAMP - HOSE
From: AA000001 		$6.40 9
