Heater/Air Cond.external Components (Page A) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Heater/Air Cond.External Components (Page A) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYH000020 NUT - PLASTIC - SPECIAL $0.65 To Order
Photo Part No Description Price (each) Stock
RYP500980 SCREW $0.66 To Order
Photo Part No Description Price (each) Stock
FYP500550 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
LR015828 HOSE $7.53 To Order
Photo Part No Description Price (each) Stock
JEV500020 MOUNTING - RUBBER $19.74 To Order
Photo Part No Description Price (each) Stock
LR010838 HEATER $3,187.74 To Order
LR010840 HEATER $3,448.68 To Order
Photo Part No Description Price (each) Stock
JEC500800 HEATER $1,252.88 To Order
Photo Part No Description Price (each) Stock
JMH000060 BRACKET $19.61 To Order
Photo Part No Description Price (each) Stock
JMH000050 BRACKET $19.61 To Order
Photo Part No Description Price (each) Stock
JYF000030 GASKET $12.33 To Order
LR023320 SEAL $16.90 To Order
LR023319 SEAL $16.90 To Order
Photo Part No Description Price (each) Stock
LR006375 O-RING $7.65 To Order
Photo Part No Description Price (each) Stock
LR006376 O-RING $7.65 To Order
View All

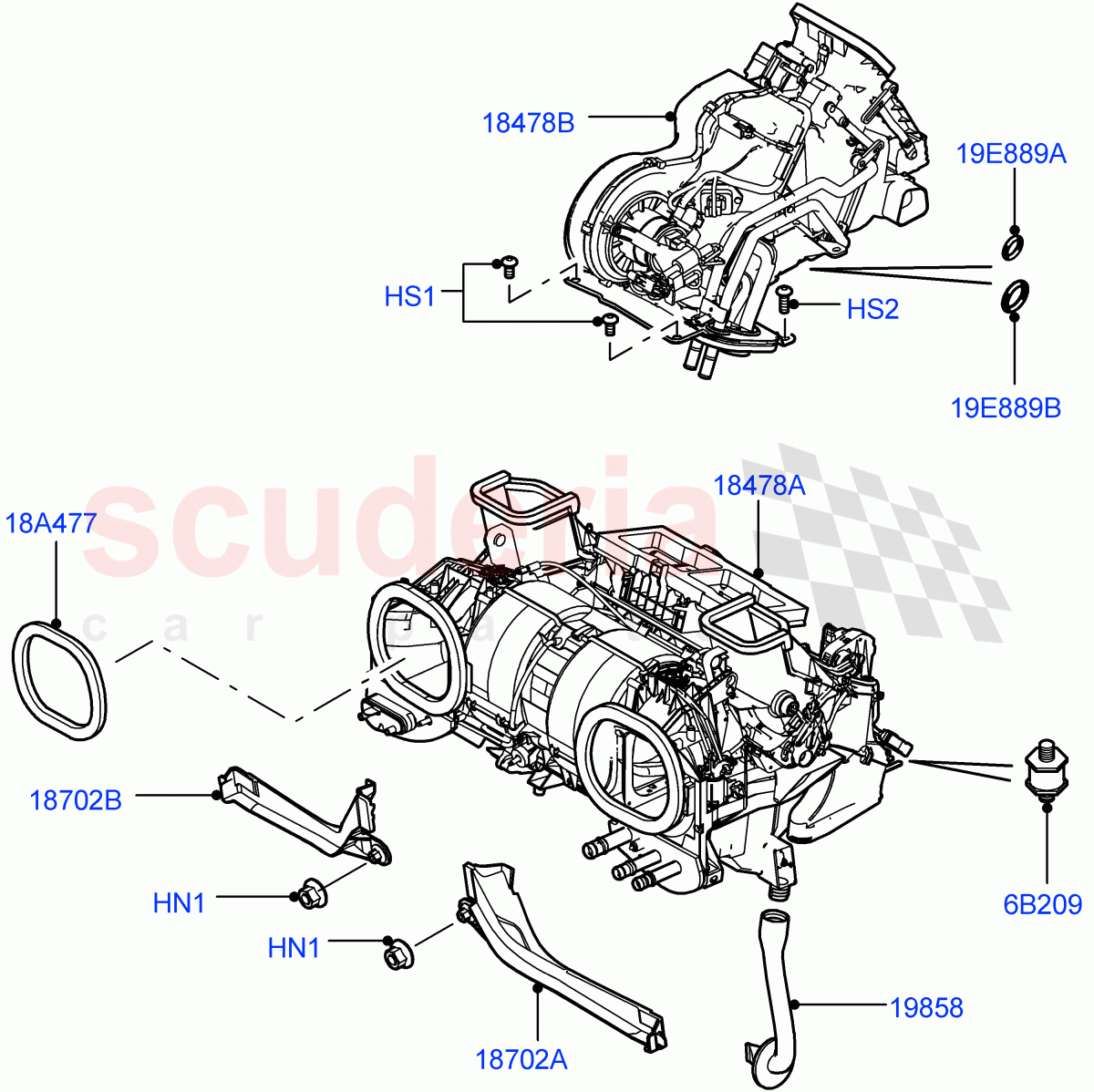

Heater/Air Cond.External Components (Page A) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 WYH000020
NUT - PLASTIC - SPECIAL
Plastic / From: AA000001 		$0.65 2
HS1 RYP500980
SCREW
Premium Air Conditioning-Front/Rear / M8 X 1.25 X 16MM / From: AA000001 		$0.66 3
HS2 FYP500550
SCREW
Hexagonal Head, M6 X 20MM, Mounting Bracket / From: AA000001 		$1.04 2
6B209 JEV500020
MOUNTING - RUBBER
From: AA000001 		$19.74 2
18A477 JYF000030
GASKET
Front, Heater / From: AA000001 / To: AA999999 		$12.33 2
18A477 LR023320
SEAL
RH, Front, Heater / From: BA000001 		$16.90 1
18A477 LR023319
SEAL
LH, Front, Heater / From: BA000001 		$16.90 1
19E889A LR006375
O-RING
Heater core / From: AA000001 		$7.65 1
19E889B LR006376
O-RING
Evaporator Core / From: AA000001 		$7.65 1
18478A LR010838
HEATER
Premium Air Conditioning-Front/Rear / Front / From: AA000001 		$3,187.74 1
18478A LR010840
HEATER
With Front Comfort Air Con (IHKA) / Front / From: AA000001 		$3,448.68 1
18478B JEC500800
HEATER
Premium Air Conditioning-Front/Rear / Rear / From: AA000001 		$1,252.88 1
18702A JMH000060
BRACKET
RH, Front, Heater / From: AA000001 		$19.61 1
18702B JMH000050
BRACKET
LH, Front, Heater / From: AA000001 		$19.61 1
19858 LR015828
HOSE
Evaporator Drain / From: AA000001 		$7.53 2
