Auxiliary Fuel Fired Pre-Heater (Page C) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Auxiliary Fuel Fired Pre-Heater (Page C) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYC000090 CLIP - HOSE $2.91 To Order
Photo Part No Description Price (each) Stock
SGK100570 CLIP $3.99 To Order
Photo Part No Description Price (each) Stock
JYF000050 CLIP $8.57 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.95 IN STOCK
Photo Part No Description Price (each) Stock
JEX500030 PUMP - FUEL $369.38 To Order
Photo Part No Description Price (each) Stock
LR018302 TUBE $38.24 To Order
LR018303 TUBE $34.49 To Order
Photo Part No Description Price (each) Stock
JEZ000062 PIPE - FUEL $51.87 To Order
JEZ000073 PIPE - FUEL $41.19 To Order
Photo Part No Description Price (each) Stock
JOC500020 BRACKET $11.64 To Order
Photo Part No Description Price (each) Stock
KTH100000 STRIP - RUBBER $4.34 To Order
View All

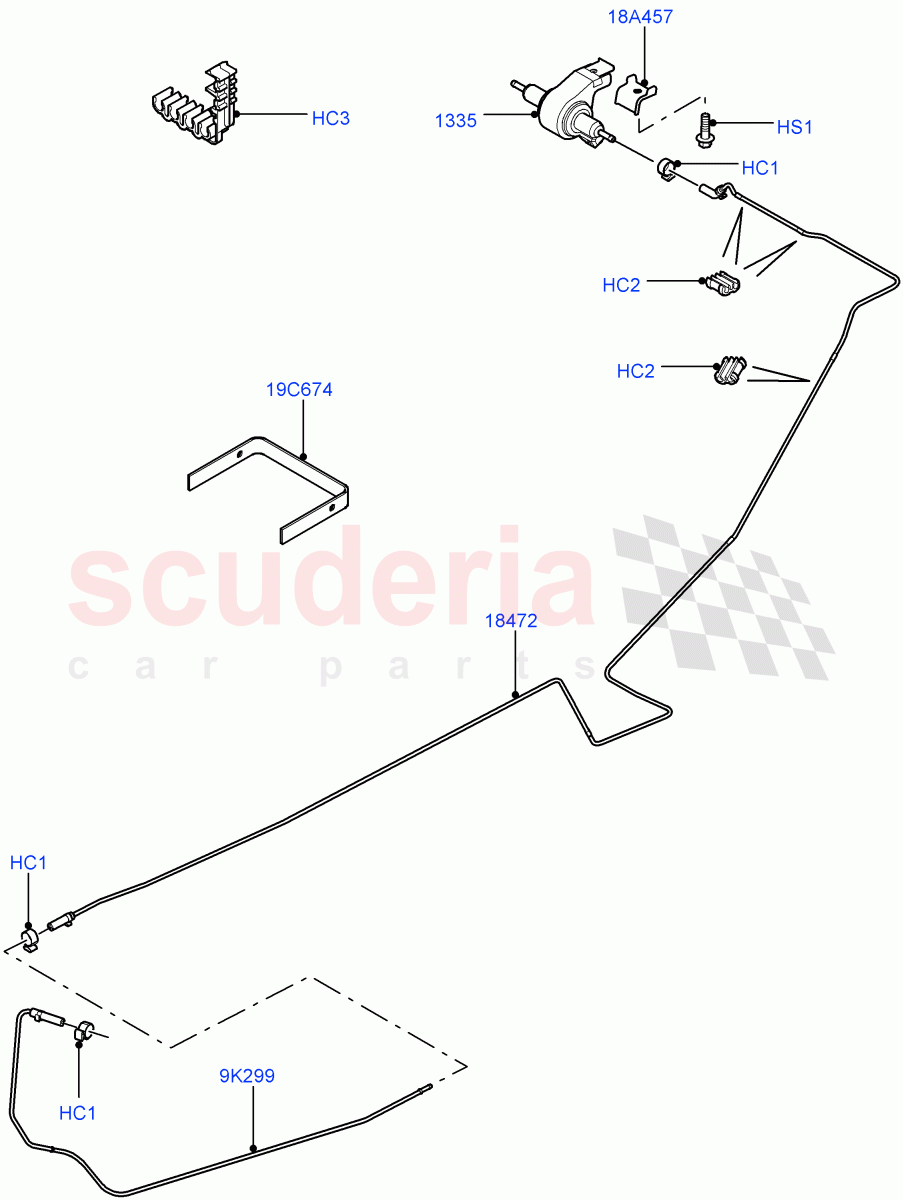

Auxiliary Fuel Fired Pre-Heater (Page C) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 WYC000090
CLIP - HOSE
Pipe Clamp / From: AA000001 		$2.91 3
HC2 SGK100570
CLIP
Single / From: AA000001 		$3.99 2
HC3 JYF000050
CLIP
4 Way, RHD / From: AA000001 		$8.57 2
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: AA000001
IN STOCK 		$0.95 1
9K299 JEZ000062
PIPE - FUEL
LHD, Park Heating With Remote Control / Front / From: AA000001 		$51.87 1
9K299 JEZ000073
PIPE - FUEL
Park Heating With Remote Control, RHD / Front / From: AA000001 		$41.19 1
18A457 JOC500020
BRACKET
Fuel Pump / From: AA000001 		$11.64 1
19C674 KTH100000
STRIP - RUBBER
Park Heating With Remote Control, RHD / For Fuel Tube / From: AA316012 		$4.34 1
1335 JEX500030
PUMP - FUEL
From: AA000001 		$369.38 1
18472 LR018302
TUBE
LHD, Park Heating With Remote Control / From: AA000001 		$38.24 1
18472 LR018303
TUBE
Park Heating With Remote Control, RHD / From: AA000001 		$34.49 1
