Name: Heater Hoses (Front) (5.0L OHC SGDI NA V8 Petrol - AJ133, Premium Air Conditioning-Front/Rear, Park Heating With Remote Control, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 4.4 (1 reviews)

Heater Hoses (Front) (5.0L OHC SGDI NA V8 Petrol - AJ133, Premium Air Conditioning-Front/Rear, Park Heating With Remote Control, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Heater Hoses (Front) (5.0L OHC SGDI NA V8 Petrol - AJ133, Premium Air Conditioning-Front/Rear, Park...

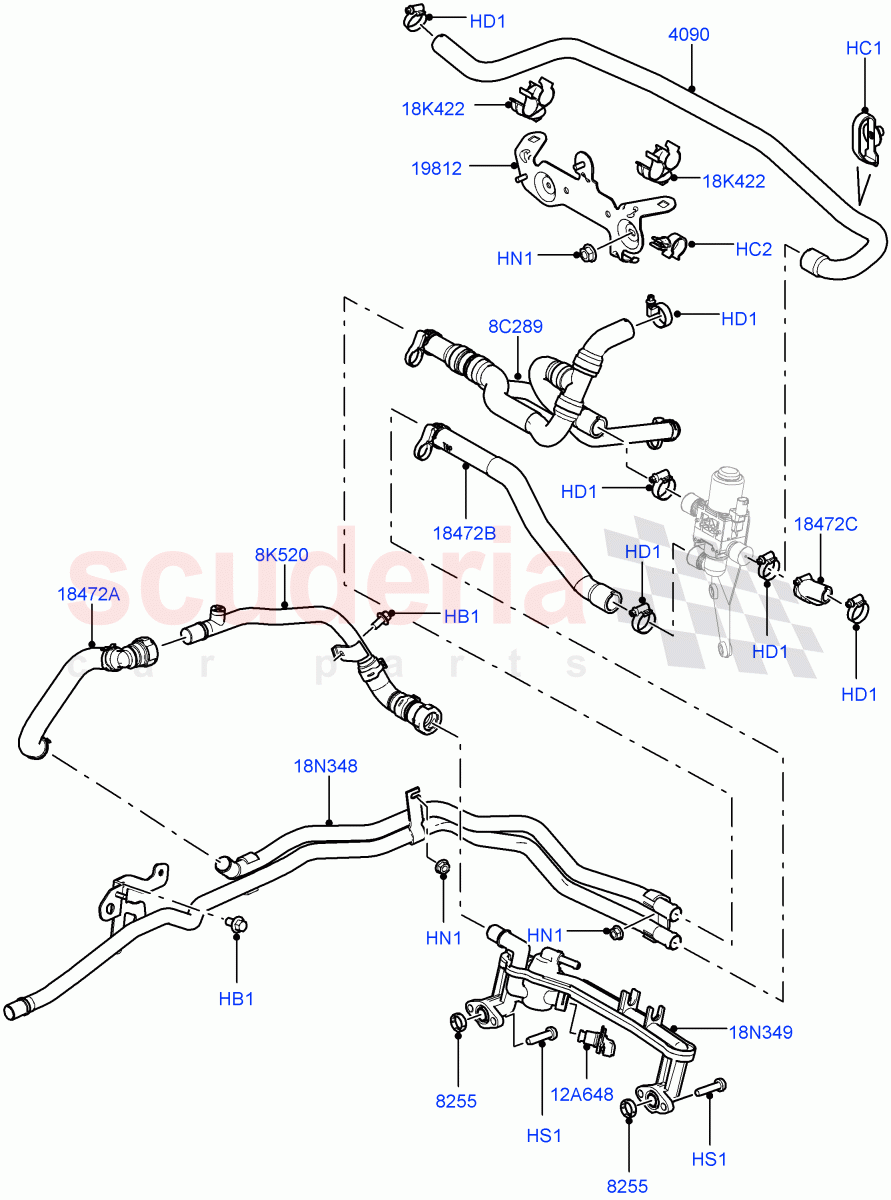

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PEU000090	CLIP	$4.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008902	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LYE100030L	CLAMP	$2.67	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	JHB501360	HOSE - VENT	$48.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010793	GASKET - WATER MANIFOLD	$9.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010850	BRACKET	$12.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011045	HOSE	$89.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011454	MANIFOLD - WATER	$117.33	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$59.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016854	HOSE - HEATER WATER	$164.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010833	HOSE AND CONNECTOR	$93.38	To Order

Photo	Part No	Description	Price (each)	Stock
	JHB501370	HOSE - VENT	$19.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012819	CLIP	$2.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016855	PIPE	$200.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122709	MANIFOLD - HEATER	$139.69	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: AA000001 IN STOCK	$0.52	3
HC1	PEU000090	CLIP	PEU000090 CLIP For Auxiliary Heater Hoses / From: AA000001	$4.33	2
HC2	LR008902	Clip	LR008902 Clip Hose, Single / From: AA000001	-	1	Enquire
HD1	LYE100030L	CLAMP	LYE100030L CLAMP Worm Type / From: AA000001	$2.67	10
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: AA000001 IN STOCK	$1.46	1
HS1	LR011270	SCREW	LR011270 SCREW M6 x 25MM, Torx / From: AA000001	$1.23	4
8C289	LR011045	HOSE	LR011045 HOSE To Heater Matrix, To Switching Valve / From: AA000001	$89.90	1
8K520	LR011454	MANIFOLD - WATER	LR011454 MANIFOLD - WATER Feed, To Engine / From: AA000001	$117.33	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: AA000001	$59.42	1
18K422	LR012819	CLIP	LR012819 CLIP Double / From: AA000001	$2.94	2
18N348	LR016855	PIPE	LR016855 PIPE Feed, Metal, Return / From: AA000001	$200.04	1
18N349	LR122709	MANIFOLD - HEATER	LR122709 MANIFOLD - HEATER Heater / From: AA000001	$139.69	1
4090	JHB501360	HOSE - VENT	JHB501360 HOSE - VENT LHD, Park Heating With Remote Control / To Fuel Fired Heater, To Switching Valve / From: AA000001	$48.38	1
8255	LR010793	GASKET - WATER MANIFOLD	LR010793 GASKET - WATER MANIFOLD Tube From Engine Block To Heater Inlet Hose / From: AA000001	$9.56	2
18472A	LR016854	HOSE - HEATER WATER	LR016854 HOSE - HEATER WATER Feed, To Engine / From: AA000001	$164.28	1
18472B	LR010833	HOSE AND CONNECTOR	LR010833 HOSE AND CONNECTOR To Switching Valve / From: AA000001	$93.38	1
18472C	JHB501370	HOSE - VENT	JHB501370 HOSE - VENT Park Heating With Remote Control, RHD / To Fuel Fired Heater, To Switching Valve / From: AA000001	$19.76	1
19812	LR010850	BRACKET	LR010850 BRACKET Fuel Fired Heater Pipe / From: AA000001	$12.92	1

Heater Hoses (Front) (5.0L Ohc Sgdi Na V8 Petrol - Aj133, Premium Air Conditioning-Front/Rear, Park...

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Heater Hoses (Front) (5.0L OHC SGDI NA V8 Petrol - AJ133, Premium Air Conditioning-Front/Rear, Park...

Add to Shopping Cart
