Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Air Conditioning Condensr/Compressr (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

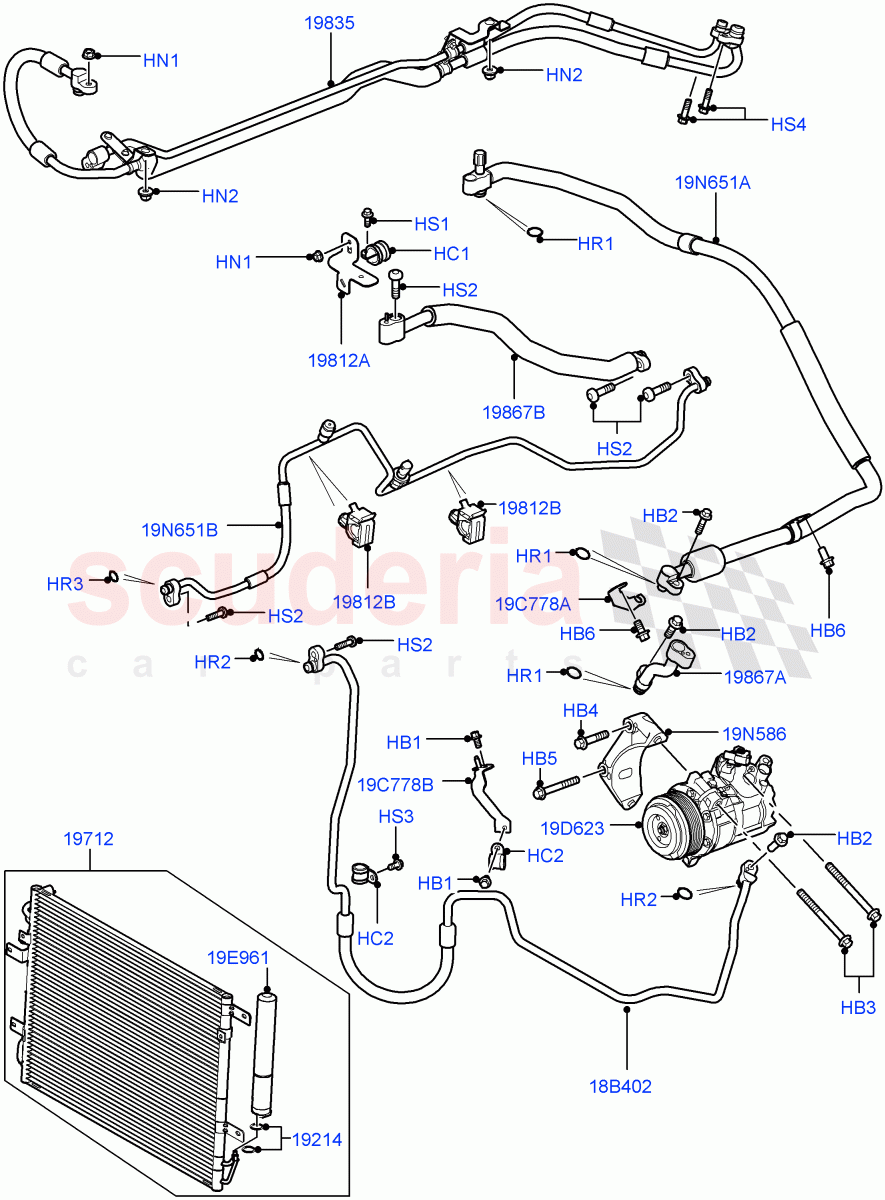

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
FS108256 BOLT $3.54 IN STOCK
Photo Part No Description Price (each) Stock
FB108186M BOLT $4.37 IN STOCK
Photo Part No Description Price (each) Stock
FB110107 BOLT - HEX.HEAD $1.14 To Order
Photo Part No Description Price (each) Stock
FB110151L BOLT $3.99 IN STOCK
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.67 IN STOCK
Photo Part No Description Price (each) Stock
LR010835 CLIP $3.61 To Order
Photo Part No Description Price (each) Stock
LR010837 CLIP $3.00 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
CYH10001 Nut $0.45 To Order
Photo Part No Description Price (each) Stock
LR002724 O-RING $5.33 To Order
Photo Part No Description Price (each) Stock
LR023116 O-RING $5.47 To Order
Photo Part No Description Price (each) Stock
LR002719 O-RING $4.36 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
JYP500110 SCREW $1.12 To Order
Photo Part No Description Price (each) Stock
BYP500170 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.95 IN STOCK
Photo Part No Description Price (each) Stock
JUU500110 SEAL $10.02 IN STOCK
Photo Part No Description Price (each) Stock
JRB500260 CONDENSER $522.41 To Order
LR097939 CONDENSER $522.41 To Order
Photo Part No Description Price (each) Stock
LR010866 TUBE $235.25 To Order
LR019598 TUBE $238.61 To Order
Photo Part No Description Price (each) Stock
LR010858 TUBE $205.54 To Order
Photo Part No Description Price (each) Stock
LR010848 BRACKET $3.67 To Order
Photo Part No Description Price (each) Stock
LR010849 BRACKET $7.96 To Order
Photo Part No Description Price (each) Stock
LR010854 TUBE $68.52 To Order
Photo Part No Description Price (each) Stock
LR010960 TUBE $81.61 To Order
LR010961 TUBE $99.38 To Order
LR021641 TUBE $135.66 To Order
Photo Part No Description Price (each) Stock
JPB500221 COMPRESSOR $2,267.18 To Order
LR020449 COMPRESSOR - AIR CONDITIONING $2,042.13 To Order
LR012801 COMPRESSOR $744.88 To Order
Photo Part No Description Price (each) Stock
JRJ500020 DRYER - COMPRESSOR AIR $240.14 To Order
Photo Part No Description Price (each) Stock
JPD500140 BRACKET - COMPRESSOR $30.94 IN STOCK
Photo Part No Description Price (each) Stock
JUG500030 BRACKET - HEATER MOUNTING $18.57 To Order
Photo Part No Description Price (each) Stock
JUG500020 BRACKET $3.99 To Order
Photo Part No Description Price (each) Stock
LR010869 TUBE $90.04 To Order
Photo Part No Description Price (each) Stock
LR010889 TUBE $121.25 To Order
LR010890 TUBE $204.55 To Order
View All
Air Conditioning Condensr/Compressr (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.52 2
HB2 FS108256
BOLT
Hexagonal Head, M8 X 25MM / From: AA000001
IN STOCK 		$3.54 3
HB3 FB108186M
BOLT
M8 X 90MM / From: AA000001
IN STOCK 		$4.37 3
HB4 FB110107
BOLT - HEX.HEAD
M10 X 50MM / From: AA000001 		$1.14 1
HB5 FB110151L
BOLT
M10 x 75MM / From: AA000001
IN STOCK 		$3.99 1
HB6 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: AA000001
IN STOCK 		$0.67 2
HC1 LR010835
CLIP
With Front Comfort Air Con (IHKA) / Air Conditioning Pipe / From: AA000001 		$3.61 2
HC2 LR010837
CLIP
Air Conditioning Pipe / From: AA000001 		$3.00 3
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: AA000001
IN STOCK 		$1.45 2
HN2 CYH10001
Nut
M5, Self Locking / From: AA000001 		$0.45 2
HR1 LR002724
O-RING
13.7 X 2.5MM / From: AA000001 		$5.33 4
HR2 LR023116
O-RING
11 x 2.5MM / From: AA000001 		$5.47 2
HR3 LR002719
O-RING
9.5 X 2.5MM / From: AA000001 		$4.36 1
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: AA000001
IN STOCK 		$1.23 1
HS2 JYP500110
SCREW
M8 x 30MM / From: AA000001 		$1.12 6
HS3 BYP500170
SCREW
Hexagonal Head, M6 x 14MM / From: AA000001
IN STOCK 		$1.23 1
HS4 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: AA000001
IN STOCK 		$0.95 2
18B402 LR010858
TUBE
Compressor To Condenser / From: AA000001 		$205.54 1
19C778A JUG500030
BRACKET - HEATER MOUNTING
For Air Conditioning / From: AA000001 		$18.57 1
19C778B JUG500020
BRACKET
For Air Conditioning / From: AA000001 		$3.99 1
19D623 JPB500221
COMPRESSOR
New Part-Please Check For Reman Version / From: AA000001 / To: AA318729 		$2,267.18 1
19D623 LR020449
COMPRESSOR - AIR CONDITIONING
From: AA318730 		$2,042.13 1
19D623 LR012801
COMPRESSOR
Remanufactured Part / From: AA000001 / To: AA318729 		$744.88 1
19E961 JRJ500020
DRYER - COMPRESSOR AIR
From: AA000001 		$240.14 1
19N586 JPD500140
BRACKET - COMPRESSOR
Air Conditioning Compressor Bracket / From: AA000001
IN STOCK 		$30.94 1
19N651A LR010869
TUBE
Air Conditioning Evaporator To Compressor / From: AA000001 		$90.04 1
19N651B LR010889
TUBE
With Front Comfort Air Con (IHKA) / Condenser To Evaporator / From: AA000001 		$121.25 1
19N651B LR010890
TUBE
Premium Air Conditioning-Front/Rear / Condenser To Evaporator / From: AA000001 		$204.55 1
19214 JUU500110
SEAL
From: AA000001
IN STOCK 		$10.02 2
19712 JRB500260
CONDENSER
From: AA000001 / To: AA257559 		$522.41 1
19712 LR097939
CONDENSER
From: AA257560 		$522.41 1
19812A LR010848
BRACKET
For Air Conditioning / From: AA000001 		$3.67 1
19812B LR010849
BRACKET
For Air Conditioning / From: AA000001 		$7.96 2
19835 LR010866
TUBE
Premium Air Conditioning-Front/Rear / Connects To Rear Evaporator Core / From: AA000001 / To: AA316726 		$235.25 1
19835 LR019598
TUBE
Premium Air Conditioning-Front/Rear / Connects To Rear Evaporator Core / From: AA316727 		$238.61 1
19867A LR010854
TUBE
Attaches To Compressor / From: AA000001 		$68.52 1
19867B LR010960
TUBE
With Front Comfort Air Con (IHKA) / Air Conditioning Evaporator To Compressor / From: AA000001 		$81.61 1
19867B LR010961
TUBE
Premium Air Conditioning-Front/Rear / Air Conditioning Evaporator To Compressor / From: AA000001 / To: AA317493 		$99.38 1
19867B LR021641
TUBE
Premium Air Conditioning-Front/Rear / Air Conditioning Evaporator To Compressor / From: AA317494 		$135.66 1
