Auxiliary Fuel Fired Pre-Heater (Page A) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Auxiliary Fuel Fired Pre-Heater (Page A) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
JYA000050 GROMMET $6.22 To Order
Photo Part No Description Price (each) Stock
JYH000070 NUT - HEX. $1.20 To Order
Photo Part No Description Price (each) Stock
LR011099 BOLT $13.95 To Order
Photo Part No Description Price (each) Stock
LR036697 BATTERY & COVER - REMOTE CONTROL $16.75 To Order
Photo Part No Description Price (each) Stock
LR011098 HEAT SHIELD $119.25 To Order
Photo Part No Description Price (each) Stock
JJK000010 PUMP - WATER $142.42 To Order
Photo Part No Description Price (each) Stock
JEO000010 VALVE - WATER CONTROL $422.31 To Order
LR016848 VALVE $466.34 To Order
Photo Part No Description Price (each) Stock
LR009736 REMOTE CONTROL UNIT $150.76 To Order
LR027493 REMOTE CONTROL UNIT $176.76 To Order
Photo Part No Description Price (each) Stock
LR009687 RECEIVER - RADIO REMOTE CONTROL $267.53 To Order
LR027067 RECEIVER - RADIO REMOTE CONTROL $255.73 To Order
LR036696 RECEIVER - AUXILIARY FUEL HEATER $338.66 To Order
View All

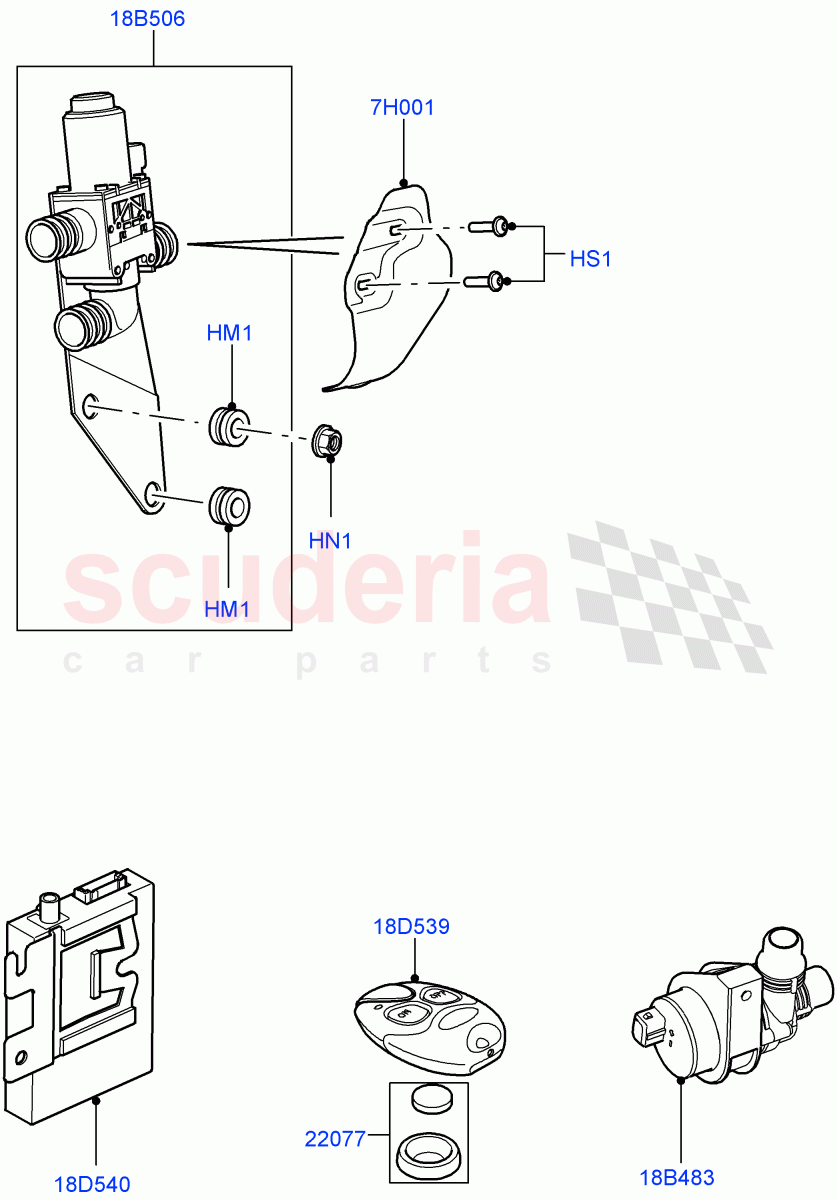

Auxiliary Fuel Fired Pre-Heater (Page A) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 JYA000050
GROMMET
Grommet / From: AA000001 		$6.22 -
HN1 JYH000070
NUT - HEX.
Park Heating With Remote Control / Hex Nut Type / From: AA000001 		$1.20 2
HS1 LR011099
BOLT
Park Heating With Remote Control / 3 x 12MM / From: AA000001 		$13.95 2
7H001 LR011098
HEAT SHIELD
Park Heating With Remote Control / From: AA000001 		$119.25 1
18B483 JJK000010
PUMP - WATER
From: AA000001 		$142.42 1
18B506 JEO000010
VALVE - WATER CONTROL
Park Heating With Remote Control / From: AA000001 / To: BA334342 		$422.31 1
18B506 LR016848
VALVE
Park Heating With Remote Control / From: BA334343 		$466.34 1
18D539 LR009736
REMOTE CONTROL UNIT
Park Heating With Remote Control / Less Battery / From: AA000001 / To: BA336892 		$150.76 1
18D539 LR027493
REMOTE CONTROL UNIT
Park Heating With Remote Control / Less Battery / From: BA336893 		$176.76 1
18D540 LR009687
RECEIVER - RADIO REMOTE CONTROL
Park Heating With Remote Control / From: AA000001 / To: BA342419 		$267.53 1
18D540 LR027067
RECEIVER - RADIO REMOTE CONTROL
Park Heating With Remote Control / From: BA342420 / To: CA368914 		$255.73 1
18D540 LR036696
RECEIVER - AUXILIARY FUEL HEATER
Park Heating With Remote Control / From: CA368915 		$338.66 1
22077 LR036697
BATTERY & COVER - REMOTE CONTROL
Remote Control / From: AA000001 		$16.75 1
