Name: Oil Pan/Oil Level Indicator (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)
Rating: 4.6 (1 reviews)

View All

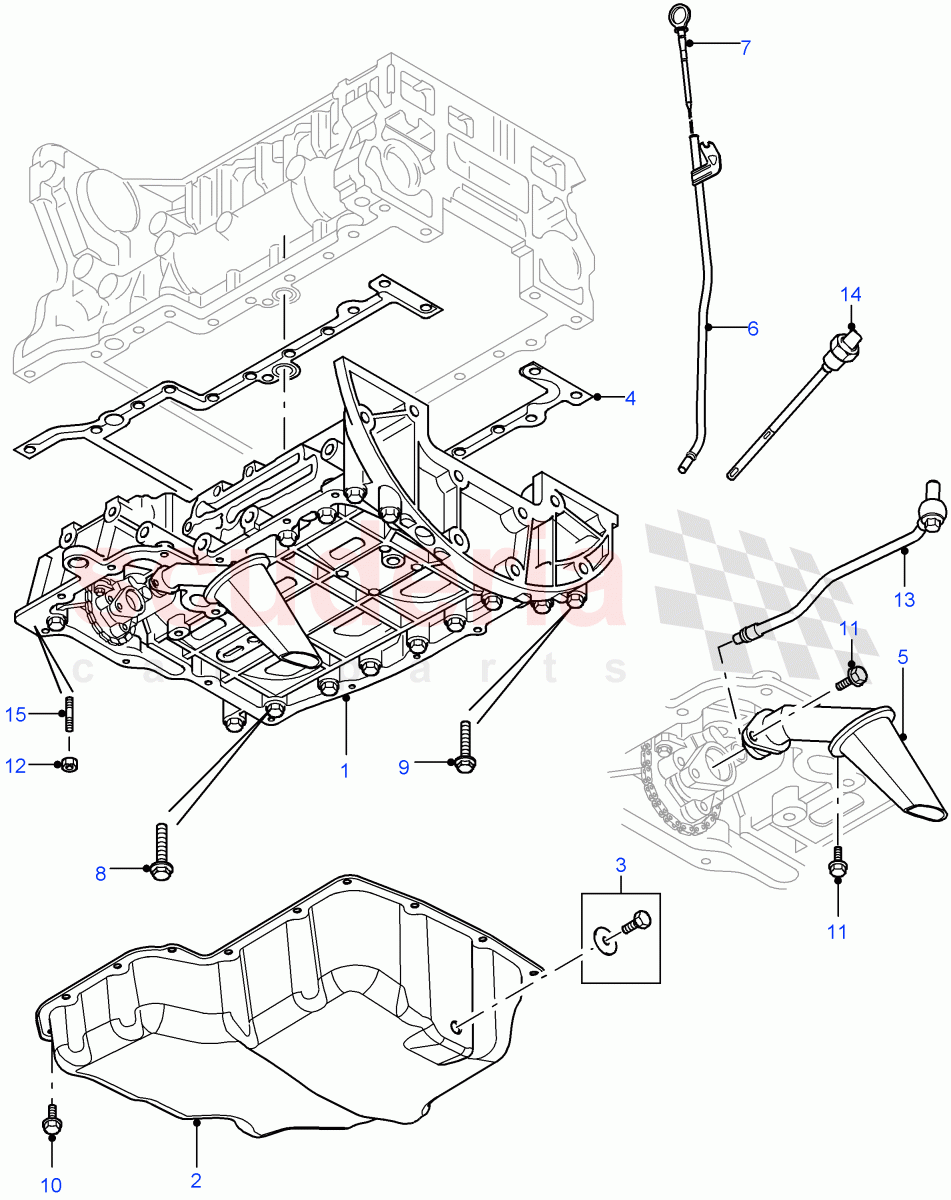

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR029913	STIFFENER - ENGINE BLOCK	$960.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007598	PAN - ENGINE OIL	$118.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	$8.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032154	GASKET - OIL PAN	$21.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029914	TUBE - OIL PUMP INLET	$64.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029916	TUBE - OIL LEVEL INDICATOR	$76.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029917	INDICATOR - OIL LEVEL	$21.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004336	BOLT	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	4469260	BOLT	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005625	BOLT - HEX.HEAD	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	4558527	SCREW	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004344	NUT - HEX. - FLANGED	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029925	TUBE - OIL RETURN	$41.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005905	SENSOR	$27.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005629	STUD	$3.22	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR029913	STIFFENER - ENGINE BLOCK	LR029913 STIFFENER - ENGINE BLOCK	$960.47	1
2	LR007598	PAN - ENGINE OIL	LR007598 PAN - ENGINE OIL	$118.47	1
3	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN	$8.32	1
4	LR032154	GASKET - OIL PAN	LR032154 GASKET - OIL PAN	$21.39	1
5	LR029914	TUBE - OIL PUMP INLET	LR029914 TUBE - OIL PUMP INLET	$64.74	1
6	LR029916	TUBE - OIL LEVEL INDICATOR	LR029916 TUBE - OIL LEVEL INDICATOR	$76.45	1
7	LR029917	INDICATOR - OIL LEVEL	LR029917 INDICATOR - OIL LEVEL	$21.79	1
8	LR004336	BOLT	LR004336 BOLT M8 x 80MM	$2.85	-
9	4469260	BOLT	4469260 BOLT M8 X 35MM	$3.52	3
10	LR005625	BOLT - HEX.HEAD	LR005625 BOLT - HEX.HEAD M6 X 16MM	$1.70	11
11	4558527	SCREW	4558527 SCREW M6 X 20MM	$0.80	2
12	LR004344	NUT - HEX. - FLANGED	LR004344 NUT - HEX. - FLANGED M6	$1.16	5
13	LR029925	TUBE - OIL RETURN	LR029925 TUBE - OIL RETURN	$41.01	1
14	LR005905	SENSOR	LR005905 SENSOR	$27.70	1
15	LR005629	STUD	LR005629 STUD M6 X 12-M6 X 13.8	$3.22	5

Oil Pan/Oil Level Indicator (2.2L 16V Tc I4 Dsl 122Ps Puma) ((V) Fromca000001)

Land Rover Defender (2007-2016)
