Land Rover Defender (2007-2016) - Oil Pan/Oil Level Indicator (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR004451 STIFFENER $615.78 To Order
LR007520 STIFFENER $1,397.75 To Order
LR008977 STIFFENER $943.40 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR007598 PAN - ENGINE OIL $118.75 To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN $8.34 To Order
Photo Part No Description Price (each) Stock
LR004409 GASKET - OIL PAN $90.84 To Order
LR006957 GASKET - OIL PAN $16.69 To Order
Photo Part No Description Price (each) Stock
LR004387 TUBE - OIL PUMP INLET $93.75 To Order
Photo Part No Description Price (each) Stock
LQN500050 TUBE $54.15 To Order
Photo Part No Description Price (each) Stock
LQM500070 INDICATOR - OIL LEVEL $51.07 To Order
Photo Part No Description Price (each) Stock
LR004336 BOLT $2.85 To Order
Photo Part No Description Price (each) Stock
4469260 BOLT $3.53 To Order
Photo Part No Description Price (each) Stock
LR004337 SCREW $1.25 To Order
Photo Part No Description Price (each) Stock
4558527 SCREW $0.80 To Order
Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
STC50550 SEALER - ADHESIVE PAN/ENGINE $19.83 To Order
Photo Part No Description Price (each) Stock
LR005905 SENSOR $27.76 To Order
Photo Part No Description Price (each) Stock
LR004354 STUD $0.77 To Order
LR005629 STUD $3.23 To Order
Photo Part No Description Price (each) Stock
LR004344 NUT - HEX. - FLANGED $1.16 To Order
Photo Part No Description Price (each) Stock
LR004617 PLUG $10.14 To Order
View All

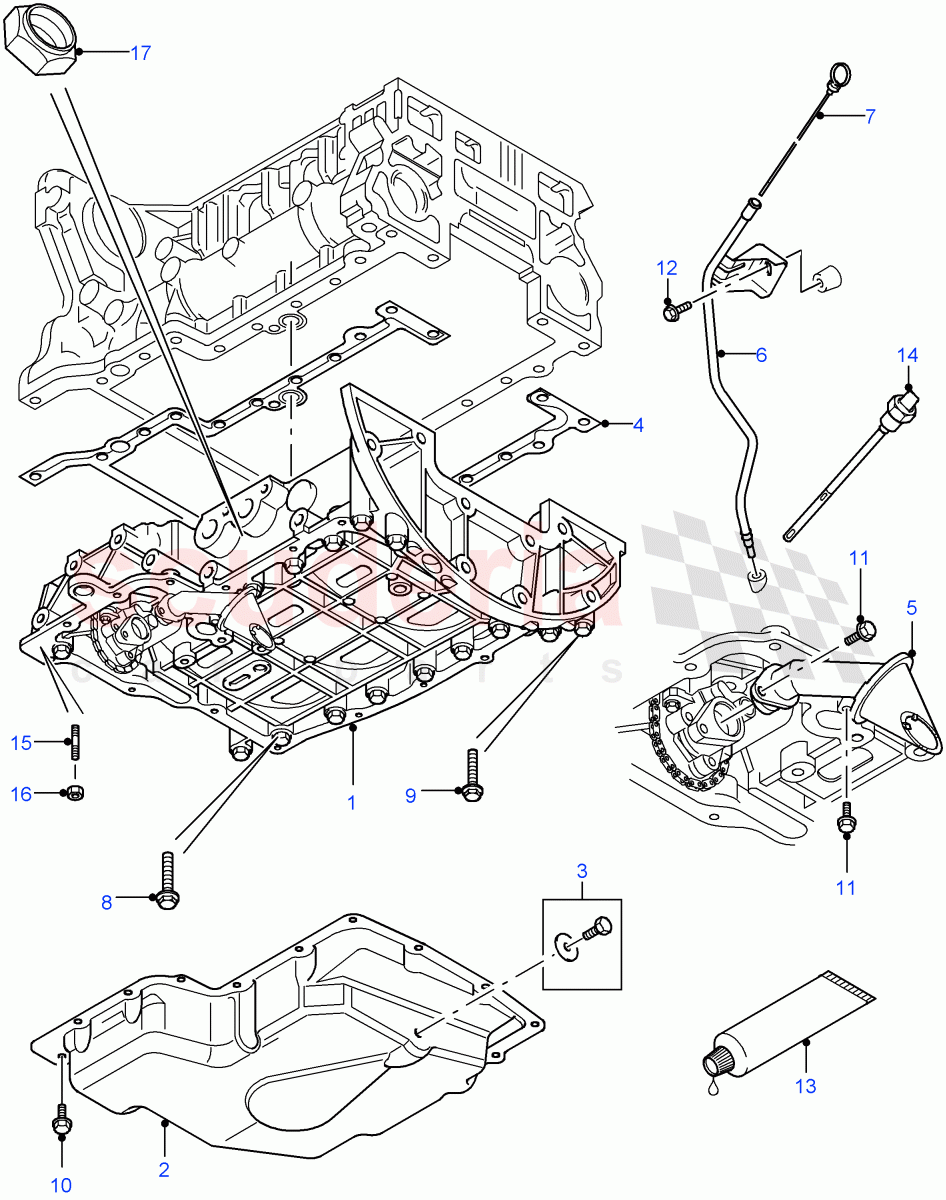

Oil Pan/Oil Level Indicator (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR004451
STIFFENER
To: 7A999999 		$615.78 1
1 LR007520
STIFFENER
From: 8A000001 / To: 9A999999 		$1,397.75 1
1 LR008977
STIFFENER
From: AA000001 / To: AA999999 		$943.40 1
1 LR146345
STIFFENER
From: BA000001 		$990.60 1
2 LR007598
PAN - ENGINE OIL 		$118.75 1
3 LR073675
PLUG - OIL DRAIN 		$8.34 1
4 LR004409
GASKET - OIL PAN
To: 7A999999 		$90.84 1
4 LR006957
GASKET - OIL PAN
From: 8A000001 		$16.69 1
5 LR004387
TUBE - OIL PUMP INLET 		$93.75 1
6 LQN500050
TUBE 		$54.15 1
7 LQM500070
INDICATOR - OIL LEVEL 		$51.07 1
8 LR004336
BOLT
M8 x 80MM 		$2.85 -
9 4469260
BOLT
M8 X 35MM 		$3.53 3
10 LR004337
SCREW
M6 X 16MM 		$1.25 11
11 4558527
SCREW
M6 X 20MM 		$0.80 2
12 FS108206
BOLT
M8 X 20MM
IN STOCK 		$2.29 1
13 STC50550
SEALER - ADHESIVE PAN/ENGINE
Use As Required 		$19.83 -
14 LR005905
SENSOR 		$27.76 1
15 LR004354
STUD
M6 X 12-M6 X 13.8 / To: 7A999999 		$0.77 5
15 LR005629
STUD
M6 X 12-M6 X 13.8 / From: 8A000001 		$3.23 5
16 LR004344
NUT - HEX. - FLANGED
M6 		$1.16 5
17 LR004617
PLUG 		$10.14 1
