Oil Cooler And Filter (2.4L Duratorq-Tdci Hpcr (140Ps) -Puma) ((V) From7A000001, (V) Toba999999)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Oil Cooler And Filter (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR004426 ADAPTOR - OIL FILTER $234.99 To Order
Photo Part No Description Price (each) Stock
LR030778 FILTER - OIL - ELEMENT AND SEAL $10.44 IN STOCK
Photo Part No Description Price (each) Stock
LR004508 COVER $50.73 To Order
Photo Part No Description Price (each) Stock
LR004410 SWITCH - OIL PRESSURE $51.21 To Order
Photo Part No Description Price (each) Stock
LR004462 HOSE $28.62 To Order
Photo Part No Description Price (each) Stock
LR004557 THERMOSTAT $99.80 To Order
LR005894 THERMOSTAT $48.07 To Order
Photo Part No Description Price (each) Stock
LR004447 SEAL - OIL COOLER $14.11 To Order
Photo Part No Description Price (each) Stock
4378449 SCREW $2.08 IN STOCK
Photo Part No Description Price (each) Stock
FS108252 BOLT - HEX.HEAD $0.77 To Order
Photo Part No Description Price (each) Stock
LR004315 BOLT $4.16 To Order
Photo Part No Description Price (each) Stock
LR004503 CLIP $4.34 To Order
View All

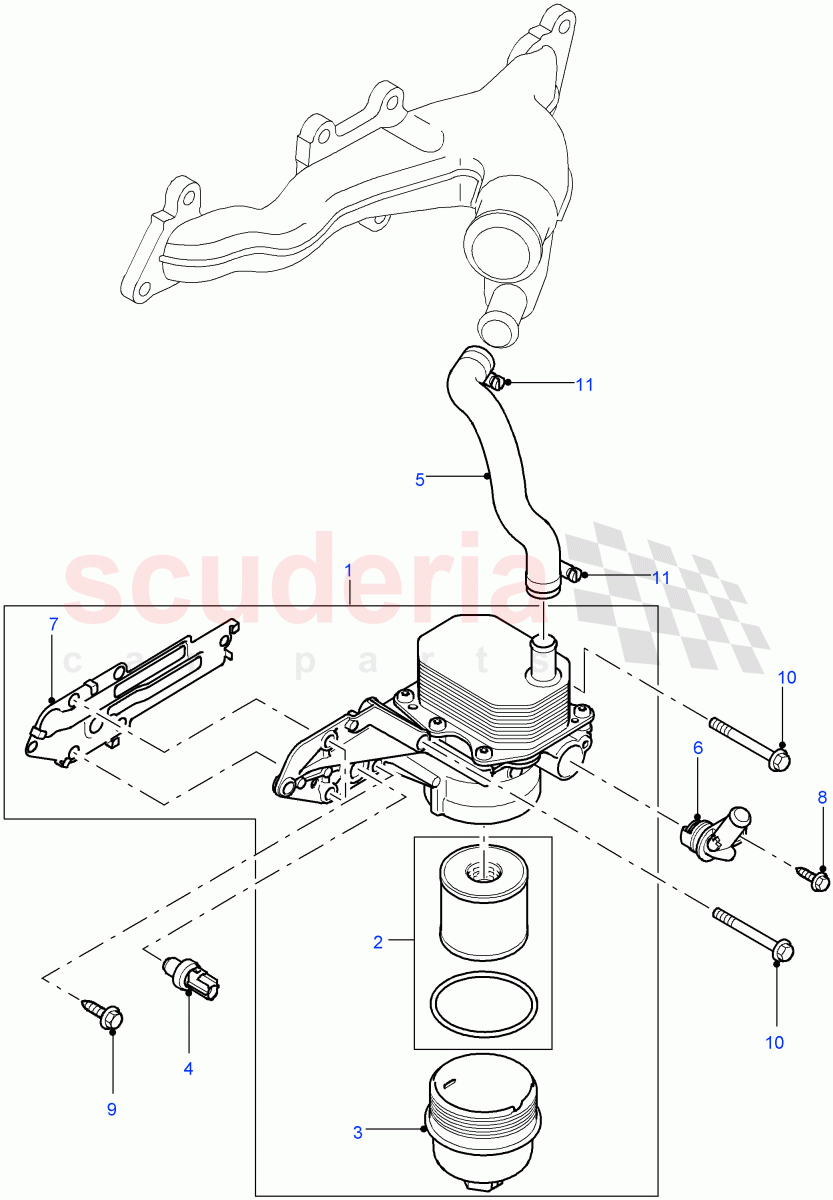

Oil Cooler And Filter (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR004426
ADAPTOR - OIL FILTER 		$234.99 1
2 LR030778
FILTER - OIL - ELEMENT AND SEAL
IN STOCK 		$10.44 1
3 LR004508
COVER 		$50.73 1
4 LR004410
SWITCH - OIL PRESSURE 		$51.21 1
5 LR004462
HOSE 		$28.62 1
6 LR004557
THERMOSTAT
To: 7A744122 		$99.80 1
6 LR005894
THERMOSTAT
From: 7A744123 		$48.07 1
7 LR004447
SEAL - OIL COOLER 		$14.11 1
8 4378449
SCREW
M6 x 25MM
IN STOCK 		$2.08 1
9 FS108252
BOLT - HEX.HEAD
M8 X 25MM 		$0.77 4
10 LR004315
BOLT
M8 x 75 		$4.16 2
11 LR004503
CLIP 		$4.34 2
