Name: Turbocharger (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)
Rating: 5.0 (1 reviews)

View All

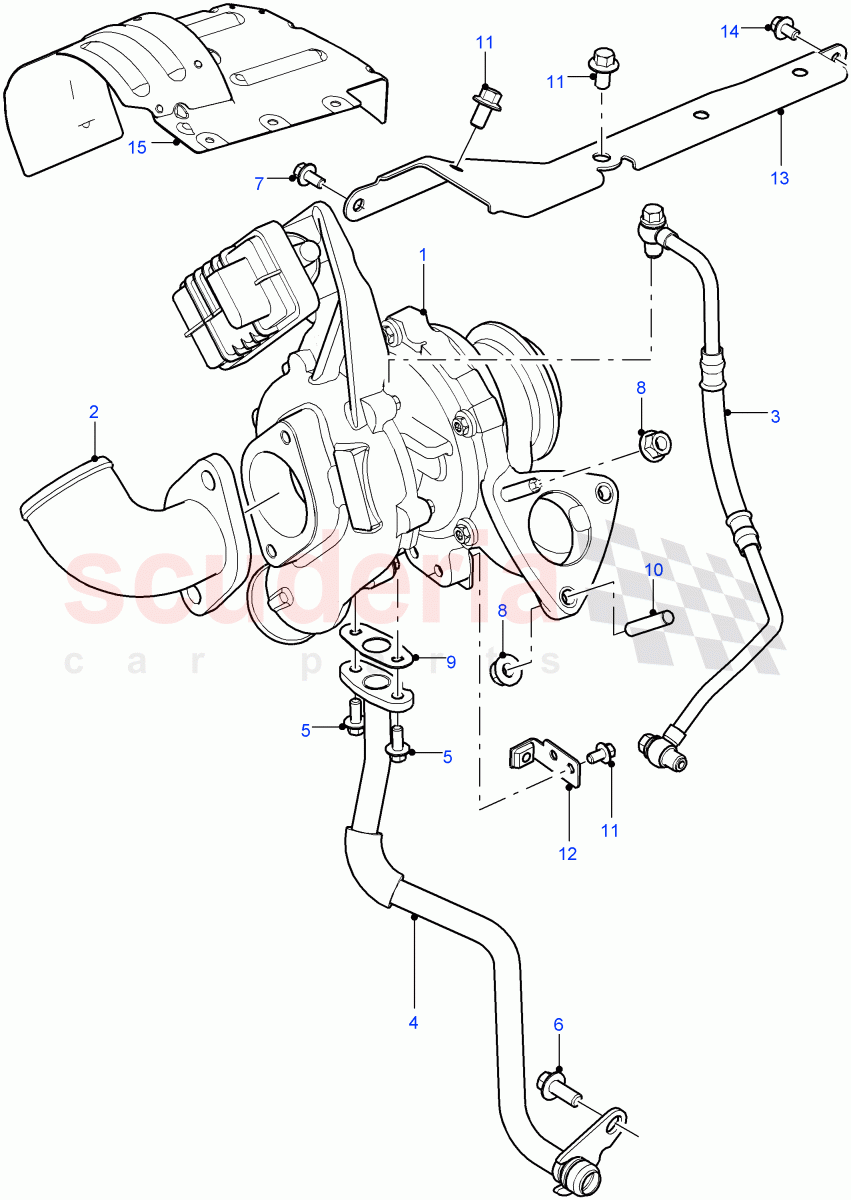

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PNH500440	HOSE - TURBOCHARGER OUTLET	$17.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR029975	HOSE - OIL RETURN	$101.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004330	SCREW	$3.33	To Order

Photo	Part No	Description	Price (each)	Stock
	FT108206	BOLT - HEX.HEAD	$4.38	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR014199	NUT - HEX.	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	1331076	GASKET - OIL TUBE	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009704	STUD	$5.48	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108146	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029978	BRACKET - HEATSHIELD	$14.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029977	BRACKET - HEATSHIELD	$87.84	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106106	BOLT	$0.92	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR029972	TURBOCHARGER	LR029972 TURBOCHARGER To: CA999999	$2,133.80	1
1	LR042752	TURBOCHARGER	LR042752 TURBOCHARGER New / From: DA000001	$1,309.97	1
2	PNH500440	HOSE - TURBOCHARGER OUTLET IN STOCK	PNH500440 HOSE - TURBOCHARGER OUTLET 61.1MM IN STOCK	$17.41	1
3	LR029974	PIPE - OIL FEED	LR029974 PIPE - OIL FEED To: CA444443	$83.37	1
3	LR037952	PIPE - OIL FEED	LR037952 PIPE - OIL FEED From: CA444444	$88.02	1
4	LR029975	HOSE - OIL RETURN	LR029975 HOSE - OIL RETURN	$101.80	1
5	LR004330	SCREW	LR004330 SCREW M6 X 14MM	$3.33	2
6	FT108206	BOLT - HEX.HEAD	FT108206 BOLT - HEX.HEAD M8 X 20MM	$4.38	1
7	FS106126	BOLT IN STOCK	FS106126 BOLT M6 x 12MM IN STOCK	$0.52	1
8	LR014199	NUT - HEX.	LR014199 NUT - HEX.	$1.13	3
9	1331076	GASKET - OIL TUBE	1331076 GASKET - OIL TUBE	$4.20	1
10	LR009704	STUD	LR009704 STUD	$5.48	3
11	FS108146	SCREW	FS108146 SCREW M8 X 14MM	$0.67	6
12	LR029978	BRACKET - HEATSHIELD	LR029978 BRACKET - HEATSHIELD	$14.22	1
13	LR029977	BRACKET - HEATSHIELD	LR029977 BRACKET - HEATSHIELD	$87.84	1
14	FS106106	BOLT	FS106106 BOLT M6 X 10MM	$0.92	1
15	LR029989	HEAT SHIELD	LR029989 HEAT SHIELD To: CA555554	$58.40	1
15	LR039774	HEAT SHIELD	LR039774 HEAT SHIELD From: CA555555	$78.17	1

Turbocharger (2.2L 16V Tc I4 Dsl 122Ps Puma) ((V) Fromca000001)

Land Rover Defender (2007-2016)
