Name: Cylinder Head (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)
Rating: 4.5 (1 reviews)

Cylinder Head (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Cylinder Head (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)

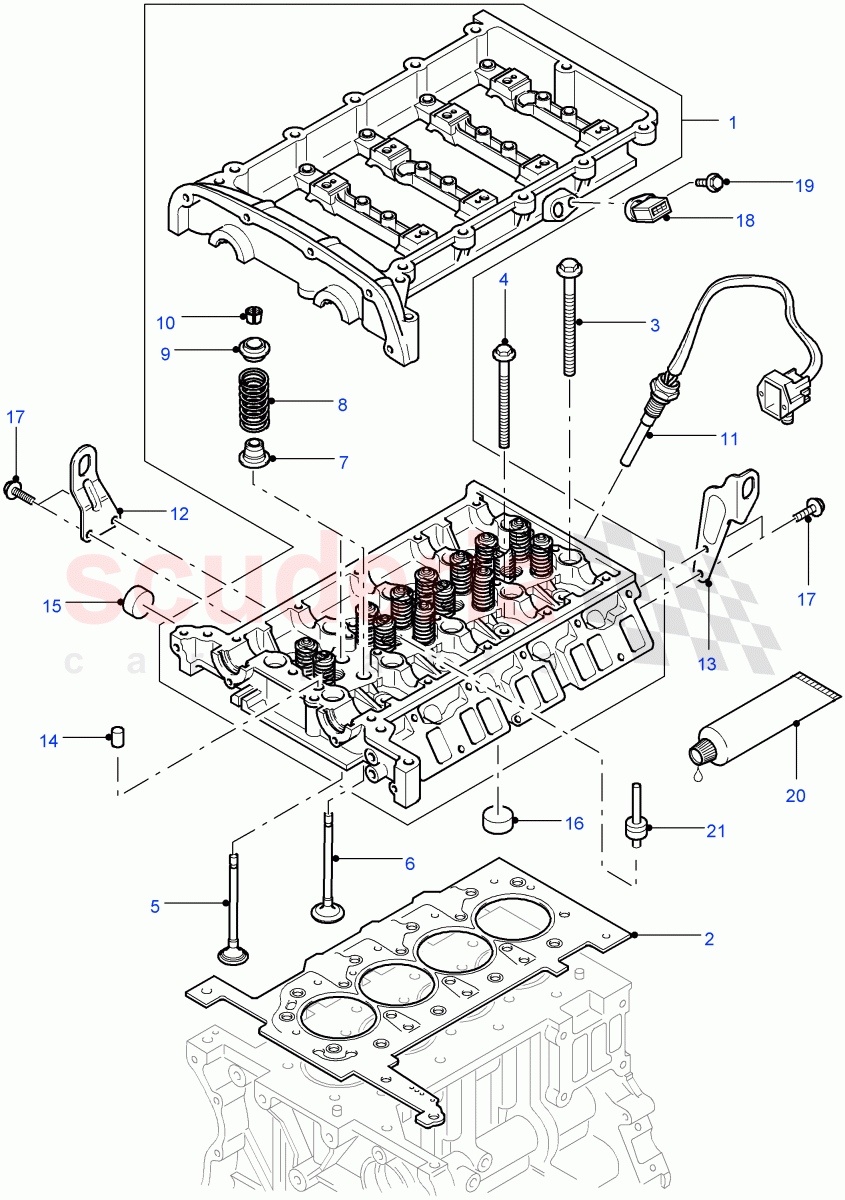

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004428	CYLINDER HEAD	$2,836.08	To Order
	LR010185	CYLINDER HEAD	$2,200.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004418	GASKET - CYLINDER HEAD	$318.96	To Order
	LR004419	GASKET - CYLINDER HEAD	$321.43	To Order
	LR004420	GASKET - CYLINDER HEAD	$54.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004369	BOLT - CYLINDER HEAD	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004370	BOLT - CYLINDER HEAD	$3.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004429	VALVE - INLET	$79.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004401	VALVE - EXHAUST	$45.02	To Order
	LR029317	VALVE - EXHAUST	$78.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004421	SEAL - VALVE STEM	$1.32	To Order
	LR005901	SEAL - VALVE STEM	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004432	SPRING - VALVE	$18.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004376	RETAINER - VALVE SPRING	$12.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004433	COLLET - VALVE SPRING RETAINER	$17.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004378	SENSOR	$47.72	To Order
	LR010534	SENSOR	$34.04	To Order
	LR031923	SENSOR	$34.04	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR005747	BRACKET - ENGINE LIFTING	$37.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004379	BRACKET - ENGINE LIFTING	$40.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004374	DOWEL	$10.24	To Order

Photo	Part No	Description	Price (each)	Stock
	1102770	PLUG	$4.12	To Order

Photo	Part No	Description	Price (each)	Stock
	1102774	PLUG - ENGINE	$6.56	To Order

Photo	Part No	Description	Price (each)	Stock
	FT108206	BOLT - HEX.HEAD	$4.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004492	SENSOR - CAMSHAFT POSITION	$88.66	To Order

Photo	Part No	Description	Price (each)	Stock
	4380670	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	STC50550	SEALER - ADHESIVE PAN/ENGINE	$19.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004353	RIVET	$7.93	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR004428	CYLINDER HEAD	LR004428 CYLINDER HEAD New, New Part-Please Check For Reman Version, With Valves	$2,836.08	1
1	LR010185	CYLINDER HEAD	LR010185 CYLINDER HEAD Exchange Part (Re-Manufactured), With Valves	$2,200.42	1
2	LR004418	GASKET - CYLINDER HEAD	LR004418 GASKET - CYLINDER HEAD 1 Tooth	$318.96	1
2	LR004419	GASKET - CYLINDER HEAD	LR004419 GASKET - CYLINDER HEAD 2 Teeth	$321.43	1
2	LR004420	GASKET - CYLINDER HEAD	LR004420 GASKET - CYLINDER HEAD 3 Teeth	$54.21	1
3	LR004369	BOLT - CYLINDER HEAD	LR004369 BOLT - CYLINDER HEAD M10 x 160mm	$2.92	10
4	LR004370	BOLT - CYLINDER HEAD	LR004370 BOLT - CYLINDER HEAD M8 x 120MM	$3.97	8
5	LR004429	VALVE - INLET	LR004429 VALVE - INLET	$79.28	8
6	LR004401	VALVE - EXHAUST	LR004401 VALVE - EXHAUST To: BA888887	$45.02	8
6	LR029317	VALVE - EXHAUST	LR029317 VALVE - EXHAUST From: BA888888	$78.34	8
7	LR004421	SEAL - VALVE STEM	LR004421 SEAL - VALVE STEM To: 7A750323	$1.32	16
7	LR005901	SEAL - VALVE STEM	LR005901 SEAL - VALVE STEM From: 7A750324	$2.07	16
8	LR004432	SPRING - VALVE	LR004432 SPRING - VALVE	$18.21	16
9	LR004376	RETAINER - VALVE SPRING	LR004376 RETAINER - VALVE SPRING	$12.09	16
10	LR004433	COLLET - VALVE SPRING RETAINER	LR004433 COLLET - VALVE SPRING RETAINER	$17.18	32
11	LR004378	SENSOR	LR004378 SENSOR temperature sensor / To: 9A768937	$47.72	1
11	LR010534	SENSOR	LR010534 SENSOR temperature sensor / From: 9A768938 / To: BA401519	$34.04	1
11	LR031923	SENSOR	LR031923 SENSOR temperature sensor / From: BA401520	$34.04	1
11	LR039220	SENSOR - ENGINE TEMPERATURE	LR039220 SENSOR - ENGINE TEMPERATURE temperature sensor	$30.15	1
12	LR005747	BRACKET - ENGINE LIFTING	LR005747 BRACKET - ENGINE LIFTING Front	$37.65	1
13	LR004379	BRACKET - ENGINE LIFTING	LR004379 BRACKET - ENGINE LIFTING Rear	$40.89	1
14	LR004374	DOWEL	LR004374 DOWEL	$10.24	2
15	1102770	PLUG	1102770 PLUG	$4.12	2
16	1102774	PLUG - ENGINE	1102774 PLUG - ENGINE	$6.56	1
17	FT108206	BOLT - HEX.HEAD	FT108206 BOLT - HEX.HEAD M8 X 20MM	$4.39	4
18	LR004492	SENSOR - CAMSHAFT POSITION	LR004492 SENSOR - CAMSHAFT POSITION	$88.66	1
19	4380670	SCREW	4380670 SCREW M6X16	$0.76	1
20	STC50550	SEALER - ADHESIVE PAN/ENGINE	STC50550 SEALER - ADHESIVE PAN/ENGINE Use As Required	$19.83	-
21	LR004353	RIVET	LR004353 RIVET 16MM, Plug	$7.93	3

Cylinder Head (2.4L Duratorq-Tdci Hpcr (140Ps) -Puma) ((V) From7A000001, (V) Toba999999)
