Cylinder Head (2.2L 16V Tc I4 Dsl 122Ps Puma) ((V) Fromca000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Cylinder Head (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR029711 CYLINDER HEAD $1,114.61 To Order
LR037049 CYLINDER HEAD $2,580.72 To Order
Photo Part No Description Price (each) Stock
LR029712 GASKET-CYLINDER HEAD $124.70 To Order
LR029713 GASKET-CYLINDER HEAD $124.70 To Order
LR029714 GASKET-CYLINDER HEAD $124.70 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR022163 BOLT - HEX.HEAD $25.10 To Order
Photo Part No Description Price (each) Stock
LR004370 BOLT - CYLINDER HEAD $3.97 To Order
Photo Part No Description Price (each) Stock
LR032065 VALVE - INLET $71.75 To Order
Photo Part No Description Price (each) Stock
LR029317 VALVE - EXHAUST $78.34 To Order
Photo Part No Description Price (each) Stock
LR005901 SEAL - VALVE STEM $2.07 To Order
LR058096 SEAL - VALVE STEM $10.04 To Order
Photo Part No Description Price (each) Stock
LR031454 SPRING - VALVE $4.48 To Order
Photo Part No Description Price (each) Stock
LR004376 RETAINER - VALVE SPRING $12.09 To Order
Photo Part No Description Price (each) Stock
LR004433 COLLET - VALVE SPRING RETAINER $17.18 To Order
Photo Part No Description Price (each) Stock
FT108206 BOLT - HEX.HEAD $4.39 To Order
Photo Part No Description Price (each) Stock
LR005747 BRACKET - ENGINE LIFTING $37.65 To Order
Photo Part No Description Price (each) Stock
LR029716 BRACKET - ENGINE LIFTING $37.72 To Order
LR034121 BRACKET - ENGINE LIFTING $39.60 To Order
Photo Part No Description Price (each) Stock
LR004492 SENSOR - CAMSHAFT POSITION $88.66 To Order
LR041120 SENSOR - CAMSHAFT POSITION $88.03 To Order
LR048186 SENSOR - CAMSHAFT POSITION $218.07 To Order
Photo Part No Description Price (each) Stock
4380670 SCREW $0.76 To Order
Photo Part No Description Price (each) Stock
STC50550 SEALER - ADHESIVE PAN/ENGINE $19.83 To Order
Photo Part No Description Price (each) Stock
LR049403 DOWEL $10.81 To Order
View All

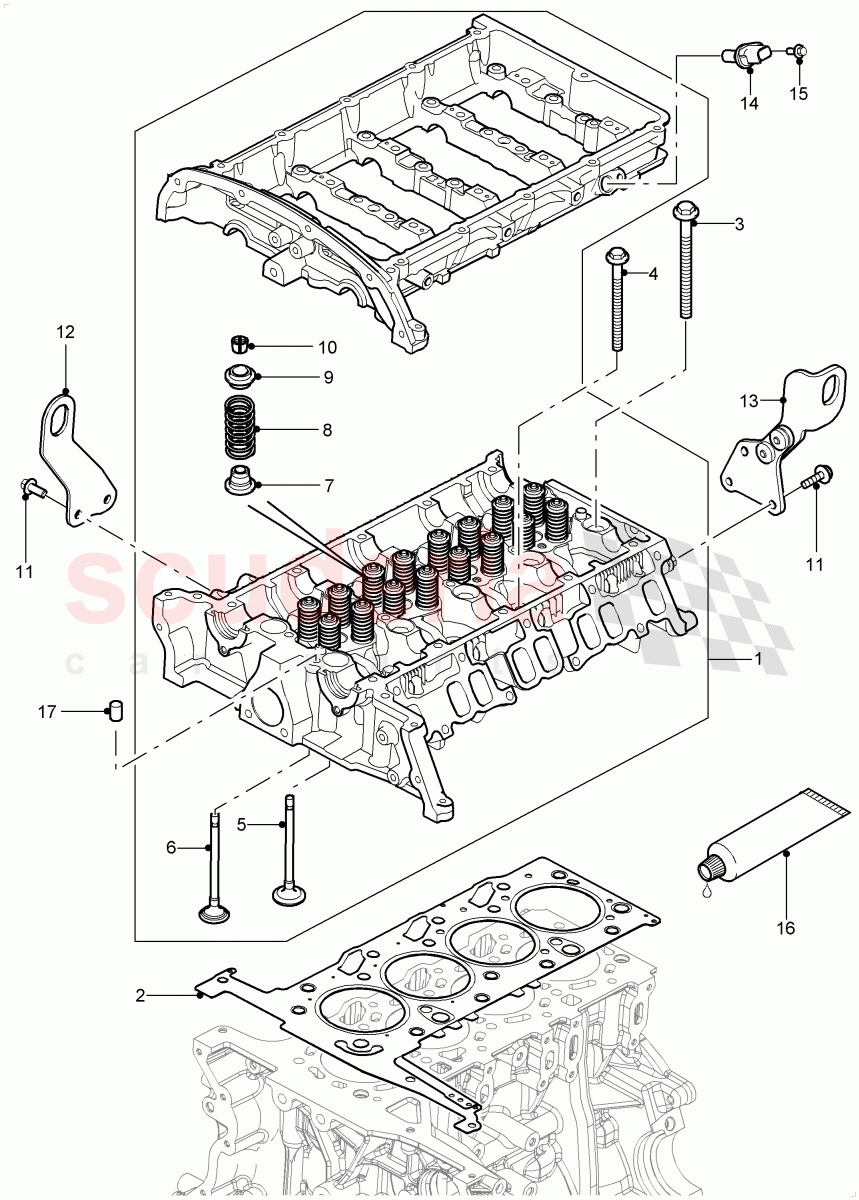

Cylinder Head (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR029711
CYLINDER HEAD
With Valves / To: CA444443 		$1,114.61 1
1 LR037049
CYLINDER HEAD
With Valves / From: CA444444 		$2,580.72 1
2 LR029712
GASKET-CYLINDER HEAD
1 Tooth / To: CA555554 		$124.70 1
2 LR029713
GASKET-CYLINDER HEAD
2 Teeth / To: CA555554 		$124.70 1
2 LR029714
GASKET-CYLINDER HEAD
3 Teeth / To: CA555554 		$124.70 1
2 LR040897
GASKET-CYLINDER HEAD
1 Tooth / From: CA555555 		$119.62 1
2 LR040898
GASKET-CYLINDER HEAD
2 Teeth / From: CA555555 		$119.62 1
2 LR040899
GASKET-CYLINDER HEAD
3 Teeth / From: CA555555 		$119.62 1
3 LR022163
BOLT - HEX.HEAD
M10 x 140MM 		$25.10 10
4 LR004370
BOLT - CYLINDER HEAD
M8 x 120MM 		$3.97 8
5 LR032065
VALVE - INLET 		$71.75 8
6 LR029317
VALVE - EXHAUST 		$78.34 8
7 LR005901
SEAL - VALVE STEM
To: DA444246 		$2.07 16
7 LR058096
SEAL - VALVE STEM
From: DA444247 		$10.04 16
8 LR031454
SPRING - VALVE 		$4.48 16
9 LR004376
RETAINER - VALVE SPRING 		$12.09 16
10 LR004433
COLLET - VALVE SPRING RETAINER 		$17.18 32
11 FT108206
BOLT - HEX.HEAD
M8 X 20MM 		$4.39 4
12 LR005747
BRACKET - ENGINE LIFTING
Front 		$37.65 1
13 LR029716
BRACKET - ENGINE LIFTING
Rear / To: CA500001 		$37.72 1
13 LR034121
BRACKET - ENGINE LIFTING
Rear / From: CA500002 		$39.60 1
14 LR004492
SENSOR - CAMSHAFT POSITION
To: CA420896 		$88.66 1
14 LR041120
SENSOR - CAMSHAFT POSITION
From: CA420897 / To: DA431428 		$88.03 1
14 LR048186
SENSOR - CAMSHAFT POSITION
From: DA431429 		$218.07 1
15 4380670
SCREW
M6X16 		$0.76 1
16 STC50550
SEALER - ADHESIVE PAN/ENGINE
Use As Required 		$19.83 -
17 LR049403
DOWEL 		$10.81 2
