Turbocharger (2.4L Duratorq-Tdci Hpcr (140Ps) -Puma) ((V) From7A000001, (V) Toba999999)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Turbocharger (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR008203 TURBOCHARGER $1,868.40 To Order
LR018497 TURBOCHARGER $1,868.40 To Order
LR010138 TURBOCHARGER $1,156.24 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
PNH500440 HOSE - TURBOCHARGER OUTLET $17.41 IN STOCK
Photo Part No Description Price (each) Stock
LR004686 PIPE - OIL FEED $266.68 To Order
LR031928 PIPE - OIL FEED $130.97 To Order
Photo Part No Description Price (each) Stock
LR004444 HOSE - OIL RETURN $90.55 To Order
Photo Part No Description Price (each) Stock
LR004330 SCREW $3.33 To Order
Photo Part No Description Price (each) Stock
FT108206 BOLT - HEX.HEAD $4.38 To Order
Photo Part No Description Price (each) Stock
LR007168 GASKET - EXHAUST MANIFOLD $16.71 To Order
Photo Part No Description Price (each) Stock
LR004343 NUT $3.05 To Order
LR014199 NUT - HEX. $1.13 To Order
Photo Part No Description Price (each) Stock
1331076 GASKET - OIL TUBE $4.20 To Order
Photo Part No Description Price (each) Stock
LR009704 STUD $5.48 To Order
Photo Part No Description Price (each) Stock
LR019905 KIT - ACTUATOR REPAIR $132.04 To Order
Photo Part No Description Price (each) Stock
LR008722 CLIP - SPECIAL $3.87 To Order
Photo Part No Description Price (each) Stock
LR029042 GREASE - ANTISQUEAK $79.71 To Order
View All

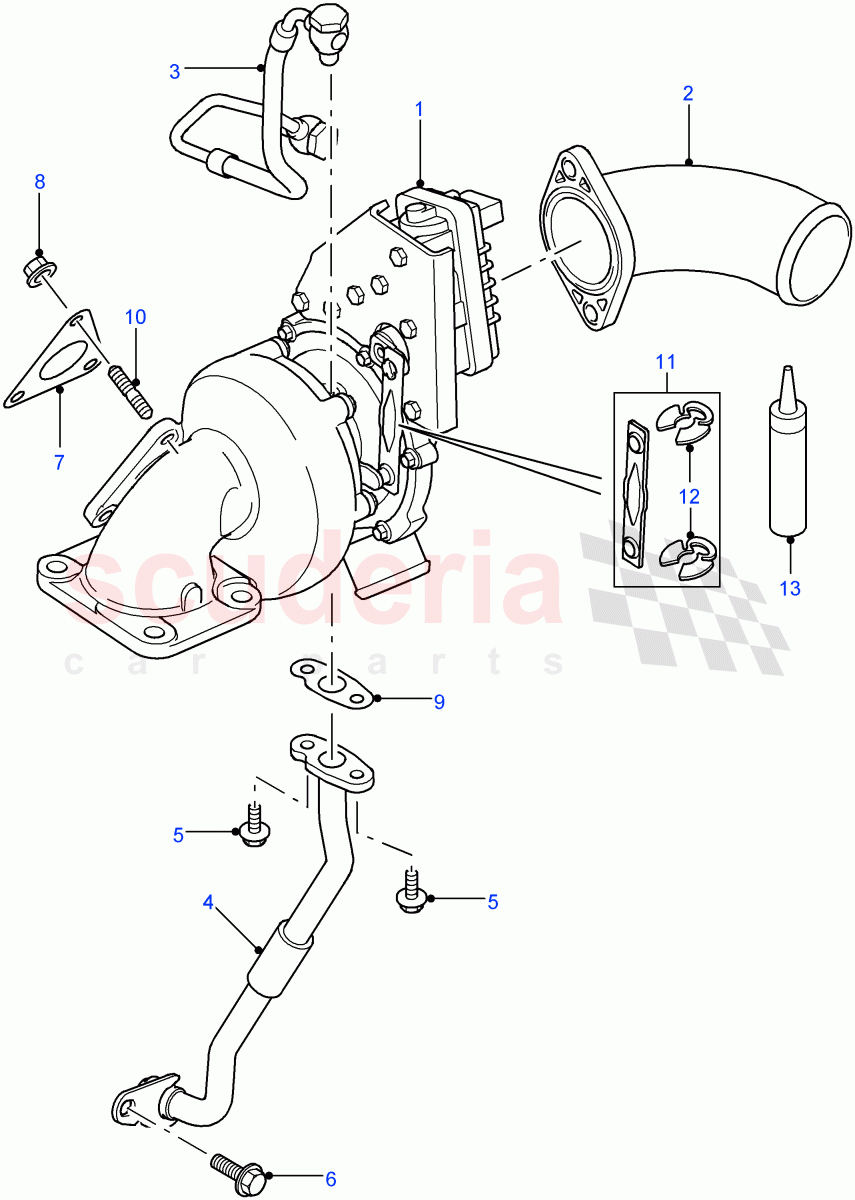

Turbocharger (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR008203
TURBOCHARGER
New, New Part-Please Check For Reman Version / To: 9A768938 		$1,868.40 1
1 LR018497
TURBOCHARGER
New, New Part-Please Check For Reman Version / From: 9A768939 / To: 9A999999 		$1,868.40 1
1 LR010138
TURBOCHARGER
Exchange Part (Re-Manufactured) / To: 9A999999 		$1,156.24 1
1 LR018396
TURBOCHARGER
New / From: AA000001 		$2,686.39 1
1 LR021013
TURBOCHARGER
Remanufactured / From: AA000001 		$1,400.19 1
2 PNH500440
HOSE - TURBOCHARGER OUTLET
61.1MM
IN STOCK 		$17.41 1
3 LR004686
PIPE - OIL FEED
To: BA401519 		$266.68 1
3 LR031928
PIPE - OIL FEED
From: BA401520 		$130.97 1
4 LR004444
HOSE - OIL RETURN 		$90.55 1
5 LR004330
SCREW
M6 X 14MM 		$3.33 2
6 FT108206
BOLT - HEX.HEAD
M8 X 20MM 		$4.38 1
7 LR007168
GASKET - EXHAUST MANIFOLD 		$16.71 1
8 LR004343
NUT
To: 9A768844 		$3.05 3
8 LR014199
NUT - HEX.
From: 9A768845 		$1.13 3
9 1331076
GASKET - OIL TUBE 		$4.20 1
10 LR009704
STUD 		$5.48 3
11 LR019905
KIT - ACTUATOR REPAIR
Includes Attaching Clips, Includes Rod 		$132.04 1
12 LR008722
CLIP - SPECIAL 		$3.87 1
13 LR029042
GREASE - ANTISQUEAK 		$79.71 1
