Name: Fuel Injectors And Pipes (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)
Rating: 4.1 (1 reviews)

Fuel Injectors And Pipes (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Fuel Injectors And Pipes (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)

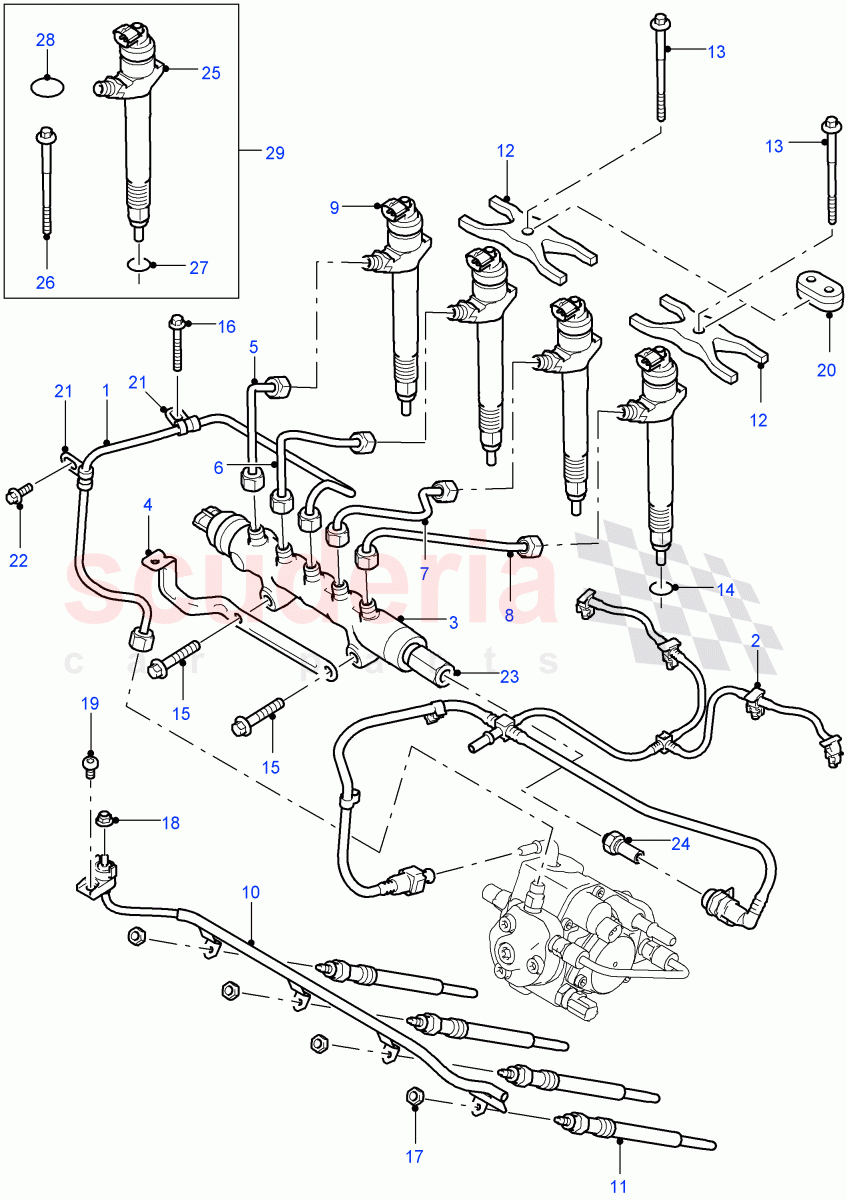

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004478	TUBE - FUEL	$76.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005749	KIT - FIXING PARTS - REPAIR	$111.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006865	MANIFOLD - FUEL SUPPLY	$466.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004486	BRACKET - FUEL TUBE SUPPORT	$10.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004466	TUBE - FUEL	$50.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR004467	TUBE - FUEL	$50.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR004468	TUBE - FUEL	$47.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR004469	TUBE - FUEL	$47.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR004480	NOZZLE AND HOLDER - FUEL INJECTOR	$542.28	To Order
	LR006803	NOZZLE AND HOLDER - FUEL INJECTOR	$755.07	To Order
	LR010137	NOZZLE AND HOLDER - FUEL INJECTOR	$472.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004840	WIRE - GLOW PLUG	$117.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004377	GLOW PLUG	$25.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004484	CLAMP	$20.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019168	BOLT	$7.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004662	SEAL	$15.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005754	BOLT - HEX.HEAD	$3.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004029	BOLT - HEX.HEAD	$3.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004502	NUT	$3.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004608	NUT AND WASHER - HEX.	$1.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004500	SCREW	$5.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004483	SUPPORT	$33.00	To Order

Photo	Part No	Description	Price (each)	Stock
	DYC500170	CLIP - HOSE	$2.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005595	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006866	VALVE - PRESSURE RELIEF	$287.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019009	VALVE - PRESSURE RELIEF	$16.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006803	NOZZLE AND HOLDER - FUEL INJECTOR	$755.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019168	BOLT	$7.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004662	SEAL	$15.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045393	O-RING	$3.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045394	KIT - FUEL INJECTION	$507.81	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR004478	TUBE - FUEL	LR004478 TUBE - FUEL	$76.09	1
2	LR005749	KIT - FIXING PARTS - REPAIR	LR005749 KIT - FIXING PARTS - REPAIR Leak Off	$111.74	1
3	LR006865	MANIFOLD - FUEL SUPPLY	LR006865 MANIFOLD - FUEL SUPPLY	$466.56	1
4	LR004486	BRACKET - FUEL TUBE SUPPORT	LR004486 BRACKET - FUEL TUBE SUPPORT	$10.20	1
5	LR004466	TUBE - FUEL IN STOCK	LR004466 TUBE - FUEL IN STOCK	$50.42	1
6	LR004467	TUBE - FUEL IN STOCK	LR004467 TUBE - FUEL IN STOCK	$50.42	1
7	LR004468	TUBE - FUEL IN STOCK	LR004468 TUBE - FUEL IN STOCK	$47.35	1
8	LR004469	TUBE - FUEL IN STOCK	LR004469 TUBE - FUEL IN STOCK	$47.35	1
9	LR004480	NOZZLE AND HOLDER - FUEL INJECTOR	LR004480 NOZZLE AND HOLDER - FUEL INJECTOR To: 8A760124	$542.28	4
9	LR006803	NOZZLE AND HOLDER - FUEL INJECTOR	LR006803 NOZZLE AND HOLDER - FUEL INJECTOR New / From: 8A760125	$755.07	4
9	LR010137	NOZZLE AND HOLDER - FUEL INJECTOR	LR010137 NOZZLE AND HOLDER - FUEL INJECTOR Remanufactured	$472.50	4
10	LR004840	WIRE - GLOW PLUG	LR004840 WIRE - GLOW PLUG	$117.41	1
11	LR004377	GLOW PLUG	LR004377 GLOW PLUG	$25.20	4
12	LR004484	CLAMP	LR004484 CLAMP	$20.23	2
13	LR019168	BOLT	LR019168 BOLT	$7.92	2
14	LR004662	SEAL	LR004662 SEAL	$15.87	4
15	LR005754	BOLT - HEX.HEAD	LR005754 BOLT - HEX.HEAD M8 X 45	$3.63	2
16	LR004029	BOLT - HEX.HEAD	LR004029 BOLT - HEX.HEAD M6	$3.56	-
17	LR004502	NUT	LR004502 NUT M4	$3.89	4
18	LR004608	NUT AND WASHER - HEX.	LR004608 NUT AND WASHER - HEX. M5	$1.41	1
19	LR004500	SCREW	LR004500 SCREW M6 X 14MM	$5.78	1
20	LR004483	SUPPORT	LR004483 SUPPORT	$33.00	2
21	DYC500170	CLIP - HOSE	DYC500170 CLIP - HOSE	$2.08	2
22	LR005595	SCREW	LR005595 SCREW M6 X 14MM	$0.52	1
23	LR006866	VALVE - PRESSURE RELIEF	LR006866 VALVE - PRESSURE RELIEF	$287.15	1
24	LR019009	VALVE - PRESSURE RELIEF	LR019009 VALVE - PRESSURE RELIEF	$16.45	1
25	LR006803	NOZZLE AND HOLDER - FUEL INJECTOR	LR006803 NOZZLE AND HOLDER - FUEL INJECTOR New	$755.07	1
26	LR019168	BOLT	LR019168 BOLT	$7.92	1
27	LR004662	SEAL	LR004662 SEAL	$15.87	1
28	LR045393	O-RING	LR045393 O-RING	$3.60	1
29	LR045394	KIT - FUEL INJECTION	LR045394 KIT - FUEL INJECTION	$507.81	1

Fuel Injectors And Pipes (2.4L Duratorq-Tdci Hpcr (140Ps) -Puma) ((V) From7A000001, (V) Toba999999)

Land Rover Defender (2007-2016)

Land Rover Defender (2007-2016) - Fuel Injectors And Pipes (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)
