Name: Thermostat/Housing & Related Parts (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)
Rating: 4.4 (1 reviews)

View All

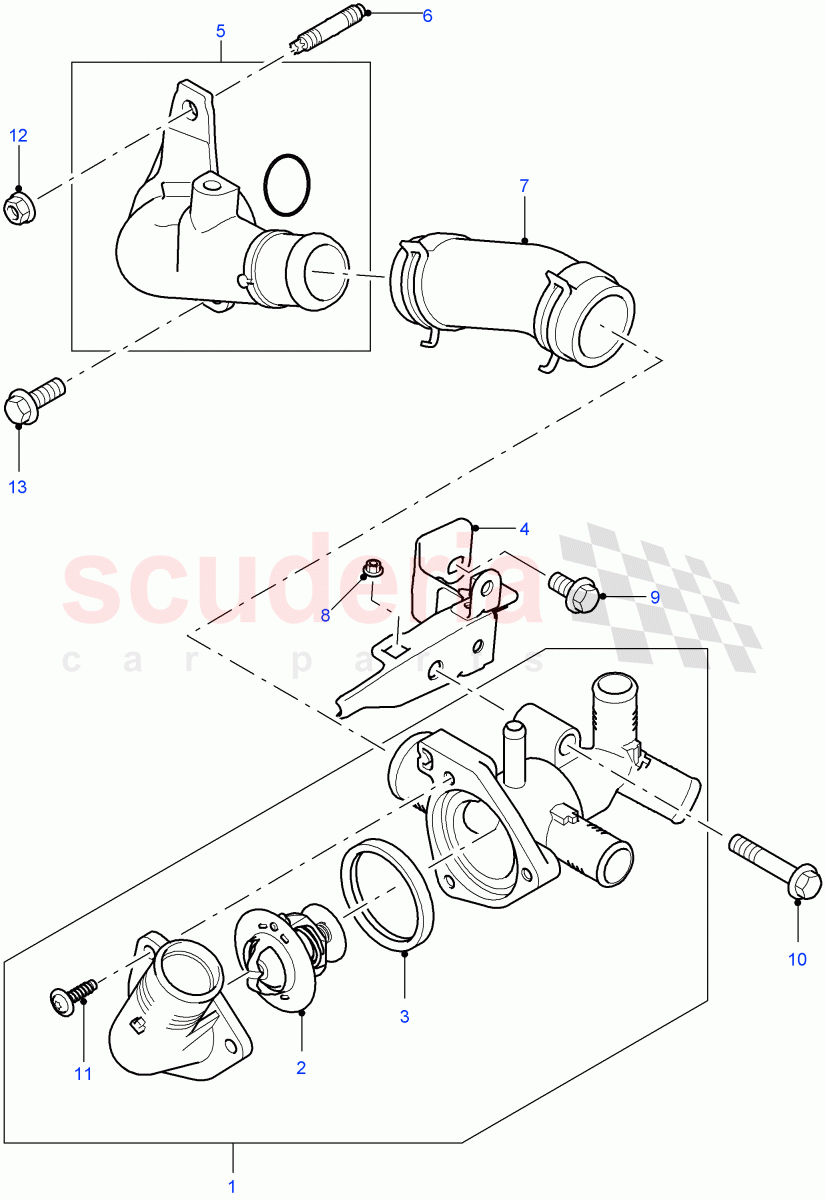

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004656	CONNECTION - WATER OUTLET	$131.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004618	THERMOSTAT	$55.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004613	RING - SPECIAL	$11.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004509	BRACKET	$25.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004463	CONNECTION - WATER OUTLET	$150.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004356	STUD - SPECIAL	$4.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004641	TUBE	$39.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000046	NUT - HEX.	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108161	Bolt	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004603	BOLT	$2.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004615	SCREW	$5.25	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108042	NUT	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108251	Screw	$0.54	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR004656	CONNECTION - WATER OUTLET	LR004656 CONNECTION - WATER OUTLET	$131.80	1
2	LR004618	THERMOSTAT	LR004618 THERMOSTAT EGR Cooler, Optional Fit	$55.88	1
3	LR004613	RING - SPECIAL	LR004613 RING - SPECIAL	$11.63	1
4	LR004509	BRACKET	LR004509 BRACKET	$25.12	1
5	LR004463	CONNECTION - WATER OUTLET	LR004463 CONNECTION - WATER OUTLET	$150.68	1
6	LR004356	STUD - SPECIAL	LR004356 STUD - SPECIAL M8 X 17 + M8 X 21	$4.17	1
7	LR004641	TUBE	LR004641 TUBE	$39.17	1
8	LR000046	NUT - HEX.	LR000046 NUT - HEX. M6	$0.52	1
9	FS108161	Bolt	FS108161 Bolt M8 X 16	$0.57	1
10	LR004603	BOLT	LR004603 BOLT M8 X 45MM	$2.13	1
11	LR004615	SCREW	LR004615 SCREW	$5.25	3
12	FN108042	NUT	FN108042 NUT M8 X 1.25	$1.39	1
13	FS108251	Screw	FS108251 Screw M8 x 25	$0.54	2

Thermostat/Housing & Related Parts (2.4L Duratorq-Tdci Hpcr (140Ps) -Puma) ((V) From7A000001, (V)...

Land Rover Defender (2007-2016)
