Windscreen Washer

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Windscreen Washer

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR064186 CLIP $2.03 To Order
LR085632 CLIP $2.24 To Order
Photo Part No Description Price (each) Stock
LR085574 GROMMET - WINDSHIELD WASHER PUMP $4.07 To Order
LR085574 GROMMET - WINDSHIELD WASHER PUMP $4.07 To Order
Photo Part No Description Price (each) Stock
LR038068 NUT - SPECIAL $1.75 To Order
Photo Part No Description Price (each) Stock
LR043545 PLUG $6.28 To Order
Photo Part No Description Price (each) Stock
LR080265 PLUG - BLANKING $6.94 To Order
LR107637 PLUG - BLANKING $4.93 To Order
Photo Part No Description Price (each) Stock
LR080264 PLUG - BLANKING $6.94 To Order
LR107638 PLUG - BLANKING $4.73 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR001101 SCREW $1.15 To Order
Photo Part No Description Price (each) Stock
LR045321 JET - WINDSHIELD WASHER $42.82 To Order
Photo Part No Description Price (each) Stock
LR037583 FILLER NECK - WASHER RESERVOIR $21.40 To Order
Photo Part No Description Price (each) Stock
LR037588 TUBE - FILLER NECK $22.94 To Order
Photo Part No Description Price (each) Stock
LR037586 HOSE - WINDSHIELD WASHER $32.76 To Order
LR137702 HOSE - WINDSHIELD WASHER $57.80 To Order
Photo Part No Description Price (each) Stock
LR054932 HOSE - WINDSHIELD WASHER $33.28 To Order
LR054932 HOSE - WINDSHIELD WASHER $33.28 To Order
LR070655 HOSE - WINDSHIELD WASHER $79.73 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR054933 HOSE - WINDSHIELD WASHER $23.14 To Order
Photo Part No Description Price (each) Stock
LR045384 HOSE - REAR WASHER $67.48 To Order
LR052992 HOSE - REAR WASHER $47.23 To Order
LR056517 HOSE - REAR WASHER $70.86 To Order
Photo Part No Description Price (each) Stock
LR044122 RESERVOIR - WINDSHIELD WASHER $144.68 To Order
LR050572 RESERVOIR - WINDSHIELD WASHER $187.62 To Order
LR050573 RESERVOIR - WINDSHIELD WASHER $179.47 To Order
...and 14 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037566 RESERVOIR - WINDSHIELD WASHER $170.61 To Order
Photo Part No Description Price (each) Stock
LR037573 MOTOR AND PUMP - FRONT/REAR WASHER $74.80 To Order
LR079622 MOTOR AND PUMP - FRONT/REAR WASHER $73.65 To Order
LR079904 MOTOR AND PUMP $76.13 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037592 MOTOR AND PUMP - HEADLAMP WASHER $89.55 To Order
LR089443 MOTOR AND PUMP - HEADLAMP WASHER $52.09 To Order
LR089443 MOTOR AND PUMP - HEADLAMP WASHER $52.09 To Order
Photo Part No Description Price (each) Stock
LR037584 CAP - FILLER $6.08 To Order
Photo Part No Description Price (each) Stock
LR037568 SENSOR - WASHER FLUID LEVEL $27.50 To Order
LR110605 SENSOR - WASHER FLUID LEVEL $28.59 To Order
LR110605 SENSOR - WASHER FLUID LEVEL $28.59 To Order
Photo Part No Description Price (each) Stock
LR063669 BRACKET - WASHER HOSE $17.05 To Order
Photo Part No Description Price (each) Stock
LR037585 HOSE - WINDSHIELD WASHER $40.64 To Order
LR070662 HOSE - WINDSHIELD WASHER $83.53 To Order
LR098279 HOSE - WINDSHIELD WASHER $84.01 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR048129 HOSE - WINDSHIELD WASHER $45.66 To Order
LR063668 HOSE - WINDSHIELD WASHER $30.43 To Order
View All

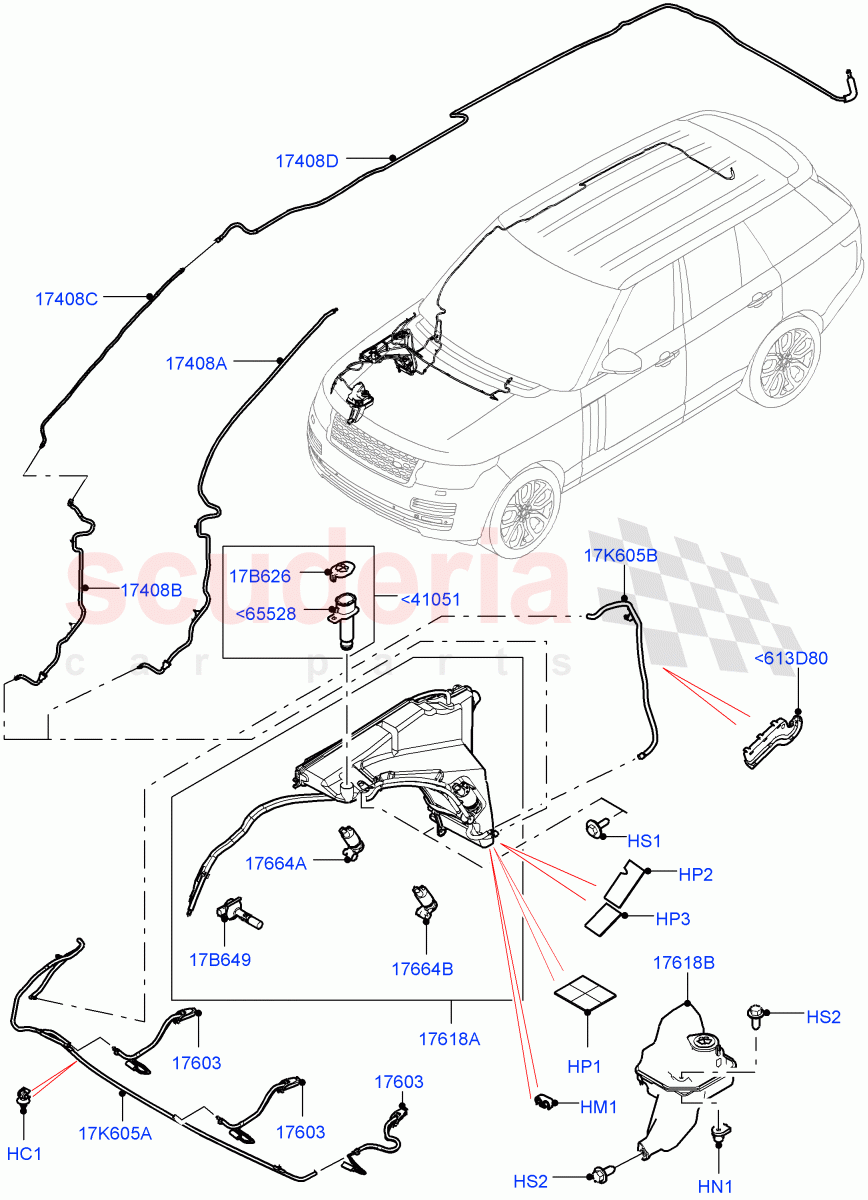

Windscreen Washer of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<613D80 LR063669
BRACKET - WASHER HOSE
From: FA000001 		$17.05 1
<41051 LR037583
FILLER NECK - WASHER RESERVOIR 		$21.40 1
<65528 LR037588
TUBE - FILLER NECK
Filler Neck 		$22.94 1
HC1 LR064186
CLIP
Support / From: FA000001 / To: GA999999 		$2.03 2
HC1 LR085632
CLIP
Support / From: HA000001 		$2.24 2
HM1 LR085574
GROMMET - WINDSHIELD WASHER PUMP
Regular Size Washer Tank, With Headlamp Power Wash / From: JA181794 / To: KA999999 		$4.07 1
HM1 LR085574
GROMMET - WINDSHIELD WASHER PUMP
With Headlamp Power Wash / From: LA000001 		$4.07 1
HN1 LR038068
NUT - SPECIAL
Large Size Washer Tank / Nut U Spring M6 Push On / To: KA999999 		$1.75 1
HP1 LR043545
PLUG
Reservoir - Windshield Washer / To: GA555294 		$6.28 1
HP2 LR080265
PLUG - BLANKING
Reservoir - Windshield Washer / From: GA555295 / To: HA999999 		$6.94 1
HP2 LR107637
PLUG - BLANKING
Reservoir - Windshield Washer / From: JA000001 		$4.93 1
HP3 LR080264
PLUG - BLANKING
Reservoir - Windshield Washer / From: GA555295 / To: HA162931 		$6.94 1
HP3 LR107638
PLUG - BLANKING
Reservoir - Windshield Washer / From: HA162932 		$4.73 1
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM, Reservoir - Windshield Washer
IN STOCK 		$0.96 2
HS2 LR001101
SCREW
Large Size Washer Tank / 6X20, Hexagonal Head, Reservoir - Windshield Washer / To: KA999999 		$1.15 2
17B626 LR037584
CAP - FILLER
Filler Neck 		$6.08 1
17B649 LR037568
SENSOR - WASHER FLUID LEVEL
Regular Size Washer Tank, With Headlamp Power Wash / Sensor - Washer Fluid Level / To: HA181267 		$27.50 1
17B649 LR110605
SENSOR - WASHER FLUID LEVEL
Sensor - Washer Fluid Level / From: HA181268 / To: KA999999 		$28.59 1
17B649 LR110605
SENSOR - WASHER FLUID LEVEL
With Headlamp Power Wash / Sensor - Washer Fluid Level / From: LA000001 		$28.59 1
17K605A LR037585
HOSE - WINDSHIELD WASHER
To: FA999999 		$40.64 1
17K605A LR070662
HOSE - WINDSHIELD WASHER
From: GA000001 / To: GA541878 		$83.53 1
17K605A LR098279
HOSE - WINDSHIELD WASHER
From: JA000001 		$84.01 1
17K605A LR076478
HOSE - WINDSHIELD WASHER
From: GA541879 / To: HA999999 		$47.45 1
17K605B LR048129
HOSE - WINDSHIELD WASHER
Hose To Motor And Pump / To: EA999999 		$45.66 1
17K605B LR063668
HOSE - WINDSHIELD WASHER
Hose To Motor And Pump / From: FA000001 		$30.43 1
17408A LR037586
HOSE - WINDSHIELD WASHER
To: EA339832 		$32.76 1
17408A LR137702
HOSE - WINDSHIELD WASHER
Super Premium Audio 2500 W / From: LA000001 		$57.80 1
17408B LR054932
HOSE - WINDSHIELD WASHER
Lower / From: EA339833 / To: FA999999 		$33.28 1
17408B LR054932
HOSE - WINDSHIELD WASHER
RHD / Lower / From: GA000001 		$33.28 1
17408B LR070655
HOSE - WINDSHIELD WASHER
LHD / Lower / From: GA000001 / To: HA134078 		$79.73 1
17408B LR096447
HOSE - WINDSHIELD WASHER
LHD / Lower / From: HA134079 		$77.18 1
17408C LR054933
HOSE - WINDSHIELD WASHER
Upper / From: EA339833 		$23.14 1
17408D LR045384
HOSE - REAR WASHER
Headliner / To: EA300730 		$67.48 1
17408D LR052992
HOSE - REAR WASHER
Headliner / From: EA300731 / To: EA327588 		$47.23 1
17408D LR056517
HOSE - REAR WASHER
Headliner / From: EA327589 		$70.86 1
17603 LR045321
JET - WINDSHIELD WASHER 		$42.82 3
17618A LR044122
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer, Regular Size Washer Tank / To: FA512128 		$144.68 1
17618A LR050572
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / To: FA512128 		$187.62 1
17618A LR050573
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / To: FA512128 		$179.47 1
17618A LR076504
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / From: FA512129 / To: FA999999 		$284.79 1
17618A LR075624
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: FA512129 / To: FA999999 		$186.03 1
17618A LR070882
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: GA000001 / To: HA170451 		$174.54 1
17618A LR070884
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / From: GA000001 / To: GA784311 		$164.40 1
17618A LR076509
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer, Regular Size Washer Tank / From: FA512129 / To: FA999999 		$284.79 1
17618A LR070883
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer, Regular Size Washer Tank / From: GA000001 / To: HA170451 		$281.19 1
17618A LR108238
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: HA170452 / To: HA671351 		$177.18 1
17618A LR108239
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer, Regular Size Washer Tank / From: HA170452 / To: HA671351 		$281.19 1
17618A LR098278
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / From: JA000001 / To: KA999999 		$265.49 1
17618A LR110607
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: HA671352 / To: HA999999 		$186.03 1
17618A LR110608
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer, Regular Size Washer Tank / From: HA671352 		$281.19 1
17618A LR118191
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / From: GA784312 / To: HA999999 		$254.15 1
17618A LR110609
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: JA000001 / To: KA999999 		$252.61 1
17618A LR110609
RESERVOIR - WINDSHIELD WASHER
With Headlamp Power Wash / From: LA000001 		$252.61 1
17618B LR037566
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / To: KA999999 		$170.61 1
17664A LR037573
MOTOR AND PUMP - FRONT/REAR WASHER
Front And Rear, Windshield / To: FA999999 		$74.80 1
17664A LR079622
MOTOR AND PUMP - FRONT/REAR WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: GA000001 / To: HA999999 		$73.65 1
17664A LR079904
MOTOR AND PUMP
Less Headlamp Washer, Regular Size Washer Tank / From: GA000001 / To: HA999999 		$76.13 1
17664A LR079904
MOTOR AND PUMP
Less Headlamp Washer, Regular Size Washer Tank / From: JA000001 / To: KA999999 		$76.13 1
17664A LR079904
MOTOR AND PUMP
With Headlamp Power Wash / From: LA000001 		$76.13 1
17664B LR037592
MOTOR AND PUMP - HEADLAMP WASHER
Regular Size Washer Tank, With Headlamp Power Wash / Headlamp / To: HA999999 		$89.55 1
17664B LR089443
MOTOR AND PUMP - HEADLAMP WASHER
Regular Size Washer Tank, With Headlamp Power Wash / Headlamp / From: JA000001 / To: KA999999 		$52.09 1
17664B LR089443
MOTOR AND PUMP - HEADLAMP WASHER
With Headlamp Power Wash / Headlamp / From: LA000001 		$52.09 1
