Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Radiator Grille And Front Bumper (SVR Version, SVR) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD $2.89 IN STOCK
Photo Part No Description Price (each) Stock
DYP500080 BOLT $2.49 To Order
Photo Part No Description Price (each) Stock
LR018173 CLIP - RETAINING $3.22 IN STOCK
Photo Part No Description Price (each) Stock
HYQ100060PUY FASTENER $4.35 IN STOCK
Photo Part No Description Price (each) Stock
LR099122 RIVET - PLASTIC $2.10 To Order
Photo Part No Description Price (each) Stock
LR165498 NUT - EXPANSION $0.62 IN STOCK
Photo Part No Description Price (each) Stock
LR117830 CLIP - RETAINING $21.17 To Order
Photo Part No Description Price (each) Stock
LR033401 SCREW AND WASHER $2.13 IN STOCK
Photo Part No Description Price (each) Stock
KYG500380 SCREW AND WASHER - HEX HEAD $0.36 IN STOCK
Photo Part No Description Price (each) Stock
RYG501590 SCREW $1.00 IN STOCK
Photo Part No Description Price (each) Stock
LR104021 GRILLE - RADIATOR $505.72 To Order
LR104019 GRILLE - RADIATOR $1,105.38 To Order
LR122961 GRILLE - RADIATOR $505.72 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR117833 BUMPER - FRONT $2,251.56 To Order
LR117834 BUMPER - FRONT $2,251.56 To Order
Photo Part No Description Price (each) Stock
LR101449 REINFORCEMENT - FRONT BUMPER $394.56 To Order
LR116188 REINFORCEMENT - FRONT BUMPER $469.15 To Order
LR128131 REINFORCEMENT - FRONT BUMPER $744.51 To Order
Photo Part No Description Price (each) Stock
LR116256 GRILLE - BUMPER $381.88 To Order
LR116257 GRILLE - BUMPER $2,916.33 To Order
LR116258 GRILLE - BUMPER $2,778.57 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR112290 INSERT - BUMPER $255.56 To Order
LR112291 INSERT - BUMPER $255.56 To Order
Photo Part No Description Price (each) Stock
LR104017 KIT - AIR DEFLECTOR $113.83 To Order
Photo Part No Description Price (each) Stock
LR111134 CAP - POWERWASH JET $21.77 To Order
LR111135 CAP - POWERWASH JET $21.77 To Order
Photo Part No Description Price (each) Stock
LR111136 RETAINER - SENSOR CLIP $30.75 To Order
LR111137 RETAINER - SENSOR CLIP $30.81 To Order
Photo Part No Description Price (each) Stock
LR117396 BRACKET - BUMPER MOUNTING $108.87 To Order
Photo Part No Description Price (each) Stock
LR099388 MOUNTING BRACKET - FRONT BUMPER $108.87 To Order
Photo Part No Description Price (each) Stock
LR099487 DEFLECTOR - AIR $41.55 To Order
Photo Part No Description Price (each) Stock
LR083118 BRACKET - BUMPER MOUNTING $32.58 To Order
Photo Part No Description Price (each) Stock
LR111050 BRACKET - LICENSE PLATE $67.85 To Order
LR111051 BRACKET - LICENSE PLATE $67.85 To Order
LR111052 BRACKET - LICENSE PLATE $65.88 To Order
Photo Part No Description Price (each) Stock
LR112678 COVER - TOW HOOK $361.45 To Order
Photo Part No Description Price (each) Stock
LR103741 COVER - TOW HOOK $438.08 To Order
Photo Part No Description Price (each) Stock
LR103614 DUCT - BRAKE CALIPER COOLING $86.32 To Order
LR103615 DUCT - BRAKE CALIPER COOLING $86.32 To Order
View All

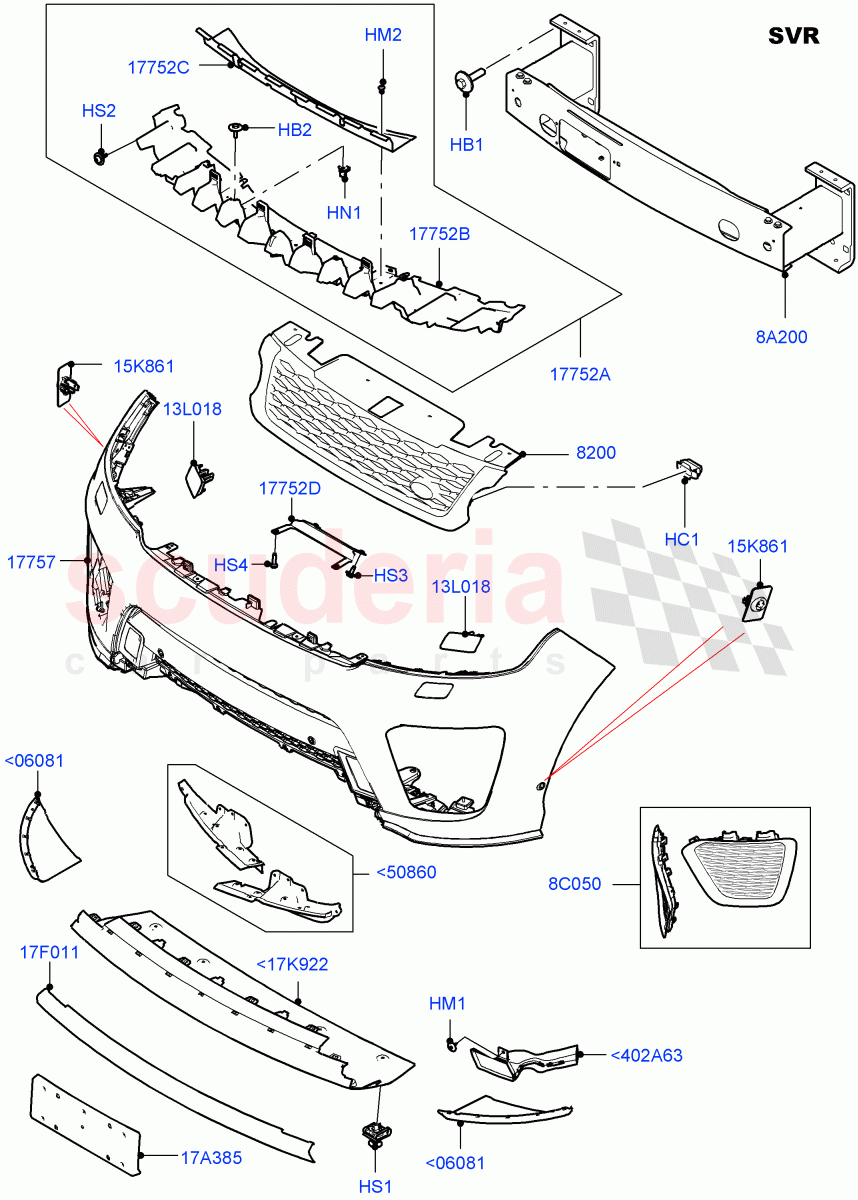

Radiator Grille And Front Bumper (SVR Version, SVR) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<17K922 LR103741
COVER - TOW HOOK
Tow Eye Cover - Inc Mesh / Less Mesh / From: JA000001 		$438.08 1
<402A63 LR103614
DUCT - BRAKE CALIPER COOLING
Sport/Dynamic / LH / From: JA000001 		$86.32 1
<402A63 LR103615
DUCT - BRAKE CALIPER COOLING
Sport/Dynamic / RH / From: JA000001 		$86.32 1
<06081 LR112290
INSERT - BUMPER
RH / From: JA000001 		$255.56 1
<06081 LR112291
INSERT - BUMPER
LH / From: JA000001 		$255.56 1
<50860 LR104017
KIT - AIR DEFLECTOR
Sport/Dynamic / From: JA000001 		$113.83 1
HB1 LR034249
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 37MM, Reinforcement / From: JA000001
IN STOCK 		$2.89 8
HB2 DYP500080
BOLT
Bracket, M5 x 20MM, Upper / From: JA000001 		$2.49 4
HC1 LR018173
CLIP - RETAINING
Front Grille / From: JA000001
IN STOCK 		$3.22 4
HM1 HYQ100060PUY
FASTENER
Air Duct, Rivet / From: JA000001
IN STOCK 		$4.35 4
HM2 LR099122
RIVET - PLASTIC
Plastic, Scrivet / From: JA000001 		$2.10 1
HN1 LR165498
NUT - EXPANSION
Bracket, Lower Centre, Plastic / From: JA000001
IN STOCK 		$0.62 2
HS1 LR117830
CLIP - RETAINING
Sport/Dynamic / From: JA000001 		$21.17 6
HS2 LR033401
SCREW AND WASHER
M6 x 19MM / From: JA000001
IN STOCK 		$2.13 6
HS3 KYG500380
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 13.5MM / From: JA000001
IN STOCK 		$0.36 2
HS4 RYG501590
SCREW
M6 x 22MM, Torx / From: JA000001
IN STOCK 		$1.00 2
8A200 LR101449
REINFORCEMENT - FRONT BUMPER
Superseded To New 18MY Two Bolt Hole Design / From: JA000001 / To: JA189550 		$394.56 1
8A200 LR116188
REINFORCEMENT - FRONT BUMPER
New 18MY Two Bolt Hole Design, Applicable To All MY's / From: JA189551 / To: LA719592 		$469.15 1
8A200 LR128131
REINFORCEMENT - FRONT BUMPER
From: LA719593 		$744.51 1
8C050 LR116256
GRILLE - BUMPER
Less Fog Lamp Bezel, With Grille - Mesh / From: JA000001 		$381.88 1
8C050 LR116257
GRILLE - BUMPER
Fog Lamp Bezel - Carbon Fibre, Grille-Gls Blk/Carb Fibre Surround / From: JA000001 		$2,916.33 1
8C050 LR116258
GRILLE - BUMPER
Fog Lamp Bezel - Gloss Black Wide, With Grille - Mesh / From: JA000001 		$2,778.57 1
8C050 LR116259
GRILLE - BUMPER
Fog Lamp Bezel - Carbon Fibre Wide, Grille-Gls Blk/Carb Fibre Surround / From: JA000001 		$2,916.33 1
13L018 LR111134
CAP - POWERWASH JET
RH, Primed / From: JA000001 		$21.77 1
13L018 LR111135
CAP - POWERWASH JET
LH, Primed / From: JA000001 		$21.77 1
15K861 LR111136
RETAINER - SENSOR CLIP
RH / From: JA000001 		$30.75 1
15K861 LR111137
RETAINER - SENSOR CLIP
LH / From: JA000001 		$30.81 1
17A385 LR111050
BRACKET - LICENSE PLATE
Front Number Plate Plinth ROW / From: JA000001 		$67.85 1
17A385 LR111051
BRACKET - LICENSE PLATE
Front Number Plate Plinth NAS / From: JA000001 		$67.85 1
17A385 LR111052
BRACKET - LICENSE PLATE
Front Number Plate Plinth-China / From: JA000001 		$65.88 1
17F011 LR112678
COVER - TOW HOOK
From: JA000001 		$361.45 1
8200 LR104021
GRILLE - RADIATOR
With Grille - Mesh / From: JA000001 / To: KA419509 		$505.72 1
8200 LR104019
GRILLE - RADIATOR
Grille-Gls Blk/Carb Fibre Surround / From: JA000001 / To: KA419509 		$1,105.38 1
8200 LR122961
GRILLE - RADIATOR
With Grille - Mesh / From: KA419510 		$505.72 1
8200 LR122962
GRILLE - RADIATOR
Grille-Gls Blk/Carb Fibre Surround / From: KA419510 		$1,752.07 1
17752A LR117396
BRACKET - BUMPER MOUNTING
Upper / From: JA000001 		$108.87 1
17752B LR099388
MOUNTING BRACKET - FRONT BUMPER
Upper / From: JA000001 		$108.87 1
17752C LR099487
DEFLECTOR - AIR
Upper / From: JA000001 		$41.55 1
17752D LR083118
BRACKET - BUMPER MOUNTING
Lower / From: JA000001 		$32.58 1
17757 LR117833
BUMPER - FRONT
Less Camera System, Sport/Dynamic, With Park Side Flank Guard / From: JA000001 		$2,251.56 1
17757 LR117834
BUMPER - FRONT
Sport/Dynamic, Surround Camera System, With Park Side Flank Guard / From: JA000001 		$2,251.56 1
