Side Panels - Inner (Middle - Rear, Inner - Rear, Wheelarch)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Side Panels - Inner (Middle - Rear, Inner - Rear, Wheelarch)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033697 CLIP - PUSH ON STEEL $1.44 To Order
Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.68 To Order
Photo Part No Description Price (each) Stock
RYH500840 NUT $1.07 To Order
Photo Part No Description Price (each) Stock
LR038137 PLUG - BODY SEALING $6.08 To Order
Photo Part No Description Price (each) Stock
LR003553 PLUG $3.37 To Order
Photo Part No Description Price (each) Stock
LR000807 PLUG - BODY SEALING $0.61 To Order
Photo Part No Description Price (each) Stock
LR000066 PLUG - BLANKING $0.56 To Order
LR000066 PLUG - BLANKING $0.56 To Order
Photo Part No Description Price (each) Stock
LR003555 PLUG - SPECIAL $0.67 To Order
Photo Part No Description Price (each) Stock
LR006081 PLUG - BLANKING $0.57 To Order
Photo Part No Description Price (each) Stock
LR005590 PLUG $3.68 To Order
Photo Part No Description Price (each) Stock
AYB500080 PLUG - BLANKING $8.01 To Order
Photo Part No Description Price (each) Stock
LR045945 PLUG $1.61 To Order
Photo Part No Description Price (each) Stock
LR106494 SCREW $2.25 IN STOCK
LR092819 SCREW $1.15 To Order
Photo Part No Description Price (each) Stock
LR050869 PLUG - BLANKING $1.16 To Order
Photo Part No Description Price (each) Stock
LR002204 PLUG $0.67 To Order
Photo Part No Description Price (each) Stock
LR043516 INSULATOR - REAR FLOOR PAN $35.19 To Order
Photo Part No Description Price (each) Stock
LR042691 INSULATOR - FOAM PAD $25.68 To Order
Photo Part No Description Price (each) Stock
LR050799 SHIELD - SPLASH - WHEELHOUSE $184.97 To Order
LR050800 SHIELD - SPLASH - WHEELHOUSE $184.97 To Order
LR055867 SHIELD - SPLASH - WHEELHOUSE $194.12 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR044969 SEAL - "D" POST $12.45 To Order
LR044970 SEAL - "D" POST $12.09 To Order
Photo Part No Description Price (each) Stock
LR044419 INSULATOR - QUARTER PANEL $29.10 To Order
LR044420 INSULATOR - QUARTER PANEL $29.10 To Order
Photo Part No Description Price (each) Stock
LR044421 INSULATOR - QUARTER PANEL $33.08 To Order
LR044422 INSULATOR - QUARTER PANEL $32.07 To Order
Photo Part No Description Price (each) Stock
LR044243 INSULATOR - QUARTER PANEL $21.39 To Order
LR044244 INSULATOR - QUARTER PANEL $20.43 To Order
Photo Part No Description Price (each) Stock
LR044423 INSULATOR - QUARTER PANEL $41.97 To Order
LR044424 INSULATOR - QUARTER PANEL $29.65 To Order
LR053809 INSULATOR - QUARTER PANEL $41.28 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR044241 INSULATOR - QUARTER PANEL $46.27 To Order
LR044242 INSULATOR - QUARTER PANEL $55.82 To Order
Photo Part No Description Price (each) Stock
LR054935 INSULATOR - QUARTER PANEL $12.74 To Order
Photo Part No Description Price (each) Stock
LR044975 INSULATOR - SUSPENSION HOUSING $50.34 To Order
LR044976 INSULATOR - SUSPENSION HOUSING $50.34 To Order
LR052654 INSULATOR - SUSPENSION HOUSING $47.63 To Order
...and 3 more part variants. See table on right for more details.
View All

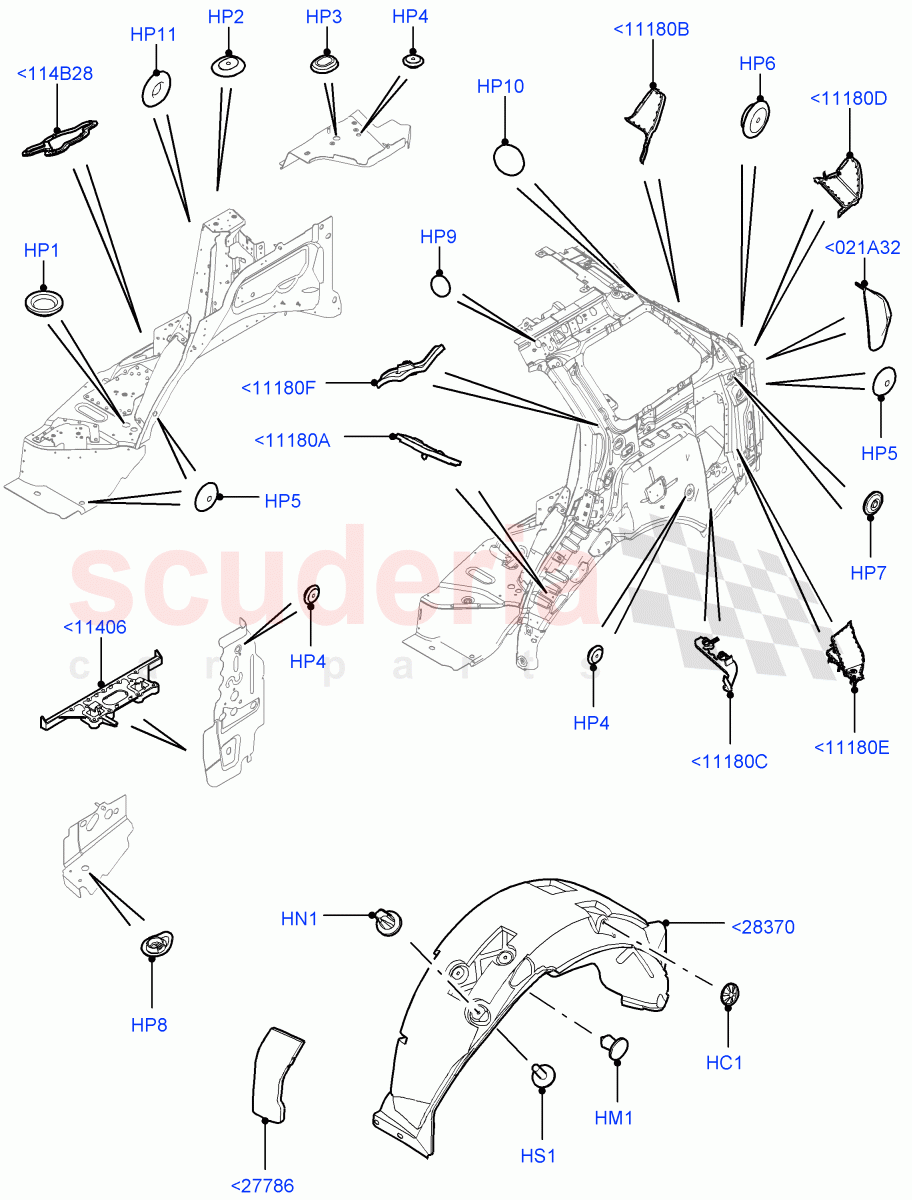

Side Panels - Inner (Middle - Rear, Inner - Rear, Wheelarch) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR044969
SEAL - "D" POST
RH, "D" Pillar 		$12.45 1
<021A32 LR044970
SEAL - "D" POST
LH, "D" Pillar 		$12.09 1
<114B28 LR044975
INSULATOR - SUSPENSION HOUSING
RH, Category A, Suspension Housing / To: EA300931 		$50.34 1
<114B28 LR044976
INSULATOR - SUSPENSION HOUSING
LH, Category A, Suspension Housing / To: EA300931 		$50.34 1
<114B28 LR052654
INSULATOR - SUSPENSION HOUSING
RH, Category A, Suspension Housing / From: EA300932 / To: EA314285 		$47.63 1
<114B28 LR052655
INSULATOR - SUSPENSION HOUSING
LH, Category A, Suspension Housing / From: EA300932 / To: EA314285 		$47.63 1
<114B28 LR056362
INSULATOR - SUSPENSION HOUSING
RH, Category A, Suspension Housing / From: EA314286 		$47.63 1
<114B28 LR056363
INSULATOR - SUSPENSION HOUSING
LH, Category A, Suspension Housing / From: EA314286 		$47.63 1
<11180A LR044419
INSULATOR - QUARTER PANEL
RH 		$29.10 1
<11180A LR044420
INSULATOR - QUARTER PANEL
LH 		$29.10 1
<11180B LR044421
INSULATOR - QUARTER PANEL
RH 		$33.08 1
<11180B LR044422
INSULATOR - QUARTER PANEL
LH 		$32.07 1
<11180C LR044243
INSULATOR - QUARTER PANEL
RH 		$21.39 1
<11180C LR044244
INSULATOR - QUARTER PANEL
LH 		$20.43 1
<11180D LR044423
INSULATOR - QUARTER PANEL
RH / To: EA304520 		$41.97 1
<11180D LR044424
INSULATOR - QUARTER PANEL
LH / To: EA304520 		$29.65 1
<11180D LR053809
INSULATOR - QUARTER PANEL
RH / From: EA304521 / To: HA144934 		$41.28 1
<11180D LR053810
INSULATOR - QUARTER PANEL
LH / From: EA304521 / To: HA144934 		$41.28 1
<11180D LR095469
INSULATOR - QUARTER PANEL
RH / From: HA144935 		$40.02 1
<11180D LR095468
INSULATOR - QUARTER PANEL
LH / From: HA144935 		$40.02 1
<11180E LR044241
INSULATOR - QUARTER PANEL
RH 		$46.27 1
<11180E LR044242
INSULATOR - QUARTER PANEL
LH 		$55.82 1
<11180F LR054935
INSULATOR - QUARTER PANEL
RH/LH 		$12.74 2
<11406 LR043516
INSULATOR - REAR FLOOR PAN
From: EA303883 		$35.19 1
<27786 LR042691
INSULATOR - FOAM PAD
RH/LH 		$25.68 2
<28370 LR050799
SHIELD - SPLASH - WHEELHOUSE
RH / To: EA315860 		$184.97 1
<28370 LR050800
SHIELD - SPLASH - WHEELHOUSE
LH / To: EA315860 		$184.97 1
<28370 LR055867
SHIELD - SPLASH - WHEELHOUSE
LH / From: EA315861 / To: EA335384 		$194.12 1
<28370 LR055864
SHIELD - SPLASH - WHEELHOUSE
RH / From: EA315861 / To: EA335384 		$194.12 1
<28370 LR060015
SHIELD - SPLASH - WHEELHOUSE
LH / From: EA335385 / To: KA845310 		$196.36 1
<28370 LR060014
SHIELD - SPLASH - WHEELHOUSE
RH / From: EA335385 / To: KA845310 		$188.28 1
<28370 LR127997
SHIELD - SPLASH - WHEELHOUSE
RH / From: KA845311 / To: MA758545 		$223.95 1
<28370 LR128010
SHIELD - SPLASH - WHEELHOUSE
LH / From: KA845311 / To: MA758545 		$207.69 1
<28370 LR148257
SHIELD - SPLASH - WHEELHOUSE
RH / From: MA758546 		$213.66 1
<28370 LR148258
SHIELD - SPLASH - WHEELHOUSE
LH / From: MA758546 		$213.66 1
HC1 LR033697
CLIP - PUSH ON STEEL
M6, Rear 		$1.44 2
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin, Splash Shield 		$2.68 3
HN1 RYH500840
NUT
M4, Plastic Nut 		$1.07 4
HP1 LR038137
PLUG - BODY SEALING
30MM X 2MM, Panel, Rear Quarter 		$6.08 2
HP2 LR003553
PLUG
19.5 X 24.5MM, Floor Pan 		$3.37 2
HP3 LR000807
PLUG - BODY SEALING
16 X 22.5 X 0.5MM, Panel, Rear Quarter 		$0.61 2
HP4 LR000066
PLUG - BLANKING
16 X 0.6MM, Panel, Rear Quarter 		$0.56 4
HP4 LR000066
PLUG - BLANKING
16 X 0.6MM, Side Member 		$0.56 2
HP5 LR003555
PLUG - SPECIAL
19 x 0.7MM, Panel, Plastic, Rear Quarter 		$0.67 6
HP6 LR006081
PLUG - BLANKING
32 X 0.9MM, Panel, Plastic, Rear Quarter 		$0.57 2
HP7 LR005590
PLUG
19 x 0.7MM, Panel, Rear Quarter 		$3.68 2
HP8 AYB500080
PLUG - BLANKING
Approx. 30 x 36 x 9, Drain Plug, Extension 		$8.01 2
HP9 LR045945
PLUG
Panel, Rear Quarter 		$1.61 2
HP10 LR050869
PLUG - BLANKING
Rear Quarter 		$1.16 19
HP11 LR002204
PLUG
2 x 20MM, Drain Plug 		$0.67 2
HS1 LR106494
SCREW
M5 x 20MM, Self Tapping / To: GA113709
IN STOCK 		$2.25 6
HS1 LR092819
SCREW
Hexagonal Head, M5 x 20MM, Self Tapping / From: GA113710 		$1.15 6
