Name: Transmission Mounting (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

View All

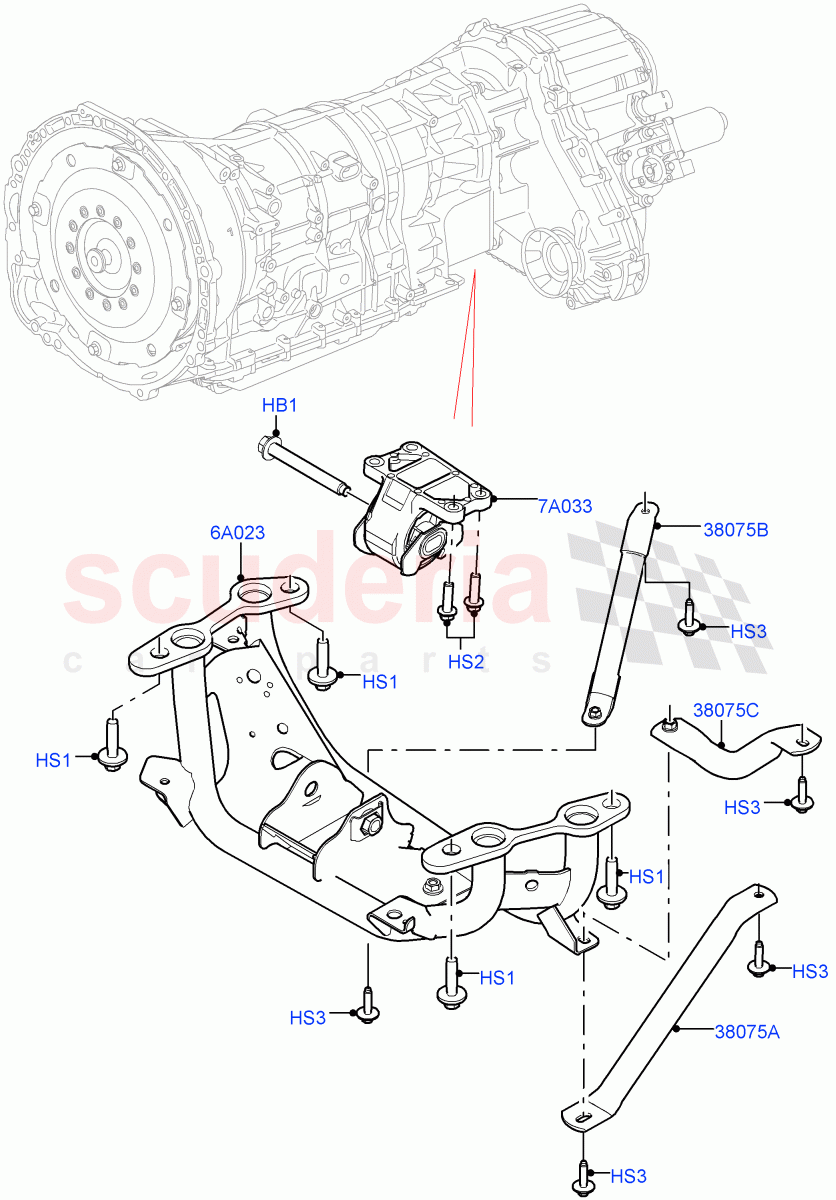

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	KYG500200	BOLT	$3.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072612	SCREW	$2.76	To Order

Photo	Part No	Description	Price (each)	Stock
	FT110356	SCREW	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501170	SCREW AND WASHER	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084109	SUPPORT - TRANSMISSION CENTRE	$660.96	To Order
	LR099175	SUPPORT - TRANSMISSION CENTRE	$674.20	To Order
	LR105303	SUPPORT - TRANSMISSION CENTRE	$674.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081354	STIFFENER - TRANSMISSION SUPPORT	$130.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081356	STIFFENER - TRANSMISSION SUPPORT	$124.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038131	STIFFENER	$57.59	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	KYG500200	BOLT	KYG500200 BOLT Hexagonal Head, M14 x 110MM / From: HA000001	$3.21	1
HS1	LR072612	SCREW	LR072612 SCREW Hexagonal Head, M12 X 45MM / From: HA000001	$2.76	4
HS2	FT110356	SCREW	FT110356 SCREW Hexagonal Head, M10 x 35MM / From: HA000001	$2.41	4
HS3	RYG501170	SCREW AND WASHER	RYG501170 SCREW AND WASHER Hexagonal Head, M8 X 30MM / From: HA000001	$0.61	4
6A023	LR084109	SUPPORT - TRANSMISSION CENTRE	LR084109 SUPPORT - TRANSMISSION CENTRE Transmission / From: HA000001 / To: HA140241	$660.96	1
6A023	LR099175	SUPPORT - TRANSMISSION CENTRE	LR099175 SUPPORT - TRANSMISSION CENTRE Transmission / From: HA140242 / To: HA161341	$674.20	1
6A023	LR105303	SUPPORT - TRANSMISSION CENTRE	LR105303 SUPPORT - TRANSMISSION CENTRE Transmission / From: HA161342	$674.20	1
7A033	LR081531	INSULATOR - ENGINE SUPPORT	LR081531 INSULATOR - ENGINE SUPPORT Transfer Box / From: HA000001 / To: HA166035	$148.46	1
7A033	LR105425	BRACKET - ENGINE MOUNTING	LR105425 BRACKET - ENGINE MOUNTING Transfer Box / From: HA166036	$141.36	1
38075A	LR081354	STIFFENER - TRANSMISSION SUPPORT	LR081354 STIFFENER - TRANSMISSION SUPPORT From: HA000001	$130.64	1
38075B	LR081356	STIFFENER - TRANSMISSION SUPPORT	LR081356 STIFFENER - TRANSMISSION SUPPORT From: HA000001	$124.86	1
38075C	LR038131	STIFFENER	LR038131 STIFFENER From: HA000001	$57.59	1

Transmission Mounting (2.0L I4 Dsl High Dohc Aj200, 2.0L I4 Dsl Mid Dohc Aj200) ((V) Fromha000001)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]
